my objective is to give my casing a new look..
my proposal would be
1)change atx style to btx style..as this could improve the airflow of system
2)create window for top panel
3)rearrange my cable management
4)rearrange my water cooling system
5)upgrade system

picture will be uploaded shortly as i now capturing the image..

i have this project a week ago..but dun have time to write..now i try to log it as much as i can

the title for this project will be changed..i haven't think the name for it yer..so i put on my nick..ekekeke

This post has been edited by hermitage hemitate: Nov 22 2007, 07:31 PM

tools that i used..

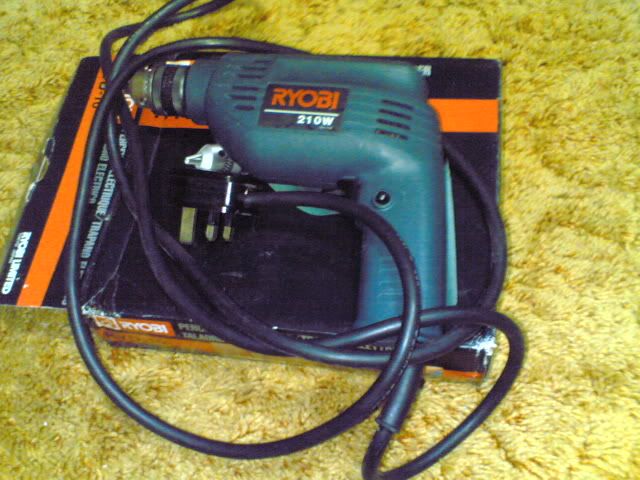

a drill..old one..i think its already 8 years if i not mistaken but rarely use

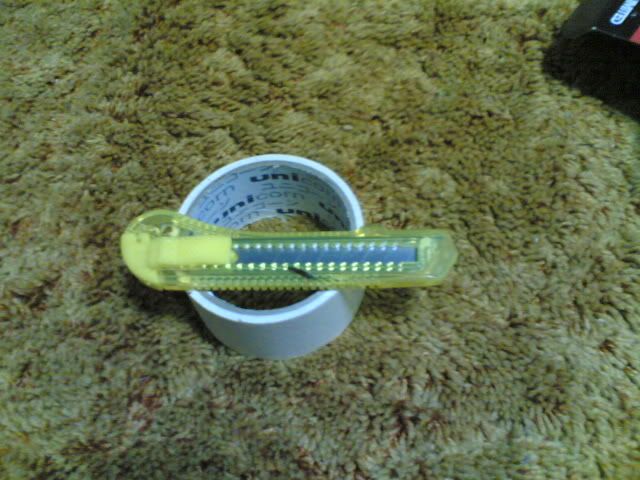

a cutter and masking tape...





silicon adhesive

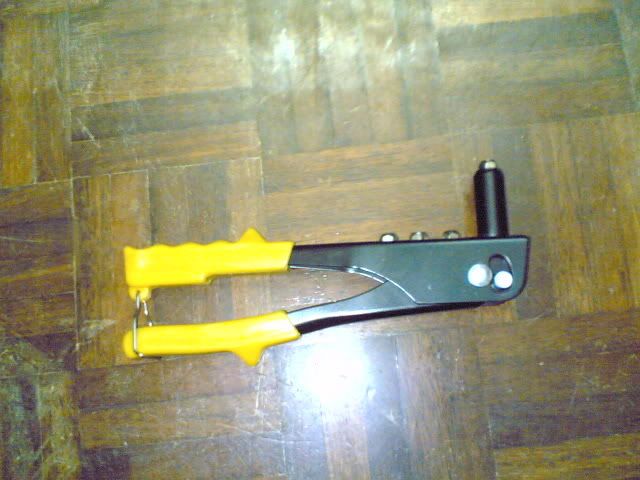

riveter..i bought from bombman..tq for fast delivery..can continue my works..

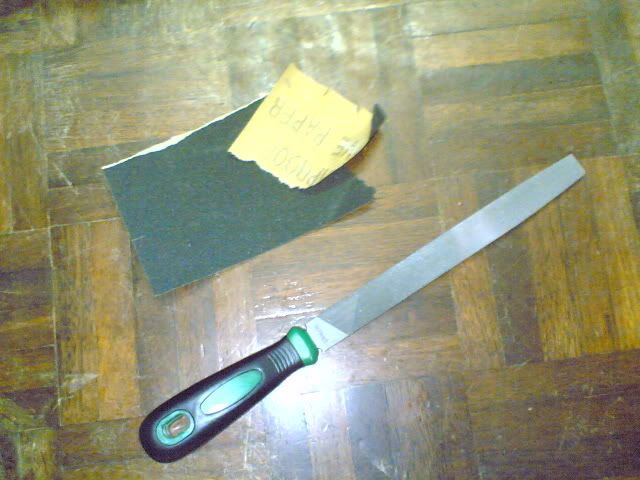

kikir and sand paper..for smooth finishing..

ok..when to start your project? huhu...hope can start soon...and update too..

the project already start..but i need to edit some picture 1st and arrange the picture

---

Added on November 18, 2007, 10:48 am

This post has been edited by hermitage hemitate: Nov 18 2007, 10:49 AM

i continue....ehehe..1st of all..i remove my water cooling set..

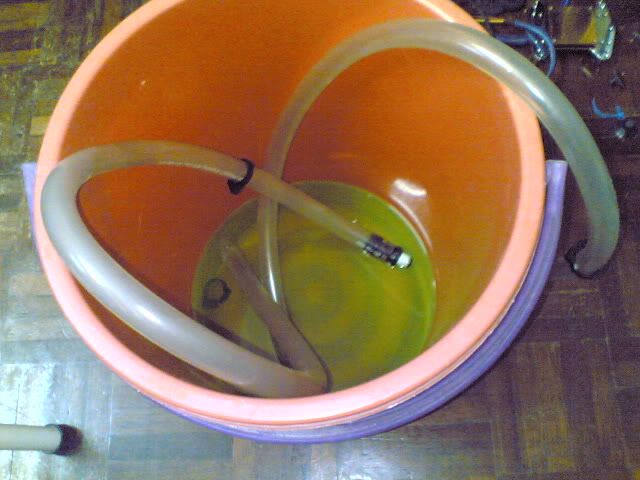

put all coolant into a suitable place..for sure my mom will ask for it

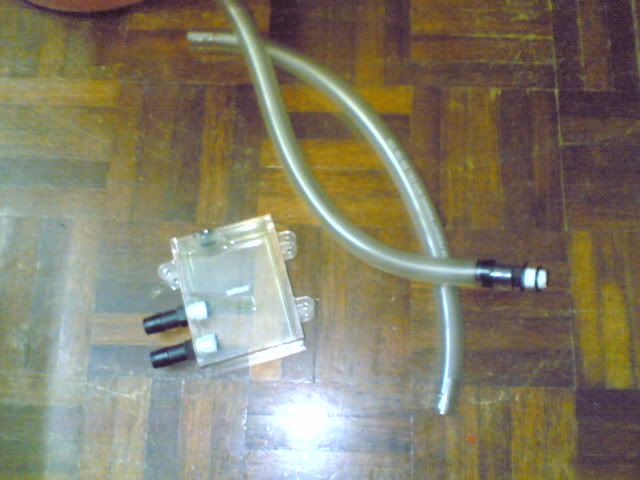

reservoir and tube has been removed..

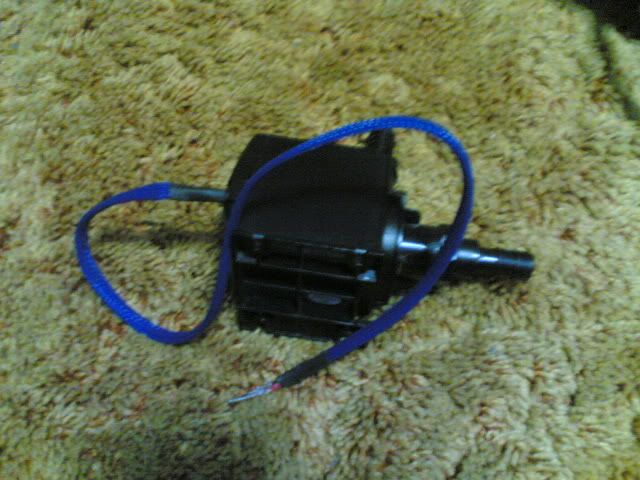

the pump...i wanna find a better pump..

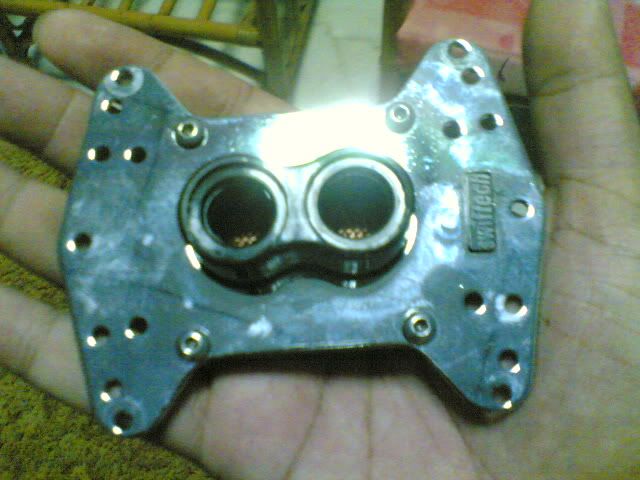

water block...need to lap the surface...haih

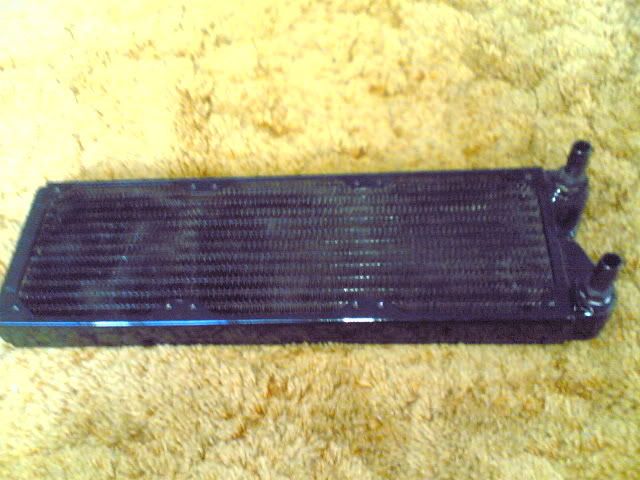

the radiator..bought from duo8668..
for full performance cooling system

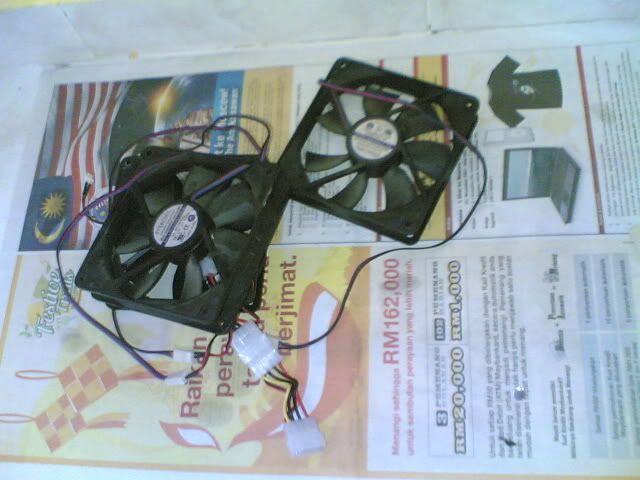

evercool's fan..silent fan...bought from moderno..





This post has been edited by hermitage hemitate: Nov 18 2007, 11:27 AM

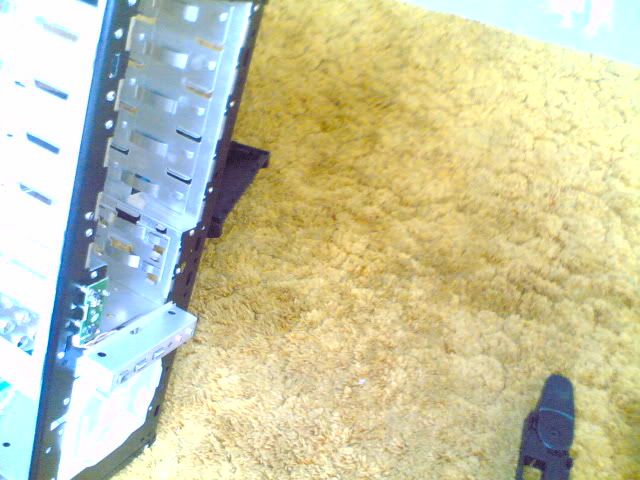

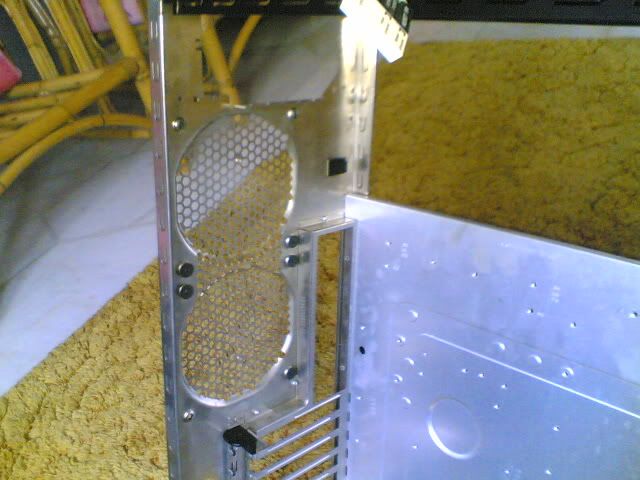

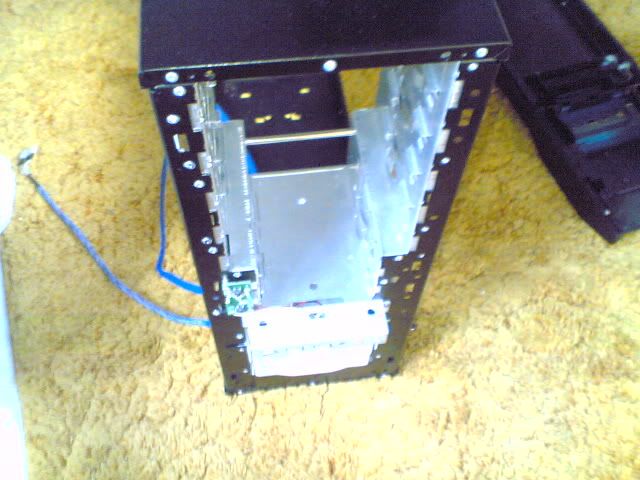

my casing after being remove one by one...
forgot to snap picture before the process..

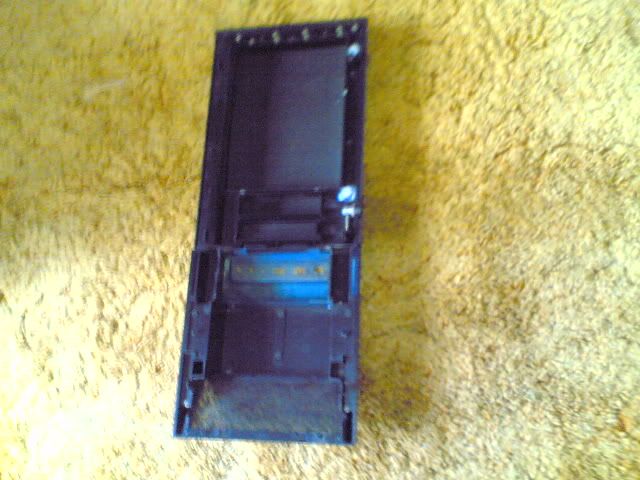

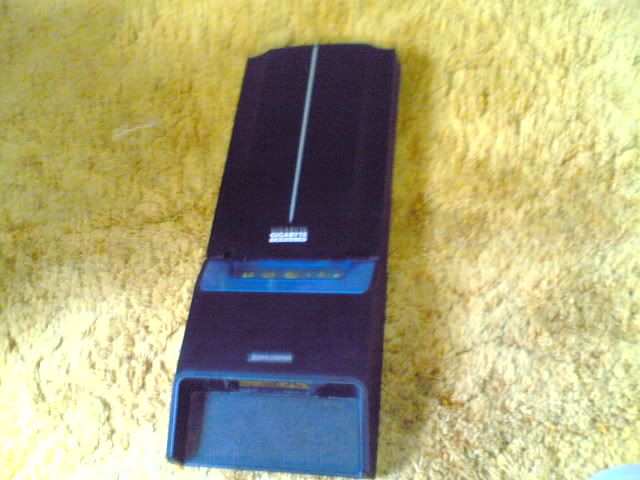

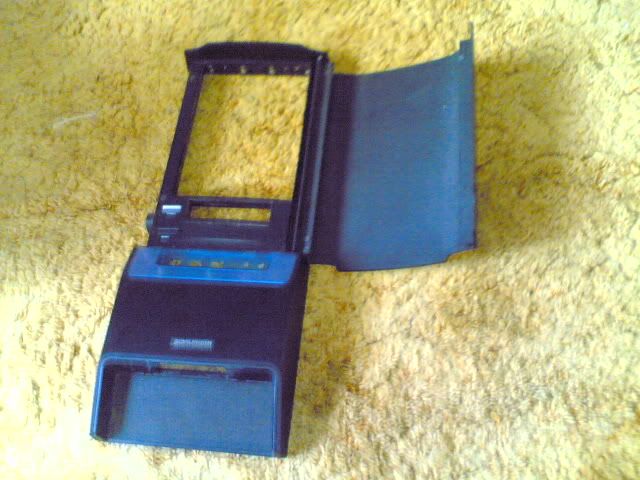

my front cover..yahoooo

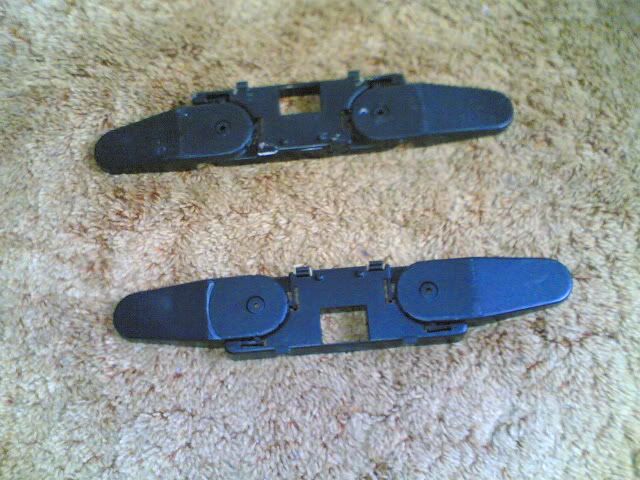

tapak...also being removed for convenient..

so many pic of parts arr..y not taking all in one shot??

i'm using my hp's camera..if take all in one show..less quality..so
i decide to take part by part...

good luck on your project. can't wait to see the results no doubt

cant wait to see your updates...I'm a gigabyte fan

support u bro

Cant wait to see the evolve

Btw good luck in your project hope to see the finish results , and remember the windows file it nicely with straight or nice curves , gurantee u be satisfied hell alot from what u achieved

tq bro..give me some time to edit some pic

finally..found someone as same interest with me
tq sifu

in progress..very soon

tq bro..but i decide to make it straight as i dont have enpugh tools


This post has been edited by hermitage hemitate: Nov 20 2007, 12:12 AM

it is the time to remove all the hardware..

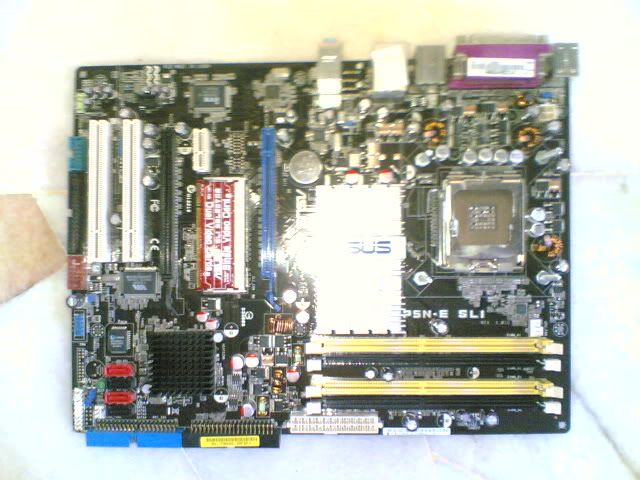

motherboard: asus p5ne-sli....btw..in progress to obtain better mobo

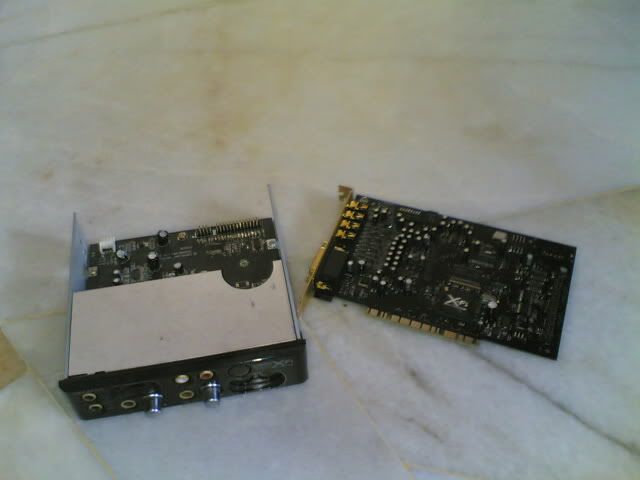

soundcard : creative x-fi platinum
