 Range Extender Daisy Chain

views

TSMatchy
post Dec 21 2024, 04:59 PM, updated 12 months ago

Regular
******
Senior Member
1,328 posts

Joined: Jun 2019


Currently my neighbour (shoplot, downstair) is sharing his internet with me. And I'm using an range extender to extend the coverage because my location is quite far from the router. (See diagram below)

user posted image

But unfortunately, even with the extender, the connection is not that good. I think it is because the extender is still far from the router.

I'm planning to add another extender that is closer to the router and daisy chain it with existing extender. Is this possible?

user posted image
matrix88
post Dec 21 2024, 05:16 PM

Look at all my stars!!
*******
Senior Member
2,236 posts

Joined: Nov 2007
Yes, can
But the speed will be slower at the end side
Aftermaths
post Dec 21 2024, 05:41 PM

On my way
****
Junior Member
601 posts

Joined: Apr 2012


Also don't expect the connection to be smooth.
andrekua2
post Dec 21 2024, 07:39 PM

10k Club
********
All Stars
13,484 posts

Joined: Jan 2012


You are doing it wrong.

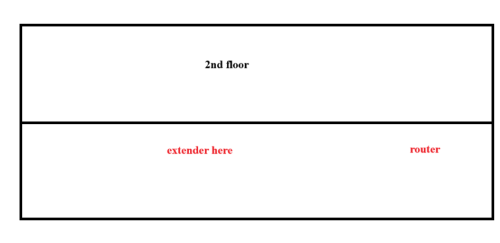

If you dont believe, try placing your current extender this way.

user posted image
TSMatchy
post Dec 21 2024, 09:21 PM

Regular
******
Senior Member
1,328 posts

Joined: Jun 2019


QUOTE(andrekua2 @ Dec 21 2024, 07:39 PM)
You are doing it wrong.

If you dont believe, try placing your current extender this way.

user posted image
*
Unfortunately, the lower floor is my neighbor and I can’t place my own extender there 😅
blacktubi
post Dec 21 2024, 09:42 PM

-
Group Icon
Elite
8,421 posts

Joined: Jul 2008

Use mesh solution instead of range extender

Range extender don't really have backhaul management, daisy chain them would just give you an inconsistent connection, I don't think it will be better than what you have now
anakkk
post Dec 21 2024, 09:46 PM

Look at all my stars!!
*******
Senior Member
2,119 posts

Joined: Apr 2013
QUOTE(Matchy @ Dec 21 2024, 09:21 PM)
Unfortunately, the lower floor is my neighbor and I can’t place my own extender there 😅
*
pay your neighbour electricity LOL

pull a fibre from his unit to your unit la, apa susah
andrekua2
post Dec 21 2024, 10:08 PM

10k Club
********
All Stars
13,484 posts

Joined: Jan 2012


QUOTE(Matchy @ Dec 21 2024, 09:21 PM)
Unfortunately, the lower floor is my neighbor and I can’t place my own extender there 😅
*
Pull a LAN cable to the router and run your own AP.
PRSXFENG
post Dec 21 2024, 10:35 PM

Look at all my stars!!
*******
Senior Member
2,613 posts

Joined: Nov 2020


every time you repeat the signal wirelessly you cut the connection in half

using repeaters like this will significantly compromise your connection speed

using a cable will be the best solution
SUSeds2
post Dec 28 2024, 09:07 PM

Getting Started
**
Junior Member
101 posts

Joined: Jul 2022
From: Kelantan

two-hop can cut the speed abit.

1. lan cable from router to your wifi ap/range extender
2. place range extender at the strongest wifi signal area, and connect lan cable from that RE to your room or to another RE
JLA
post Dec 28 2024, 10:08 PM

Look at all my stars!!
*******
Senior Member
2,792 posts

Joined: May 2008
use WiFi bridge not WiFi Extender
