My house all Eletrical on to max Test incoming Power only around 10A . Means i can change to 2Pole 32A MCB? Developer give now all 63A (1 x 2Pole MCB , 1x 100mA and 30mA) All 63A macam too much .

and after the 2 Pole 63A incoming MCB , the outgoing Cable is using 10mm not 16mm .

This post has been edited by 13aby: Jul 25 2024, 07:06 PM

Dont la like this bro

i not sure i clamp wrong or it really so low , 2 Airconds 2 WH this two is the biggest power eater i guess . Cuckoo , Air Fryer , Washine Machine and Fridge all On .

Or

i just follow back Developer 63A because i planning to change all to HAGER . and mayb the 10mm to 16mm

Advice please

ya thats why i feel weird also . mayb my clamp meter spoil

Using 63A incoming 2 Pole MCB and others 2 Main RCCB 63A also no problem? both is 100mA and 30mA now . Cable to 100mA and 30mA Developer give 10mm but the incoming TNB is 16mm . for the cable size min is 16mm for 63A

My is High Rise Property

This post has been edited by 13aby: Jul 26 2024, 09:48 PM

here is the photo of the incoming (Bottom Left) to two RCCB

so means i can continue use all 63A ya cox i planning to change all to Hager .

Bought from two different place , why color different?

I plan to change all to Hager , so i follow back all same 63a for the RCCB and 2 Pole MCB for incoming ya .

Sent , but no reply from them since ever haha


Yes i bought from Authorised Reseller / Distributor shop (Pentapower(M) Sdn Bhd (Puchong) & (CPE Electrical Supplier via Shopee). But they say use 4.5k is enough . Or should i change all to 6k as developer provide?

Ya i redo the reading correct already , 1 WH running around 14A .... Incoming is 16mm from meter but thn 10mm to both RCCB (100mA & 30mA)

For my WH , Developer no give RCCB / RCBO i added myself for safety .

means only use 1nos 30mA whole whole house?

The empty space is 2 nos RCCB 0.01 .. not yet install when snap this



This post has been edited by 13aby: Aug 12 2024, 09:08 PM

My neutral bar is separated by two sides , can i connect both side by tapping a wire? or need to replace a longer bar

U mean connect with a 16mm cable like photo ? 10mm boleh? Existing Neutral developer using 10mm for both side



This post has been edited by 13aby: Aug 13 2024, 10:06 AM

16mm i got spare , so i just tap the wire to connect the both bar ya

satu phase

just notice i dont have cutter size to cut 16mm haha , any recommendations for the cutter?

100mA removed and all now using 30mA RCCB

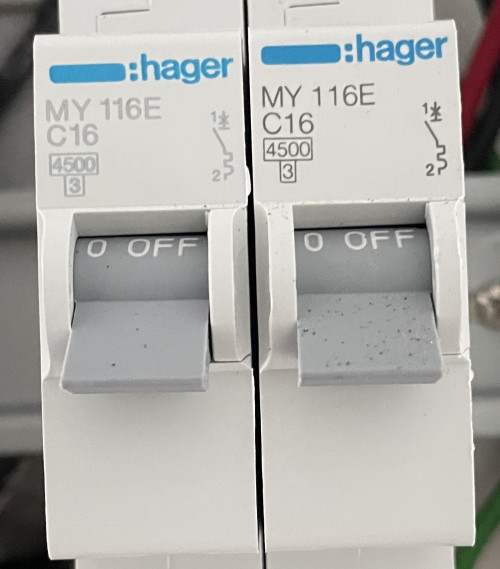

ya will change all to hager , previously i test bought two mcb from 2 different seller . one of it when power off V test 7.xx 😢😢 suspect is fake .... the other one test V is 2.xx perfect ....
