 Water Heater (MCB and brands)

views

SUSceo684
post Dec 29 2023, 12:53 PM

Component Burner
********
All Stars
11,667 posts

Joined: Jan 2003
From: Klang/Subang
QUOTE(FyChai @ Dec 29 2023, 08:52 AM)
The DB is ori set from developer, I just add on 3 MCB on left hand side for dry and wet kitchen. May I know is that call MCCB for my current 63A breaker? If I change to 100mA, do I need to upgrade or remain 63A?
user posted image

As per pic above, do I need to place 1 RCB for every floor? Or just for the cable which use for water heater?
Sorry lots of questions, i need more knowledge before asking a electrician to visit again. Previous electrician came to check and never mention about the 300mA of breaker and RCB until I find it myself.
*
The quality of components used are questionable if they already installed C16 MCB.

Your scope of work:

change the mains (entire house) RCD to 30mA.
install a new 10mA RCD for EACH WH (water heater) circuit.

You do not need a RCD for every floor.
Zot
post Dec 29 2023, 02:21 PM

Look at all my stars!!
*******
Senior Member
7,936 posts

Joined: Mar 2014
QUOTE(ceo684 @ Dec 29 2023, 12:49 PM)
30mA not 100mA. Otherwise still fail on the Final Circuit for 13A SSO 30mA regulation.

Regulation aside.. 100mA trips after the 50mA threshold..  whistling.gif
*
Opps... I thought I typed 10mA .... did not check before posting. blink.gif

This is for the water heater.

This post has been edited by Zot: Dec 29 2023, 02:22 PM
TSFyChai
post Dec 29 2023, 02:52 PM

New Member
*
Junior Member
34 posts

Joined: Nov 2016
QUOTE(ceo684 @ Dec 29 2023, 12:53 PM)
The quality of components used are questionable if they already installed C16 MCB.

Your scope of work:

change the mains (entire house) RCD to 30mA.
install a new 10mA RCD for EACH WH (water heater) circuit.

You do not need a RCD for every floor.
*

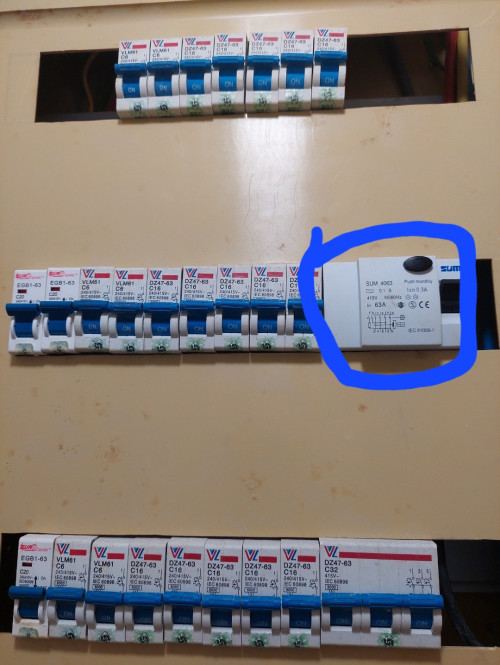

user posted image
Do you mean this one change to 30mA? Remain 63A?
May I know what type of breaker is this? RCCB?

This post has been edited by FyChai: Dec 29 2023, 03:04 PM
SUSceo684
post Dec 29 2023, 06:31 PM

Component Burner
********
All Stars
11,667 posts

Joined: Jan 2003
From: Klang/Subang
QUOTE(FyChai @ Dec 29 2023, 02:52 PM)
user posted image
Do you mean this one change to 30mA? Remain 63A?
May I know what type of breaker is this? RCCB?
*
Correct. Replace like for like since you have 63A three phase supply.
This is a RCD. The spec is 4P 63A 30mA (0.03A).
Estimated barang only- RM2xx for a good one from ABB/Hager.

https://shopee.com.my/ABB-FH204-63A-4P-300m...2787.3248905327
TSFyChai
post Dec 30 2023, 12:10 AM

New Member
*
Junior Member
34 posts

Joined: Nov 2016
QUOTE(ceo684 @ Dec 29 2023, 06:31 PM)
Correct. Replace like for like since you have 63A three phase supply.
This is a RCD. The spec is 4P 63A 30mA (0.03A).
Estimated barang only- RM2xx for a good one from ABB/Hager.

https://shopee.com.my/ABB-FH204-63A-4P-300m...2787.3248905327
*
OK, thanks for your explanation.

1) I realise the Main MCB only C32, its it enough? Weird that my RCCB higher Amp than Main MCB. Do I need to upgrade also?

2) I checked online 3 phase should be 100A, any way to know my house is 63A or 100A supply?

3) Wireman ask me to change aircond and kitchen MCB to 32A, but i checked aircond for 1HP is 8A, it should be sufficient for current MCB (16A) right? Do I need to upgrade it also?

4) Since I'm upgrade MCB of water heater to 25A and RCD needed, do you think I just buy the RCBO 25A 10mA better?

5) My house area has thunderbolt fallen history, My house get hit once before and the outdoor TNB cable spoiled. Will it easily trip If I use 30mA for main RCCB?


Since I'm hiring wireman to upgrade it, hope can setup the DB as good as possible, technician cost quite expensive.

This post has been edited by FyChai: Dec 30 2023, 10:14 PM


Attached thumbnail(s)
Attached Image
Skylinestar
post Dec 31 2023, 09:53 AM

Mega Duck
********
All Stars
10,472 posts

Joined: Jan 2003
From: Sarawak
QUOTE(ceo684 @ Dec 29 2023, 06:31 PM)
Correct. Replace like for like since you have 63A three phase supply.
This is a RCD. The spec is 4P 63A 30mA (0.03A).
Estimated barang only- RM2xx for a good one from ABB/Hager.

https://shopee.com.my/ABB-FH204-63A-4P-300m...2787.3248905327
*
my circuit breaker panel already out of space. how do i addon RCD? can i install it at the water heater switch outside my bathroom?
stormer.lyn
post Jan 1 2024, 09:05 PM

Regular
******
Senior Member
1,132 posts

Joined: Apr 2014
From: Shah Alam, Selangor
QUOTE(Skylinestar @ Dec 31 2023, 09:53 AM)
my circuit breaker panel already out of space. how do i addon RCD? can i install it at the water heater switch outside my bathroom?
*
Yes you can install near the water heater switch outside the bathroom. There are small casings that are meant to fit a single RCCB (2u size)
The other choice is to get a RCBO, and replace the MCB for the water heater that is in the DB. RCBOs are the same size as MCBs, and are meant to swap 1-to-1. RCBO are dual function devices, an MCB and an RCCB in one unit
