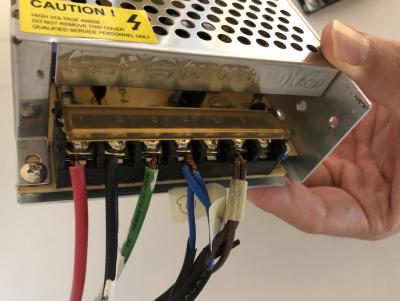

Old driver
» Click to show Spoiler - click again to hide... «

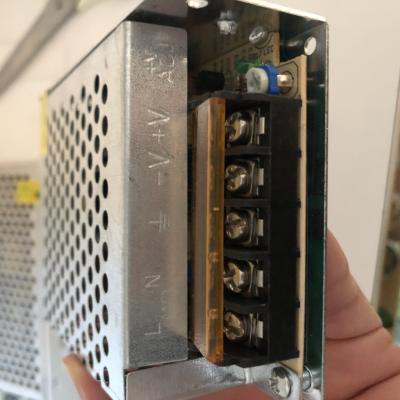

New driver
» Click to show Spoiler - click again to hide... «
How to Connect LED Driver to Light Strip?
|
|
 Feb 5 2023, 12:24 PM, updated 3y ago
Show posts by this member only | IPv6 | Post
#1
|

Junior Member
445 posts Joined: Oct 2008
|
Hi guys, any of you who are more electrical pros can help me with this? Am trying to replace this LED driver and got a new one from Shopee. But the thing is the new one seems to be missing a few 'ports'? Namely the 'CO' ones (the 4th and 5th ports)? Am not sure which port on the new driver I should connect the blue and brown wires to?
Old driver New driver |
Quote|
|
|
|
|
Feb 5 2023, 12:48 PM
Show posts by this member only | Post
#2
|
|
Junior Member
120 posts Joined: Oct 2007
|
QUOTE(subaiku @ Feb 5 2023, 12:24 PM) Hi guys, any of you who are more electrical pros can help me with this? Am trying to replace this LED driver and got a new one from Shopee. But the thing is the new one seems to be missing a few 'ports'? Namely the 'CO' ones (the 4th and 5th ports)? Am not sure which port on the new driver I should connect the blue and brown wires to? is it single color Old driver » Click to show Spoiler - click again to hide... « New driver » Click to show Spoiler - click again to hide... «  V+ to V+ V- to COM |
|
|
Feb 5 2023, 04:07 PM
Show posts by this member only | IPv6 | Post
#3
|
|
Junior Member
445 posts Joined: Oct 2008
|
QUOTE(sykong01 @ Feb 5 2023, 12:48 PM) is it single color Sorry, I don't quite understand what you mean?V+ to V+ V- to COM |
|
|
Feb 6 2023, 01:12 AM
Show posts by this member only | IPv6 | Post
#4
|
|
Senior Member
1,132 posts Joined: Apr 2014 From: Shah Alam, Selangor
|
Brown to V+ Blue to V- On the new power supply subaiku liked this post
|
|
|
Feb 6 2023, 09:41 AM
Show posts by this member only | IPv6 | Post
#5
|
|
Senior Member
1,132 posts Joined: Apr 2014 From: Shah Alam, Selangor
|
If the old power supply is not functioning, and you are in the Klang Valley, may I have it? I'm learning how to repair switched mode power supplies.
|
|
|
Feb 8 2023, 09:35 AM
Show posts by this member only | IPv6 | Post
#6
|
|
Junior Member
445 posts Joined: Oct 2008
|
QUOTE(stormer.lyn @ Feb 6 2023, 01:12 AM) Brown to V+ This worked! Thanks so much! Blue to V- On the new power supply  |
|
|
Feb 8 2023, 10:38 AM
Show posts by this member only | IPv6 | Post
#7
|
|
Junior Member
445 posts Joined: Oct 2008
|
QUOTE(stormer.lyn @ Feb 6 2023, 09:41 AM) If the old power supply is not functioning, and you are in the Klang Valley, may I have it? I'm learning how to repair switched mode power supplies. Hey, yours if you can pickup from my area.. pm me? |
|
|
Feb 8 2023, 10:45 AM
Show posts by this member only | IPv6 | Post
#8
|
|
Senior Member
9,045 posts Joined: Jan 2003
|
Read the symbols and follow back. Old and new ones same.
|
