Here we goooooooooooooooooooooo. After tokin bout the A10 BTX style for so long I finally got a chance to play with it n do it. Here's a brand spanking new A10. Totally untouched n straight to my operating theater.



Here it is still in the box. Just arrived straight from ATE.









The beauty is out of the boxxxxxxx.

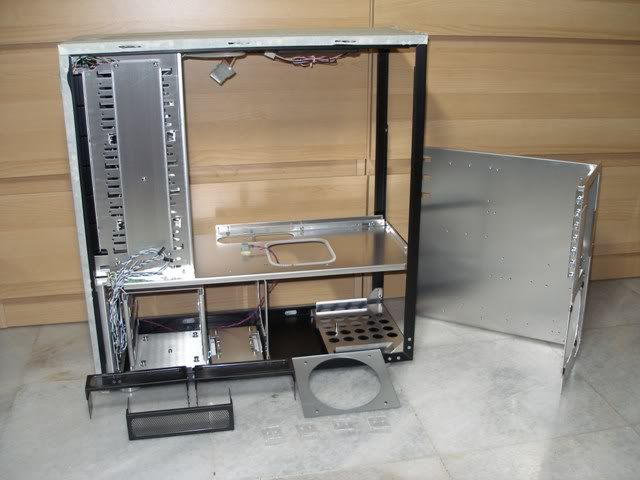

Stripped out everything so I can start analysing how to do the BTX style mod.

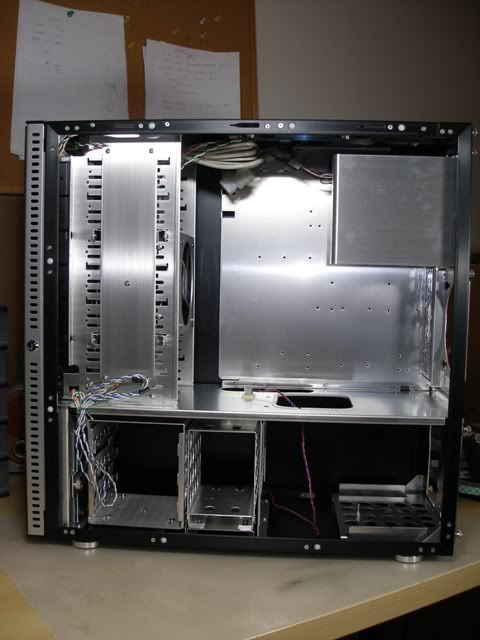

Tadaaaaaaaaaaaaaaaaaaaaaaa. BTX style almost done. Lotsa precision cuts involved. All that's left to do in this pic is to mount the mobo rail.











I then moved on to the smaller stuff. Front rom slot mesh mod just like the 1's I did for my old King Kong. 120mm intake fan plate on the inside of the rom slots. Here's all the stuff I just masked n marked ready for cutting tomorrow.






Will update again as I go along. Just in case u guys are wondering y I call it Gila Monster. It's because it will be a Gila Monster with monster specs. Howzabout an E6850, 8800GTS SLi, Ballistix rams, OP750 PSU? Sounds good eh? Hang on for a wild ride on the Gila Monster.

dem... those pics and the descriptions make me drool d

Wowww....new project....

i wish i can have the A10 mobo plate..

Nonid to drool mate. ATE welcomes u anytime.





Y do u want the mobo tray?

I want those mobo tray cuz im planning to build a new case..


Btw,the mobo tray doesnt have to lian li or etc,as long as it is alu..

OCZ, since you're building your own case, why not build your own tray as well...

wah cannot wait for the side window and hardware to fit in.............

well mobo tray is difficult to made, i was thinking of getting 1 too either from lian li, CM or SS

Aiyar..I thought its going to look like this....



ps: Ian... show some pics on the details on how you mount the mobo tray ler.

So, uncle wat stuffs will u use in this project?

Gila monster vs King Kong II XD

Oredi stated the specs in 1st post. It's a gila monster but it ain't King of the Jungle. King Kong still wins.

why u never name it godgila instead ??? no offense ar God........... but somehow i like the term very much since Godzilla age..........

btw i notice there is a straight column on the side of 5,25" rack there, what is it for ?? looks cool though

That thing is for the LL toolless rack n also they hide the front panel wires behind it.

Hmm, P35 or 680i mobo?

Wah..nice casing u got la uncle...high class casing...not like my itik casing..huhu...

What do u mean by gila monster? what is the concept?

i think the name Gila Monster came from Star Wars. the monsters from that swamp in Dagobah where Luke met Yoda am i right ian?

The specs stated in 1st post.


Gila Monster is a kind of lizard. Look at Sniper on the roof's posting and u'll see the Gila Monster there. It's actually pronounced as Heela Monster.

actually i dont get what is the BTX casing design...sorry ya...
i'll go google now..
but i hope u all can share share bout what is actually btx..
i only know atx>m-atx>mini-itx-pico-itx...but btx..no clue..

I wish I have the money to get this case too...should be nice if I also can mod it to BTX style...

anyway...Uncle ian...another great mod from you...but why this time not much photo on how you mod it to BTX style?...no taking photo while doing the mod? come on uncle...drool us with the photo...

oh right hehe...been watching too much star wars i guess
BTX style is basically just the motherboard tray flipped upside down with the graphics card HSF facing up. so you can look at it from the top panel. well at least that's why i like it so much

This post has been edited by Ryo: Oct 10 2007, 03:14 AM

I've been extremely bz with a few casings all lined up in the clinic waiting for the mad doctor. I've also got a few items to review. Bz bz bz. So I tend to forget to snap pics while modding coz I'm concentrating more on finishing up the work rather than taking pics. Besides, the BTX mod involves a whole lot of dremelling. I dont like using my camera while doing dremel work as the dust is extremely fine n will make it's way into the sensor n then it's bye bye for the camera.

wah need dremel to mod into BTX, i tot drill a few holes should be fine already............ must have miss out quite some details last time when i have a good look at the unit at ATE........

uncle u can always buy a water proof casing for ur camera........ but it extremely unconfortable.......

Drill a few holes? Lidat nonid the mad doctor lor.

hey bro ian (edited) my bad
are u going to mod the sidepanels as well?

This post has been edited by kerryking: Oct 10 2007, 02:29 PM

ehh how u change the mobo tray towards side?

well originally it was ATX style.

Ur edit very fast. The stock A10 is ATX. I modded n turned the mobo tray around to BTX style. The side n top panel windows, havent decided on that yet. We'll see how it goes.

Bro ian like the BTX so muchhhhhhh~ All those new mod work also BTX style

Ya lor. Coz nowadays gfx cards are much hotter than CPU. With the BTX style mod, the CPU get's to stay cooler at the bottom while the gfx cards heat will just stay above it n get exhausted out the top. Also get to show off the nice gfx cards on top while having a cooler system.

yup, totally agree... but now cant show my pretty gigabyte girl liao... cos beavis is with a new owner now!

mod ur new mini case to BTX too lor........... hehe

SG03 in BTX XD

cant get a mini case here, but will get one in Aussie when i go there la
mod to btx ah? can mini case mod to btx? have to ask sifu Ianho that la...

cant wait to see your update, keep it up man~

Imagine how the sata cables have to reach the HDD bay...

you know what is the simplest way is ??? turn it upside down and u have a BTX case .. hhahha .. what a lame joke ..

btw.. I would really love to see if anyone sent their tiny mini m-atx case to uncle and let him shows the magics.

Ah..This recalls me, uncle, tempt Sniper69 to mod his A10 to BTX as well..

He had been tempted since getting one..LOL..

Updates.............................. the parts r all ready for assembly.

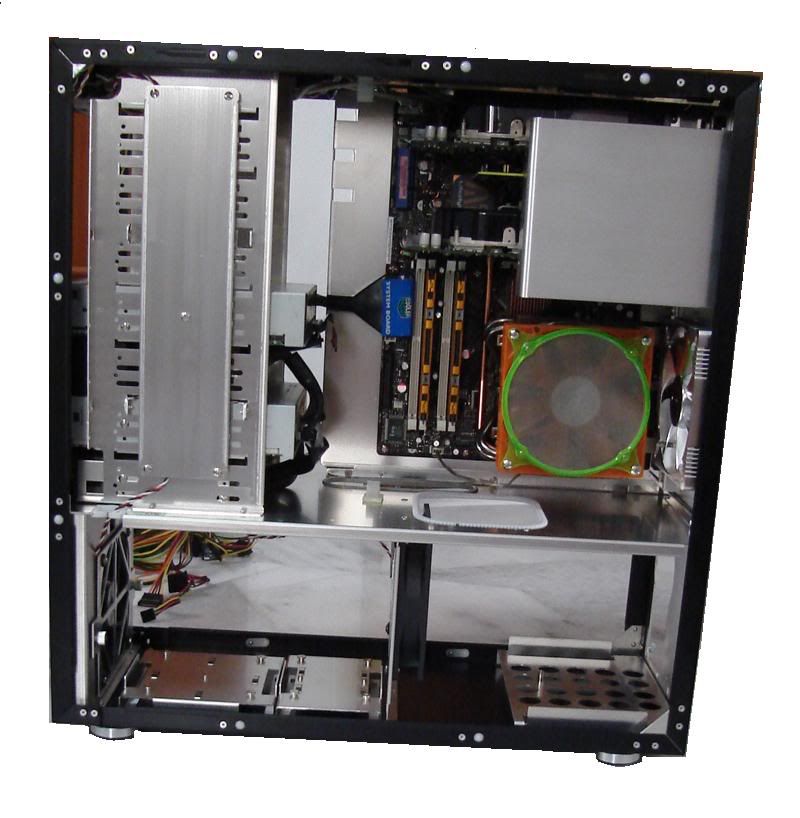

The BTX style mod is now complete with everything installed.








More updates coming soon.

mana all the bling bling stuff......... hehe

show us the side panel, i am very interested to see what the mad doctor prescription for this plain ah lian.........

What I'm more curious is the cables are gonna be route....

I route my cables through the opening nearby the HDD cage ...

however as it's modded to ATX style the cable would looks so visible if route through the opening nearby the HDD cage ...

Is it gonna be like that .. or there's some trick further ,,, make opening on the other side as well ???

hahha will find out when Uncle post more photos.

Uncle will always giv u a surprise!

Here's the sweeeeeeeeeet hardware going into Gila Monster.










Hardware almost completely in.

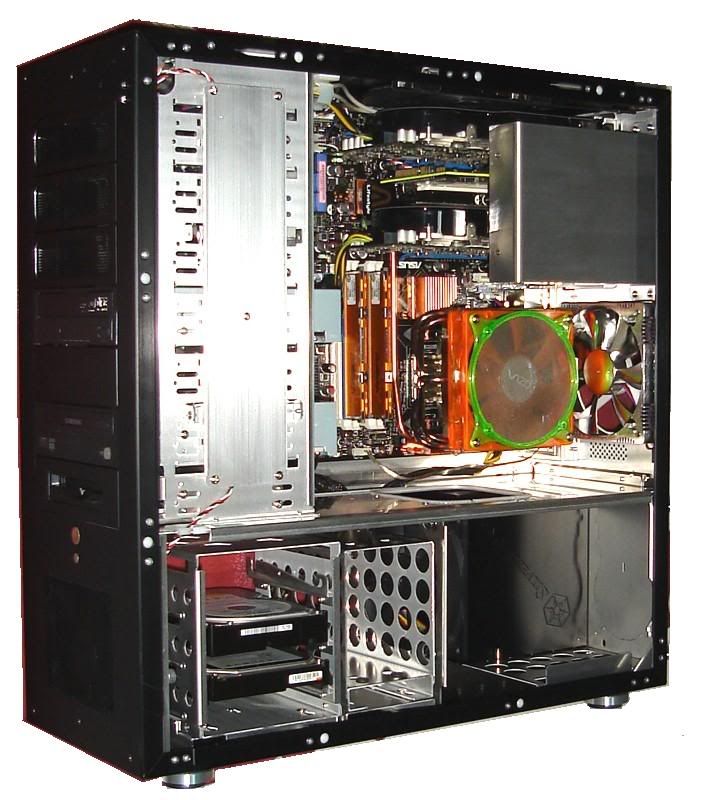

Done. Hardware all installed.











View behind the front door. U can c the modded intake slot covers at the top. The intake fan is behind it. Used an Evercool Aluminum fan for plenty of airflow to the 8800GTS SLI.










Closed off all the intake holes on the front door with air filters.











The outside of the case is just plain stock looks................... for now.










Gila Monster is done. Who knows, later may add side window n top window too. For now, it's the ultimate sleeper look. Stock looks with monster internals.

This post has been edited by ianho: Oct 25 2007, 02:17 PM

hahaha .. so this is mADmAn new case ... hahah he finally moved on ..

but seems to be on the same pattern as me .. the case I changed after GT7 was A10 .. but never mod it ...

good job there uncle with the BTX style ... I bet the temperature issues are solved with the fan placed within the ram slot...

Can i ask a question here??How about the top panel fan?Izzit it still at the same place or it had removed to other place ?? i just curious about that because this casing top panel fan look like "eat" some place that to put the hardware..
thanks for that : )

actually u were right about the front door of the A10. it seriously blocks airflow. with door closed the temps are the same as the GT7...mebbe minus 1-2 deg only. but once open the door everything immediately starts to drop an additional 5-6c!

the top fan has been removed. due to my SLI config and the 8800GTS cooler being blardy thick. cant fit...ngam ngam hit the fan but if ur using single card confirm can fit. or if ur SLI is using a thinner cooler oso confirm can fit.

that's one of the reason that makes me given up the case regardless how wonderful other features are ..

I really don't understand why would the closed door make so much of difference where there are so many holes along two side of the door ...

oh yeah....the other day someone was asking how the sata cables gonna reach right?? answer is simple... u buy LONG sata cables...



the blue cable is the sata cables.. i bought 1m long.. actually i think 75cm oso ok liao...

madman what is the small box down there...... i have not notice about that when i was looking at the case in ATE

Got box meh ??? why cant I spot it ??

if u are referring to the square box beside the HDD cage, that should be the vertical HDD cage ..

I hope u are referring to that else I don't see any other box thing at the down there ... hahaha

yeap im refering to that, Doom.......as i somehow have never saw it or i have miss it......

where can i buy dat long sata cable?

yeah , im gonna ask the same thing whr to get that long sata cable ? had a messy cable management .. if i live near uncle ianho .. probably sent to him liao T_T ... and my money will drain faster than usual .. ... X_X

bought the sata cable at the shop behind ATE.

thhey even have right angle sata cables... but 75cm long.

the blue one i have in the pic is 1metre long. and no right angle..all straight angle.

really?thanks bro..gud info!

p/s:waht is the price for those long sata cable bro madman?

rm25 per piece for the blue one im using.

thanks lagi! heee..will go there to find the black 1 for my casing..

lemme know if got black 1m sata cables.....

i didnt see any black there when i bought mine...only blue and grey.

Hi mADmAN, Care to share photo from the back panel of your A10 case. Just curious to know how your rear 12cm fan and the case lock turns out. Thanks

sorry dude....dun have pix of that one....if wanna take have to unplug all my cables and remove the case from my table...damn leceh. and i aint that rajin.

but basically it looks like normal A10 only terbalik la..

Hi, how much it cost you for your btx conversion ? Actually I have the same case, thinking of doing the conversion myself or send to Ianho. Just want to know the kind of work that is involved before I proceed. If you can take a picture even without removing those cables also will do. Thank you in advance.

cant bro,....really needs to be taken out...my camera sux...so kinda have to...

best u ask ianho about the price...not my place to say

well it kind of difficult to convert to BTX if u dun have the proper driling tools and workmanship i can say...........

the rail need to be remounted and a few more small item need to be relocate something like that......

precision cuts involved as well in order to be able to slide the mobo tray in.

anyway.....heres the best i can do for u...i took a pic fromm the Lian Li website and edited it with MS Paint. doesnt look exactly like this...but just to give u can idea of how the backside looks like.

dude, i duno wheter asking a question is suitable or not.. cause i really bad in my art and creativity, so u you give me an idea how to modify my white P4 ATX casing, i have no idea wat to do at my side panel there,this casing currently carry E6850, 8500GT, 2xIDE DVDRW,CDRW, 2xSATA HDD and a gigabyte mobo lo.. can teach me moding idea? my casing i attach in the ic below.. i will provide more if u needed.. i really no idea to mod it

This post has been edited by duncan880409: Nov 11 2007, 09:29 PM

wrong place to ask.... pls open a thread in the case mods main forum and ask for ideas.

madman, does a10 come with predrilled hole for water cooling ?? ..........



This post has been edited by LExus65: Nov 12 2007, 06:39 PM

yeah at the top of the case.... but they say the damn thing doesnt align with any radiator...so its practically useless.

but i aint sure about that since i aint interested in watercooling

madman,i see in the pic,u use some adapter for PCI-e connecter to make it a bit long.can i know where can i get all those connector@adapter?sorry for asking here.. actually,i think i need all adapter to make all my usb,psu,pcie..all wire from my psu to make it a bit long..

no adapter used la ... my PSU cables are long enough

look again properly

nuttin much....just wanna put all pix in one topic...

This post has been edited by mADmAN: Nov 29 2007, 12:16 PM

more pix.................

last part....

EDIT: got new stuff......



This post has been edited by mADmAN: Dec 11 2007, 01:20 AM

bro madman,i mean the pci-e connecter..look at the picture..



Attached thumbnail(s)

i know what u mean....thats why i asked u to look properly...

it is NOT an extension la....PSU memang come like that

Nice Casing la Bro Ian

alamak..a'ah la.. sorry madman..anyway,u got nice casing setup there..

Nice setup bro...poison me too much edi..

nuttin here...just updating the thread so i know where to find the stuff i need

the casing n keyboard look so evil, but living 4 blue sexy inside !!!

should have cut out the side panel... cool stuff u gt.. wasted if cant see.

u look properly at the picture of my worksation.... if i cut out my side panel still can see meh?? no difference...still cant see...

true also, but i can stare at those ram all day

Just wanted to ask, where can I get this case ? A10 looks sweet, plus modded by Ianho And how much is it ?

i think ATE got rite n try to ask niclasteoh he do selling lian li case

ATE is the place to find the A10.
