DC Moto 925W just press Blue + Red buttons to activate alert snd when receive command to open or close. Stop no snd lor.

i see so it is different from GFM905 whereby if gate open, keypad will beep beep sound

DCMoto 925W can adjust speed? Both of my gate does not have the same speed movement

developer already provide point and wiring.. vendor dnor caj me rm1580 for 880 turbo.. price reasonable?

Hi, I would like to ask what is the widest/longest available auto folding trackless gate in market now?

If not wrong cheapest trackless ready make is 21ft width cost about RM13K++ and custom type can go up to 34ft cost about RM20-30K

Std quoted market is about there for system only.

DC Moto 925W and Dnor Turbo 880 speed is all board control.

Any where to adjust it on board?

Can try restart the board by remove battery and off the main power 5-10 second on back hear 7 beep mean board start for the first time. Open the gate for the first time will be slow because board will adjust the gate pressure follow gate weight. Close back the gate will go back to normal speed. Other then that there's no other setting u can do.

Hey OP,

I’ve got a 2 channel works with ewelink module installed. Previously only able to use it via ewelink app and voice (Siri or Google assistant). However, i wanted also to use it within Apple Homekit. I realised that i have many other smart home devices that i wanted to unify under Homekit. So i got myself a raspberry Pi, and installed Homebridge. Then i added the ewelink plugin to get autogate into Homekit. I wasnt satisfied yet, because athough i could use the autogate in homekit, it wasnt showing as a garage door. So i installed the garage door plugin and linked it to the ewelink switch. Tada. Now when i drive home, on my carplay screen, i can tap the garage door, and my gate opens.

TLDR : Get Raspberry Pi, Install Homebridge, install plugins, and switch becomes garage door in Homekit.

DC Moto GSM925W no led status light. Not able to operate autogate. Got voltage from transformer to board. What could be the problem?

Thanks, may I know which plugin did you install?

I installed Homebridge Ewelink and Homebridge Dummy Garage

Hi bro, would like to get some opinion....

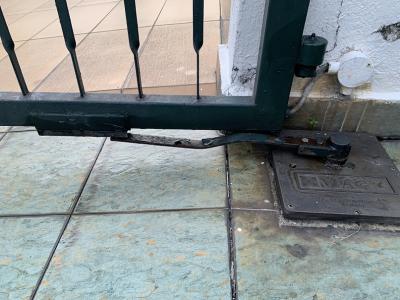

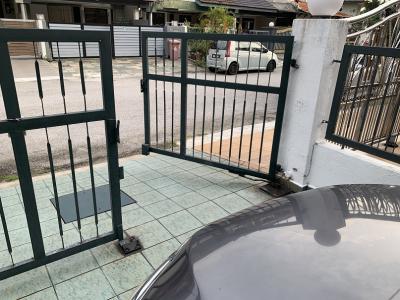

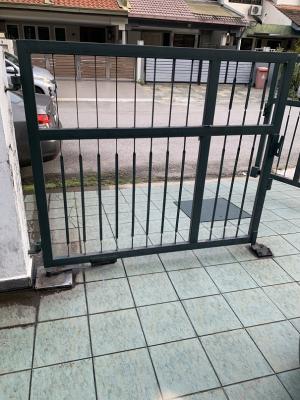

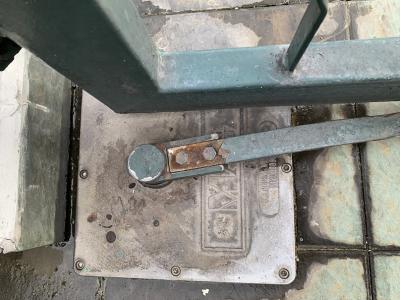

my FIL using this MAG underground for quite some time.....
recently having issue of unable to fully open/close....
need 2-3time to close it properly.....
since the system are quite old d, not sure if he should get technician to check/repair or change the autogate sytem(autogate system alone/autogate system+gate)?

jz searching around only do i realise there are underground/arm swing/bulky(Dnor880) type....
which type are more recommended and why?
any brand are more reliable for long term use?
if with pricing include installation, are much better for consideration.....
btw, if the installer come to install the new autogate system, do them get rid of the old underground system?

hope to get some advice on this.....
thanks in advance ya....


Attached thumbnail(s)

try increase the timer for open and closing on the pcb

actually the left side fully open/close(with some extra time)....but the right side is stop moving even the left side still moving....
last time the previous technician do increase the timer for open/close too because the right side moving too slow compare to left....
plus can hear the sound like the motor like half dying.....

use multimeter to check if got voltage output to right side motor on pcb; in my case, the wire to motor1 was broken underground, so have to replace the wire

If the old is very old already sometime is better to just replace it because u won't know what might go wrong with it after replacing one of the faulty part. Most customer would prefer replace the old system then replacing it because if one day u r in a rush to go out and the system give way again then headache already especially for old ppl.

For new system under grd seldom installer want to deal with already because a lot of work to remove the old system and install the new one. Arm screw type will be the most reasonable pricing and if u want simple use only open one or two n close. If Dnor Turbo 880 n DC Moto 924W is more on feature and better outlook n actually not very bulky because the arm is actually the slim type. Only thing for those arm screw or rotate u need a wider pillar to hold the motor bracket min 1 ft or u will need an extra bracket to add on to hold the motor bracket.

Normally up grade from under grd type installer will remove whatever that need to only.

Here is a sample of a recent project we done for our customer at Damansara Utama to replace his old under gnd system to Dnor Turbo 880

https://www.facebook.com/photo?fbid=5799686...799694033414218

If red led indicator no light mean no power supply from transformer. Can try connect to a new backup to see the board is still working or not. Once connect to backup battery and be able to work then could be transformer is faulty already. U will need to few part to hv std by to replace to test what is wrong. Normally is better to get installer to test because they will hv all the parts on std by to test.
