this is my current shower layout, the water comes from top and the switch is at bottom.. i just wanted a faucet at the bottom for easy wash leg



roughly this is what i want, instead of doing it manually, can u guys suggest any shower set that can cater this situation..



appreciate the advice/suggestion/idea in adance

Something like this?



Plenty from Shopee

This post has been edited by haturaya: Feb 4 2022, 12:39 PM

yeah, been eyeing, but the outlet/inlet doesnt match.. for example in the shopee the inlet is at bottom

This one comes with lots of variant. Better go to hardware shop to have a look.

Shower + faucet + bidet, etc

This post has been edited by haturaya: Feb 4 2022, 12:43 PM

i dont think you will able to add a tap at the bottom. The bottom 'switch' is probably a 'stop cork'.

you may buy those 3 in 1 (rain shower + hand-held + tap) and install externally. Probably need to remove 1 tile and cut off the supply to original rain shower.

agreed, i been searching and seems the stop cork can't be touch

so we have to play with 1 top inlet

the current plan is to find a top inlet shower set

I have just installed a top inlet shower set, HUN HRSS-906. But this model doesn't have faucet, only RS w/ hand shower. Just want to share my experience is that the water pressure reduced after installing this, probably the same main pipe is used for both RS and hand shower since water is coming in at top and diverting at bottom.

Get similar one but with external connection. I had mine installed and connect the pipe with flexible hose.

ty for sharing, i saw this while googling, but quite pricey, i'll will consider this

looks good, mind to share the model name or link

here you go
https://www.lazada.com.my//products/i320678...m3&urlFlag=true

previous picture was taken online, not taking picture from my own bathroom.

thanks buddy, its within my budget and i'll take a look

the one i bought is with 2 inlet, you may want to look into single inlet model.

Cheap and easy ...

Connect the water source from the toilet bowl or basin, or

this...




This post has been edited by mini orchard: Feb 9 2022, 09:55 AM

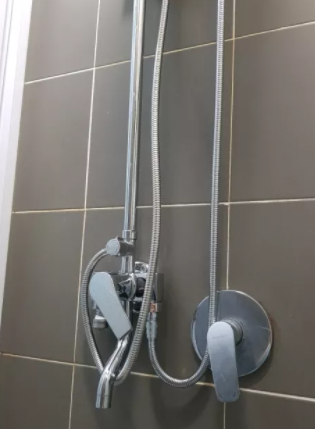

update; instead of using the shower outlet, i use the handwash faucet instead and convert to folding type as pic.. rm80 for the solution and solved the problem.. thanks all for helping

As long you are satisfied, there are solutions to a problem if you think out of the box.

nice!mind sharing link to buy?

hi. how do u control the whether the water only goes to the top rain shower or hand shower? based on the pic below, the valve is a 3 position (top shower - off - hand shower)?

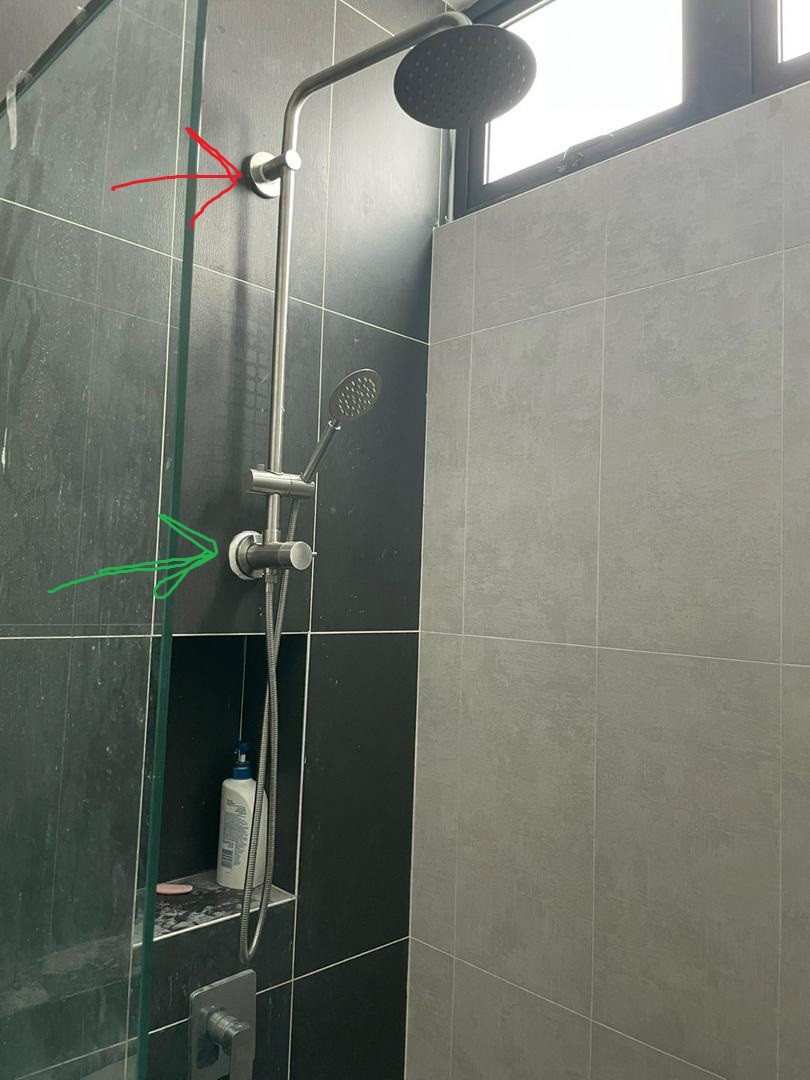

water outlet is from the top mounting point (with red arrow)? the ad says top supply but the pic looks like bottom supply (green arrow).
how do you adjust for clearance because the water supply pipe coming from inside the wall might varies in length?

shopee user review pic:
https://shopee.com.my/HUN-HRSS-906-Top-Inle...2440.2181115684

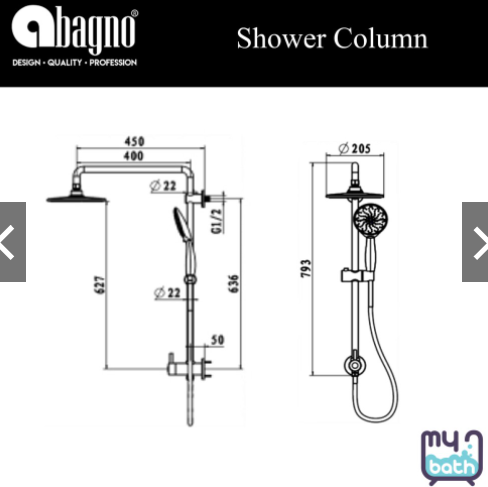

Another similar product:
https://shopee.com.my/Abagno-SPW-969-668-2-...2440.6571828704
Water supply at the top but the valve at the button. How does it control the top rain shower? Inside the big support tube, there's a small water tube that goes down, to the valve, and back to the top to the shower?



I don't get it unless both top rain shower and hand shower are both operating together when the hand shower is used, which makes the pressure low.

This post has been edited by Skylinestar: Feb 24 2022, 03:15 PM

It is stated in the spec it is control by a diverter.


This post has been edited by mini orchard: Feb 24 2022, 08:32 PM

I have the exact question as you before I purchase the item. Normally the diverter is at the inlet, so you can divert immediately as the water comes in. But it's different with top inlet shower system.

So to answer your questions:
1) Control water using diverter at the bottom: Rain shower - Off - Hand shower

2) The water inlet is at the top (red arrow). Bottom (green arrow) is just the round mounting plate, to screw into wall. But I used liquid nail to avoid potential drilling into water pipe behind the wall

3) I measured and used a faucet extender (10mm extender for my case).

4) Yup, I think that's the case, water from top goes down to the diverter and then if set to RS, then back to the top. I tried dismantling the pipe but couldn't see how it works unless I dissect it. I don't think they are both operating together
