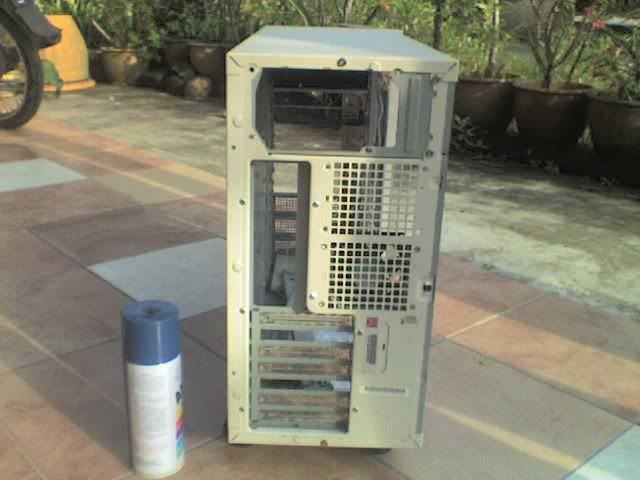

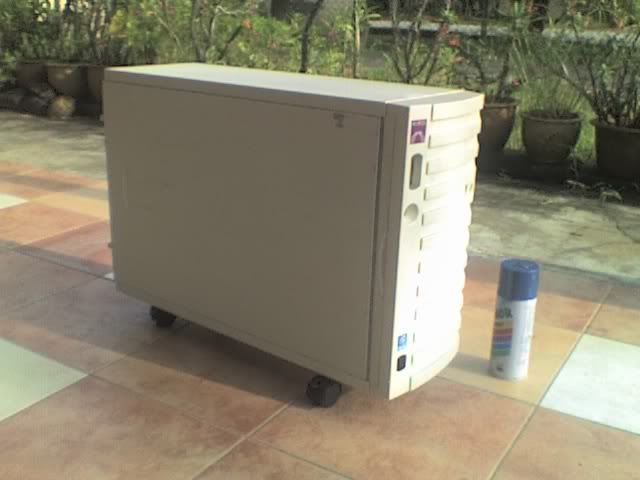

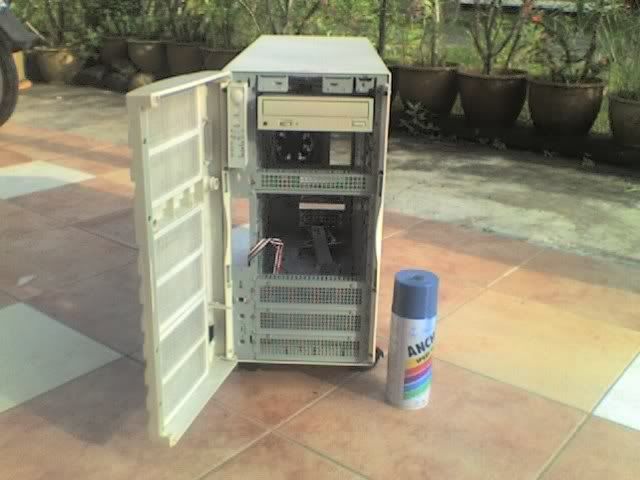

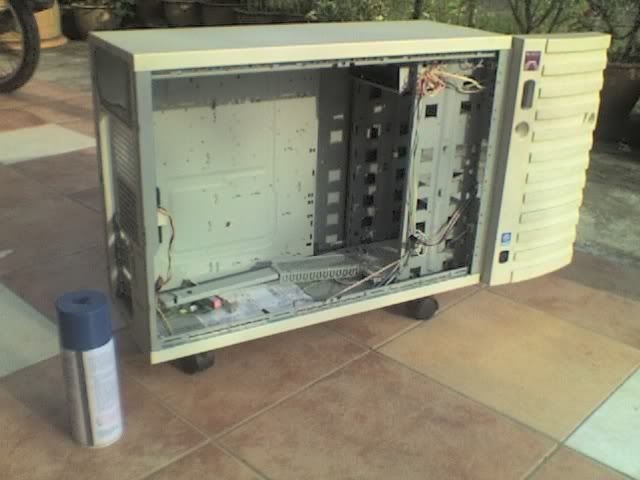

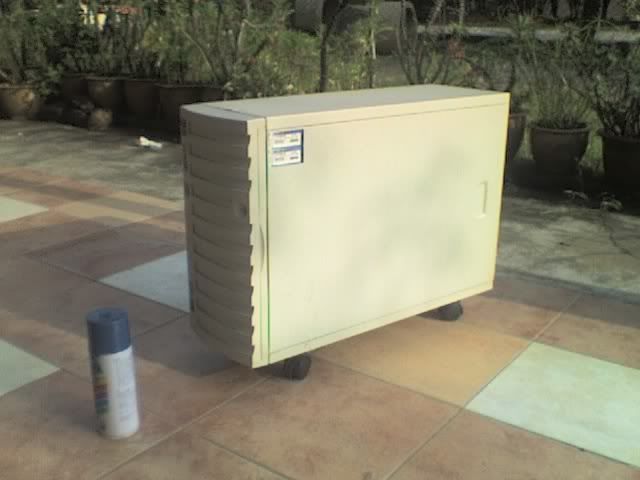

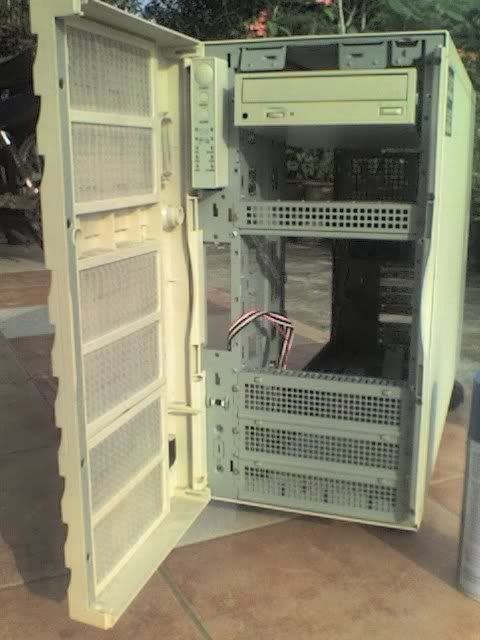

my unit head gave me a server case, MIMOS case... but its too big but can fit normal atx mobo and other normal desktop hardware... but i've no idea bout how will it look like after mod...













*sorry for bad image quality, taken using my Motorola L6 VGA Cam.

hope pros out there willingly so share some idea with me

This post has been edited by omara86: Sep 19 2007, 11:01 PM

built ur own super computer............ ram about 8GB, monitor 30", high end proc, SLi @ crossfire, 1TB hdd x 4........ put many fan... puas....

aiya~ that's too much zeny needed...

i'm planning to move my hardware to this case after mod completed...

::my pc spec::
AMD Athlon X2 3.0GHz 6000+
Abit NF-M2S
Corsair 1GB DDR2 667MHz
DVD-ROM
DVD-RW
80GB SATA HDD
80GB IDE HDD
Cap Itik PSU

and the fans detail in my current modded pc (not complete)
4 x 50mm fan (Back) (Combo Fan [custom]... 2 fans per pair... 2 pairs for 2 blow hole)
4 x 80mm fan (Different Brands) (Side)
1 x 120mm fan (Side) (LED)
2 x 80mm fan (Top) (LED)
2 x 80mm fan with circle CCFL (front) (Combo fan [custom].. 2 fans per pair... 1 pair for a front blow hole)

so i'm planning equal amount of fans in this server case... and no water cooling stuff (no money)

spray it pure black....inside and out...

cut out the fan grills for better air flow...

side window...

UV...

yummy


u do realize that hes asking ideas on HOW TO MOD THE CASING

NOT what hardware to put into the case....

I believe it is such a heavy casing there. Give it all black. Then a logo beside it with silver color.

heavy....good point...

so add some wheels for easy transportation

or carrying handles...

or both

i'll just leave it tht way. mod it will become no value.

why wanna leaev it that way? who cares about no value passion to modding it can transform to a kick ass case if mod nicely

erm...I think I saw wheels on the photo there...unless u mean put some nice and fancy wheel there...

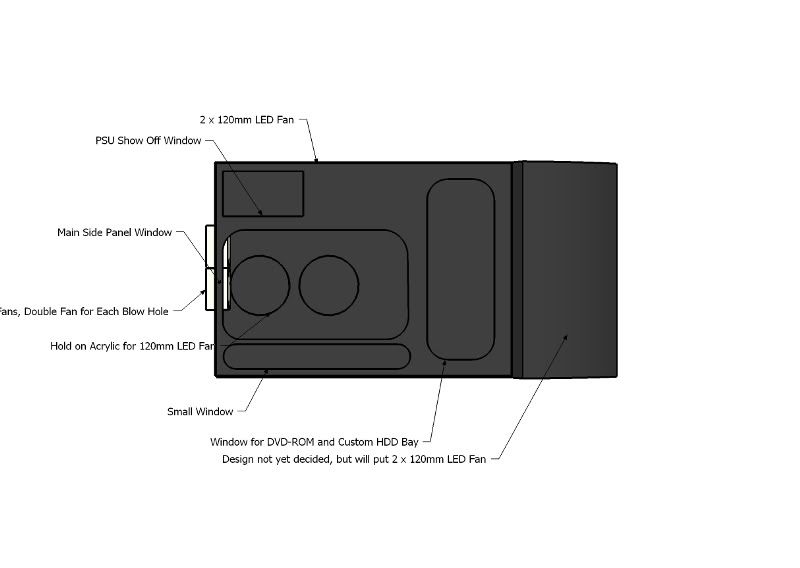

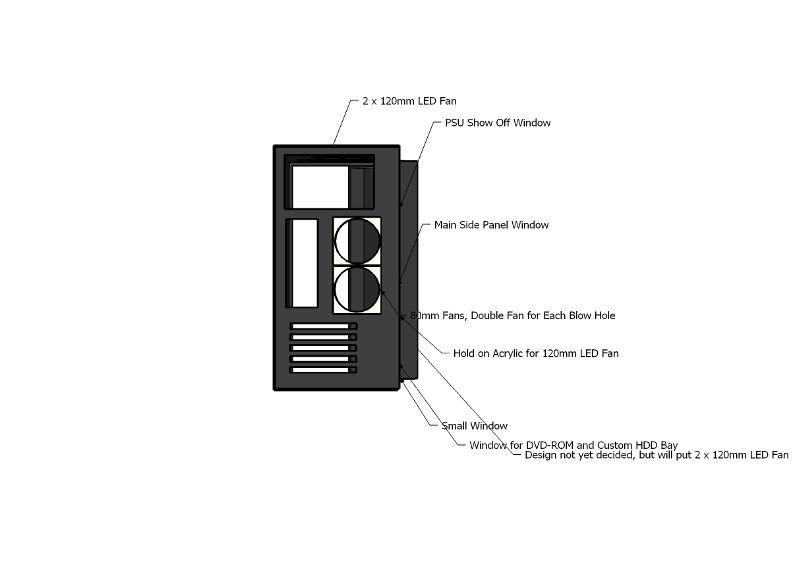

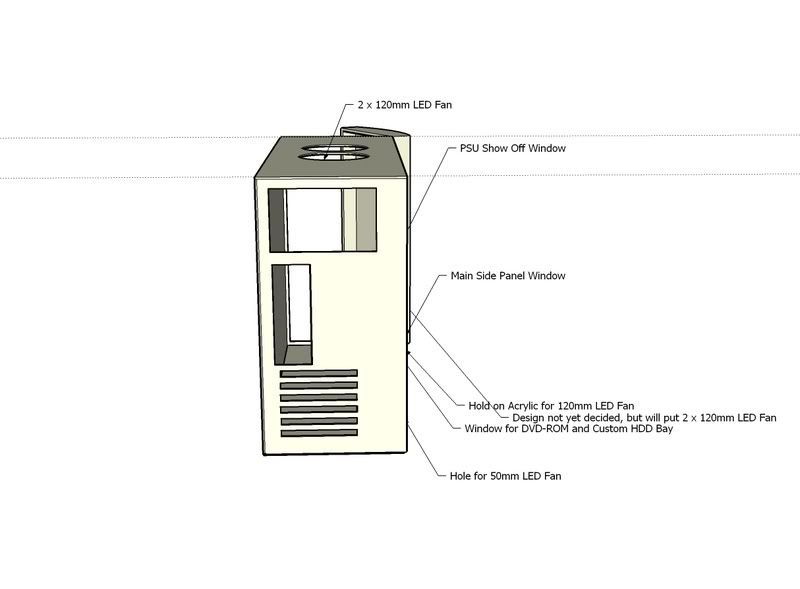

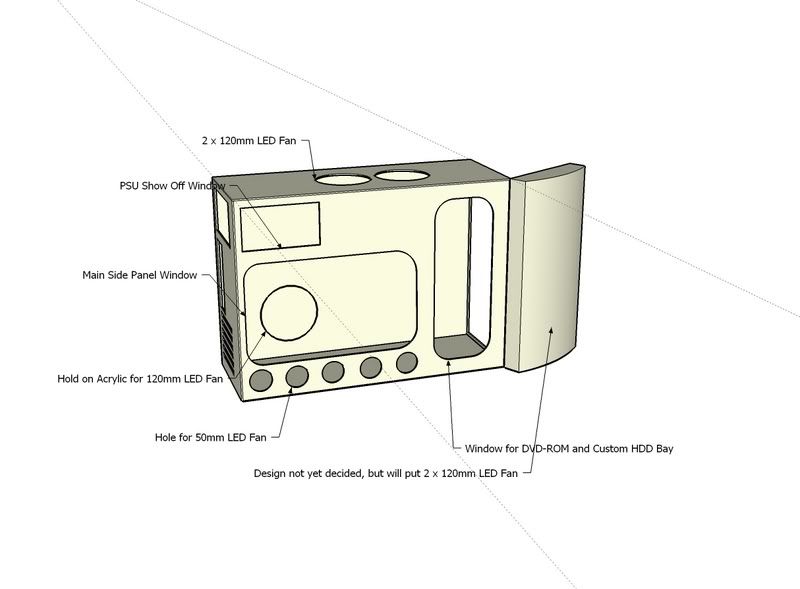

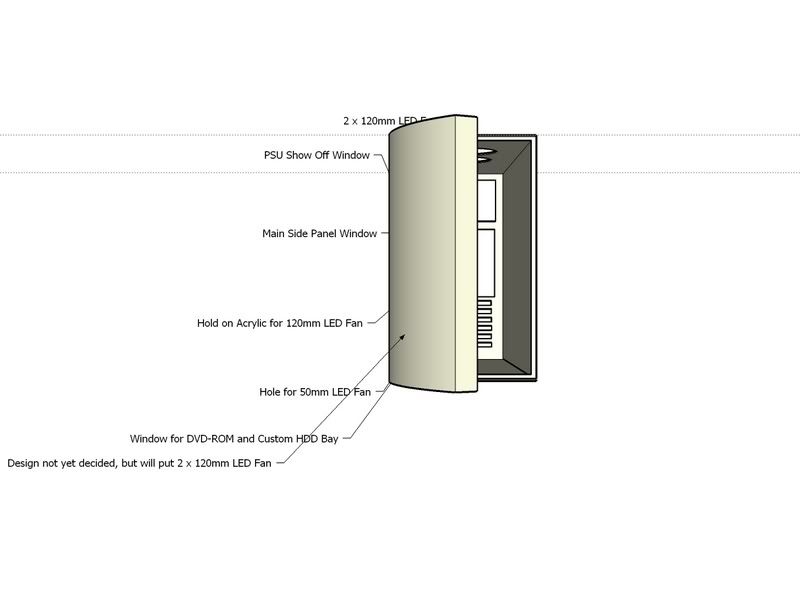

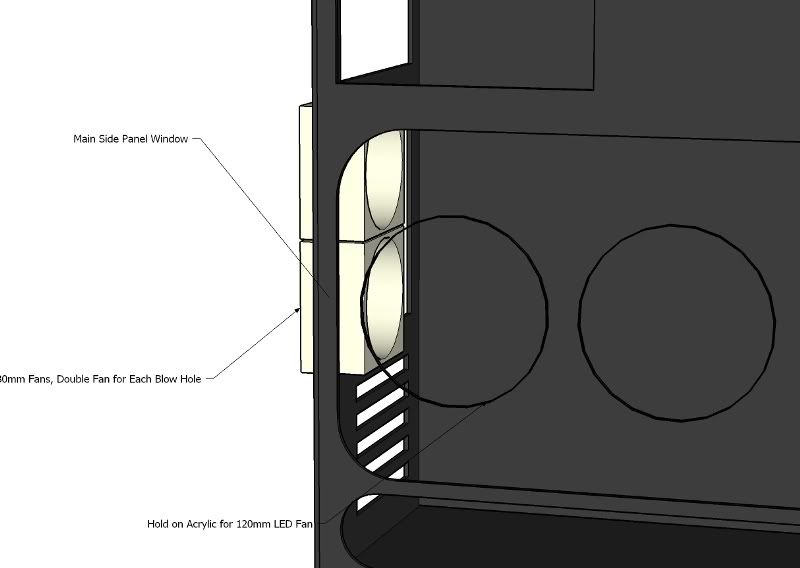

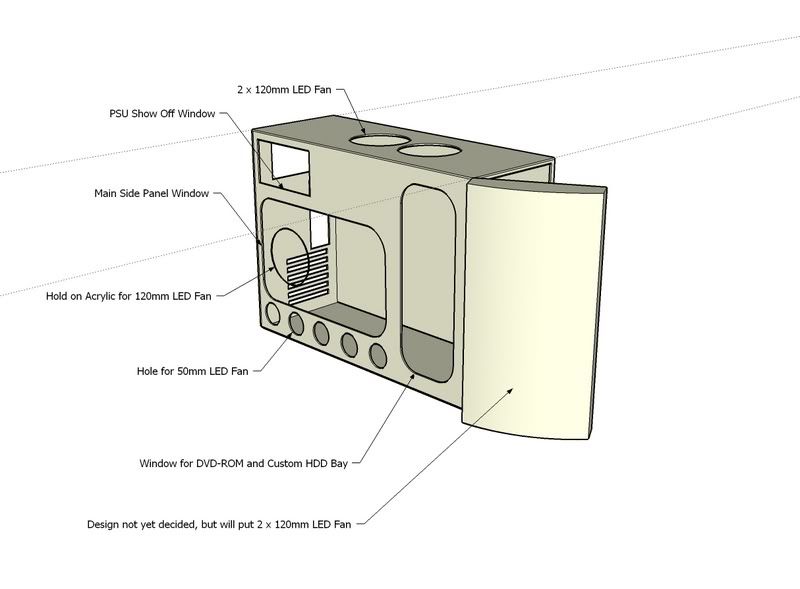

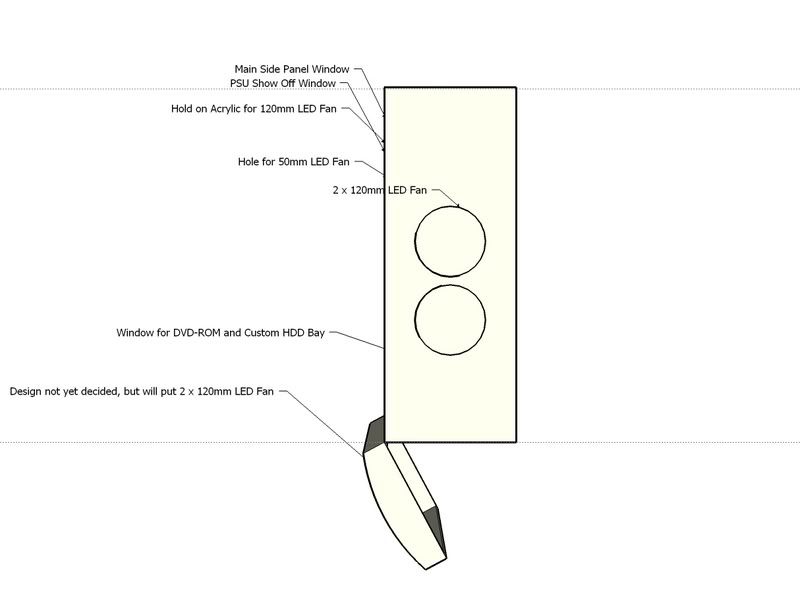

These model pictures are my ideas, comments and suggestions needed~











[1] color not confirmed yet, black is nice but my current mod is already black
[2] the front panel behind the "door" is clear and blank juz like the picture showed, nothing is there or mayb will put filter

Forgot to include in the drawing, there's a hole for 120mm Fan at the back of the case

This post has been edited by omara86: Sep 19 2007, 10:18 PM

waa..nice design bro..but since u r about to use many fans, i think u hav to throw away ur cap itik psu.. oso on the top..mybe u can add some windows so dat it will not look so empty..juz my 2cents..

forget the 50mm fans....itll be noisy...make another window in that area instead.

concentrate on using 120mm only. (except for the rear exhaust).

the front door, try and keep it as clean as possible. maybe make some intake vents or something. and mount the 120mm fans behind the vents.

i agree. try to make the front panel clean, possible to do
mesh+3pcs 120mm silent fan with bling2.

So had u make up what colour scheme wanna taruh?

yup..but u need a very good colour selection on the front panel..let it hav a clean n nice looking..

i agree with madman idea, concentrate on 120mm if possible, use 80mm after no choice.........

btw the casing is extremely long......very nice.......

why dun u cut the whole top panel clear then mount ur fan on arcylic instead, much better looking i said

edited: typo

This post has been edited by LExus65: Sep 20 2007, 03:37 PM

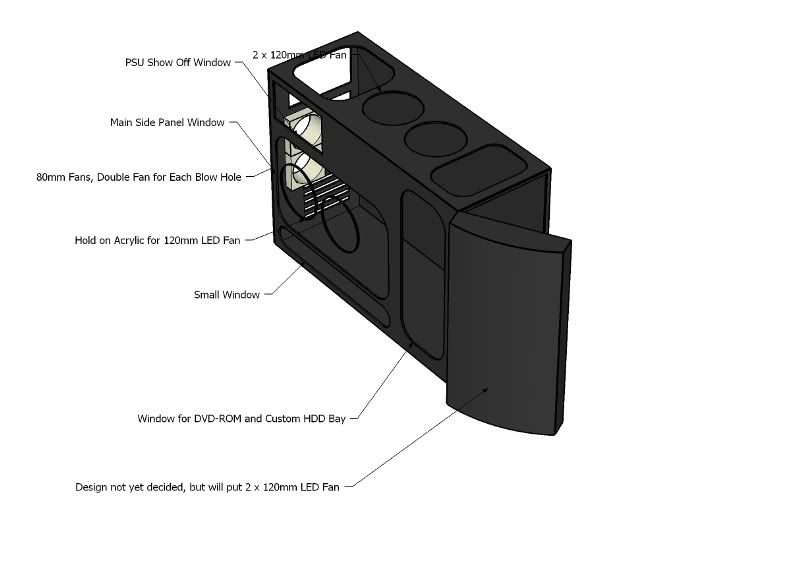

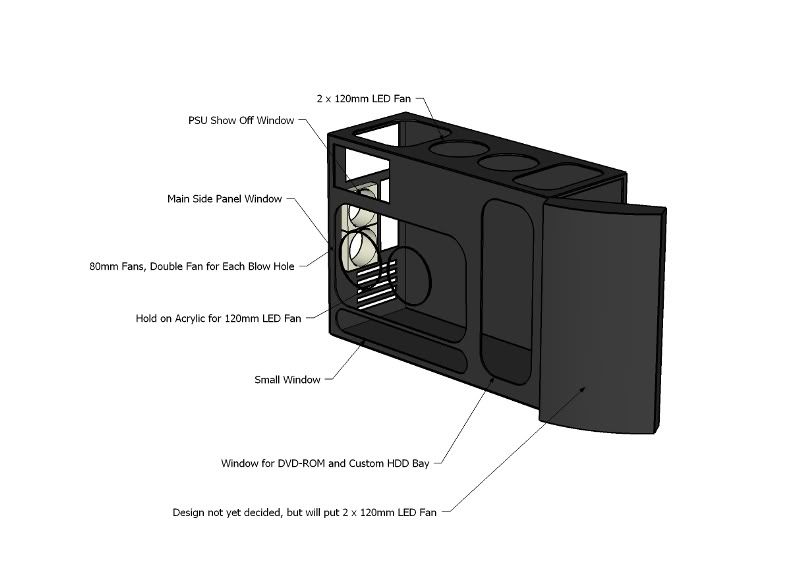

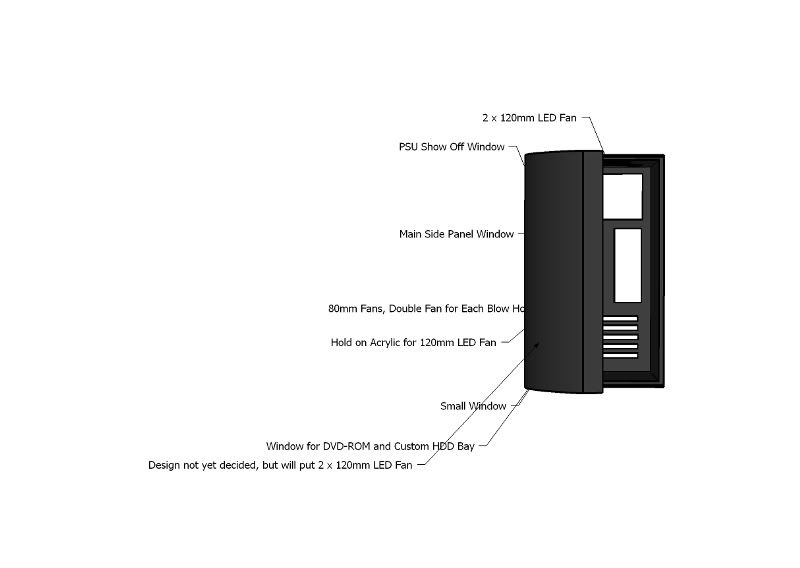

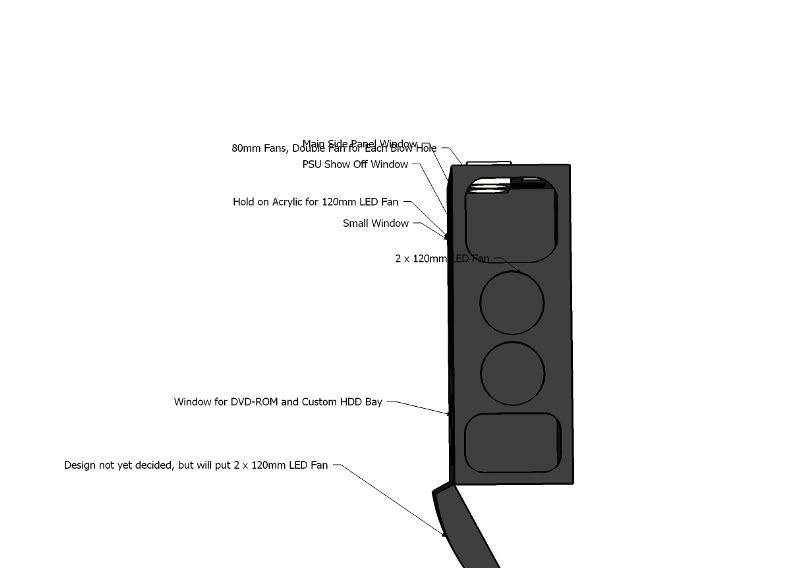

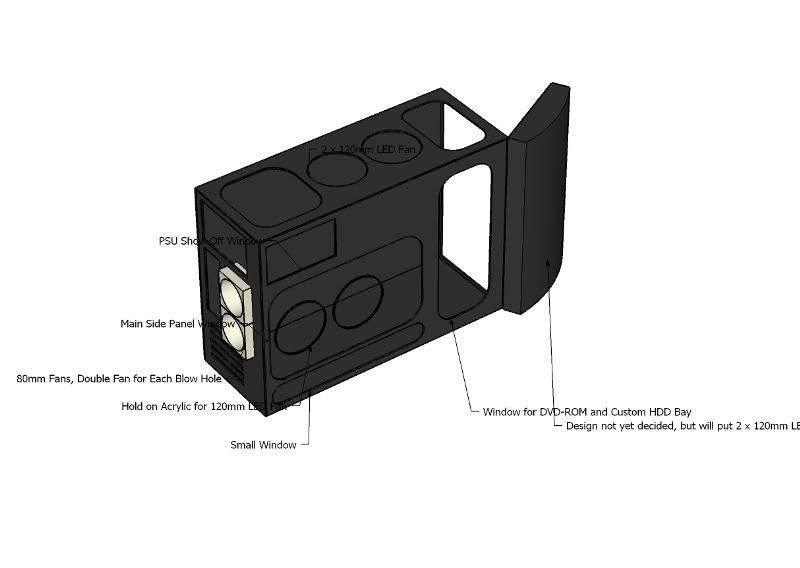

ok~ updated my design~ no more 50mm fans, concentrate on 120mm and only at the rear cannot put 120mm coz small spaces...

added more window on the top, but mayb gonna change it to big window on the top like what LExus65 suggested... then cut holes on acrylic for fans will be easier...

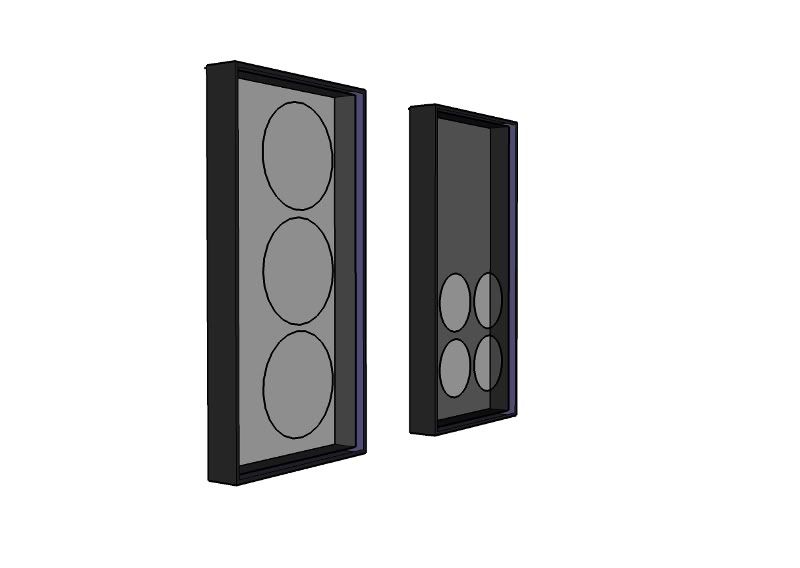

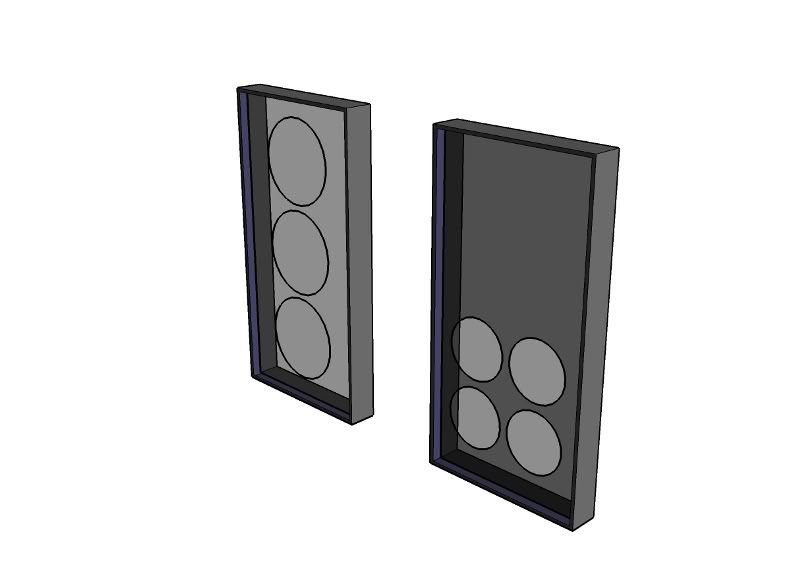

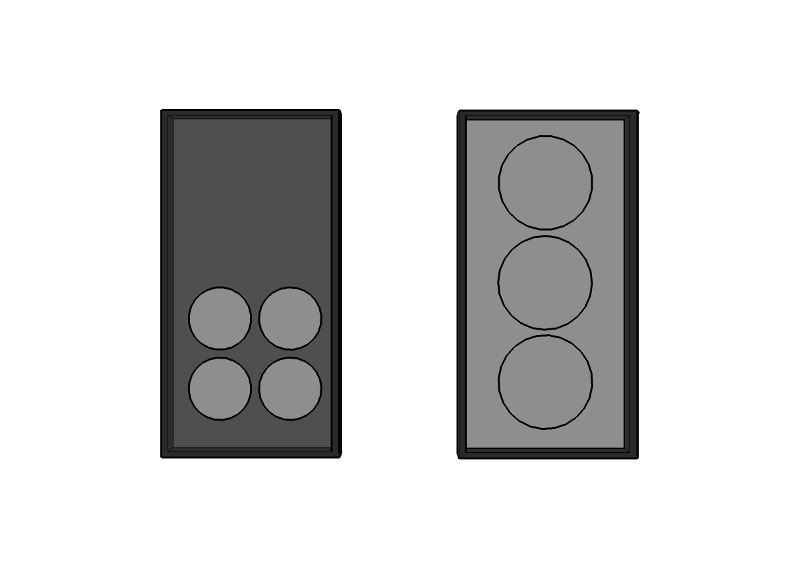

This is about front door... not sure gonna use 3 x 120mm or 4 x 80mm fans... need suggestion....i got 2 ideas for front design..

[1] Use black tinted acrylic, apply it to the whole front panel, so it will be full glossy front panel... but the spoiler is, holes for air ventilation, have to drill out small holes at the needed area...

[2] Use black grill, usually used on PC case and Speaker.. apply it to the whole front panel... i think this 1 is better than acrylic... full ventilation available... no extra drilling...

i think for the front,use 3x120mm fan..as the main case, u got many acrylic windows mybe u can try to apply mesh on ur front panel..but,its kinda hard to get..i oso looking for it..

This post has been edited by renesisx: Sep 20 2007, 04:11 PM

well it seems u can fit 8*80mm fan on ur front panel hehe............

well mesh is hard to find around here........may be u go shopping around for material 1st before deciding what to do

ekekeke... hav u ever thought of getting it from car mod shop?

i'm here in kch~ in the past~ i'm also tired of looking for the mesh grill but at last, my fren ask me to try at car mod shop... walla~

sure? u hav it now?can post some pics ka?if its nice,might wanna get it too..

ok~ i'll post it but i dont have it now... coz this project will be started after Hari Raya.. after getting some budget~ ekekekeke...

Omara86, this is just a suggestion from my POV.
From my POV, your design has too many arcylic window.

First off, why do you need window for 5.25bays?
Is there anything there that you really want to show?

Second, the small window, what's that for?
I think it'll be better if you just make larger sidewindow and the smaller window into one sidewindow.

The top panel window, do you really need that?
And do you really need two blowhole on the top?

If there's a casing that has top blowhole, it'll be an exhaust blowhole which is going to be used to speed up the exhaust for the hot air to be blown out.
I think you only need one blowhole for that.

If i were you, i'd concentrate on this:
Keep the design as simple & smooth as possible. But, use a really good paint on the casing, better yet, paint the casing as smooth as possible to make it mirror shine.

With that, you'll have a superb casing to be shown off.
Not by complicated arcylic window here and there, just a simple mod but paired the mod with a superb mirror shine paint.

Just my suggestion.

yeah~ thx sHawTY... this what i really need...

is this what i have to do?
[1] juz make 1 big side panel, forget the small window (psu, hdd & dvd, unknown window at the bottom)
[2] 1 blow hole on the top, so if i make 1 big window on the top, then cut 1 hole for 120mm fan on acrylic, is it ok?

so, my plan changed to...
[1] 2 x 120mm fan at side - intake
[2] 4 x 80mm fan at rear - exhaust
[3] 1 x 120mm fan at top - exhaust
[4] Front intake fan, which one is the best and most efficient?

3 x 120mm fan or 4 x 80mm fan or 2 x 120mm fan?

Dude... i like your idea, but jus to help you a little bit more. You should check this guys worklog, he's got the same casing as you and he made it really beautiful mates. Give it a lil looksie aye... here's the link.
http://www.wizdforums.co.uk/showthread.php?t=126

if u got the $$$ send to abang Ianho la!!

try to avoid cap itik power supplies as they aive you telur results in the end..

Project Goliath - nice setup but not yet complete~ still cant get the whole idea...

side panel seems to simple n small
nice wheel



nice front panel.. gonna think about it


thx for the link

he he he~ i'm not modding for having a nice pc... i juz luv to do it after viewing ianho worklog...
coz i dun mind to hav stock case but, but rather than playing with my baby till he cry coz forced to play with me.. ekekeke.,..
better spare sum time for this..

anyway~ i'm from kch~ sending it to peninsular~ gonna blow my wallet~ ekekeke

great idea and nice case you got there.. damn, so big.. fuhh.. i think sure it can fit dual 8800ultra.. so long and spacey.. plus that hdd 'rack' great case man.. wish i can have one of those for my home pc@BTrig..

ha ha~ dual 8800? mayb i've to sell myself at nite to achieve that...

lol..how long will it takes? me oso wanna join.. jk la bro..
btw,i do agree of what shawty said about mirror shining paintjob..with this super huge case,itll b a great masterpiece..no need mirror anymore in ur house

not too long i guess, if can "work hard" every nite without any pain or infection, 2 months will do... ekekeke.. jk too...

about mirror shine painting... where can i find a precise and detailed guide for it? coz hav extra budget after this coming raya...

2 month eh..hurm..ok la..let me know when u r gonna start it..
hurm..about the mirror shining painting, mybe u can refer to ian's hypoglossal project..its damn chun!

haha.. 2 month enough to buy a TJ-07 already dude..

after looking into the link given.. i'm speechless.. damn cun..

Lol..by the way what type of paint are u gonna use?

LOL.. yup the case is damn chun..never tot dat such supa huge case can be turn to dat loooooovely nice case

i think any met paint will do..but try to get the recommended 1..i owez use samurai brand..but to get the mirror shining need a lot of polishing work..mybe u hv to spend the whole weekend just to do it..

i see some LL caster wheel wor............... very nice

yup..LL caster owez looks cool..
@TS..any plan to get..bombman is selling it for very nice price..

with such a long casing, i would personally use the 3x120mm fans radiator on top..now thats masssive..

wat software is that u are using to draw the casing?
