Totolink T6 Mesh Wifi System reviews:


Greeting,currently my router is using wireless n,because I have few area are not able to cover,that mean have dead spot so I buy these mesh system to cover my deadspot.My house area are flat and internet speed is 100mbps.These mesh system able to support 100mbps.It can replace existing main router or work as access point.They come with 2 unit one as master and satellite.It can add on satellite at least 5 unit.



Link to buy at Shopee-Totolink T6 ShopeeTotolink T6 Shopee item


Box Included:
Adaptor 2pcs,2pcs mesh system,1 pcs cat 5e lan cable,1pcs totolink T6 Quick Installation Guide.



Specification:
-Wifi 2.4Ghz is using Realtek RTL8197FN 1Ghz Processor and wifi speed 300Mbps
-Wifi 5Ghz is using Realtek RTL8812BR and wifi speed 867Mbps.
-MU-MIMO and Beamforming technology
-Seamless Roaming with 802.11K/V/R

Adaptor Picture:
-Support Malaysia/UK type Adaptor and DC 9V 0.8A



Front,Back and twin mesh system:



-Additional extra one lan port you no need to worry the device need lan cable not enough if you already plug in for IPTV



Quick Installation Guide Page 1 and Page 2:



Speedtest for Mi10T Pro smartphone:
1.) Wifi 2.4Ghz near with master mesh system



2.) Wifi 2.4Ghz far with master mesh system



3.) Wifi 5Ghz near with master mesh system



4.) Wifi 5Ghz far with master mesh system



5.) Wifi 2.4Ghz with satellite mesh system



6.) Wifi 5Ghz with satellite mesh system



Speedtest for Wifi Adaptor AC600 receiver:
1.) Wifi 2.4Ghz near with mesh system



2.) Wifi 2.4Ghz far with mesh system (3 wall)



3.) Wifi 5Ghz near with mesh system



4.) Wifi 5Ghz far with mesh system (3 wall)



Lan Speedtest master mesh system:



Lan Speedtest satellite mesh system:



Wifi Strength wifi 2.4Ghz and Wifi 5Ghz:
a.) Wifi 2.4Ghz only master mesh



b.) Wifi 5Ghz only master mesh



c.) Wifi 2.4Ghz(Master+Satellite mesh)



d.) Wifi 5Ghz(Master+Satellite mesh)



Feature of totolink T6:

1.) Enable and disable Guest wifi 2.4Ghz and wifi 5Ghz



2.) Wifi 2.4Ghz and Wifi 5Ghz country,channel and channel width settings
-Both wifi 2.4Ghz an 5Ghz Country/Region you can choose China,USA,Europe and others
-Wifi 2.4Ghz channel bandwidth can choose 20Mhz,40Mhz
-Wifi 2.4Ghz Channel can choose 1 to 13
-Wifi 5Ghz channel bandwidth can choose 20Mhz,40Mhz,80Mhz
-Wifi 5Ghz Channel can choose 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161



3.) DDNS:

-Go to Advanced-Network-DDNS
-Support no-ip,www.3322.org and DynDNS



4.) Smart QOS
Advanced-Smart QOS-Slide right to enable QOS

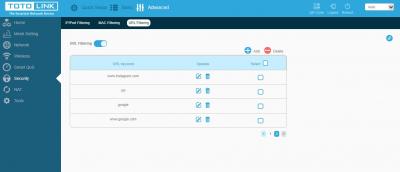

5.) URL filtering





6.) Seamless Roaming
-These one must always enable to better roaming.



7.) Factory Bound
-These one no need to click and touch and just have look if touch will unbind sateliite mesh forever and unable to bind back satellite mesh.



8.) Mesh networking and mesh topology



9.) Totolink Basic home Interface



10.) Totolink Client connect device



11.) Totolink IP/Mac filtering



12.) Totolink Lan Interface



13.) Totolink advance Interface



14.) Totolink change login password



15.) Totolink firmware Upgrade



16.) Totolink internet interface



17.) Totolink Remote interface



18.) Totolink system log



19.) Totolink System Interface



20.) Totolink Time Setup



21.) Totolink QR Code apps Scan:



22.) Totolink login interface and language select



23.) Totolink VPN Passthrough



24.) Totolink UPnP



25.) Smart QOS
Upload speed set 4000 and download speed set 8000



Smart QOS under wifi 2.4Ghz Speedtest:



Smart QOS under wifi 5Ghz Speedtest:



Smart QOS using Lan Speedtest:




Totolink satellite login interface:



Totolink Apps for totolink T6 Video Teaser:



Left totolink T6 with single unit and right totolink t6 twin unit:



Advantage:

~Basic Setup
~additional lan port
~Affortable Price
~Totolink apps support
~Better seamless roaming technology protocol 802.11r/k/v
~Nice and smaller 3 pin AC adaptor
~Main wifi name 2.4Ghz and 5Ghz can adjust channel and channel width

Disadvantage:

~Not support IPV6
~Not support Google assistant/IFTTT/Amazon Alexa
~Not support Anti Virus Software


Step to setup TM Unifi,Maxis Fibre,Celcom Fibre and Digi Fibre:
1.) Open Web Browser and make sure all cable already connect then type 192.168.0.1 or http://itotolink.net
2.) Key in Admin



3.) Go to Quick Setup then click next



4.)Select Time Zone to Beijing,Hong Kong,Taipei,Philipines,Singapore



5.)Select PPPOE-these one you need to call ISP to request username and password and not put wifi name and wifi password.Then click next



6.)Key in wifi 2.4Ghz,5Ghz name and password then click Next



7.)Key in default web UI login password or follow wifi 2.4Ghz wifi password then click Next.Default password is admin then click next



8.)Check all information correct then click done



9.)Go to Advanced-Network-IPTV-Enable IGMP Proxy,IGMP Snooping,IGMP Version choose 3,IPTV on/off,mode choose Unifi if you are user unifi but lan 1 just IPTV and cannot use internet to browse the web.



10.) Go to Advanced-Network-IPTV-Enable IGMP Proxy,IGMP Snooping,IGMP Version choose 3,IPTV on/off,mode choose User Define if you are user maxis but lan 1 just IPTV and cannot use internet to browse the web.These is using maxis modem

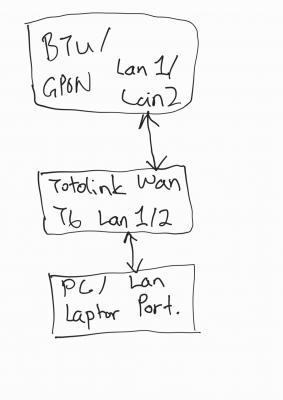

Connection wiring diagram:



Step to setup Dynamic IP as Access Point Totolink T6 Mesh System:

1.) Open Web Browser and make sure all cable already connect then type 192.168.0.1 or http://itotolink.net



2.)Go to Advanced-Network-Lan,these need to change ip address like 192.168.X.1,then disable DHCP Server



3.)Go to Advanced-Internet-connection type choose dynamic IP then click apply



4.)Go to Advanced-Wireless-key in wifi 2.4Ghz and 5Ghz name and password then click apply.



Connection wiring diagram:



Extra:Here I am using 4K Panasonic TV to watch youtube using totolink T6 mesh system and you can watch the wifi transfer rate.

a.)2.4Ghz



b.)5Ghz



Last update by Captain hookb update date:30-8-2021

This post has been edited by captain hookb: Aug 31 2021, 12:03 PM
