Hey guys, today just wanna share with you of my newly bought laptop at Tech Armory. Hope this info helps since a lot people right now are looking for laptop and having no luck with the stock. Without further ado the below are the spec and image of the laptop.

Commando PC - Carbine 5.2 by Tech Armory
CPU: 10th Gen i5 - 10500H
Chipset: HM470
GPU: RTX3060 Mobile GPU (105w Version)
Display: 15.6 inch thin-bezel , 1080P 144hz 72% NTSC display
Storage: 512GB SSD
Memory: 16GB
Dimension: 361(W) x 258(D) x 27.9(H)mm
Weight: 2.2kg with battery
Battery: 48.96wh

Price: RM4,999


Yea the price is slightly expensive comparing to last year when it newly release due to the global shortage and the mining shenanigan, but the spec are still can be consider cheap at the current market.




*Commando PC product box for the PC. I did this unboxing at Tech Armory's office while testing and checking for my unit*

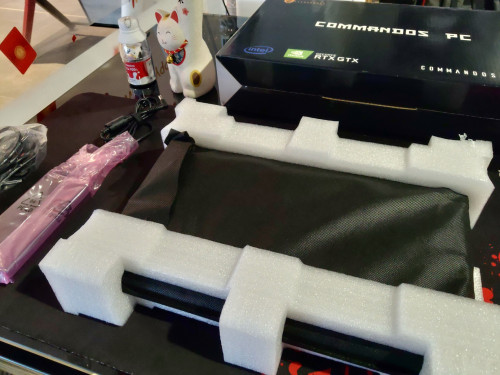

*The laptop itself with the foam and covering, and other item such as the charging port and adapter*

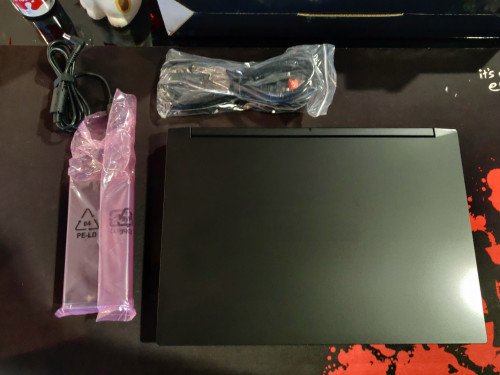

*The laptop itself, Plastic built body which sturdy enough for normal usage. Together with a 180w Adapter*


*Showing the dimension from the side view of the monitor and body, btw this machine failed the onehanded open test due to it's built and weight*

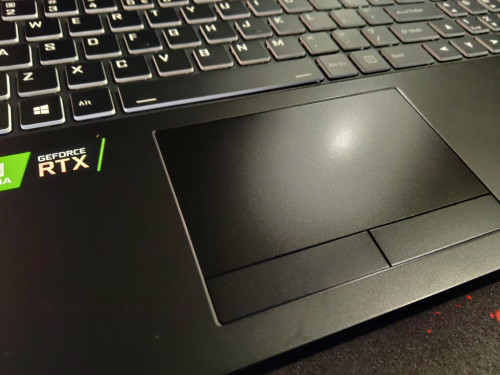

*Touchpad standard size with left and right click button*

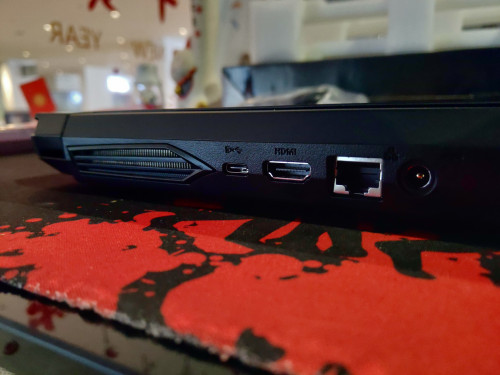

*Backside I/O: 2 Fan exhaust, 1 x HDMI 2.0, 1 X DP port, 1 X LAN port, 1 X Charging dock*

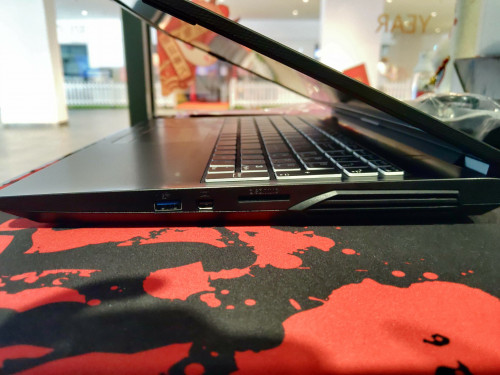

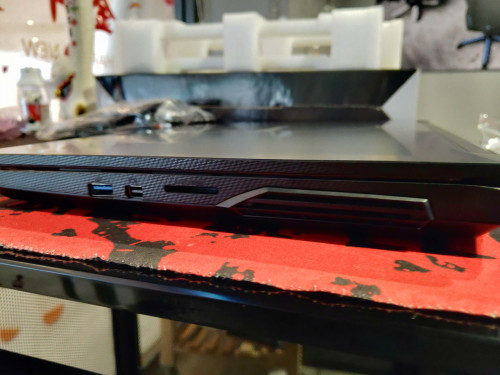

*Right-side IO: 1 X Full size SD card reader, 1 X mini DP, 1 X Type-A usb port, and 1 Fan exhaust*

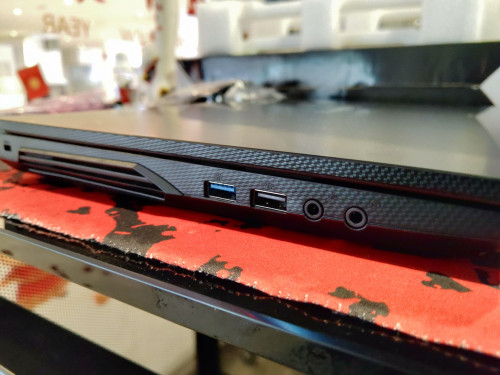

*Left-side IO: 2 X Type -A usb port, 1 X audio jack, and 1 Fan exhaust *

This post has been edited by LeeroyJenkinss: May 11 2021, 02:50 PM

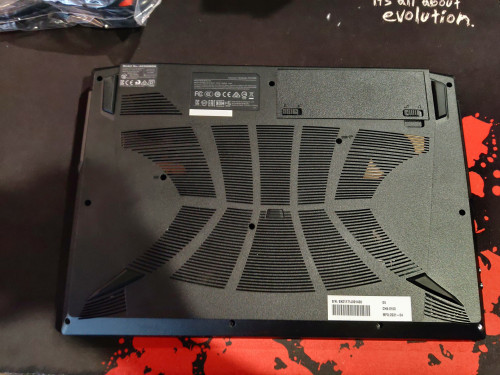

*Bottom part designed with many air ventilation area and removeable Li-ion Battery*

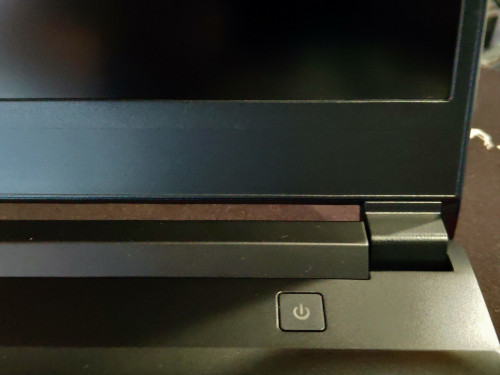

*Hinge design of the Carbine 5.2, touch and feel sturdy enough comparing to thinner laptops*

Currently i do not have any benchmark score to show yet, but the score wont be too much of a difference base on the spec comparison on the net, but the heat management is one of the biggest concern, judging with the laptop size, and exhaust and based on their older Carbine laptop design, the new Carbine 5.2 heat management should be fine (benchmark etc will be posted on the later date in the same post)

But if you ever interested in this machine, just give a ring and contact Tech Armory or just go visit them to have a look. Currently they having a Raya promotion going on too

105 watt is certainly not maximum graphic. It's max-q

No its not Max-Q, Max-Q is at 80w

This post has been edited by LeeroyJenkinss: May 11 2021, 02:44 PM

Duh. They omit the max-q behind doesn't mean your unit is max-p. 80-90 watt (95-105 watt include the 15watt boost) is max-q no doubt. Real max-p is 115-125watt ( boost 130-140 watt) .

Max-p will come with at least 240 watt adaptor while max-q come with 180 watt adaptor. And your varient even cheap out on the adaptor . Who provide 150 watt on rtx 3060 laptop ? I doubt it can maintain 105watt. So it is super low power max-q.

Don't believe ? Run msi afterburner in game. I would like to see the GPU power consumption.


https://www.level51pc.co/welcome/Productinn...tx-3060-edition

should just get this. Same model with same chassis cheaper and more powerful adaptor given.

This post has been edited by xerox8908: May 11 2021, 03:28 PM

Bad buy ts. Why you dont go for illegear or level51? The price is same and they dont give you 150w adaptor which wont be enough at all for the laptop......... the adaptor will run at 100% all the time and your laptop will power throttle hard. Your laptop is max-q , its same like other budget custom laptop 80watt to 95watt boost to 105 watt. But your adaptor will limit the boost anyway so it will run at 80 watt most of the time.

Well to be fair now there are no more maxQ and such to differentiate and been calling it mobile version, nevertheless the laptop gonna have 105w.

This post has been edited by LeeroyJenkinss: May 11 2021, 03:41 PM

Its 180w charger bro, yea level51 and illegear might be cheaper, but a price for a price , aside level51, have fun waiting at illrgear for your product unless u willing to wait. Now all the price for these electronic are getting expensive cause of the shortages.

If you willing to wait, why not, go for the cheaper one

80w base tdp and 105w, no lore maxQ from nvidia and stuff. And its a 189w power brick. Just saying, tbh all rtx laptop now performance are going to be nearly the same, the only difference will be the thermal imo

1)The official website put 150 watt
2)its not the same
3)ts edited his post. He is the one who bring out "maximum graphic" thingy which is completely wrong. There is 140watt 3060 mobile so the merly 105watt is not watever "maximum"

Hi there

We have some typo error and shall correct it. Thanks for pointing it out. Our RTX30 series come min with 180W adapter. Some model is given 230W adapters.

3060 max TGP is 130W not 140W...3060MQ is 60-75W (before dynamic boost), 80W or higher (before dynamic boost) is MP

This is using the same chassis like the Gigabyte G5 which is the CLEVO NH55DPQ. It performs really good for a 105W max TDP, enjoy your new laptop!
