if fail to conduct the pins , did wrong to others .. then the processor will how ?

看热闹就好了!

if u fail to conduct the pins u wanted, u can or might kill ur processor, and that is why you need to put a tape over the other pins when doing the mod, so yeah, do follow the instructions as most bsel mod guides will ask you to put a tape over the other pins =)


wuts this? o_0

Off topic:
If u r looking for conductive pen or stuff, get some arctic silver 5. Its electrical conductivity is good enough for oc applications. Works well for Athlon XP to Athlon XP-M conversion; bridge closing.

This post has been edited by ff7yta: Sep 17 2007, 11:35 AM

Tried and tested....some mobo fail to detect the CPU after pin modding it. So its not a 100% working process even though the pins are modded correctly. Works best with a C2D 4300 proc....modding it to 1333FSB helps surpass the FSB wall. Other FSB procs like 1066FSB ones are just not worth the effort modding to 1333FSB..there is basically no gain.

Anyway...Artic Silver 5 would not work though its electrically conductive....still not good enough for pin modding. Conductive pen or silver pen is the best choice.

Pencil mod become popular to cheat Thunderbird multiplier and have free oc. That was back then in 2003

can pencil mod be used in gc card and ram?

And also the E2xxx and the Celeron 4xx series can be done with this method as well.

ya old method to amd

pencil mods might be risky..juz to surpass the 1333FSB wall

Yeah exactly bro..mainly if your sure of what your doing or maybe low budget users can use this method to break their proc FSB limits

can anybody answer my question pls?? appreciate it

no u cannot use it on the ram itself, but there are ways to bump the ram vdimm voltage with a 2b pencil on the motherboard or soldering a pot

and you can vmod a gfx card (vgpu and vmem) with a 2b pencil although some require more then a pencil mod(soldering, conductive pen etc..)

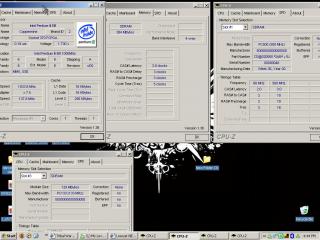

i did it on my ram last time..then in cpu-z it shows 500mhz..my ram only 133mhz..

huh?

care to share how to do it anot?

i just use a 2b pencil and colour the gold part...


Attached thumbnail(s)

Why not use wire mod? just use a thin string of wire then tie up those 2 pins together. But problem is to shift the wire away from the pin between that 2 pins. No marks and can be remove easily.

This post has been edited by GKWong: Sep 26 2007, 09:50 PM

since when my thread so many post one? bumb bumb bumb!!

lor.. thats a good contributors in your thread what. i`m oso din know pencil mod is still practicable now.

first thing...pencil mod on the rams itself is just not worth doing...no gain at all. The mod only mess with the Eeprom of the ram to make show higher speed ram.

As for CPU pin mod...use conductive pen. LGA775 no more pins. Wire mod works for pinned CPUs only. In fact, conductive pen marks can be removed easily too...just use nail varnish remover.

This post has been edited by extremeocer: Sep 27 2007, 09:08 PM
