 Dell XPS 8940, Upgrading FAN

views

TSkx221005
post Apr 24 2021, 07:29 PM, updated 5y ago

Getting Started
**
Junior Member
94 posts

Joined: Aug 2011
HI
I have read the post earlier, most of the people recommend XPS 8940.
As i watch from youtube, most of the XPS 8940 having cooling problem, if i wanted upgrade how should i do it ya?
I am planning to buy 11700 with 3060TI.

*a middle budget gamer here
acbc
post Apr 24 2021, 07:32 PM

Look at all my stars!!
*******
Senior Member
9,048 posts

Joined: Jan 2003
Open the case and check the can size. Most likely 80 or 120 or 140mm fans connected to the motherboard. Order a better fan online and swap it. Easy as ABC.
TSkx221005
post Apr 24 2021, 07:49 PM

Getting Started
**
Junior Member
94 posts

Joined: Aug 2011
QUOTE(acbc @ Apr 24 2021, 07:32 PM)
Open the case and check the can size. Most likely 80 or 120 or 140mm fans connected to the motherboard. Order a better fan online and swap it. Easy as ABC.
*
i saaw some video , mention that not all fan compatible as different motherboard size due to dell proprietary mobo.
or Can we just buy a new mobo and new casing to switch over?

This post has been edited by kx221005: Apr 24 2021, 07:50 PM
myway1985
post Apr 26 2021, 02:57 PM

10k Club
********
All Stars
12,090 posts

Joined: Jun 2014
From: Kuchai Lama


QUOTE(kx221005 @ Apr 24 2021, 07:49 PM)
i saaw some video , mention that not all fan compatible as different motherboard size due to dell proprietary mobo.
or Can we just buy a new mobo and new casing to switch over?
*
xps 8940
1. b460 mobo
2. value ram
3. 500w psu
4. tank casing.. no intake
5. cannot change cooler

take alienware if u wan
ATi_FANBOY
post May 11 2021, 06:31 PM

Getting Started
**
Junior Member
181 posts

Joined: Jan 2006
From: inside ur CPU L2 cache



QUOTE(kx221005 @ Apr 24 2021, 07:29 PM)
HI
I have read the post earlier, most of the people recommend XPS 8940.
As i watch from youtube, most of the XPS 8940 having cooling problem, if i wanted upgrade how should i do it ya?
I am planning to buy 11700 with 3060TI.

*a middle budget gamer here
*
Comes with stock 80mm exhaust fan. The rear fan mounting holes can fir 92mm max.

Replaced my stock CPU cooler with Arctic Freezer i13X CO. No need to replace backplate. Mounting set fits just nice with stock backplate.

» Click to show Spoiler - click again to hide... «

TSkx221005
post May 11 2021, 09:39 PM

Getting Started
**
Junior Member
94 posts

Joined: Aug 2011
QUOTE(ATi_FANBOY @ May 11 2021, 06:31 PM)
Comes with stock 80mm exhaust fan. The rear fan mounting holes can fir 92mm max.

Replaced my stock CPU cooler with Arctic Freezer i13X CO. No need to replace backplate. Mounting set fits just nice with stock backplate.

» Click to show Spoiler - click again to hide... «

*
hows the temp? improving?
ATi_FANBOY
post May 11 2021, 10:17 PM

Getting Started
**
Junior Member
181 posts

Joined: Jan 2006
From: inside ur CPU L2 cache



QUOTE(kx221005 @ May 11 2021, 09:39 PM)
hows the temp? improving?
*

Idle 35c, max gaming 76c. No CPU fan noise. Before that, stock cooler max gaming 88c. Loud CPU fan.

Cinebench R20 no difference, CPU still throttle.

Might add an intake fan later. The GPU is still hot.

mrdokok
post May 12 2021, 12:40 AM

Getting Started
**
Junior Member
223 posts

Joined: Oct 2015


what fan?casing fan or cpu fan?both of them can change..just need to find compatible one
ktek
post May 12 2021, 09:31 PM

小喇叭
********
All Stars
13,206 posts

Joined: Jul 2006
above lcd is ur sound bar? seems good thing
BOTAK_WAI
post May 12 2021, 11:54 PM

Blow Water First Class
*******
Senior Member
4,157 posts

Joined: Jan 2003
From: Cheras, KL


QUOTE(ATi_FANBOY @ May 11 2021, 10:17 PM)
Idle 35c, max gaming 76c. No CPU fan noise. Before that, stock cooler max gaming 88c. Loud CPU fan.

Cinebench R20 no difference, CPU still throttle.

Might add an intake fan later. The GPU is still hot.
*

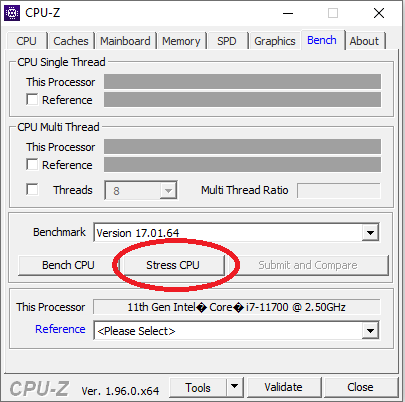

how high the temp can really go with CPU-Z stress test for 3 minutes? (max reading not current reading)

user posted image

This post has been edited by BOTAK_WAI: May 13 2021, 12:21 AM
ATi_FANBOY
post May 14 2021, 04:12 PM

Getting Started
**
Junior Member
181 posts

Joined: Jan 2006
From: inside ur CPU L2 cache



QUOTE(BOTAK_WAI @ May 12 2021, 11:54 PM)
how high the temp can really go with CPU-Z stress test for 3 minutes? (max reading not current reading)

user posted image
*

Same as cinebench test. Temp shoot up to 88c 10 seconds into test and throttle.
BOTAK_WAI
post May 14 2021, 07:09 PM

Blow Water First Class
*******
Senior Member
4,157 posts

Joined: Jan 2003
From: Cheras, KL


QUOTE(ATi_FANBOY @ May 14 2021, 04:12 PM)
Same as cinebench test. Temp shoot up to 88c 10 seconds into test and throttle.
*
i see. i guess need at least 240 water cooling to tame it.
BOTAK_WAI
post May 26 2021, 06:33 AM

Blow Water First Class
*******
Senior Member
4,157 posts

Joined: Jan 2003
From: Cheras, KL


QUOTE(ATi_FANBOY @ May 11 2021, 10:17 PM)
Idle 35c, max gaming 76c. No CPU fan noise. Before that, stock cooler max gaming 88c. Loud CPU fan.

Cinebench R20 no difference, CPU still throttle.

Might add an intake fan later. The GPU is still hot.
*
let me share you a trick.

since you have replaced your stock CPU cooler with Arctic Freezer i13X CO,

you can take out the stock CPU cooler fan and replace the rear case fan,

then install the stock rear case fan as intake fan.


fyi, stock CPU cooler fan 59 CFM, stock rear case fan 40 CFM.
TSkx221005
post May 26 2021, 09:24 AM

Getting Started
**
Junior Member
94 posts

Joined: Aug 2011
QUOTE(BOTAK_WAI @ May 26 2021, 06:33 AM)
let me share you a trick.

since you have replaced your stock CPU cooler with Arctic Freezer i13X CO,

you can take out the stock CPU cooler fan and replace the rear case fan,

then install the stock rear case fan as intake fan.
fyi, stock CPU cooler fan 59 CFM, stock rear case fan 40 CFM.
*
Wow sounds like a good plan. Tq for sharing
myway1985
post May 26 2021, 09:46 AM

10k Club
********
All Stars
12,090 posts

Joined: Jun 2014
From: Kuchai Lama


QUOTE(kx221005 @ May 26 2021, 09:24 AM)
Wow sounds like a good plan. Tq for sharing
*
juz change mobo, psu, casing.. after warranty end
ATi_FANBOY
post May 26 2021, 09:52 PM

Getting Started
**
Junior Member
181 posts

Joined: Jan 2006
From: inside ur CPU L2 cache



QUOTE(myway1985 @ May 26 2021, 09:46 AM)
juz change mobo, psu, casing.. after warranty end
*


Can't do that unfortunately. XPS 8940 parts are exactly like this G5 except front and side panel.
myway1985
post May 26 2021, 10:11 PM

10k Club
********
All Stars
12,090 posts

Joined: Jun 2014
From: Kuchai Lama


QUOTE(ATi_FANBOY @ May 26 2021, 09:52 PM)


Can't do that unfortunately. XPS 8940 parts are exactly like this G5 except front and side panel.
*
seem like u dunno wat a pc made off..

those 3 component r swap able... dell proprietary parts are mobo, psu, casing.. this 3 limit the upgrability

n i mean change means change to msi gigabyte those..

This post has been edited by myway1985: May 26 2021, 10:12 PM
ATi_FANBOY
post May 27 2021, 06:26 PM

Getting Started
**
Junior Member
181 posts

Joined: Jan 2006
From: inside ur CPU L2 cache



QUOTE(myway1985 @ May 26 2021, 10:11 PM)
seem like u dunno wat a pc made off..

those 3 component r swap able... dell proprietary parts are mobo, psu, casing.. this 3 limit the upgrability

n i mean change means change to msi gigabyte those..
*
Ok
pluginbaby
post May 30 2021, 04:08 PM

Look at all my stars!!
*******
Senior Member
2,661 posts

Joined: Apr 2007


Does anyone know if XPS8940 shipped with 11700 is able to swap the CPU out with a 10400?

I wish to put the 11700 into another rig and put in the 10400 as a replacement for work use. Will the motherboard accept the 10th gen CPU?
BOTAK_WAI
post May 30 2021, 10:13 PM

Blow Water First Class
*******
Senior Member
4,157 posts

Joined: Jan 2003
From: Cheras, KL


QUOTE(pluginbaby @ May 30 2021, 04:08 PM)
Does anyone know if XPS8940 shipped with 11700 is able to swap the CPU out with a 10400?

I wish to put the 11700 into another rig and put in the 10400 as a replacement for work use. Will the motherboard accept the 10th gen CPU?
*
never try but should be ok since it's a H470 mobo
