This is my 1st time modding... not spend so much for this...

::UPDATE::

Ready
4 x 80mm fan (Back) (Combo Fan [custom]... 2 fans per pair... 2 pairs for 2 blow hole)
4 x 50mm fan (Different Brands) (Side)

Pending
1 x 120mm fan (Side) (LED)
2 x 80mm fan (Top) (LED)
2 x 80mm fan with circle CCFL (front) (Combo fan [custom].. 2 fans per pair... 1 pair for a front blow hole)

Mod Specs:
Case: E-View
PSU: Sovereign (cap itik)
Fans: Used fans... for free... took it from old pc in office...

Original Look



Modification that has been made... not yet completed... out of budget...

Ianho BTX Design


My DVD-ROM

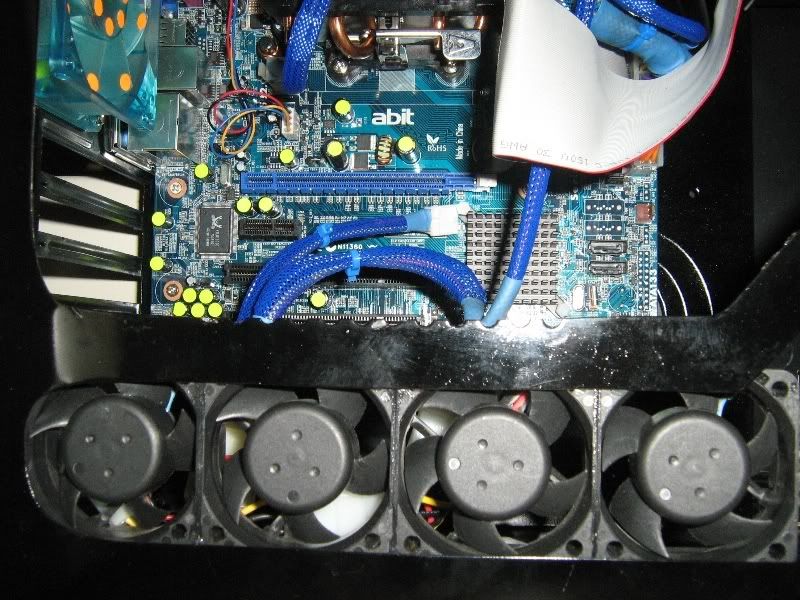

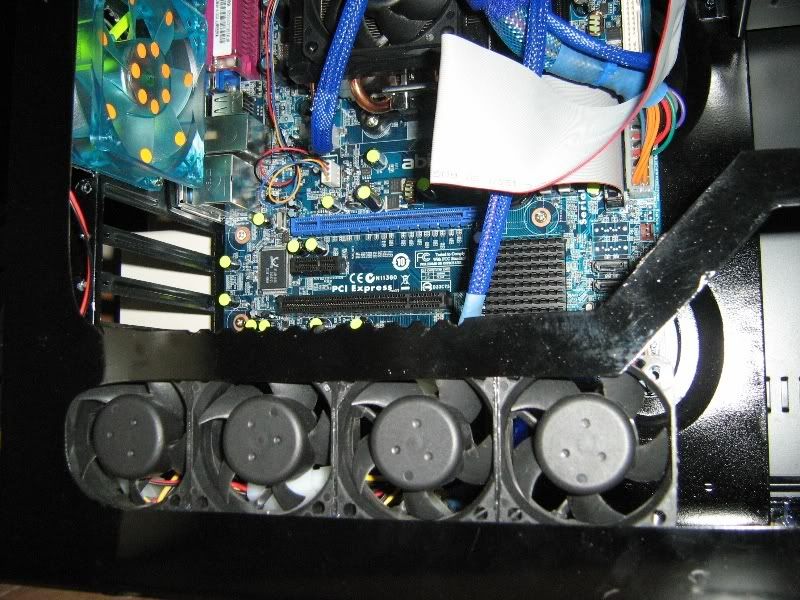

Old 50mm server fan... given by my bos (glued 4 in a row)


Rear Blow fan... total of 4... combo pair... 2 fan for 1 blow hole...



Total view
- side view
- top view
- front view

This post has been edited by omara86: Aug 28 2007, 11:07 PM

empty case... waiting for mobo, proc and RAM from bulk sale to arrive... mayb this week...

front panel... gonna put acrylic later~ dont hav money yet to continue...

side and top also gonna put acrylic...

This post has been edited by omara86: Aug 28 2007, 08:48 PM

2-in-1 for 1 blow hole...salute

2-1 in 1 blow hole is not efficient. NG!

It will be noisier..LOUD!!

noisier? hmm~ but mine is not... dunno why... i'm using normal fan... but no noise for current 8 fans now...

for efficiency... no comment yet coz havent fully assemble... gonna giv feedback later...

hehe here u r..no wonder askin bout the fans using in casin..gonna mod case act nice bro..impatient to wait the whole rig after fit with all stuffs..hehe getting wat psu next?

wah..nice mod..i like ur side panel.. salute!

I like your side panel mod *respect*

did u strip out the case for paint job?

looks like some hard work been done.

any paint job worklog?

ekekekek... thx for remembering my previous thread~ hav to survey 1st before start this coz my 1st time... so budget limited...
about the PSU, mayb i'll stick to this PSU coz tested it with office's hardware n no prob so far~ change it when got prob later~


Side Panel design taken from Ianho Sleeping Forest Project the diff is only mine is mirror image~


This one is mine like above post~



yup... "hav to strip it naked - Justin Timberlake & Nelly".. ekekeke... drill out the rivets... spray it with can spray... wrong selection has been made... i want it to look glossy... but bought matte black and clear~ should be gloss black n clear.... total spraying cost = RM12... scratch a bit, mishandles = priceless (frustrating)

This project will be a slow update 1... limited time & budget...

This post has been edited by omara86: Aug 29 2007, 07:47 AM

btw..nice and clean cut u did there..but why there's something like its been toothed in the middle one?

wrong marking made~ the toothy line is actually a blow hole~ i made the cut right in the middle of the final row of holes... so resulting half circle line... feel so lazy to repair it so juz let it be.,.. ekekekke...

Excellent Mod and like everyone else, nice side panel....
A mod doesn't mean it has to be expensive....

This post has been edited by vedder1979: Aug 30 2007, 04:32 PM

nice work dude.. the budget is also quite impressively irresistible..
hope i could get the same outcome..

update2!

hmm 1 question did u shift'ed the PSU from top to bottom ? because the original casing i see the PSU was on the top and there was no hdd holder at the bottom ?

no changes on PSU bay, still at the top of case, the only thing i change is the HDD bay, i moved all of it (originally located below DVD-ROM)... change it to custom acrylic hdd bay (not yet complete, in progress)... like bombman design...

bro coba cat kan..remove the originality of e view..ehhehe..put others stickers there..overall nice job! gudluck!~ update k..

hehehe~ repainted it already... stupid decision made... matte black to gloss black.. but i bought another matte black...

i'm waiting for another belanjawan to cont this project~ so slow update

what? another black?send to mr alai la.ask him to paint ur casings.cheap ma..

::update::

my X2 6000+, abit nf-m2s and ram will arrive within this week, more pic will coming out
(bulk seller told me he'll post it tomorrow, hope no delay coz from KL to Kch)

no update for acrylic coz no money rite now...

Two fans for each blow hole will restrict the air flow right?

hahaha no worries bro.take ur time since the effort taken to do this mod is priceless

perfection takes time

good luck on your project, dude !

izzit abit nf-m2s nview or normal m2s?

gud luck bro!

why are the pictures quality not that good? take ur time to do bro. Dont rush. xD

yup!cheap casing..but ur artwork are pricelesss
im oso wanna mod my eview casing..hehe..need to standby budget

cheap casing+great effort=priceless!

hmmM~ the bulk seller delayed my proc, mobo n ram delivery... so no update...

about the pic quality... photo taken using Nokia 6100 if i'm not mistaken (my fren's HP) coz mine is worse.... vga cam phone... my dv broken, lense and display lcd malfunction coz my "hantu" sister fault...

Its okay dude,mod with passion..dont rush..

This post has been edited by ocz: Sep 11 2007, 11:56 PM

yupp..agree! mod with passion..towards perfection..lol..

and quality too...

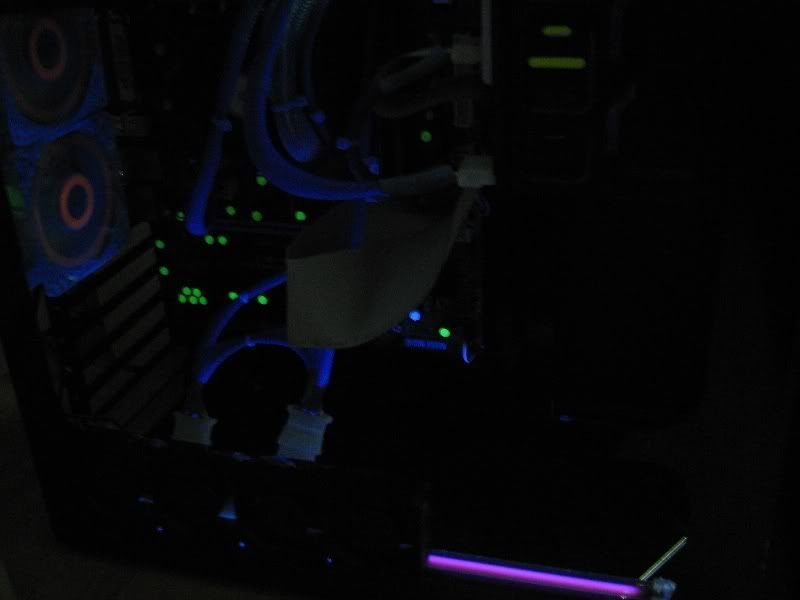

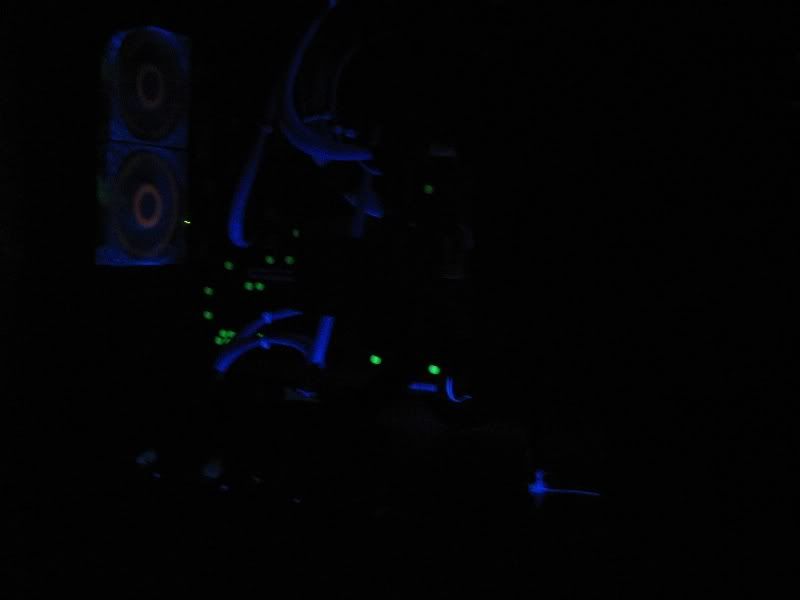

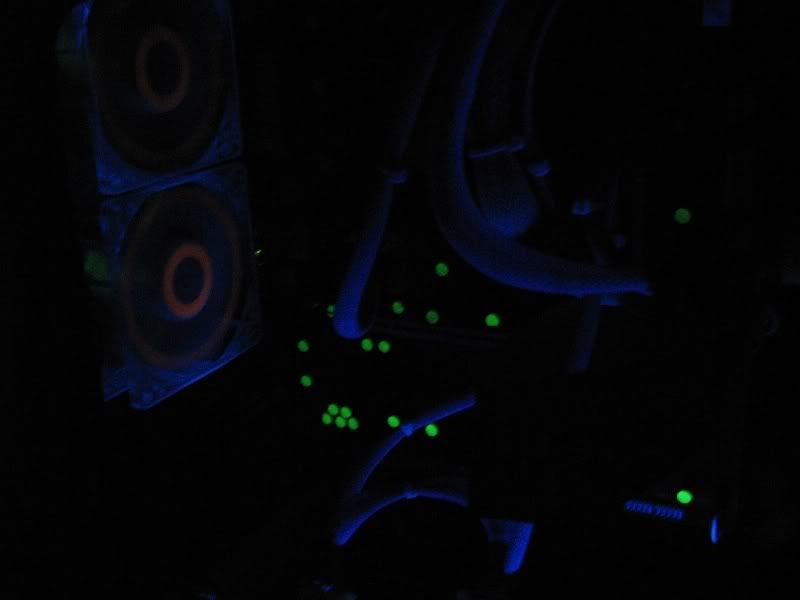

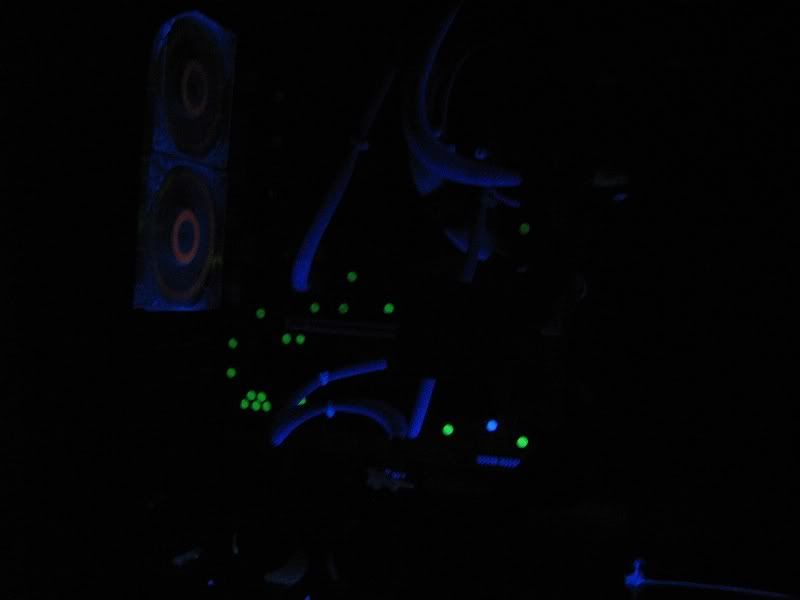

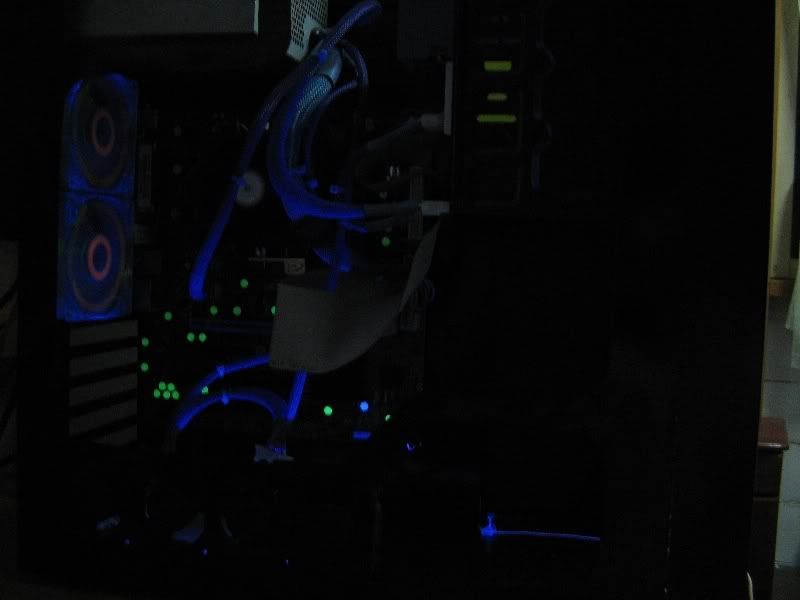

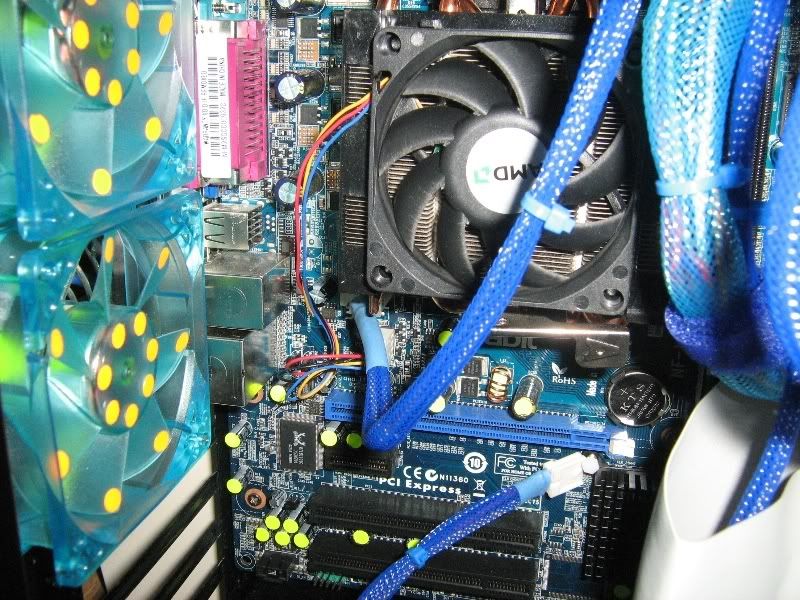

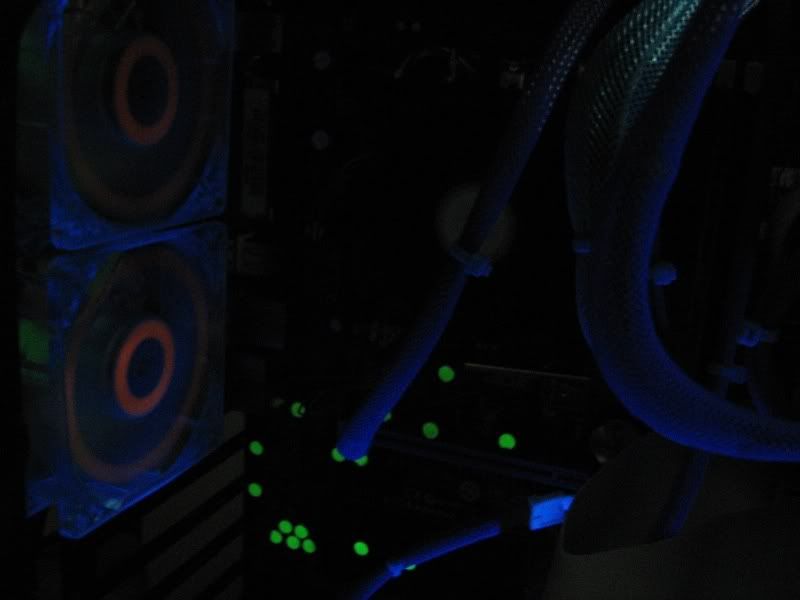

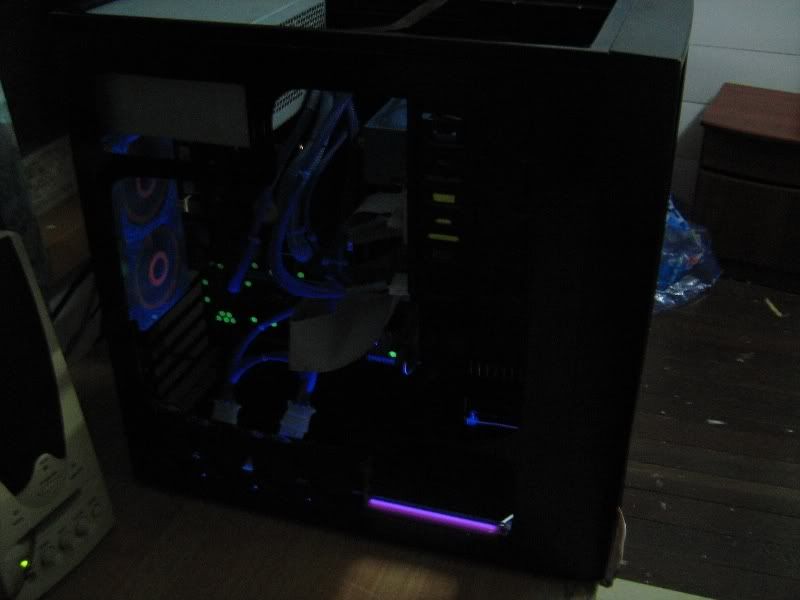

after a long time... now i've updated my case...

not yet put in acrylic coz hav no budget currently... need money for hari raya... ekekeke

















This post has been edited by omara86: Dec 20 2007, 07:44 PM

i think the UV ccfl light is not sufficient to lighten up your casing...maybe u can put more..huhu..

OR its maybe because the cemera shot. A bit too dark. Lighten up your case a bit bro,it will ROARRRR!!! and look fresh every night and in the dark..

No more latest updates bro or maybe your modding are done oready..?

yeah~ bout the pic... i'm too bad in capturing picture...

bout update... no new update coz hav no money for it after getting new laptop.... sorry for slow update... hav to wait for next pay day~

Its ok laa bro..pelan2 kayuh la..the most important is PASSION.hehe..
