 Can I dim my downlight using dimmer switch?

views

TSkayciekc
post Dec 27 2020, 04:59 PM, updated 5y ago

Getting Started
**
Junior Member
69 posts

Joined: Jul 2012


user posted image

user posted image

user posted image

Dear Sifus, need some advice here.

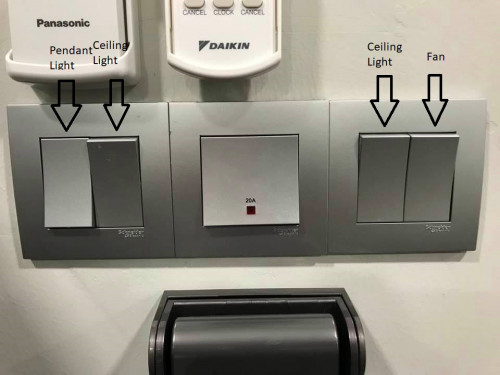

I have 2 electrical points in my dining hall, 1 for fan and 1 for downlight.

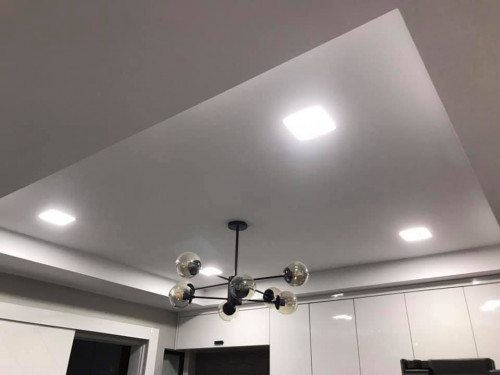

Similarly there are 2 points in my dry kitchen, 1 for pendant light and 1 for downlight.
Both areas are located next to each other.
At times, I find that the downlight is too bright (18w each). Can I change the downlight switch into dimmer to control the lighting power?
Thank you.
acbc
post Dec 27 2020, 05:04 PM

Look at all my stars!!
*******
Senior Member
9,051 posts

Joined: Jan 2003
If the LED supports dimming then ok. If not, it will flicker nonstop.
wayton
post Dec 27 2020, 05:10 PM

Enthusiast
*****
Junior Member
897 posts

Joined: May 2019
Depends on what type of LED or light being used.

Only those dimmable LED can be dimmed.

LED 18W is not the same as ordinary 18W old type of bulb or energy saving bulb.
The brightness of LED 18W >> 18W energy saving bulb.



TSkayciekc
post Dec 27 2020, 05:17 PM

Getting Started
**
Junior Member
69 posts

Joined: Jul 2012


QUOTE(wayton @ Dec 27 2020, 05:10 PM)
Depends on what type of LED or light being used.

Only those dimmable LED can be dimmed.

LED 18W is not the same as ordinary 18W old type of bulb or energy saving bulb.
The brightness of LED 18W >> 18W energy saving bulb.
*
So should I change the LED downlight to those dimmable type then I can proceed to change the switch to a dimmer switch?
TSkayciekc
post Dec 27 2020, 05:17 PM

Getting Started
**
Junior Member
69 posts

Joined: Jul 2012


QUOTE(acbc @ Dec 27 2020, 05:04 PM)
If the LED supports dimming then ok. If not, it will flicker nonstop.
*
I learnt something new here. Thank you rclxms.gif
wayton
post Dec 27 2020, 05:33 PM

Enthusiast
*****
Junior Member
897 posts

Joined: May 2019
QUOTE(kayciekc @ Dec 27 2020, 05:17 PM)
So should I change the LED downlight to those dimmable type then I can proceed to change the switch to a dimmer switch?
*
On non-dimmable LED, you use dimmable switch has no effect one, I tried if before by replacing a old type of bulb with LED on a dimmable switch supply.

The result, if the switch being set too low, the LED flicker, above certain level, no flicker, but brightness is the same whether set at max or 50%.
