Your Processor and Motherboard are same with me lol~
then u can be my "Shi fu" dy~ im noob in oc~ All run at stock now

==..no sifu here pls
oc ur pc lar..post ur result also

If possible post ur crossfire 3dmark too.

---

Added on August 10, 2007, 1:13 pmIf possible post ur crossfire 3dmark too.

This post has been edited by §layerXT: Aug 10 2007, 01:13 PM

Also another shared tip here that i've read around @ XS.

Regarding DRAM DLL settings - Option 1 and 2 ;

Micron D9s = Selection Option 2.

well it seems option2 is suited for D9s.

aiyak just tested 1 proc last nite...used Option 1 all the way.... DDR1130 4-4-4-11 @ 2.4v

will test more again tonite to get higher clock speed

any1 know wat DS3P and DS4 diff other than the north and southbridge sinks....?

really noob in oc
i am using p35-ds3 rev 1.0

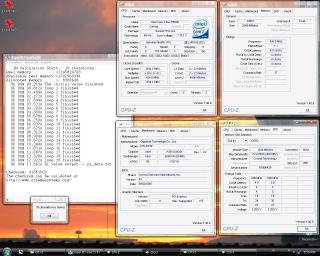

as seen from your "damn" clear picture...

may i know how u set the fsb??

is it thru the software "set fsb" as i seen from the picture.

using Tracer ballistik PC8500 now and e6400

still blur blur on oc thingy

change from auto to manual then the set FSB setting will be opened.

is this the one?

CPU Host Clock Control_ [Enabled]
CPU Host Frequency (MHz)__________ [266] <<<----FSB Speed (Front Side Buss)
PCI Express Frequency (Mhz)_______ [100]
C.I.A. 2__________________________ [Disabled]
System Memory Multiplier (SPD)____ [2.00]
This is a 1:1 divider, memory speed will be 2x FSB.
Memory Frequency (Mhz) 800 800
Your actual memory operating speed is always show above.



My actual memory operating show 800Mhz not 1066Mhz for my tracer ballistik



currently i set the fsb to 400Mhz x 8 =3.2Mhz but if i change the System Memory Multipler....how does it affect my system??


One more thing;
since i am using E6400 (1066Mhz) and Ram 1066Mhz(Tracer Ballistik PC8500)..

should my System Memory Multiply be at

4.0+ = 1:2

am i correct? coz i am settin it at 2.0 now


This post has been edited by MakNok: Sep 3 2007, 11:52 AM

the ballistix is tested able to do PC8500,but doesnt mean it should run at PC8500 at first
if u r running at stock cpu speed,u can set the divider at 4.0+ if ur proc is 1066fsb,3.2 if 1333fsb so tat ur ram can run at PC8500

I am using E6400....so i should be using divider 4.0+...rite?...which mean my ram can run at PC8500 at stock speed.

my question is if i am going to overclock my E6400....then i should be using divider 2.0,rite?...and try to overclock it from there by raising CPU Host Frequency...
if i hit my max at 400Mhz x 8 =3.2Ghz....then what is the next step should i do!!

My CPU cooling should be no problem coz it only show 50'C.....

sifu coolice.....any more tips?
thx again sifu!

if u hit 400x8 as max for ur cpu,play around with the ram divider and find the best one which allow ur ram to run as high as possible speed

thx again sifu..

i will play around with the divider then.
using P35-DS3 motherboard.....is the motherboard holding me back or should i buy unlock CPU or friendly clockable motherboard as irenic using now...P35T-DQ6...

thx again

P35-ds3 is quite a decent budget oc board but dq6 offer more thing like voltage selection and so

i thought voltage selection is the same for all P35 gayboard. anyway, as a P35-DS3P users (actually not many forumer using it for some reason...), here's my OC result to share.

intel E6600ES B0
426*9 = 3834MHz
vCORE= 1.75V
actual= 1.712V

HSF: Xigmatek HDT-S1283 Push Pull Config

2GB Crucial Ballistix Tracer DDR800
426MHz 4-4-4-4
vDIMM= 2.1V

Gigabyte P35-DS3P rev1.0 (BIOS F5)
vMCH= +0.3V
vFSB= +0.3V



great board. and the price either drop tremendously or labelled wrongly cuz that day i saw DS3P selling fro rm5xx

nope,ds3 only have max +0.3v with 0.1v step for vPCIE,vFsb and vMCH iirc
i guess it is right coz previously selling around RM620

No way! I know the xigmatek is a great air-cooler but 1.75v vcore!!!

Why do you need to set the vMCH and vFSB +0.3v? My P35-DS3 can go up to 480mhz bus speed without any voltage increase. Now running at 438mhz with +0.1v for vMCH and vFSB just for stability sake....

suicide run mah hehe. moreover, it's not very hot. idle around 55C with EIST, etc all off.

the vMCH and vFSB i just pull it to nearly max so it wont bother me later haha. no time to OC, so put everything reaching near limit

IC. So what's the speed and vcore for 24/7 usage?

Err.... I don't think you need to put the vMCH and vFSB so high la..... maybe +.01v should be adequate....

There is no way it can run 24/7... Just suicide run that prove it can load windows which already very good.
