I have 2 ONT, stock TM give me and TIME ONT,
I simply put Password and it works,
Both ONT have SN: 48575443 (HWTC)

The config file I got was not encrypted, and didn't store any SN or ONT Password:
https://github.com/Anime4000/Hacking_Huawei...ee_modified.xml

What I do, enable Telnet and SSH with it

Based on the screenshot I don't think we can do that as the minimum value is '1'.

I'll try it again this weekend

https://forum.mikrotik.com/viewtopic.php?t=61263
a script to request dhcp after x seconds after link up if ping fails might work!

unrelated: actually i wonder if we get one of those cheap gpon OLT sticks maybe we can reconfigure some tm ONUs via omci too!

i was thinking maybe omci could be used to read/overwrite ont login credentials or enable telnet/webui, since i doubt the olt will push the entire config (eg passwords, telnet/web acls etc) whenever the ont is connected?

The mac (onu mac) was on the back sticker of my ZTE ONU. You can get it also by telneting into it.

My ISP bind 1:1 - PPPoE Account : ONU MAC

And my solution for overheating:

[attachmentid=10726613]

[attachmentid=10726614]

[attachmentid=10726615]

I bought Hisense LTF7221 X/G-PON

[attachmentid=10749837]
[attachmentid=10749838]
[attachmentid=10749839]
[attachmentid=10749840]
[attachmentid=10749841]
[attachmentid=10749842]
[attachmentid=10749843]

This xPON is passive and did not have SoC Internet Processor, thus not handle OMCI or anykind.

Conclusion: Did not work, require GPON with SFP, example: ZTE F220

Hi Team,
            First of all thanks for this interesting threads. I'm newbie to this forum. I've attempt to do this change from ONU to GPON SFP after following this thread. Bought 1 sercomm Fgs202 and have 1 unused Fortigate 500D.

Action Taken:

1. Captured SLID password from current I-240G-P ONT
2. Tested setup fortigate 500D with pppoe account (  I-240G-P ONT > Fortigate [RJ45] ) successful
3. Plugged in sfp fgs202 in fortigate' sfp port, with fiber inserted light turns ON and detected on webui

Issue : sfp couldn't established WAN connection with pppoe , if not mistaken as advise here before need to change the SLID password inside sfp.
Kindly seek advice on how to access the sfp fgs202 to change the SLID password.  I believe this fgs202 don't have webui, need to telnet or something sorry if Im wrong. But not sure how .Hope to learn something during this MCO

Thanks all

Gaara92 Candy12 miloaisdino amirsubhi thankyou

bad news... my Mikrotik RB3011-UiAS got struck by lightning.....  and my smart TV with it....

Port 1 - 5 cannot use
Port 6 -10 & SFP can use

now cacat already

gladly GPON ONU Stick working fine, no problem...

very odd...

my network equipment, server and pc's protected by Belkin Surge Protector

Somewhat it fried Mikrotik LAN ports....

Hi sifu, just curious but can we use XPON stick if we don't use GPON stick? Also currently I'm looking at ONU OLT from Alibaba that has 10GBe and 2.5GBe LAN, would we be able to mod that with our original ONU OLT info onto it?

Also if we were to use let's say a Intel 82599ES SFP+ PCIe card, would we be able to theoretically pull greater than gigabit if our Unifi is on a 2Gbps plan with an XPON stick? Appreciate your input on this!

Snopped around on some Chinese forums regarding LTF7263-BH+
https://www.chiphell.com/forum.php?mod=view...353807&mobile=2

Looks like the interface is quite bare, even more bare than ODI stick. Only can configure LOID, LOID PASSWORD, PLOAM PASSWORD via WebGUI. Not sure how robust their SSH interfaces are to change anything, but it's also a realtek chipset(CA8271S) from what YuukiJapanTech can gather on his/her github, so the flash command should still be able to be utilized assuming if realtek didn't change anything from the RTL960x family.

I'll get one next month to play around with next month probably, but the chances of it working with TM is quite steep, unlike China Telecom which looks like they only check for PLOAM, MAC and LOID?

Also the wavelength for LTF7263-BH+ is 1270nm/1577nm, does TM use the same wavelength as this or is it compatible despite it not being the exact same?

Is Nokia and ALCATEL-LUCENT is the same OLT or different series?

thing is, even Nokia brand, it's still use ALCL (Alcatel-Lucent) in OMCI MIB 131

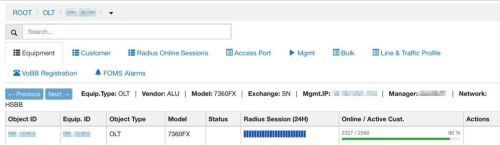

I asked TM what OLT I under: Nokia 7360FX OLT


Here some MIB 131 ID that I know so far within TM

ASCII ID	HEX ID	Vendor Name
ALCL	414c434c	Nokia/Alcatel-Lucent
FHTT	46485454	Fiberhome
HWTC	48575443	Huawei
TPLG	54504c47	TP-Link
UBNT	55424e54	Ubiquiti
ZTEG	5a544547	ZTE

I have both the GN630E and GN630V but didn't do a full teardown. Decent quality and both come with heatsink. The SoC is hidden inside the EMI shield.

Huawei OLT way of managing bandwidth for each ONT on GPON L2 level is known as DBA. There's multiple T-CONT for different services and each T-CONT have their own DBA profile. It's more or less similar on other OLT.

I've tried a 2Gbps PPPOE account and I am getting the same 950Mbps as I am limited by my OLT DBA bandwidth profile.
