Home Networking Ditch ONU, use GPON SFP on Business Grade Router, 2.5G ONU for Unifi & Maxis, NO NEED VLAN

views

afif92	Mar 1 2021, 06:34 PM Return to original view \| Post #1
Casual Junior Member 374 posts Joined: Mar 2010	QUOTE(Anime4000 @ Mar 1 2021, 12:07 PM) There many good reason using own ONT. 1. Make All in One with flexibility of SFP on High End/Enterprise Router. 2. Learn more about xPON technology (after know xDSL) 3. Make your setup look Professional 😜 4. Giving us more control and optical reading live (You can't do that on TM Unifi after OMCI kick in) 5. Modify some GPON/PON/OMCI parameters, if you in luck, you can modify Bandwidth Control, CODE # cat /etc/version C00R657V00B12 -- Thu Nov 21 14:52:46 CST 2019 # diag RTK.0> gpon show onu-info Vendor ID : GPON Model ID : G657 Gpon MAC : 6cefc6000000 Hardware : V1.0 Software : C00R657V00B13 RTK.0> gpon show us-flow ============================================================ GPON ONU MAC U/S Flow Status Flow ID \| GEM Port \| Type \| TCont 0 \| 263 \| ETH \| 0 1 \| 264 \| ETH \| 1 2 \| 267 \| ETH \| 1 3 \| 272 \| ETH \| 2 64 \| 2 \| OMCI \| 16 ============================================================ RTK.0> bandwidth get egress port all port: 0 rate:4194296 queue: 0 apr-index: 0 queue: 1 apr-index: 0 queue: 2 apr-index: 0 queue: 3 apr-index: 0 queue: 4 apr-index: 0 queue: 5 apr-index: 0 queue: 6 apr-index: 0 queue: 7 apr-index: 0 port: 2 rate:4194296 queue: 0 apr-index: 0 queue: 1 apr-index: 0 queue: 2 apr-index: 0 queue: 3 apr-index: 0 queue: 4 apr-index: 0 queue: 5 apr-index: 0 queue: 6 apr-index: 0 queue: 7 apr-index: 0 RTK.0> bandwidth get ingress port all rate port: 0 rate:4194296 port: 2 rate:4194296 RTK.0> bandwidth set egress port all rate <UINT:rate> - rate vlaue (unit 1Kbps), <8~1048568> RTK.0> bandwidth set ingress port all rate <UINT:rate> - rate value (unit 1Kbps), <8~1048568> RTK.0> bandwidth set egress port all rate 1048568 RTK.0> bandwidth set ingress port all rate 1048568 RTK.0> bandwidth get egress port all port: 0 rate:1048568 queue: 0 apr-index: 0 queue: 1 apr-index: 0 queue: 2 apr-index: 0 queue: 3 apr-index: 0 queue: 4 apr-index: 0 queue: 5 apr-index: 0 queue: 6 apr-index: 0 queue: 7 apr-index: 0 port: 2 rate:1048568 queue: 0 apr-index: 0 queue: 1 apr-index: 0 queue: 2 apr-index: 0 queue: 3 apr-index: 0 queue: 4 apr-index: 0 queue: 5 apr-index: 0 queue: 6 apr-index: 0 queue: 7 apr-index: 0 RTK.0> bandwidth get ingress port all rate port: 0 rate:1048568 port: 2 rate:1048568 RTK.0> port get status port all Port Status Speed Duplex TX_FC RX_FC ---- ------ ----- ------ ----- ----- 0 Up 1000M Full En En 2 Up 1000M Full Dis Dis [attachmentid=10800181] which value shows the upload speed has been modified?
Card PM	Report Top Like Quote Reply

afif92	Mar 1 2021, 10:01 PM Return to original view \| Post #2
Casual Junior Member 374 posts Joined: Mar 2010	QUOTE(Anime4000 @ Mar 1 2021, 07:53 PM) I think "egress" part as mean exit, modifying GEM and OMCI command can trigger alarm on TM OLT, so far so good. Can you show the speedtest video or gif? I want to look if the upload will spike to more than 500Mbps and down back to the subscribed speed.
Card PM	Report Top Like Quote Reply

afif92	Mar 10 2021, 11:21 PM Return to original view \| Post #3
Casual Junior Member 374 posts Joined: Mar 2010	QUOTE(Anime4000 @ Mar 10 2021, 11:00 PM) Nice, mean modified firmware able regenerate new VS_AUTH_KEY when change ELAN_MAC_ADDR and/or HW_HWVER I can make quick patch, TWCGPON657 firmware don't have VS_AUTH_KEY and can't get GPON working. Another Update: TM OLT notice my modified bandwidth limiter Damn, OMCI Security pretty tight, sure somewhere can crack TM OLT Also I notice, TM did bridge VLAN500 on LAN2, as I see this: CODE RTK.0> l2 get entry address valid ... LUT address: 0x00fc (1K LUT) L2 Unicast table: MACAddress Spa Fid Age Vid State Ext Hash 00:00:5E:00:01:60 2 0 7 500 Auto 0 SVL CtagIf Auth DaBlock SaBlock Arp En Dis Dis Dis Dis ... Oh no, now your speed back to normal?
Card PM	Report Top Like Quote Reply

afif92	Sep 3 2021, 12:35 AM Return to original view \| Post #4
Casual Junior Member 374 posts Joined: Mar 2010	QUOTE(Anime4000 @ Jul 25 2021, 11:26 PM) To avoid OLT Alarm, you need make your SFP ONU Stick like your original ONU, by updating required info for your SFP ONU Stick You can read here, I make complete guide and sacrifice my ONU collection for this purpose: https://github.com/Anime4000/RTL9601C1/blob.../VS_AUTH_KEY.md TLDR, Using HG8240H ONT Device Information on SFP ONU Stick; CODE flash set PON_VENDOR_ID HWTC flash set HW_CWMP_MANUFACTURER 'Huawei Technologies Co., Ltd' flash set HW_CWMP_PRODUCTCLASS HG8240H flash set HW_HWVER BF9.A flash set ELAN_MAC_ADDR 043389FE8F59 flash set VS_AUTH_KEY 4FF78A9422FCBC797A0A3061186F20B7 flash set OMCI_FAKE_OK 1 flash set OMCI_SW_VER1 V3R017C10S100 flash set OMCI_SW_VER2 V3R017C10S100 flash set GPON_ONU_MODEL HG8240H flash set GPON_SN HWTC98AFDD9D flash set GPON_PLOAM_PASSWD 1234567890 When SFP ONU Stick connecting to OLT, and everything checks out! Take note that GPON has fixed MTU size which is 2000 bytes. Advantage using SFP ONU Stick allow you to use PPPoE MTU 1500, able to access many website that block MTU 1492 If your ISP support RFC4638 About Telephone over xPON, I pretty sure they use VLAN for this, refer to your ISP which VLAN they use for Telephone line, then you bridge it, either bridge tagged to tagged or tagged to untag How to find website that block MTU under 1500?
Card PM	Report Top Like Quote Reply

afif92	Jul 17 2023, 09:21 PM Return to original view \| Post #5

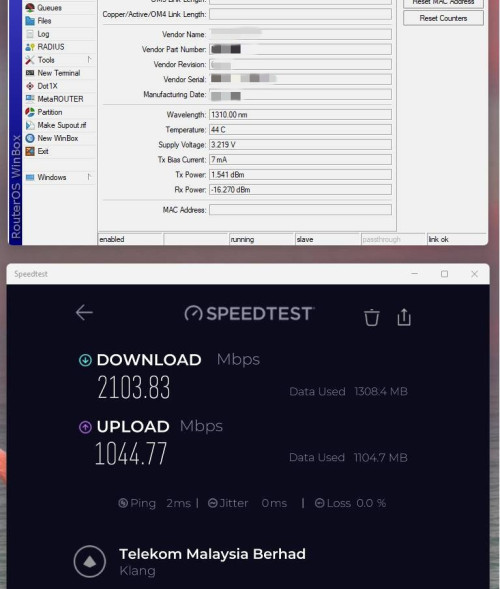

Casual Junior Member 374 posts Joined: Mar 2010	QUOTE(Anime4000 @ Jul 10 2023, 02:56 PM) sorry ejery this dude has become #1 Results: https://www.speedtest.net/result/d/6f6d079f...91-8e53cec2c6cd only Selangor people can have nice speed and nice ping. we live outside Selangor will suffer high ping, like Seremban, must go Melaka first 🤣 Muar can get low ping like Selangor.. I try play Dota at my friend's house and get 7ms ping (on wifi and use stock TM router) This post has been edited by afif92: Jul 17 2023, 09:22 PM
Card PM	Report Top Like Quote Reply

afif92	Oct 13 2024, 04:45 PM Return to original view \| Post #6
Casual Junior Member 374 posts Joined: Mar 2010	-deleted- This post has been edited by afif92: Oct 13 2024, 04:48 PM
