Home Networking Ditch ONU, use GPON SFP on Business Grade Router, 2.5G ONU for Unifi & Maxis, NO NEED VLAN

views

OKLY
post Oct 4 2024, 09:57 AM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
QUOTE(Anime4000 @ Oct 4 2024, 02:51 AM)

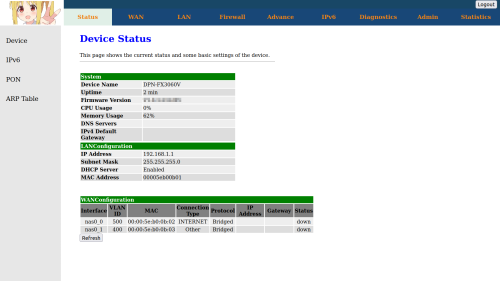

last week, I got GPON dev board, with HGU Firmware
» Click to show Spoiler - click again to hide... «

This ONT Box should be cheaper then PON Stick counterpart,

this also solve a lot of issue where you can use router that don't support VLAN Internet like TP-Link TL-XDR5480
also not everyone comfortable managing Mikrotik, this ONU emulate D-Link and Huawei at most.

Dothan This is Unifi compatible ONU I working on,
also it should support TIME, Maxis own Infra and Allo (Nokia/Huawei) with right OMCI
Can ditch D-Link, Can use China Router (since they don't use VLAN Internet)
*
Iā€™m assuming this will support ASUS router as well? biggrin.gif
OKLY
post Oct 7 2024, 01:25 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
QUOTE(Anime4000 @ Oct 7 2024, 01:09 PM)

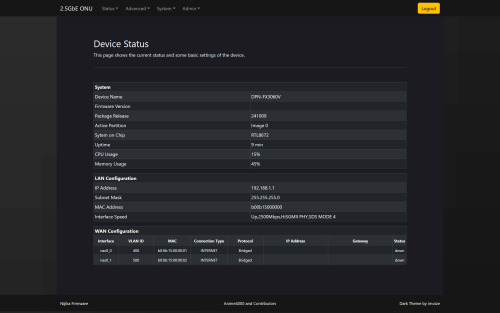

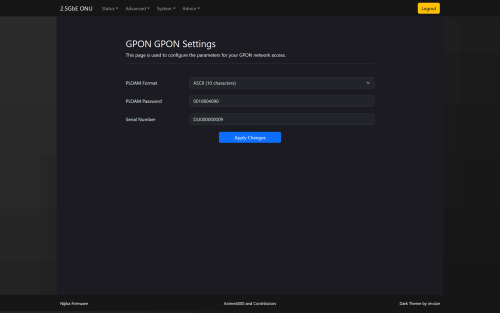

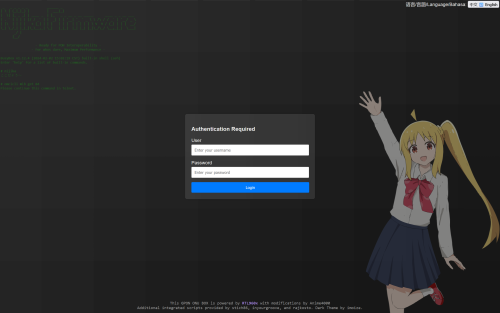

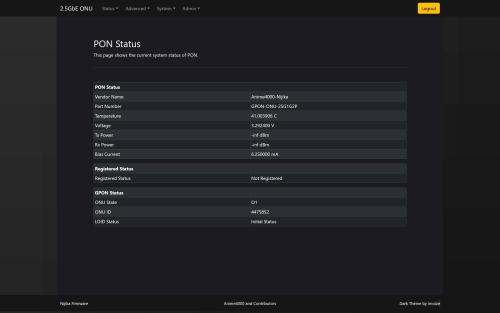

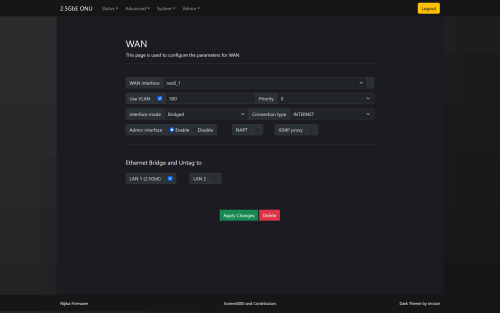

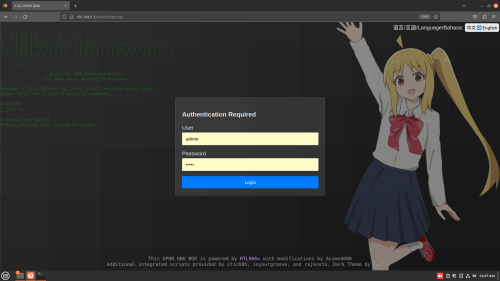

update, after done porting and injecting Nijika Firmware into 2.5GbE ONU Box, now in testing phase

I made the video how it look, using Bootstrap 5 and VLAN bridging!


NOTE:
karenzayn had ask me why IPoE and PPPoE there...
IPoE and PPPoE is just a placeholder, an eye candy...
removing those div block make firmware configuration unhappy! so, I had to make it look nice and do noting biggrin.gif

now afraid to to edit the blobs, just leave there

In meantime:
Now I focus on VoIP, apparently Flyinngvoice ATA use dd-wrt interface, so many option to play with...
*
Looks simple and good enough. PM me if got special price for first batch. tongue.gif
OKLY
post Oct 12 2024, 05:42 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia

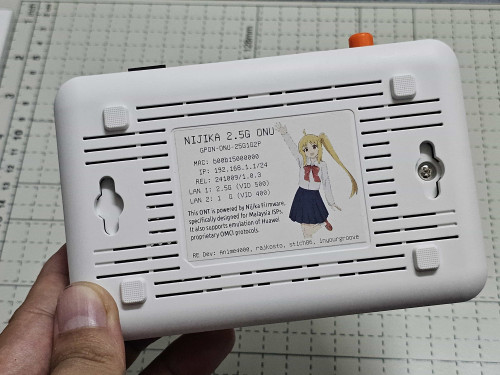

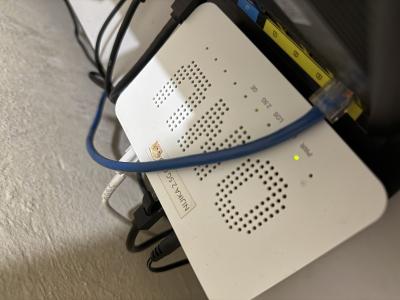

Guess what arrived today? brows.gif

Attached Image
OKLY
post Oct 12 2024, 07:28 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
QUOTE(Anime4000 @ Oct 12 2024, 06:54 PM)
Nice, you are first person using ONU Bridge Box šŸ˜
So, Untag VLAN is work? I need to know at least it work beside ALCL OLT, hopefully can override ME 171

I also have send one to TM employee, he will try on multiple OLT

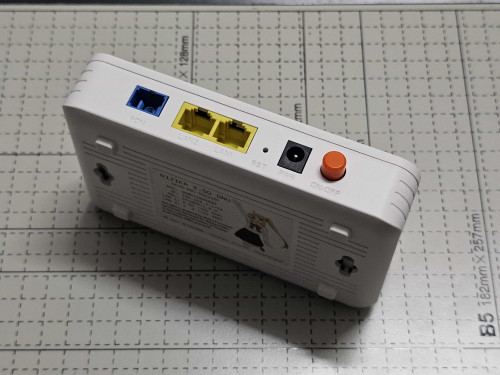

This BTU Bridge or ONU Bridge Box is just a PON Stick + HiSGMII/2.5G Media Converter without expensive part.

» Click to show Spoiler - click again to hide... «

*

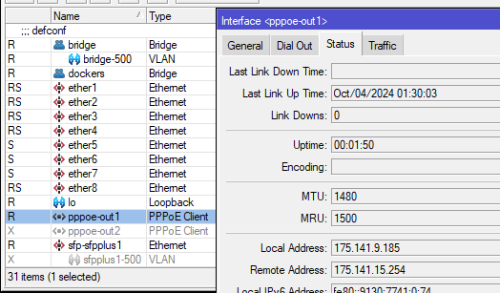

Yes, it works even if VLAN is not configured on the router.
OKLY
post Oct 12 2024, 07:36 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
QUOTE(Anime4000 @ Oct 12 2024, 07:35 PM)
Nice! Auto sensing is working, by default it also bridge tagged VLAN, once it sense through VID, the tagged traffic disabled
FHTT and ALCL OLT can override to untag, waiting for TM guy try on ZTE and Huawei OLT
*
Yes, I tried when router configured with VLAN, no issues as well. Now don't need to worry bridged mode suddenly drop speed ya. biggrin.gif
OKLY
post Oct 13 2024, 03:13 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
Just sharing, yesterday after I swapped to the custom ONU box, I noticed my upload speed gets stuck around 200mbps. Tried several things like restarting ONU and router, change IP range but still the same issue.

So I decided to contact TM and ask to "reset port", immediately after it was done the speed was back to normal.

Any idea why this happened? Was it the OLT and ONU needed to "re-negotiate"?

P/S: Actually this also happened when I gotten the FSU from 800mbps to 1gbps and my ONU swapped from previous Huawei to the DLink black box. A "port reset" solved it as well that time.
OKLY
post Dec 1 2024, 02:42 PM

The Penguin Vader
Group Icon
Staff
12,089 posts

Joined: Dec 2004
From: Malaysia
QUOTE(Anime4000 @ Nov 30 2024, 09:54 PM)

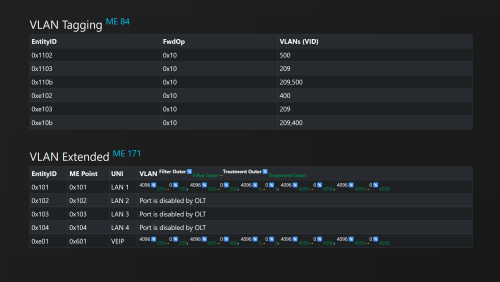

today I installed ONU Bridge, where this area using Fiberhome, as expected, Fiberhome OLT having issue with >1Gbps DBA.
Thus, this trick merging PPTP and VEIP solve the issue, and DBA become invalid and no bandwidth profile is set.

» Click to show Spoiler - click again to hide... «


now user on actual real bridge mode and with needing a VLAN to have internet, setup like Streamyx Modem

I also set the factory default value to Unifi, just in case doing factory reset, it default to Unifi profile
*
Any updates/changes I need to do for my ONU box? biggrin.gif
