Home Networking Ditch ONU, use GPON SFP on Business Grade Router, 2.5G ONU for Unifi & Maxis, NO NEED VLAN
|
|
 May 27 2022, 07:41 AM
Return to original view | IPv6 | Post
#21
|

Senior Member
2,466 posts Joined: Nov 2004
|
QUOTE(lwk523 @ May 26 2022, 11:29 PM) mamakap aneip Anime4000 Just PM you for update. then read here.. nvm than.. hopefully will receive soon.. tq for the help.I will ship out to yall tomorrow and sorry for the delay    |
|
|
|
|
|
Jun 2 2022, 12:13 PM
Return to original view | Post
#22
|
|
Senior Member
2,466 posts Joined: Nov 2004
|
Hi...
I using TWCGPON657.. Trying to use on Maxis-TM fiber. Already flash Anime4000 firmware, change the stick identity + PLOAM password. My area use Alcatel-Lucent. Original use ALC ONT but already change to Huawei. This is setting I set flash set GPON_SN HWTC3793xxxx flash set GPON_PLOAM_FORMAT 1 flash set GPON_PLOAM_PASSWD 000061xxxx flash set PON_VENDOR_ID HWTC flash set HW_HWVER 168D.A flash set ELAN_MAC_ADDR C4447DB4xxxx flash set GPON_ONU_MODEL HG8240H5 flash set OMCI_SW_VER1 V5R019C00S125 flash set OMCI_SW_VER2 V5R019C00S125 flash set CUSTOM_OMCI_SW_VER1 V5R019C00S125 flash set CUSTOM_OMCI_SW_VER2 V5R019C00S125 flash set OMCI_OLT_MODE 1 I got O5 status but no VLAN come up. omcicli mib get 84 > got nothing # diag RTK.0> l2-table get entry address valid ^ this one a little interesting.. I got VID 600. (I come from Unifi). After query few time, I can see VID 823 come out n 600 gone.. Next query 600 got and 823 gone. No 621 or 822. Any point to see whats wrong? Sorry my post lack of info. Try to figure out where to look for error log and command the can help me to figure out more about this. |
|
|
Jun 6 2022, 05:00 PM
Return to original view | IPv6 | Post
#23
|
|
Senior Member
2,466 posts Joined: Nov 2004
|
QUOTE(Anime4000 @ Jun 2 2022, 04:06 PM) you have enter VS_AUTH_KEY after changing HW_HWVER and ELAN_MAC_ADDRESS ? Yup VS_AUTH_KEY updated. No reboot issue. omcicli mib get command only works with ODI DFP-34X-2C2 Noted on omcicli mib get. |
|
|
Aug 3 2023, 09:49 PM
Return to original view | IPv6 | Post
#24
|
|
Senior Member
2,466 posts Joined: Nov 2004
|

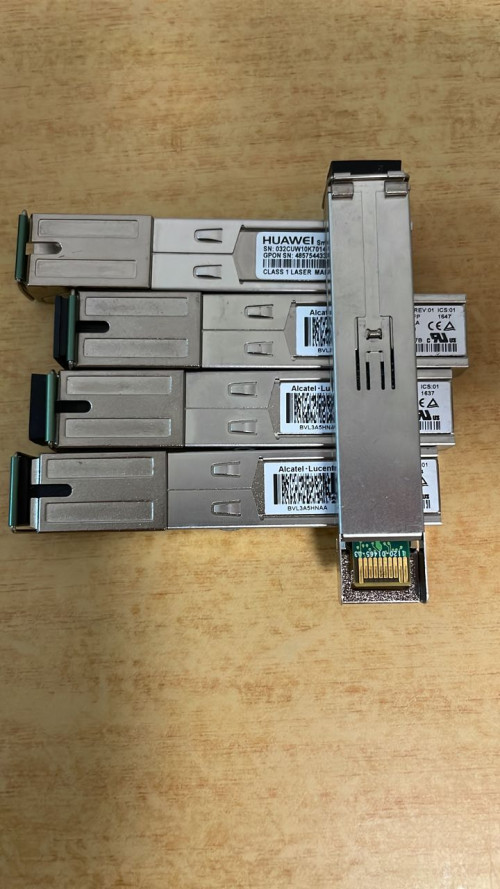

QUOTE(76radius @ Aug 2 2023, 10:35 PM) Hi there, I am the one who bought from the EU guy. After conversion / courier it costs RM423/- reached my place less than 5 days. BTW, my service provider is Time Broadband. The GPON stick is very stable since day-1. Just plug & play and requires no knowledge of IT 😂. The photo is attached. Wow.. biggest router ever.. Got from where? How much? |
|
|
Oct 4 2024, 12:31 PM
Return to original view | IPv6 | Post
#25
|
|
Senior Member
2,466 posts Joined: Nov 2004
|
QUOTE(Anime4000 @ Oct 4 2024, 09:26 AM) in this default, VLAN 400 is untag, good for user using PABX, FreePBX, ATA or Desktop SIP IP Phone, Hope can have option for tagged 400 so can just use 1 cable only for both internet and voice. Interested to use with 3cx.if using D-Link as ATA, need bridge as tag to tag Yea, since D-Link ONR no longer life time warranty like old ONT (TM want cut cost), instead renew contract, use this ONT instead most importantly, no need to worry about VLAN |
