Intel Pentium Dual Core E2140/E2160/E2180 Thread, Discussion & Compilation
|
Snyy
|
Oct 23 2007, 02:05 PM
|
|
Hi guys, I going to get an Intel Pentium Dual Core E2140 + P35 DS3 soon. Just want to know is there any stepping of E2140 will give a better OC result? I also going to buy a 2*1GB Value RAM. which RAM (what chipset?) you guys will recommend?
|
|
|
|
|
|
Snyy
|
Oct 24 2007, 01:21 PM
|
|
thx thx. will try looking for it on this coming weekend in lowyat. btw, what cooler you guys using for the CPU?
|
|
|
|
|
|
Snyy
|
Nov 3 2007, 01:58 AM
|
|
hi guys, regarding the core temp. I core temp 0.95.4. it shown me my core temp was 33 while my easy tune5 shown me my core temp is 24. which one is correct? or just -15 degree from what the current temp 0.95.4 shown?
|
|
|
|
|
|
Snyy
|
Nov 21 2007, 12:39 PM
|
|
hi, what BIOS version is on you guys P35 DS3 motherboard? I faced a problem, I can only push my E2140 to 350*8. cant boot up with anything more than 360*8 even with 1.4vCore. I'm using Crucial value ram (D9) and I did set the ram timing to 5-5-5-15. what is the problem? would updating the BIOS would solve my problem? currently F5 BIOS with my motherboard.
|
|
|
|
|
|
Snyy
|
Nov 21 2007, 01:45 PM
|
|
QUOTE(rainingzero @ Nov 21 2007, 12:49 PM) 2800mhz also considered niec..  hehe.. if can sure want to push it to the limit.. QUOTE(kucingfight @ Nov 21 2007, 12:53 PM) Which HSF are you on? Tested with at least 1:1 divider? if u've done tat, & no changes, probably u've got a walled CPU erm... on stock HSF. but I see some of you guys can push to 3.0Ghz with stock HSF. yaya. I did tried with 1:1 divider. but still no luck. QUOTE(Are_keem @ Nov 21 2007, 01:18 PM) same like mine, but mine can't pass through 390 x 8 although had loosen the timing and pump 1.5V vcore. confirm not caused by temperature though. the RAM divider had been set to 1:1 but still cant pass 390FSB. maybe got fsb-walled processor..  aiks.. but at least you can push to 390*8. mine only 350*8.
|
|
|
|
|
|
Snyy
|
Nov 22 2007, 05:27 PM
|
|
QUOTE(bryanyeo87 @ Nov 22 2007, 04:17 PM) Try bios F4, because it seems to have better OCing capabilities, unless of course, you need the bios update to solve some bugs la  If you set your ram timings to 5-5-5-15, did you set it in bios or via windows using memset? F4? now latest is F9. or should I try the latest? I set it in BIOS. any different if I set using memset?
|
|
|
|
|
|
Snyy
|
Nov 23 2007, 09:51 PM
|
|
QUOTE(bryanyeo87 @ Nov 22 2007, 06:06 PM) What are the other sub timings you set? other then the ram timings FSB ocing lor...F3 gives higher FSB ocing but has issues with rams  erm... all other timing I leave it auto. Just now try x6, it same just can push up few FSB only. Anyone tried update BIOS in windows b4?
|
|
|
|
|
|
Snyy
|
Nov 26 2007, 11:14 AM
|
|
QUOTE(kucingfight @ Nov 23 2007, 11:27 PM) Added on November 23, 2007, 11:28 pmyeap no prob..i always update from windows  wired. I'm having an issue when I was updating the BIOS in windows using @BIOS. An error message pop up after it start updating the BIOS. Is there any setting I need to do 1st b4 I can flash in windows? QUOTE(bryanyeo87 @ Nov 24 2007, 02:18 AM) Try this timings in bios, set ram divider 1:1 first
Cas Latency time 5 Dram Ras to Cas delay 6 Dram ras precahrge 5 precaharge delay 15 act to act delay 3 rank write to read delay 10 write to precharge delay 13 refresh to act delay 50 TRD auto TRD precahrge delay auto Try this settings
are you suspecting my RAM holding my CPU back? because my RAM can do DDR1100 with 5-5-5-15 with all sub timing leave it to auto. so, was hoping the update of BIOS would help.
|
|
|
|
|
|
Snyy
|
Nov 26 2007, 09:30 PM
|
|
QUOTE(bryanyeo87 @ Nov 26 2007, 07:02 PM) im not suspecting your ram, but i am suspecting the TRFC as well as the sub timings from the NB tot he rams... just try out the settings and see  btw, you can save your old bios settings by pressing F11 okok. I will try it out later. but I still cant update my BIOS. This is the error. Anyone know what is the problem? Attached thumbnail(s)
|
|
|
|
|
|
Snyy
|
Nov 28 2007, 07:39 PM
|
|
QUOTE(bryanyeo87 @ Nov 24 2007, 02:18 AM) Try this timings in bios, set ram divider 1:1 first
Cas Latency time 5 Dram Ras to Cas delay 6 Dram ras precahrge 5 precaharge delay 15 act to act delay 3 rank write to read delay 10 write to precharge delay 13 refresh to act delay 50 TRD auto TRD precahrge delay auto Try this settings

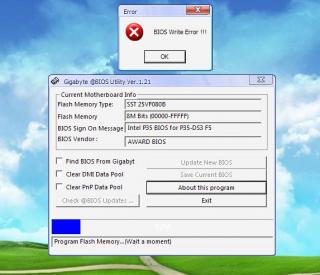

aiks. my previous post gone. oh ya, I did try these timing. but still no luck. cant pass 360 FSB. I faced an issue when I try to update my BIOS using @BIOS in windows. Below are the screenshot. anyone can help? Attached thumbnail(s)
|
|
|
|
|
|
Snyy
|
Jan 30 2008, 11:03 AM
|
|
I just check the dedicated Super PI thread for us. I saw a lot of you guys bump more than 1.4vCore. can you guys share how was the temp like and what cooler you used?
|
|
|
|
|
|
Snyy
|
Jan 31 2008, 12:21 AM
|
|
hi guys, thanks for the reply.  Just got my self a E2160  after I sold my E2140 yesterday. Tried 333*9 @ stock vCore stable for 30min OCCT. but just now I decided to lower down the multiplier to found out what is the highest FSB can this E2160 do. so I tried 400*8 and I need 1.425vCore to get it stable. how you guys think my E2160 perform? Ok? normal? acceptable? any advice for me? thx.
|
|
|
|
|
|
Snyy
|
Jan 31 2008, 04:44 PM
|
|
QUOTE(Deerc @ Jan 31 2008, 03:31 PM) @ Snyy May i ask u wht mobo n rams u using? cause i'm doing survey on getting affordable n nice oc stuff to work with. I'm using P35 DS3 + crucial value ram(D9).
|
|
|
|
|
|
Snyy
|
Jan 31 2008, 07:22 PM
|
|
-a1098113- yaya. Agree with you my P35 DS3 seem vDrop a lot.  btw, I just bought E2160 on Tuesday.
|
|
|
|
|
|
Snyy
|
Feb 1 2008, 07:35 PM
|
|
QUOTE(OC4/3 @ Jan 31 2008, 08:37 PM) Not a bad chip when compare to the average poor chip out there,quite nice.How much vcore does it take to stable at 400x9? Mine can't do 400*9. 400*8 need 1.425v. 410*8 need 1.46v. QUOTE(a1098113 @ Jan 31 2008, 10:20 PM) @snyy the e2160 can do 3.6ghz with a little bit of push, so i consider your results ok. For my e2140, i can do 400*8 with 1.38V, so i believe yours should be able to as well. As for stock Vcore, i did 375*8. Well, its ok but i think you can do better if you try harder  Added on February 1, 2008, 7:33 am@all come on guys, bring forth your procs and OC. Come come. And do some stable super pi. And you, Snyy, do a super pi with a stable clock and post it up the dedicated thread for us. 3.6Ghz.. I think mine can't la. 410*8 already need 1.46v.  yaya. Just post my super PI result over there.
|
|
|
|
|
|
Snyy
|
Feb 16 2008, 06:52 PM
|
|
aiks.. my e2160 need 1.475v to do 3.3GHz (413*8) stable. can't imaging the vCore needed for me to do 3.6ghz..
|
|
|
|
|
|
Snyy
|
Feb 16 2008, 09:35 PM
|
|
QUOTE(a1098113 @ Feb 16 2008, 06:56 PM) @Snyy your proc is an M0 stepping? yaya. MO stepping. why? QUOTE(heizad @ Feb 16 2008, 06:57 PM) GA P35 DS3
|
|
|
|
|
