Item(s):

Package includes:

Price: TH16 : RM 43 Th Sensor Si7021: RM18 Th Sensor AMS2301 : RM15

Warranty: 6 Months

Dealing method: Poslaju / COD

Location: Kota Damansara

Contact method/details: 012 337 6390
---

Item(s) conditions: New

Picture:

Reason for sale: Distributor

Visit us at www.iotdiy.my
FB:https://www.facebook.com/IOTDIYStore

Sonoff TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 15A.

Sonoff TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of your home environment falls within the range, it will automatically turn on or off the connected devices.

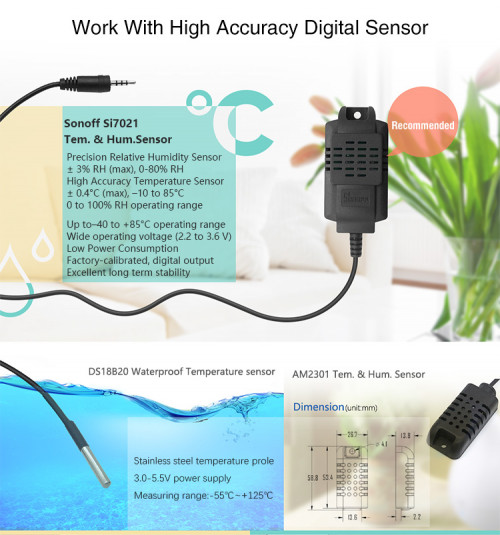

Sonoff TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:

Si7021, AM2301, DS18B20, DHT11
Si7021

Note 1: the sensors are not included in the package of Sonoff TH16.
The sensor should be plugged into the smart switch before power-on. It is not advised to plug or unplug the sensor after power-on. DS18B20 is waterproof, which can only measure temperature. Other sensors can measure both temperature and humidity.

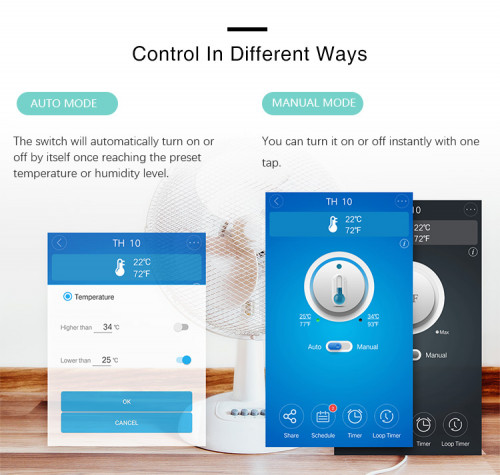

With the eWeLink app, users can create simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to detect temperature/humidity, and then set specified temp. or hum. ranges as conditions to trigger on/off other smart devices in the same account, such as Sonoff Basic, Sonoff RF, Sonoff SV, S20. This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.









Features
Supports tracking device status
Supports remote turn on/off connected appliance
Supports presetting temperature and humidity to turn on/off
Supports 8 enabled countdown/single/repeat timing tasks

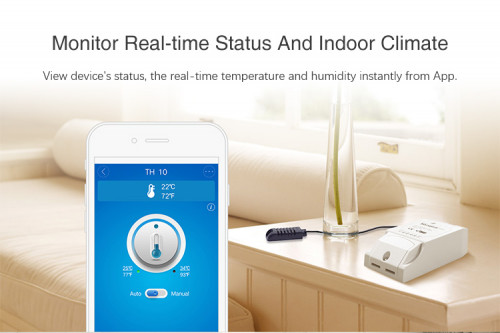

Support checking real-time temperature and humidity
Support setting smart scene to trigger on/off other smart devices
Works with Amazon Echo, Echo Dot, Amazon Tap
Works with Google Home, Google Home Mini, Google Nest
Works with IFTTT
Specifications
Input voltage: 90~ 250V AC
Input current: Max 10A /15A
Max. Power: 2200W(10A) /3500W(15A)
Humidity: 5%-90%RH, Non-condensing
Operating Temperature: 0ºC-40ºC(32°F-104°F)
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Dimension: 114*51*32 (mm)
Supported temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
Gang: 1
Certification: CE, RoHS, FCC (Download)
UPC (for Sonoff TH10): 6920075700947
UPC (for Sonoff TH16): 6920075700954
Si7021 Sensor
Temperature Measuring Range: –40℃~+85°C
Humidity Measuring Range: 0~100%RH
Storage Temp.: –65℃~+150°C
Operating Voltage: 2.2-3.6V
Weight: 26g
Length: 0.5m
AM2301 Sensor
Temperature Measuring Range: -40℃~+80℃
Humidity Measuring Range: 0~99.9%RH
Power Supply: 3.3-5.2V DC (5V recommended)
Temperature Sensor Type: Resistive
Humidity Sensor type: Capacitive
Weight: 22g
Length: 0.5m
DS18B20 Sensor
Type: Waterproof temperature sensor
Probe: Stainless steel temperature probe
Temperature Measuring Range: -55℃~+125℃
Power Supply: 3.0-5.5V
Weight: 26g
Length: 1m
