Measat 3 satellite outage» Click to show Spoiler - click again to hide... «
I perform blind scan/search on my satellite receiver earlier. Upon checking, I conclude myself that Astro have successfully recovered ALL SD, HD and UHD channels, thanks to Measat 3b and Measat 3a satellite.
I recommend you guys to reboot your Astro box for it to refresh the channel list. Reboot as in, unplug the power, wait a few seconds, and then turn it back on.
But if you notice that certain SD/HD channels still has the SCNA message, hmmm, then you probably facing the 11.7-12.75GHz signal conflict issue.
If you know anyone that faces this issue, tell him/her to reply this post and ask a question. I'll try to explain accordingly.
Nope. All 12 of Measat 3 satellite transponders meant for Astro (10982, 11022, 11062, 11102, 11142, 11182, 11482, 11522, 11562, 11602, 11642 and 11682MHz) are still off-air. As you can see, the 'Strength' reading appears 0% on those frequencies mentioned.

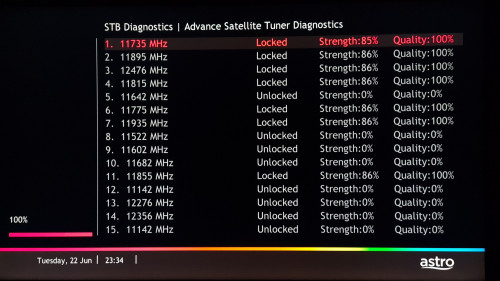

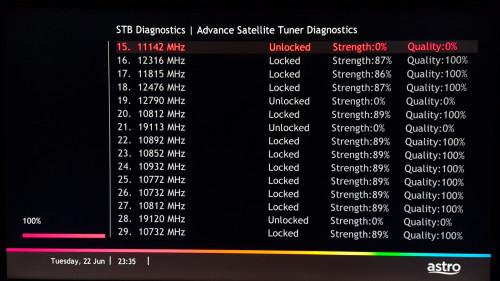

For HD and PVR box users, if you perform Transponder Scan now (
home>Settings>STB Diagnostics>Tuner>press Green button), this is how it should look like. Frequencies that supposed to have signal, is having signal.
For Ulti and Ultra Box user, hmmm there's no way you can perform Transponder Scan like this. If you wonder why, this one better ask those software people in Astro.
All TV channels that is initially from Measat 3 satellite, appears to be successfully migrated to Measat 3b satellite
on another frequency range, which are 11735, 11775, 11815, 11855, 11895, 11935MHz. Astro have never been using these transponder frequencies for general Astro viewers like us (as far as I can remember la). I guess these 6 transponders are reserved for backup purposes only.
Therefore currently, those backup transponders are finally put into good use now, thanks to Measat 3 satellite
🙃Also, there's 1 additional transponder from Measat 3a which was brought back alive, 12476MHz.
Astro UHD ch780, was from Measat 3a, and then move to Measat 3, and now move back to Measat 3a
In reference to my previous post on 13 June 2021:
https://forum.lowyat.net/index.php?showtopi...ost&p=101274897Astro UHD ch780 were on 10.7-11.7GHz frequency since 12 June, allowing those minority of Ultra Box users (either using Universal LNB, or building's centralise dish that don't support DCSS) get to enjoy Astro UHD channel 780. The best example, would be
caviarsMmm sadly if you tune to CH780 now, you will see SCNA message again, just like the old days.

On a bright side, at least you got to enjoy Astro UHD ch780 via satellite for about 10 days time (12-21 June 2021)
😁How about the bitrate for Astro UHD channels now? Mmmm, not the right time to ask about bitrate stuff laa... But, just for those who interested:

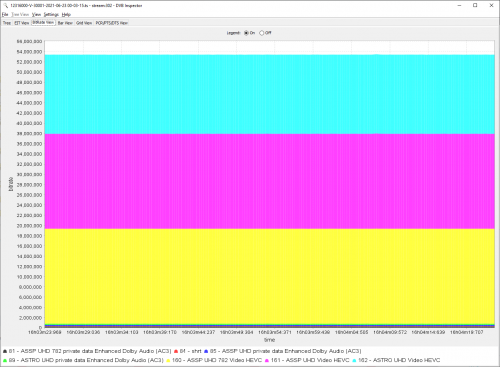

NOTE: The TS Capture above is being recorded/captured for the period of exactly 1 minute, hence this is the bitrate graph of all 3 UHD channels for the period of 1 minute.
Only VPID and APID tracks are shown, other PID has been filtered from view.| Channel name | CH No | Video Bitrate | HDR |
| Astro UHD | 780 | Constant 15Mbps | No |
| Astro SuperSport UHD | 781 | Constant 18.5Mbps | Yes |
| Astro SuperSport UHD | 782 | Constant 18.5Mbps | Yes |
All 3 UHD channels in one transponder (FEC 3/4) on Measat 3a satellite... I'm kinda concern that the video bitrate is getting lower

What you guys think about the picture quality you see on Astro UHD ch780 now?
Well to be more considerate, because Astro have "lost access" to Measat 3 satellite, the remaining satellite bandwidth they can use now is scarce already. Haih... Mixed feelings indeed.
Yes. I just realised that too. Only when they have satellite bandwidth constraints, then only they choose not to waste that kind of satellite bandwidth that brings them insignificant financial advantage lol
And I notice that because of this Measat 3 satellite outage, this is pretty much the very first time I see Astro broadcast team are highly efficient in utilising its available transponder bandwidth
🤣How so? One of it, is they fill up every TEST/SPARE channels until there is pretty much no more unused 'spare' channel left. Indeed, this is the first time ever in history
🤣🤣In conclusion, do observe on the picture quality on all HD channels, especially from now on.

actually I wonder how do you manage to scrap the DVBS signal to analyze its bit rate, it's all encrypted stream
