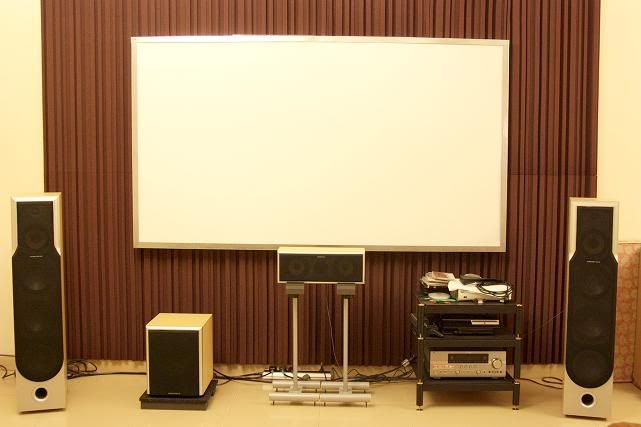

Bro HTKaki. Nice setup and nice sub.

Is there any windows at the back of the curtain? Is so, how did you soundproof the windows?

Thinking of putting plywood over my windows. Not sure if the result will be satisfactory.

Sifu, how do you guys reduce/eliminate the echo sound in your precious HT room? I can hear the high frequency echo sound when clapping my hands at the middle of the room.

I DIY some triangle and rectangle trap using Roxul MPS400 and putting around the 4 corners and still no success to avoid the echo. On the floor, I have put on the carpet. The missing part is on the ceiling. Somehow I got difficulty to put something on the plaster ceiling, first the ceiling cannot withstand heave weight item and second got ceiling fan at the middle

Actually I built a total of 12 traps of various sizes and put on various locations as below.

4 triangle traps (17"x17"x24") at the 4 ceiling corners.
3 rectangle traps (4'x2') at the 3 wall corners (the other corner got door)
1 rectangle & 1 square traps (2'x2') hang on the door
2 rectangle traps at the sides of the front speaker
1 rectangle at the back of the sofa

At front, got 90" projector screen and very difficult to put things. On top, problem to hang thing due to plaster ceiling and fan.

If I clap at my sitting position, cannot hear any echo. Echo can be heard if I clap at the middle of the room.

Will try to snap some photo after work.

This post has been edited by gocitygo: May 25 2009, 01:45 PM

Respect, respect, respect. Can you still hear any echo after the acoustic treatment?

How you hang the trap at the middle ceiling corner and ceiling?

I used to have a bright room but found too much light reflection. Now, painted with darker color. Got more cinema feeling You may want to try it.

Thanks for the sharing.

Now, must find those foam and stick on the ceiling. I wish the foam has white in color to match with my ceiling. Otherwise very odd la

I saw the big sub inside the cabinet, tadak shake hah?

DIY sound trap. I'm using Roxul MPS400 (density 80kg/m3). The woods/plywoods cost more than the Roxul itself



This post has been edited by gocitygo: May 26 2009, 12:11 PM

The thickness of the traps is 2".

About the wall color, it's a Nippon paint (Poppy color, code:356)

This post has been edited by gocitygo: May 26 2009, 11:10 PM

wow, nice and clean setup

diffuser at the back of the screen?

mind to list down the hardwares

This post has been edited by gocitygo: Jun 6 2009, 06:12 AM

Kiam, congrats.

Which is the model and how much is the damage?

I'm scouting for centre speaker....

Nice setup dude.

I saw a projector screen at the background. Wouldn't be yr TV an obstacle?

Got 2 pairs of front speakers, wau. 1 dedicated to home audio and another one for HT?

i thought once u r in projector, no more u turn. size does matter.

what make u change back to flat TV?
