TP-LINK Malaysia Official Thread, Technical Enquiries and Support
|
|
 May 9 2023, 11:03 AM
Return to original view | IPv6 | Post
#1
|

Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
Dear TP-LINK MY

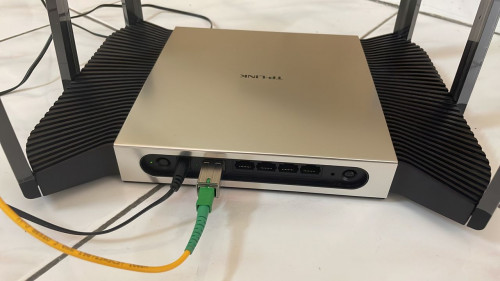

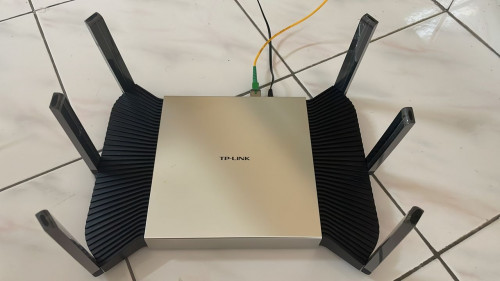

It's possible to bring router with 2.5G SFP and LAN just like this router: TP-Link TL-XDR5480 User can use XPON ONU SFP with 2.5G (HSGMII PHY/MAC, 2500base-X) and enjoy 2Gbps Unifi Plan as lwk523 have tested to unlock beyond 1Gbps, (tested via Wi-Fi 6 2x2)     I hope TP-Link can bring router with 2.5G SFP or even SFP+ with 2.5G support |
|
|
|
|
|
May 10 2023, 09:20 PM
Return to original view | IPv6 | Post
#2
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(lwk523 @ May 10 2023, 08:47 PM)    perhaps TP-Link should make xPON Stick SFP, just shrink TP-Link XZ000-G3 into SFP this should beat other ONU with MAC SFP out there |
|
|
Sep 17 2023, 06:09 PM
Return to original view | Post
#3
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|

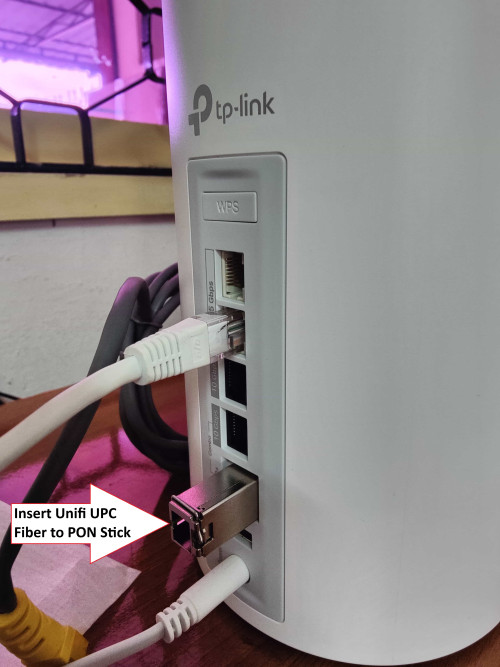

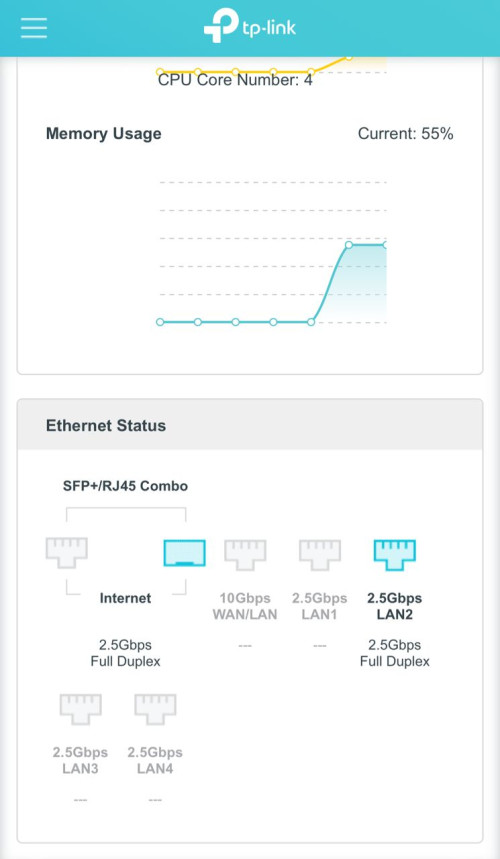

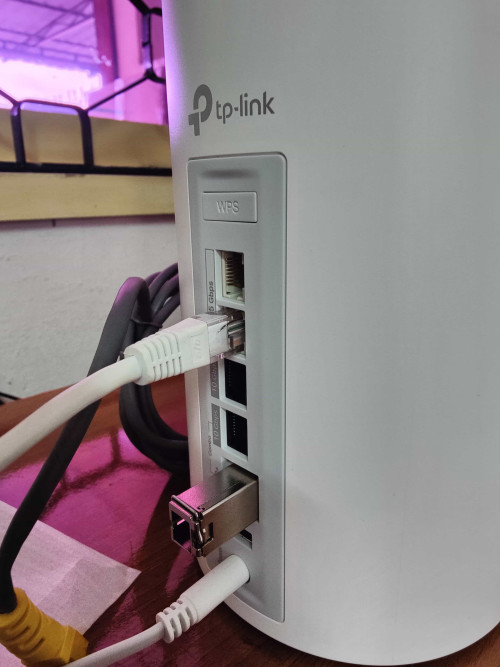

today I tested TP-Link Deco BE85 SFP+ with GPON ONU SFP (miniONT) on customer house...  apparently TP-Link Deco BE85 doesn't' understand HiSGMII (2.5Gbps) very sad, if not can make All in One with 2Gbps Unifi support! The WebGUI and Deco App very dumb down version, no way to check the LAN and SFP Interface is up or not... hope TP-Link can make an update and add a option (2.5Gbps, Auto Negotiation Disabled) just like Mikrotik did way to apart from NBase-T and MII Standard Alpha_Tay liked this post
|
|
|
Sep 17 2023, 08:43 PM
Return to original view | IPv6 | Post
#4
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(blacktubi @ Sep 17 2023, 06:48 PM) Do you manage to get any SFP module to work on Deco BE85? so far I only test is GPON Stick, I didn't try other SFP |
|
|
Nov 18 2023, 03:45 PM
Return to original view | IPv6 | Post
#5
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|

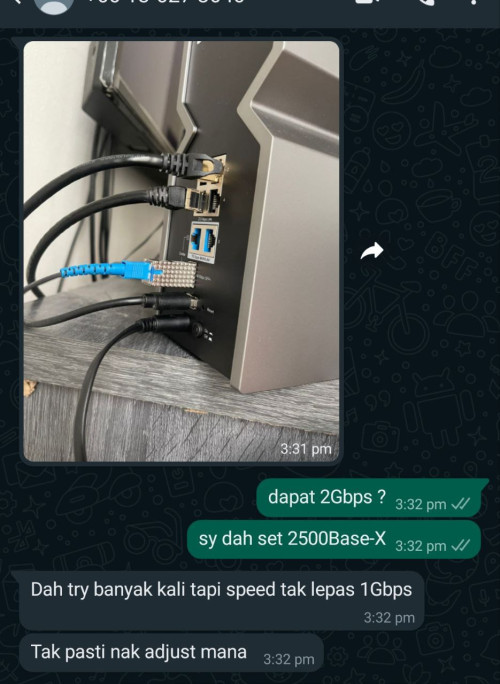

someone have tried attach my GPON ONU SFP to TP-Link Archer BE800
 apparently it didn't worked at 2500Base-X, even HiSGMII mode  the SFP failed to link with BE800 at 2500Base-X and HiSGMII, to prevent brick stick, fall back to 1000Base-X Now trying to force 2500Base-X temporary, waiting his answer |
|
|
Mar 7 2024, 02:03 PM
Return to original view | IPv6 | Post
#6
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(ahbenchai @ Mar 7 2024, 01:24 PM) Want to ask This called Optical Network Router (ONR) can be called as All in One as opposed to two device ONT + RouterHow come there is no fiber optic port for TP-Link router ax72, and need an additional optical network terminal (fiber -> wan) But the default Huawei router from Times have input for fiber optic? Are these 2 router different thing? if you wan to achieve ONR style, get an TP-LINK Archer BE800 and BE900 with beta Firmware and pair with PON Stick that plug into BE800 SFP+ slot I have few customers have done this setup |
|
|
|
|
|
Mar 8 2024, 03:08 PM
Return to original view | IPv6 | Post
#7
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(nles @ Mar 8 2024, 08:56 AM) Interesting, how's the stability? I just seller of PON Stick that works with Unifi, I guide them how to setupYou mentioned customer, you provide networks or isp services? as beta firmware, need put manual command in TP-Link Shell CODE BusyBox v1.19.4 (2023-12-05 15:52:32 CST) built-in shell (ash) Enter 'help' for a list of built-in commands. MM NM MMMMMMM M M $MMMMM MMMMM MMMMMMMMMMM MMM MMM MMMMMMMM MM MMMMM. MMMMM:MMMMMM: MMMM MMMMM MMMM= MMMMMM MMM MMMM MMMMM MMMM MMMMMM MMMM MMMMM' MMMM= MMMMM MMMM MM MMMMM MMMM MMMM MMMMNMMMMM MMMM= MMMM MMMMM MMMMM MMMM MMMM MMMMMMMM MMMM= MMMM MMMMMM MMMMM MMMM MMMM MMMMMMMMM MMMM= MMMM MMMMM, NMMMMMMMM MMMM MMMM MMMMMMMMMMM MMMM= MMMM MMMMMM MMMMMMMM MMMM MMMM MMMM MMMMMM MMMM= MMMM MM MMMM MMMM MMMM MMMM MMMM MMMM MMMM$ ,MMMMM MMMMM MMMM MMM MMMM MMMMM MMMM MMMM MMMMMMM: MMMMMMM M MMMMMMMMMMMM MMMMMMM MMMMMMM MMMMMM MMMMN M MMMMMMMMM MMMM MMMM MMMM M MMMMMMM M M M --------------------------------------------------------------- For those about to rock... (Attitude Adjustment, unknown) --------------------------------------------------------------- admin@BE800:~$ combo_debug stop admin@BE800:~$ combo_debug set plus admin@BE800:~$ combo_debug ipg_set combo10g 1_192bit Archer BE800  Example:  |
|
|
Mar 9 2024, 01:50 AM
Return to original view | IPv6 | Post
#8
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(nles @ Mar 8 2024, 09:01 PM) Nice, BE85 also supported ya. Any asus router works? still in WIP, it appear TP-Link focusing more on Archer BE900 and BE800 instead of Deco |
|
|
Mar 10 2024, 12:34 PM
Return to original view | IPv6 | Post
#9
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(Omochao @ Mar 10 2024, 11:42 AM) Hence if you want to get a taste of all the latest techs and options to set around, go for their Router series. Deco series is only meant for extending mesh network in a premise with simplicity over the app setup. I agreed, anything latest, device compatibility, TP-Link invest more to Router Archer series |
|
|
Sep 7 2024, 08:16 PM
Return to original view | IPv6 | Post
#10
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
Hi TP-LINK MY

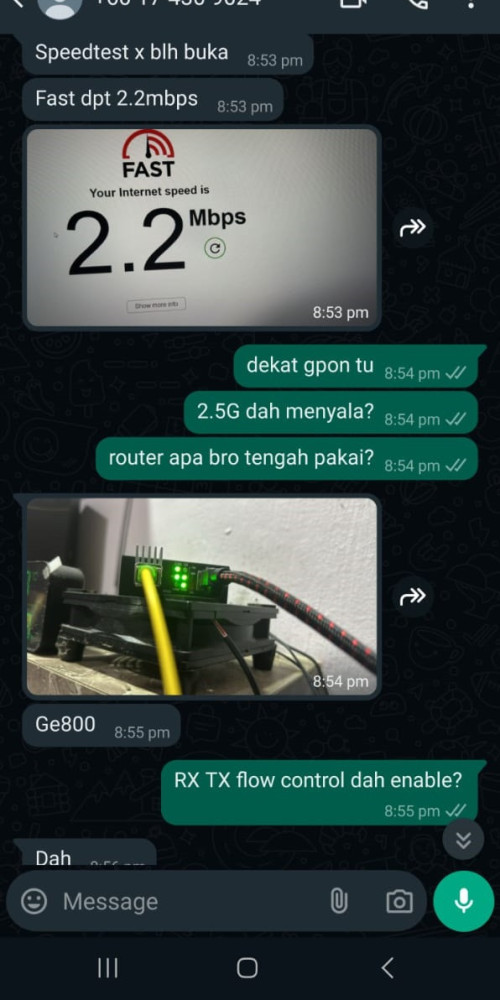

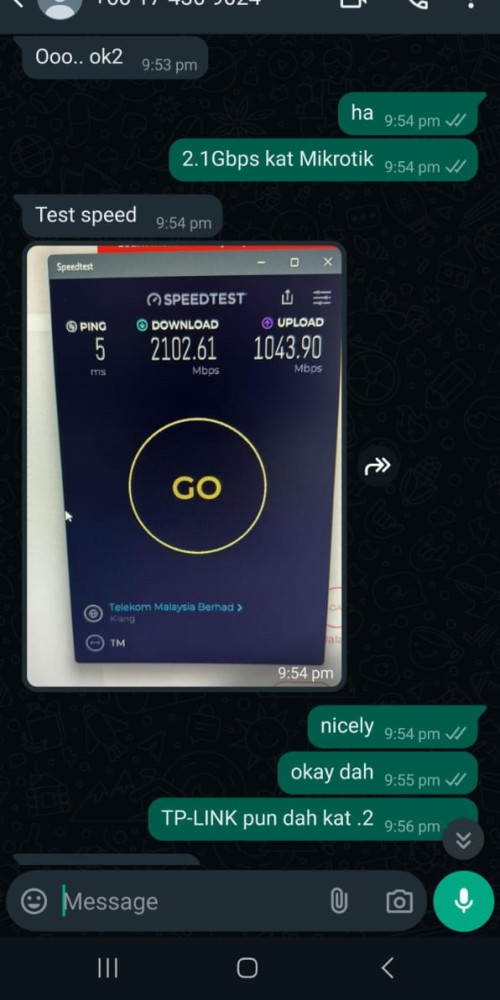

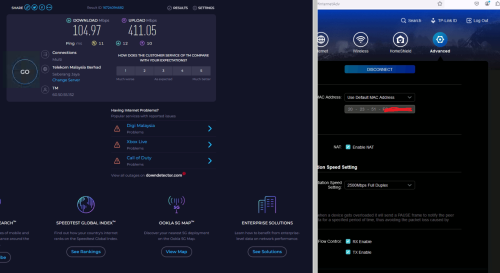

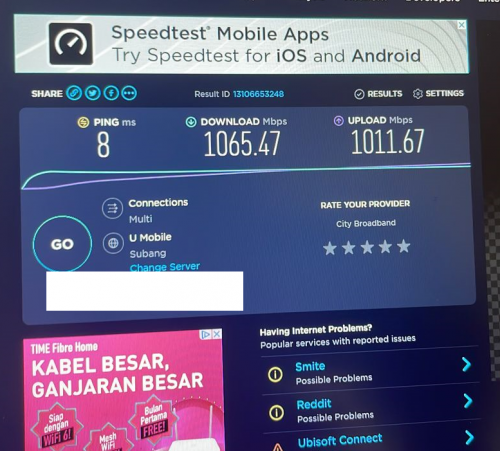

I have sold the 2.5G GPON to TP-LINK Archer GE800 customer, apparently two customer using GE800 having issue with 2500Mbps WAN Ethernet where unable to achieve max speed. Customer #1  Solution, customer decide to buy Mikrotik RB5009 and GE800 as Access Point  Customer #2 When set 1000Mbps WAN Ethernet, able to saturate GbE Speed, as expected...  When set 2500Mbps WAN Ethernet, unable to achieve at least GbE at upload speed!  What I see, GE800 cannot handle 2.5G traffic when pair with PPPoE GE800 only can work as Access Point where no PPPoE is involve, TP-Link Engineer need to fix this... For now, I would ask customer to use BE800 even device is EoL If TP-LINK think my 2.5G GPON is bad, I wonder how ASUSmy Router can handle 2500Mbps PPPoE as per review showed here: https://www.carousell.com.my/u/anime4000/reviews/ This post has been edited by Anime4000: Sep 7 2024, 08:23 PM |
|
|
Sep 7 2024, 08:52 PM
Return to original view | IPv6 | Post
#11
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(Omochao @ Sep 7 2024, 08:44 PM) i think is better you go directly to their forums for immediate response. The forum is active and they have a moderator who is active daily whenever a support ticket is opened. Or you can proceed to email them a support ticket.. That happened before with one of my clients about his BE85I had once had their engineer team viewer to my laptop to diagnose on deco issues. So it should be the same for the tplink archer series...usually they will have to get access to your hardware by sending over a custom firmware which can be debugged. Also, I have ask my client to contact, I post here for him to refer |
|
|
Sep 7 2024, 11:53 PM
Return to original view | IPv6 | Post
#12
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(Omochao @ Sep 7 2024, 09:19 PM) though it won't be immediate but they are very proactive in tackling software issues especially their latest lineups... BE550 much better LAN performance, 2.5G + PPPoE no issueThey are now focusing heavily for their Wifi7 series ...but is not a suprise..since a normal entry level wifi7 router mesh can essily cost up to a thousand. |
|
|
Sep 8 2024, 10:36 PM
Return to original view | IPv6 | Post
#13
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(joezul @ Sep 8 2024, 10:18 PM) Hi. if you already in 2Gbps, you need my GPON Stick with 2.5G Ethernet just like this guy, using BE550:I'm thinking of getting the BE550. Currently in Unifi 1gbps (but free upgraded to 2gbps) and using the white TM onu. My question is, if I get the BE550, can I just simply use it in place of the white onu, or I still need to use the TM device and bridged the BE550? https://forum.lowyat.net/index.php?showtopi...#entry109467923 |
|
|
Oct 24 2024, 02:59 PM
Return to original view | IPv6 | Post
#14
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|

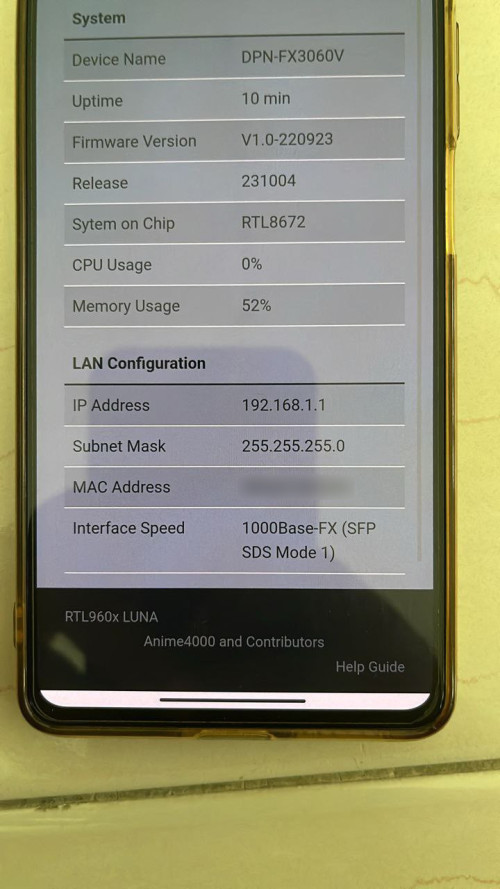

Soon GE800 can support GPON Stick  screenshot from my client EEPROM Since SFF-8472 didn't have official 1310/1550nm at 2500BASE-X, using Linux Kernel Fix:   This post has been edited by Anime4000: Oct 24 2024, 06:07 PM Omochao liked this post
|
