1. Fiber cable coming from green Fiber Termination Point (on the ground) or white Fiber Termination Point (on the pole). Depends on ur location.
2. Fiber cable will terminate at a white Fiber Termination Box (FTB) outside of ur house.
3. Another internal fiber cable will continue from FTB to the Fiber Wall Socket (FWS) inside ur house.
4. One more thinner fiber cable will continue from FWS to the Broadband Termination Unit (BTU) (aka modem for ADSL users).
5. Phone will connect to the BTU with RJ11 cable for making calls. Residential Gateway (RG) (aka router) will connect to the BTU via RJ45.
6. Hypptv box (unavailable for Unfi Lite users) and ur PC/NAS/TV and stuff will connect to the RG.

Note: TM is not providing FTB anymore so the fiber cable from FIber Termination Point will go straight into the house and to the FWS.


Fiber Termination Point (on the ground): http://s1115.photobucket.com/user/gunblade...Unifi1.jpg.html
Fiber Termination Point (on the pole): http://i3.photobucket.com/albums/y84/mx007/DSC00549.jpg
FTB: https://forum.lowyat.net/uploads/attach-16/...-1294450521.jpg
FWS: http://i.imgur.com/jKD7B9u.jpg

All images taken from the web.

Thanks!

I assume the last picture (FWS) shows the installer skipping the FTB and wiring the black cable direct from the pole to the FWS?

I not sure, dunno whether the fiber running from FTB to FWS is black or white

Powerbank also can lol

Bandar Baru Landed. So giving copper or fiber cable ?

What will the router model supply ?

Got wifi antenna ? If not good then i need buy another one sigh

Correct

Thanks for all the info and pictures.

So confirm TM is not providing FTB anymore? Then don't need to complain to TM.

This post has been edited by MGM: May 18 2017, 02:16 AM

Im not too sure. But from what I notice so far no one is getting the FTB anymore. Will ask my installer about the current situation when he come.

One year ago when they installed my Unifi also no FTB outside the house.
The outdoor fiber cable (black colour) goes into the house FWS.
From the FWS, the indoor fiber cable (white colour) goes to the BTU (modem).

My parent house has the FTB. Their distribution point is on the pole.

My is on the ground, but no FTB.

When was unifi installed at your parent's house?

This post has been edited by MGM: May 18 2017, 09:34 AM

last year November.

They're charging upfront. (From bill dated 1/5/17)

Tarikh Mula 01/05/2017
Tarikh Akhir 31/05/2017

not available
if your area supports fiber thn maybe u can try

Who knows TM will secretly launch Unifi Lite Sabah/Sarawak package once SKR1M cable system is ready (expected in June 2017)? As a lot of customers are using Streamyx 4mbps at RM88 and the fibre networks are to be partly funded by the state government.

dnt put hopes too high
this is S&S afterall

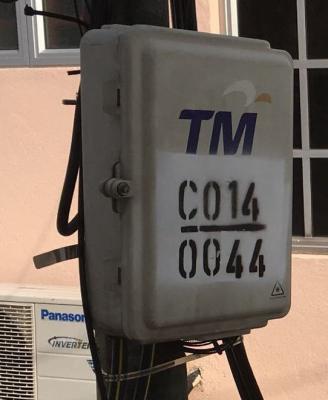

Do you mean this white box? Every pole also got.


There is another box on the outside of your house wall.
No more this white box on the wall.

Edit: I may be wrong on the boxes.

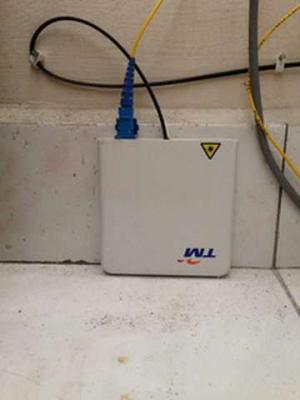

Are these two boxes the same?
One is outside the house and the other is inside the house.


This post has been edited by cucubud: May 18 2017, 11:42 AM

For more accurate, I need full address, you PM me and I will check for you

miri got just install yesterday.
maybe for low cost housing areas .

Kuching got people manage to install it ?
