i kena poison from you and looking for full Unifi solution.
Lols!

Want to understand that the USG for TM UniFi?
Is that we need managed switch for the VLAN500 and VLAN600?

Full Unifi solution very tempting but too expensive for me!

I guess I'll have to find cheaper acceptable solution for traffic history & DPI eg Edgerouter + UNMS, or ntopng on Raspberry Pi 3 / Celeron box.

UAP AC M + UMA-D

Guys,

Need a favor. I have an USG connected to a POE switch & a cloud key. I try multiple times to get it to work but didnt happen.

On the setup page, choose dhcp also doesnt work, pppoe also doesnt work.

Anybody can point me to the right direction? My data is bad at home so unable to scroll thru all prev pages here to study.

Tq2

I did read this earlier yesterday but unfortunately during the setup page only show this page:



So tried DHCP - Nada
Tried PPPOE - No option for VLAN tagging.

Hence the headace. Apologize - Newb in networking.
Appreciate the video bro, I'm gonna try this out next week as I can't configure the network on Thursday - Saturday.

------

Another question, since all the AP's is installed on the ceiling, & on the switch I saw it shows as "AP managed by others" - Is there any way that I can adopt it directly via GUI? Or do I need to reset it first?

Thanks thanks thanks

sorry bro hijack a bit. i'm having the exact same issue, but after doing the steps shown in the video, can see from the controller, that the USG has already a WAN IP, but i am still unable to access the internet.. my pc is connected to the LAN 1 port on USG.

Yes it is finally working  :thumbsup:

Thank you.

[attachmentid=10168292]

edit: ignore the cabling mess, test setup only, will move into a proper setup later

edit 2: oh and to add on to wanttotree's guide, if your browser has an error connecting to USG default gateway (in my case the error was: ERR_SSL_VERSION_OR_CIPHER_MISMATCH), disable / turn off your antivirus, i'm using bitdefender and it worked once i turned off the online threat prevention thingy. hope this helps  :thumbsup:

Cloud Key Gen2+ unit... quite impressive..  + LED display..



login3 by pandera999

More at
https://flic.kr/ps/22gVNR

Hi,

  Just want to ask.
  To cover a long rectangle area, 1 AC-Lite at about 25% (centre of front side) & 1 at 75% (centre of back side), or just put 1 AC-Pro at the centre ?
  Because currently the price of 1 AC-Pro is about same as 2 x AC-Lite.
  AC-Lite got 2x2 for both 2.4G & 5G, total 1167Mbps
  AC-Pro got 3x3 for both 2.4G & 5G, total 1750Mbps
  Sounds like 2 x AP-Lite is better than 1 AC-Pro.

  Thanks!

Note: It is a office area, so devices number at front / back site could be not big different. (not easy to measure)

Yup was using the Gen 1 ... latest firmware and kept crashing so decided to give up and moved to NAS.

Can’t really return it either as bought on Amazon , shipping it back wouldn’t be worth the hassle

Mine always stopped working after 1-2-3 days

No idea, it’s possible.

Anyway if I knew setting it up on NAS was so easy I probably wouldn’t have bothered buying a CloudKey anyway , considering that the NAS is running all day anyway.

I understand one straight forward way to setup VOIP on ubiquiti (I am using MAXIS Fibrenet ) is via the the VOIP port on the USG.

With the MAXIS router (TP-Link AC1200 C5v),  I just connect the old fashion analog phone cable (with RJ11 connectors ?)  directly into the TP-Link router.  (I then have the old analog phone with extensions to 2 other phones around the house).  So my question is what device/adaptor do I need that connects to the USG VOIP Port that will provide analog RJ11 ports ?   (I prefer not to have to  buy IP phones and retire my analog phone infrastructure)

What are my options ?   Thanks

NOTE.  I don't need a PABX system.  I just want to be able to use my existing old fashion analog phones.

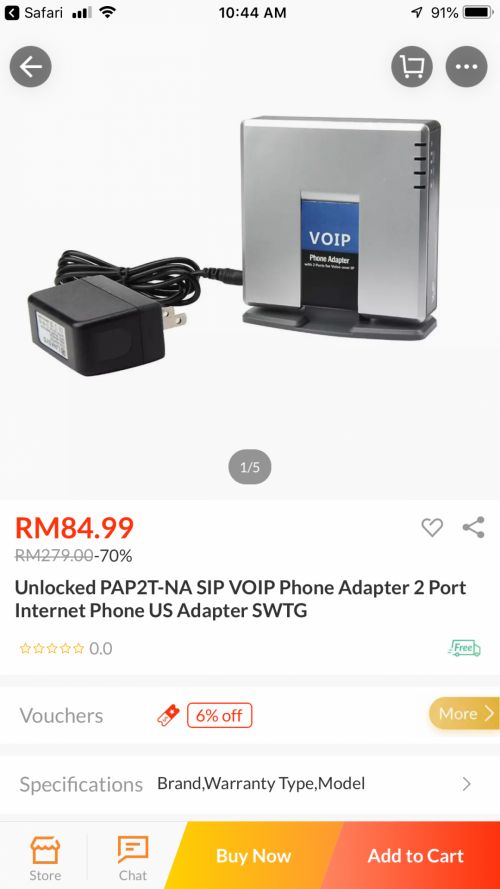

@wanttotree,  I am trying to get my head around your use of the words  “smart switch”.  Is this like an ATA ? (I been reading abt FXO/FXS etc and just trying to work out the exact piece of hw I need to get to do this. Can you help with some examples of devices ?  For example , will something like this do what I want?

Thanks @pandera999, @wanttotree.

OK, I think I understand what I need to do.  @wanttotree, Is my latest attached diagram here correct?

From @wanttotree's description,  I understand both routers (ie, the USG and the TP-Link AC1200) will need to establish their own PPPoE connection to MAXIS.

QUESTION:  Does Maxis allow 2 simultaneous PPPoE logins from the same account ?

if your router can handle vlans, would it be right to say you don't need a smart switch? even a dumb switch can be used as all vlan can be forwarded to maxis router and usg

@gaara92  @quasi @wanttotree

I have read that there are no formal specifications for the behaviour of "unmanaged L2 switches that are VLAN un-aware" when they encounter tagged VLAN frames.  Apparently some switches will just drop them whilst others will faithfully pass them along. (I guess others could just collide and keep trying ?)

OK ...curiousity got the better of me and I just tried the following setup to see if this particular L2 switch I happen to have (D-LINK DGS-1008MP) will just "pass thru'" the tagged frames or drop them.

As per diagram (sorry... rough quick draw) , I connected my wired PC to the ER-X and my iPhone to the WIFI on the TP-Link AC1200.

-----------------------------------------------------------------------------------------------------
Test 1:  with both the USG and the TP-Link AC1200 Routers ON

Ran Maxis Speed test on my wired PC (5 times) ....averaged about 91Mbps Download Speed
I have tried ringing the analog phone whilst the test I running too. Phone seem to work ok.
-------------------------------------------------------------------------------------------------------

Test 2:  with the USG powered ON and the TP-Link AC1200 OFF

Ran Maxis Speed test on my wired PC (5 times) ....averaged about 94Mbps Download Speed
--------------------------------------------------------------------------------------------------------

Test 3: with both the USG and the TP-Link AC1200 Routers ON

Ran 2 you-tube videos on my PC and 1 you-tube video on my iPhone 6.
Ran all 3 videos streaming for about 30 minutes, no gliches.
--------------------------------------------------------------------------------------------------------------

Not an exhaustive test I know, but it does look like a viable setup if one already has a spare L2 switch
and do not wish to spend more for a smart switch.  (For my setup, I am buying a TL-SG105e cos I
want my setup to be VLAN aware and cannot afford to depend on an L2 switch that happen to be well behaved).

NEW AC IN WALL

Thank you for the suggestion.
Which mikrotik would you recommend?
Checkout sublime lazada page and there are too many models, cant even tell whats the difference.
Im mainly using for home usage but need to use conference call regularly, ie: skype.

Are you referring to this? Thanks.

https://www.lazada.com.my/products/mikrotik...nrj5Ji&search=1
