Motherboard: Gigabyte DS3
Cooler: 3D Aurora Casing + Thermaltake BTVX
CPU: Core 2 Duo E6400
CPU clockspeed : 3.2 Ghz
RAM: Corsair TWIN2X2048-6400
RAM capacity: 1GB x2

Btw guys, when i OC the cpu the time.. What kind of ram timings should i put?

Ya, my ram memory multiplier is set at 2.00 for 1:1 ration. Is that th one? lol

My CPU should be able to achive a higher FSB, but for that i would have to raise my RAM FSB right? My ram is ddr800 so do i just raise the fsb or the latency as well? Im not quite sure about this part.

Thx alot, i basicly understand wat it means... Just tthat im not quite sure how to loosen the timing t CL-5. Could you explain more on this. And do i need any ram cooler for this? Thx alot.

This post has been edited by CyberTroop: Jan 22 2007, 12:26 PM

What about the ram timing of 5-5-5-18, dunno whether good anot...
And another thing is, how far can i lower down my CPU voltage? My fsb is currently at 400x8 and the cpu voltage is at 1.325. How do i test how far down i can go?

This post has been edited by CyberTroop: Jan 22 2007, 05:16 PM

Dude, u using any ram coolers?

Icic, no need ram coolers below 2.2v.

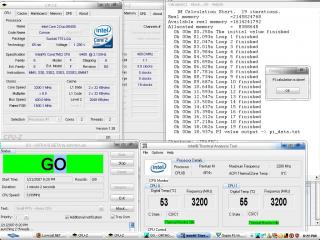

Anyway i just finished my stress test again



Now, i think ill raise the fsb for the ram.. But im not sure about how to play with the timings lol..

Wat about the ram timings, do i have to play with those too?

Hmmm, whats the lifespan for the cpu with 3.25v and ram with 2.2v? Any idea?

Lol wops my bad, typing error lol... Thx alot vasalle, those sites really helped.

A quick question, to raise the voltage of the ram.. Which settings is it? Using a gigabyte ds3, is it FSB Overvoltage or (G)MCH Overvoltage?

This post has been edited by CyberTroop: Jan 23 2007, 02:32 PM

Sry ler.. I still new to this... So i guess it's the (G)MCH Overvoltage and not the fsb one lol.

... My guesses damn bad, lol. Nvm la i used the Easy Tuner 5, save alot of time.

Hey i got another question here, when i run orthos blend test.. it gets a big stop word. How do i know whether i have to raise the cpu or ram voltage?

Ok vasalle.. Thx alot for that website, it really do helps.
And firstly my hardware specs:
Motherboard: Gigabyte DS3
Cooler: 3D Aurora Casing + Thermaltake BTVX
CPU: Core 2 Duo E6400
RAM: Corsair TWIN2X2048-6400
RAM capacity: 1GB x2

Disabled:
CPUID Max to 3
No-Execute Memory Protection
C1E
TM2
EIST
Virtualization Technology
Smart Fan Control Method
CIA2

For the OC Part:
CPU Clock Ratio to x8
CPU Host Frequency to 430
PCI Express Frequency at 100Mhz
System Memory Multiplier at 2.00
DRAM Timing at 5-5-5-12
DDR2 OverVoltage Control +0.2V
CPU Voltage at 1.31975V

Everything else in the BIOS is left to default.
The temperature for the CPU at idle is about 43C and 54C at full load.
Now with the current settings, im getting stopped around 1 hour+.. Not really sure whether it's the ram or the cpu. Testing at CPU Voltage at 1.325 now.

This post has been edited by CyberTroop: Jan 23 2007, 10:19 PM

The CPU temp that i gave is based on the Intel Thermal Analysis Tool. Ouch.. looks like the only way is to bump the volts.. Sigh

This post kinda scares me a little, with my current setup.. Am i safe to go 24 hours a day?

Hello, just oced my comp recently again. I hope the ts can change it.. Thanks



Motherboard: Gigabyte DS3
Cooler: 3D Aurora Casing + Thermaltake BTVX
CPU: Core 2 Duo E6400
CPU clockspeed : 3.76Ghz
RAM: Corsair TWIN2X2048-6400
RAM capacity: 1GB x2

This post has been edited by CyberTroop: Mar 13 2007, 09:45 PM
