have u done higher fsb than this???

maybe ure at ure fsb limit.

will help u
cause i sold that to u.
it works. ive done up to 500 fsb on the evga to see max.
stable

Quad POST!!! next time use edit button k

This post has been edited by irenic: Jan 16 2007, 11:54 PM

sorries..
touchy arent ya

hi there...

newbie in OC here, quite noob question...

I'm using E6600 ES + Abit AB9 PRO...

but it seems like i can't go higher...the highest i can go just fsb 300 x 9...if i try higher, my pc won't boot at all...is there any way? i didn't change the vcore actually...

oh well.. you can actually start by increasing your vcore.

I've try once...but still it can't boot...maybe i should try again and see the differences...

anyway, anyone using Abit AB9 PRO...?

Im not using AB9. But maybe you can try putting the vcore at 1.35v for starters. Make have disabled EIST, virtualisation technology in the advanced motherboard option (or the comparable in ure bios).

If still cannot boot, i recommend you read the stickies around here. Maybe you need to change either your ram voltage and/or timing.

Yup... only increase the vcore isn't enough, ram timing, ram voltage, then some ES also will report wrong temperature, if u got higher temperature without oc, u have to disable the temperature shutdown first b4 u oc. If u can post ur bios overclock screen will be easy for some expert to help u here.

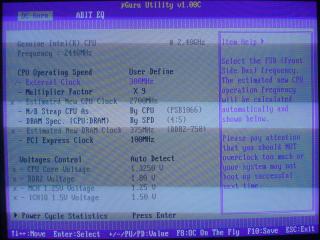

i've tried increase the vCore but still can't boot...maybe i've to modify the ram...can someone help me...here's my screen shot of AB9 PRO bios...

This post has been edited by albirri: Jan 17 2007, 12:33 PM


Attached thumbnail(s)

edited...Sorry...double post....

This post has been edited by albirri: Jan 17 2007, 12:26 PM

i think u have to set ur vdimm at 1.9v or higher since ur ram default voltage is 1.9v at 4-4-4-12

This post has been edited by flatfinger: Jan 17 2007, 02:45 PM

make sure ure dram spec is 1:1 not 4:5

CPU: DRAM set 1:1
RAM set 5-5-5-15
Your RAM is 667??
I think vDimm need increase a bit.
Other voltage set default.

This post has been edited by yehlai: Jan 17 2007, 06:33 PM

yup...my ram 675 actually...

Can see tht @300Mhz external clock, ur Estimated new DRAM clock is 750 rite??
so need try higher vDimm if wanna use 4:5. Multiplier 1:1 is better

This post has been edited by yehlai: Jan 17 2007, 06:47 PM

Huh? How you manage to use 6600 es on ab9 pro? I have one and it refuse to work properly. What bios you using? I use 15 and 16 but both same thing. First boot two tone beep for long time den if I just save anything in the bios the pc wont boot. Lucky I got Tforce P965 running past 325mhz at default vcore(lazy to try more).

stumbled upon this, might interest some of you guys here

http://csd.dficlub.org/pgpbb2/viewtopic.php?t=347

So far it runs ok...no prob at all...juast bought it last saturday

Thanx to all ur guides guys...really appreciate it

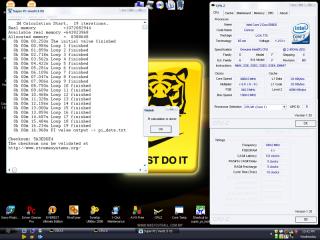

After all, i manage to get this,

This post has been edited by albirri: Jan 18 2007, 12:04 AM


Attached thumbnail(s)

very sorry....double posting again...this wireless make me sick...sorry

This post has been edited by albirri: Jan 17 2007, 11:47 PM
