Review TP-LINK HA100, Bluetooth Music Receiver

views

TSquadcube
post Feb 27 2016, 08:38 PM, updated 10y ago

Regular
******
Senior Member
1,924 posts

Joined: May 2009
From: Yokohama, JP


Attached Image




TP-Link HA100 Bluetooth Music Receiver
Product info: http://www.tp-link.com/en/products/details...0.html#overview

Where to buy: http://www.lazada.com.my/neffos-by-tp-link/

Other TP-LINK Malaysia Official Online Stores:
TP-LINK (networking):
Lelong: http://www.lmall.my/store/TP-LINK
11street: http://www.11street.my/store/MiniMallActio...rHmpgUrl=tplink
Lazada (coming soon): http://www.lazada.com.my/

Neffos Smartphone & Accessories:
Lelong (coming soon): http://www.lmall.my/
11street: http://www.11street.my/store/MiniMallActio...rHmpgUrl=neffos
Lazada: http://www.lazada.com.my/neffos-by-tp-link/

Attached Image Attached Image
TP-LINK HA100 Box and ContentBack View of the HA100

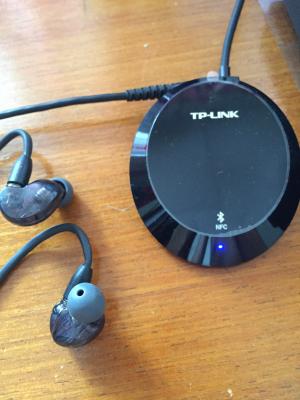

First impression on the HA100 was that it was surprisingly tiny and light weighted,measuring around (6.65 x 6.05 x 1.85) cm,which fits in my palm. The back of the HA100 is rubberised, which should add some grip to prevent sliding.

Attached Image
Package Content
1 x HA100
1 x Power Adapter (5V,1A)
1 x Micro-USB cable (0.5M)
1 x 3.5mm-to-3.5mm AUX cable (~0.8M)
1 x 3.5mm-to-RCA cable (~0.8M)
1 x NFC Tag
Quick Installation Guide

The HA100 is NFC-enabled,thus pairing is possible with NFC-enabled device by just tapping the HA100 or the extra NFC-tag, which has the same serial number as the HA100. Didn’t tested out this feature during the review (iPhone 6 has NFC but they are cannot pair with third party devices,it’s only used for Apple Pay)

The HA100 is equipped with Bluetooth 4.1 and it is able to store up to 8 different devices for automatic pairing

TP-LINK states that the maximum bluetooth range is 20 meters (within direct line of sight). Actual test where the Macbook is placed in the bedroom upstairs, the bluetooth signal becomes unacceptable when the HA100 is at the ground floor, thus actual bluetooth range may vary.

Actual Test
Hardware
- HA100
- Shure SE215 earphone

Bluetooth pairing is a breeze,just pair and the audio will automatically be played through the HA100.
Attached Image Attached Image Attached Image Attached Image

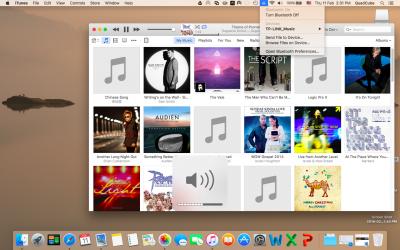

Bluetooth not connected (white LED)Bluetooth connected (blue LED)HA100 showing up in Bluetooth device searchVolume control works over bluetooth

Range Test
For bluetooth range testing,the HA100 is connected to a power bank and various location in the house have been tested.
For the same floor,the bluetooth signal is good for all the location tested, however once the HA100 is tested in a different floor, the signal deteriorate quickly and pauses between audio is observed.

Location with good signal: 1,2,3,4,5,11
Location with bad/no signal: 6,7,8,9,10,12,13
Attached Image

Sound quality is just fine,nothing to rant about.

Conclusion
The TP-LINK HA100 Bluetooth Music Receiver is just as advertised. If you are planning to make an existing speaker to go wireless,look no further as the HA100 would fit your need. Bluetooth range is kinda standard,as I own another bluetooth music receiver, their range are approximately the same,so there’s nothing much to compare between them.

This post has been edited by quadcube: Jun 3 2016, 03:20 PM
Keefkok
post Mar 16 2016, 02:41 PM

Getting Started
**
Junior Member
116 posts

Joined: Jan 2012
Nice, im using something semiliar to this, the Logitech one biggrin.gif

Works great and dont notice any lost in audio quality/fidelity.
Kaka23
post May 7 2016, 06:54 PM

Look at all my stars!!
*******
Senior Member
8,259 posts

Joined: Sep 2009


How much is it?

HwangTommy
post May 19 2016, 11:35 PM

Casual
***
Junior Member
475 posts

Joined: Jun 2012
From: 부산


Will this work for car?
Mr.7
post May 19 2016, 11:36 PM

Regular
******
Senior Member
1,242 posts

Joined: Sep 2013
From: Quantum Universe
QUOTE(HwangTommy @ May 19 2016, 11:35 PM)
Will this work for car?
*
Yes, using 3.5mm to 3.5mm audio cable or a 3.5mm to an RCA cable, both of which are supplied with the device.
HwangTommy
post May 19 2016, 11:38 PM

Casual
***
Junior Member
475 posts

Joined: Jun 2012
From: 부산


QUOTE(Mr.7 @ May 19 2016, 10:36 PM)
Yes, using 3.5mm to 3.5mm audio cable or a 3.5mm to an RCA cable, both of which are supplied with the device.
*
my car audio has USB input and AUX input. Wanted to get this to plug it there. Problem is the USB only provides 0.5A of power. Would that be enough? Google searches results in nothing about this device used in cars.
Mr.7
post May 19 2016, 11:49 PM

Regular
******
Senior Member
1,242 posts

Joined: Sep 2013
From: Quantum Universe
QUOTE(HwangTommy @ May 19 2016, 11:38 PM)
my car audio has USB input and AUX input. Wanted to get this to plug it there. Problem is the USB only provides 0.5A of power. Would that be enough? Google searches results in nothing about this device used in cars.
*
Here . 0.5A i think not enough. The device needs 1A of power.
JimbeamofNRT
post Jun 9 2016, 04:34 PM

the Original Lanji@_ Chicken Rice Shop Since 2002
******
Senior Member
1,902 posts

Joined: Sep 2012

QUOTE(Kaka23 @ May 7 2016, 06:54 PM)
How much is it?
*
rm89 . u can see the link provided above ( lazada one )
