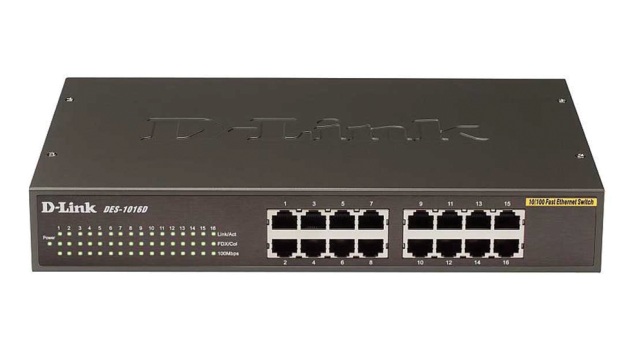

D-Link DES-1016D - SECONDHAND

Overview

16-Port 10/100Mbps Switch for SOHO/Workgroup
10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.

Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.

Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.

Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex.

Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.

Actual product appearance may differ from the image displayed on this page


Features

Number of Ports 16

Type of Ports Available
10/100 Fast Ethernet Ports

Power over Ethernet Support
PoE Ports available

MAC Address Table Size
MAC Address Table Size 8K
IEEE 802.1p QoS
IEEE 802.3x Flow Control
ANSI/IEEE 802.3 Nway Auto-Negotiation
Plug-and-Play




Specifications



16 10/100Mbps ports
Full/half duplex support for each port
MDI uplink port for easy expansion
Auto-learning of network configuration
Flow control in full duplex mode for protection against data loss
Back pressure in half duplex mode
RAM buffer dynamically allocated for each port

item secondhand & GOOD CONDITION.
sell because close shop (CC)

RM75.00
POSTAGE RM15.00

Package: 1xRouter 1xPowercord

This post has been edited by wane_gamok: Dec 14 2015, 10:52 PM

RESERVE

boleh nego

Pm me
