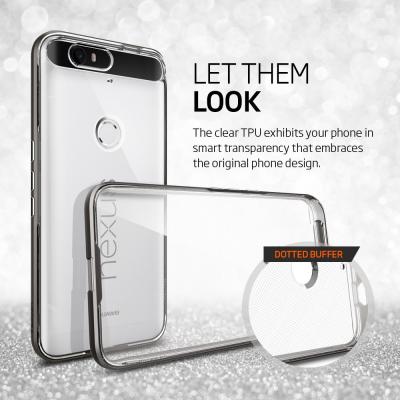

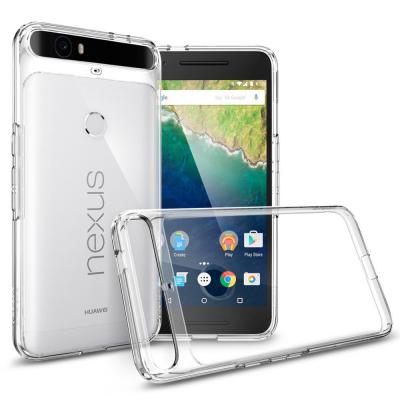

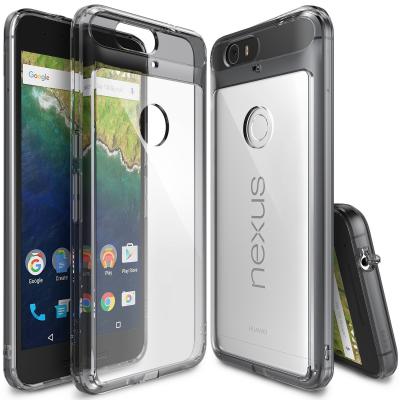

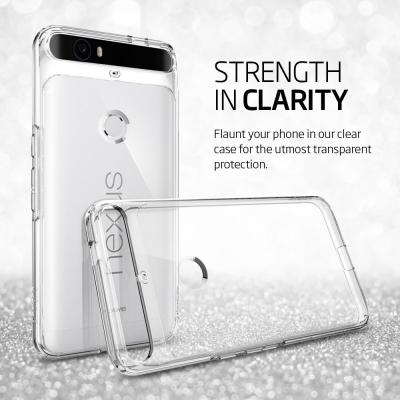

* Two-piece case consists of a clear flexible TPU shell and a hard PC bumper
* Outer frame is reinforced at cutouts for sturdier durability

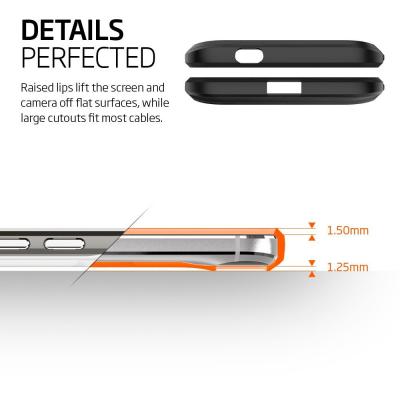

* Raised lip and camera cutout offer lens & screen protection
* Inner dot pattern prevents bubbled smudges on back of phone
* Nexus 6P Case Compatible with Google Nexus 6P (2015)

Orzly’s Type-A USB 3.1 to Type-C cables have spec required resistor! Great choice for Type-C gear
By Benson Leung TOP 500 REVIEWER on December 8, 2015
Color: Multi-Colour Pack (USB-C to USB-A)
Full Disclosure : Orzly provided me with their new 4 pack of USB 3.0 Type-C to Type-A cables for evaluation directly. This is why I do not have a Verified Purchaser tag on this review.

Benson here with another review of USB Type-C legacy cables. Today, I am reviewing Orzly’s USB 3.1 Type-A to USB Type-C cables in a 4 color pack.

I had previously reviewed a 4 pack of Orzly’s USB 2.0 C to A cables here : Orzly USB 2.0 Type C to Type A Cables (Assorted Colours)
I found that Orzly’s USB 2.0 A-to-C cables were out of spec, using a 3A CC termination that could potentially damage chargers. Since the time of my review, Orzly contacted me and acknowledged that their older cables were out of spec and that they were working hard to correct the problem with their 3.0 cables. I am reviewing the result of their efforts.

My test laptop today is a Chromebook Pixel (2015). I am using the following Dell 10W charger : Dell 10W Adapter Spare Wall Charger for Venue 8 Pro/8/7 (XDN34)

For a debugging tool, I am using the Chromium team’s USB PD Sniffer, available here from plugable: Plugable USB 3.1 Type-C (USB-C) Power Delivery Sniffer

I’ve plugged the Orzly USB cable into the Dell 10W charger and the USB PD sniffer, which is acting as a passthrough. I’ve plugged that into Pixel.

Lets check Pixel’s command line :

localhost ~ # ectool --name cros_pd usbpdpower
Port 0: SNK Charger DCP 4706mV / 2000mA, max 5000mV / 2000mA / 10000mW
Port 1: SRC

Good result! Pixel has determined that the charger is a 2A DCP charger, which is what the Dell 10W charger is. It’s drawing 2A right now.

Let’s see what twinkie says :
> tw cc
CC1 = 424 mV; CC2 = 17 mV

This also looks good! The voltage on CC1 is 424mV. Referring to the USB Type-C Specification Table 4-25 Voltage on Sink CC pins, this voltage falls right in the middle of the range allowed for vRd-USB, meaning that yes, this cable has the correct 56kΩ pullup resistor!

This cable also supports USB 3.1 Gen 1, meaning it supports SuperSpeed 5gbps operation. This is important for MacBook users especially who want to use this cable for Target Disk Mode, which requires a SuperSpeed cable to work.

As a special test starting today, I am now testing with a Pixel C tablet, which supports SuperSpeed USB 3.1! I tested MTP large file transfer between Pixel C and a Dell XPS 12 Windows laptop (picture attached). The Orzly cable handled the SuperSpeed data connection perfectly.

As for some more subjective judgment of these cables: the USB Type-C connector on this cable is unique because the plug is one continuous piece of metal all around. That means it’s made with the same deep-draw extrusion process that the Google Type-C plugs use, rather than the stamped parts of a lot of other plugs (which you can tell when there’s a “seam” on one side of the connector). This makes for a stronger connector.

In conclusion, Orzly’s Type-A USB 3.1 Type-C cables have the correct spec required 56kΩ termination resistors, and are fine choices for your new Type-C gear. These cables will safely charge and transfer data for MacBook, Nexus, Pixel, and any other Type-C devices at SuperSpeed if your device and host support it. This cable is futureproof for Type-C devices to come! Orzly as a company has been very responsive especially in updating their cables and adapters to spec when it came to light there were problems with them. Good work!
