Here's a mod with a difference this time. Only modding the case this time. Haven't bought the hardware yet. Doing up the case nicely in preparation for the upcoming all new hardware that'll soon go into it.

This case is gonna b called Red Hot Chilli Pepper. Why? U'll just hafta wait n c.

Here r sum pix just to kick off the mods.


What case r we using for this mod? The TT Shark again. This case seems to be really popular. Mebe it's even more popular now coz ppl now know a side window can be modded for it. Many ppl hesitated to buy this case previously coz there's no window to show off the internals. Anyway, here's the pix of the Red Hot Chilli Pepper being harvested from the farm.




A brand spanking new case still in the box.










Check out all the features. Whoa! Nice eh? It's got lotsa holes for water cooling with a 1/4" hose system.









Harvesting the farm to take out the chilli.









Here's the fresh new chilli just waiting to be chopped up.









That's it for now. More updates coming right up.

This post has been edited by ianho: Feb 1 2007, 08:59 PM

hhoho, RHCP~... long time no heard of that band.. lolz...
what main color wanna use? red flame?

Flaming red...
That'll be flaming hot, the Ferarri of desktops.

I was planning to go for the same case but decided on the Powerlogic Atrix instead....,how much ya got if for man?...

or u want to make it like the Dell XPS flaming fire??

I think he might be throwing in some pics of red hot chilli pepper onto the case

U mean throwing pics of the band?
Or throwing in some real red hot chilli peppers?

if the result is gonna be like that dell xps, then quite interesting also...
the flaming part really not easy to make..
i saw someone painted flames on car at car show last time, really skillful leh... haha

My guess will be a chilli and a fiery background

bro harga casing tu berapa?

dude, type in ENGLISH and asking for price plz do in PM coz mod's rule....

You can always check the price on the bulk section, don't be so lazy to use the search button...

Beside, that question is forbidden in this section, do read the rules before posting anything...

and the lighting inside.
red + orange. gonna really bring out the hardware nicely.
red coolant if its watercooled?

ferrari red? sound interesting...

hmm ferrari red would make this case really really sexy

thats my casing!! =D

he painted the case already..

ian,
when u gonna post the pics?

ic.. just painted only?

Huh?
Painted already?

Aiyo, why don't u tell him to post the picture here?

Is it because "Aiman Tak Kisah"

Joking joking...

i wonder if his red theme means the case is full with flame vinyl..

just like kingkong project..need 2 wait ar?

aiman..just painting job? no cutting/modding?

we shall have to wait n seeeeeeeee...................

aiyah sometimes u just have to be patient la bro.

Pheeeeeeeeeeeeeeeeeeeeewwwwwwwwwwwww. Been bz modding modding modding. Here r the updates.

Starting with my usual Shark window mod.


Taking off the side panel.












Dismantling the B shaped thingy.

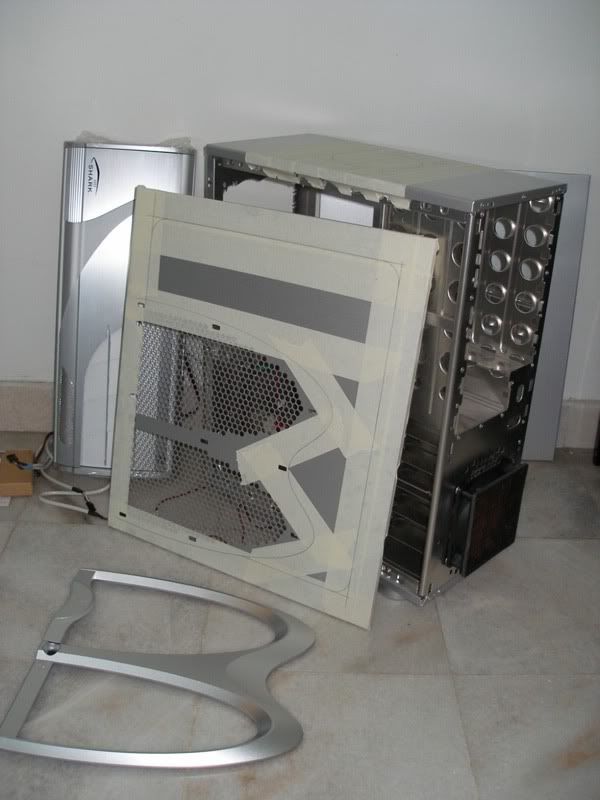

Masking n marking prep for cutting.











All marked out n ready for the slaughterhouse!






More updates coming up soon.

Uncle, i'm gonna sing the Pepsi song...
Ask for more~~~(not advertising, i'm an all time coke fan)

The shark acrylic part will be small...too bad...
But if wanna throw away the mesh there at the side sayang plak.
OT, uncle, when u wanna update king kong???

TAT's all? = ="
tat one see until sien d.. ahahah.. all same..

hahha .. give Uncle more time men ... modding is not simple as eating ..

precision job of Uncle requires long mental stress.... if u have done a mod before u should know it ...

besides u won't want to stress uncle to extend he becomes the King Kong itself....

King Kong gonna haf sum nice updates soonz. Still hafta wait a while coz of sum other mods I'm doin right now.




Haiya the Shark mod is sorta like my trademark mod mar. Sure boring lar. U c McDonald's everyday oso boring right? But u still go in n eat oso wat.




Ya lar. Very stressful coz I spend hours just on the planning, masking, measuring n marking even b4 I switch on any of the power tools. The most important part is the precision of the measurements n markings. When all that is off, even laser cutter oso no use.

i'm ing,
Uncle, more update on this red hot chilli popiah please...
Wats the other mod beside king kong you mentioned, got worklog also ar?
I'm turning into ur fan now, i think later we can start an Ianho Fans Club thread...

The other case I finished yesterday. Will post up the log once I upload n edit the pix.

1 popiah comin righttttttttttttttt up.

Pilot holes done. It's time to chop the chilli!!!!!!!!!!!










Chop chop chop the chilli! Make sure I wear goggles b4 I start crying while chopping the chilli.












The window cutting is done. Just need to do the detailing work on the edges.







Stay tuned. Editing more pix now.







This post has been edited by ianho: Dec 9 2006, 03:53 PM

Uncle, can show me the electrical saw bit in ur next update?
What are the measurings of the bit, i mean what should we ask for when we go buy the bit.
And if we use the saw on a rather thin metal, will the effect look bad.
I'm using an old Enlight steel casing, thinking of adding some bling to it.

This post has been edited by @meno: Dec 9 2006, 05:03 PM

More project modding?? this is gonna be interesting here......

red hot chilli popiah meh.. already harvest it from fresh farm.. already pick out the unwanted parts. so when do u want to pick out the seeds? wawawa.. i know that cili popia already finish aar ( i guess it la).. but why ur updates so sikit aa? makes me pening with ur Black Chili King-Kong

@meno....,the "uncle's" a moderator man.....,keep calling him uncle and ya might piss him off....

im waiting for the full mod

yeah..another shark been modded..hehe looking wat mo will b modded

looking forward for the end modded shark!

I'm starting to like this case alot

lots of space for good air flow will put this one in my list



btw...er...is ATi X 1950 XT okay? for RM1200 its pretty good. ok sorry for the offtopic question.

Ianho...must be busy seldom see you on msn...wait for me next year. Got stuff for you to mod hopefully

is it wrong to type in bahasa??

emmmm.......

the price???
around RM470++


so..how the mod of shark going??

This post has been edited by sempronic: Dec 15 2006, 08:50 PM

u r new here i suppose.. Mod said best to type in english ok? he said so, so ask him...

he does not said so only ... the reason is that lowyat.net may not view by local member but also foreign visitor...

thus to avoid language understanding problem ... we must keep the info posted in english... else how to share with others ...

btw, uncle how's the progress....

thank you for explaining it to him..

Wokeh! Just came home from week long vacation. Noticed a lot of spam while I was checking up while sipping pina coladas by the beach. Didn't clean up much coz GPRS access costs a bomb. I'm back now so NO MORE SPAM! Updates will b up 2moro. 2night i go tidur 1st.

Wokeh. Just edited the pix. Here come the updates on Red Hot Chilli.


After cutting the side window I moved on to the top blowhole.

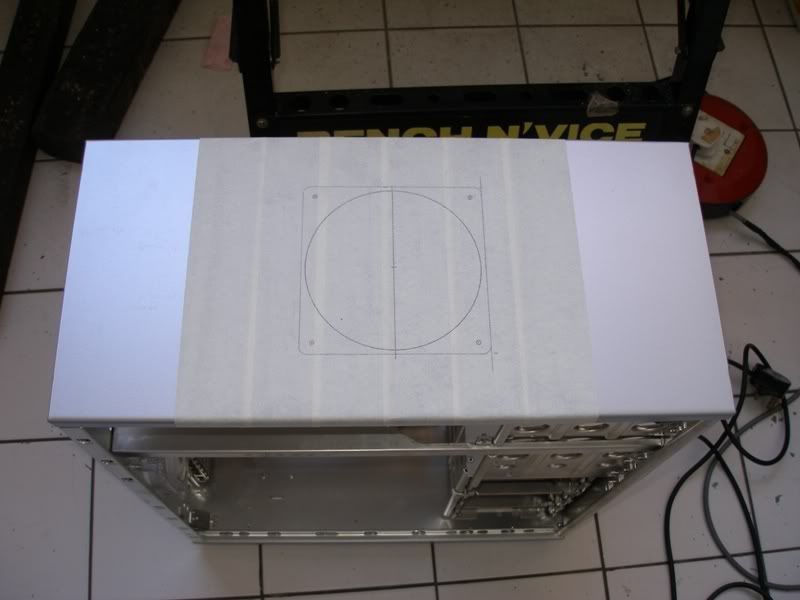

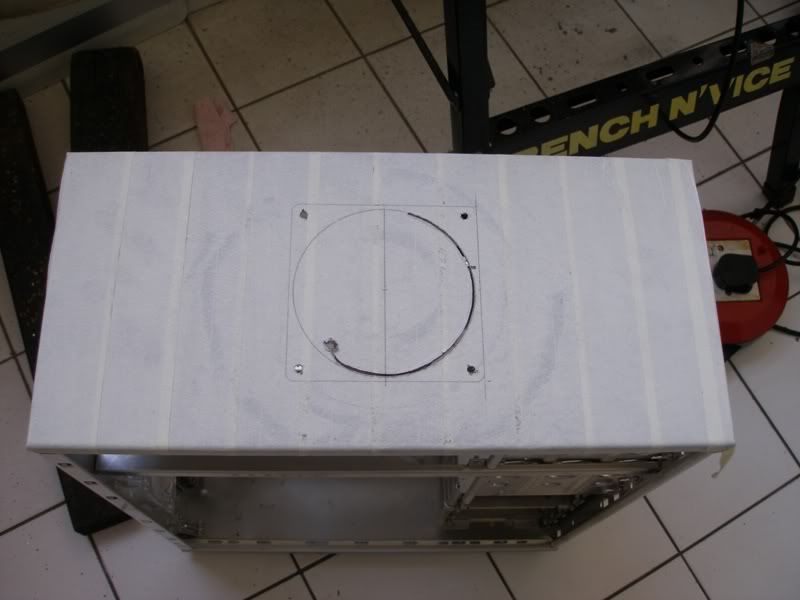

Top panel, masked up, marked n ready for chopping.

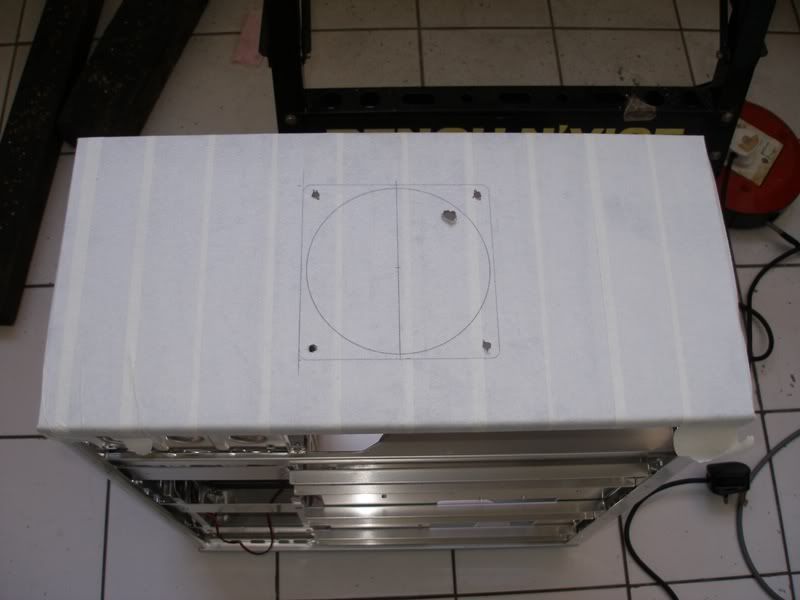

Drill drill drill.










Chop chop chop.

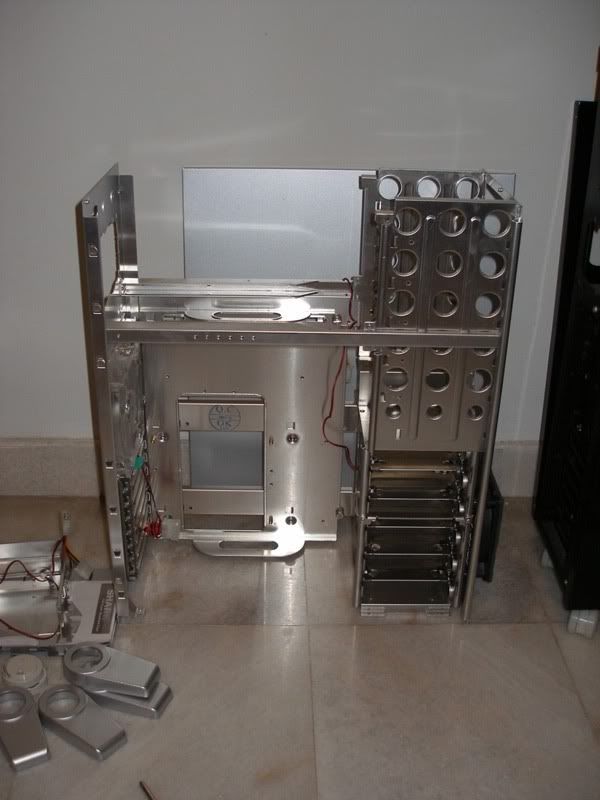

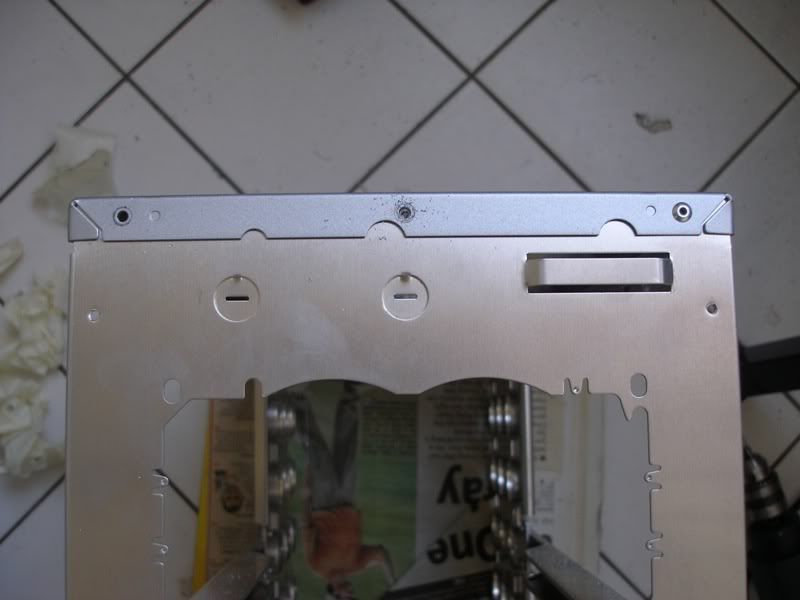

After cutting the blowhole I removed it from the case. Here's the rivets being removed.










Top panel removed.

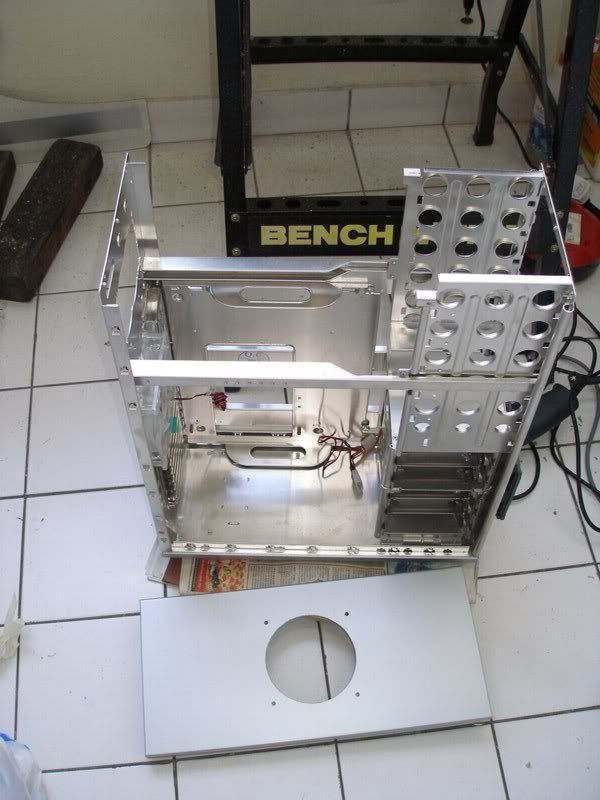

I then proceeded to remove the bottom panel too. It has to b removed so I can paint it. Here's the case without all external panels. Naked Chilli.







More updates as soon as I edit more pix.

wah.. now i understand how difficult to cut the blowholes
yup u r still too fast too furious

Hehehe. Now u know how mirror shine edge blowhole on metal panel n glass edge blowhole on acrylic looks like.

off topic

hehe.. erk.. btw i forgot to told u to lower a lil bit the blowhole for gc. it seems now both gc don`t operate at same temp. gc1 - 47C , gc2 - 63C

This post has been edited by serez: Dec 22 2006, 04:47 PM

Poor Ian, it's less than a week till Christmas and he's still busy modding away The sacrifices he'd make just for casing, if that's not dedication, I don't know what it

Ouch, that casing ain't no Shark anymore. Doesn't look anything like one with all the innerds showing

uncle ian..may i know wat template u used to draw the top blowhole?

I dont use templates.

out of topic..
uncle if let said.. i wud like to mod this shark to a BTX-style which is up-side down.. i m curious does the left-side panel fit to the right side of the casing n vice versa..
10q..

lol, free hand? some kind of artist? or just plain old compass?

This post has been edited by deric88: Dec 24 2006, 02:28 PM

compasss la bro. free hand kinda tough dont u think?

I'm afraid the BTX mod wont work on a Shark.

Oh my God !!! Shark is being cut ? Good Job ! Dude !!!

Phew, what a hectic week it's been with xmas shopping n the celebrations n all that. Anyway, got down to editing the pix n here we are with more updatesss..............

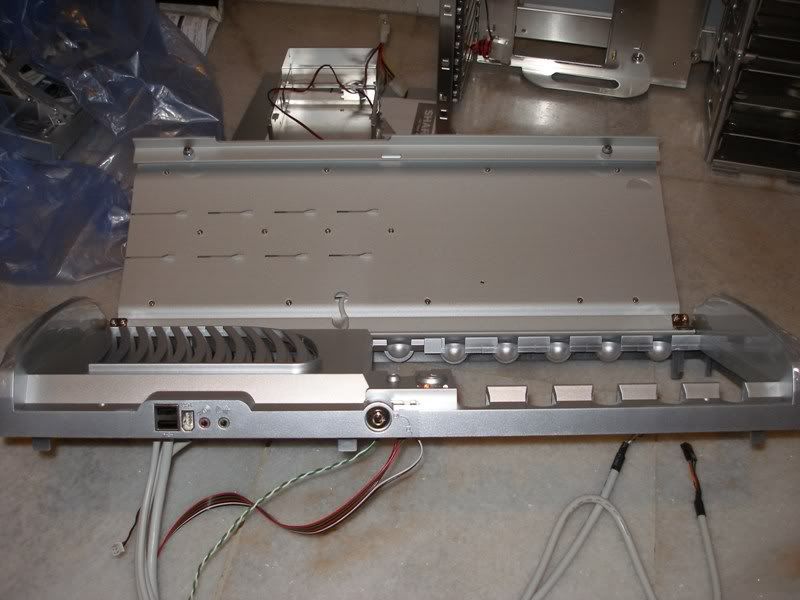

After stripping the main chassis, I moved on to stripping the front panel. Y is it always lidat.......... the cases that come in for full paintjobs haf the most complicated fron panels that need plenty of dismantling. So many parts n screws to remove on this panel. Here we go with the dismantling.

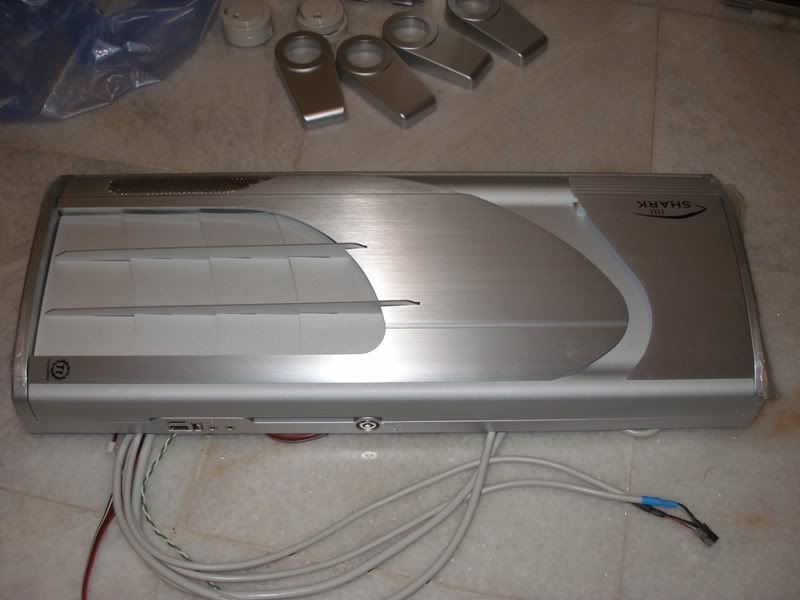

Stock panel. Note the original Shark logo still there at the top. Also can c the Thermaltake round logo at the bottom. Later u'll understand y I asked u guys to take not of the logos now. Hehehe.

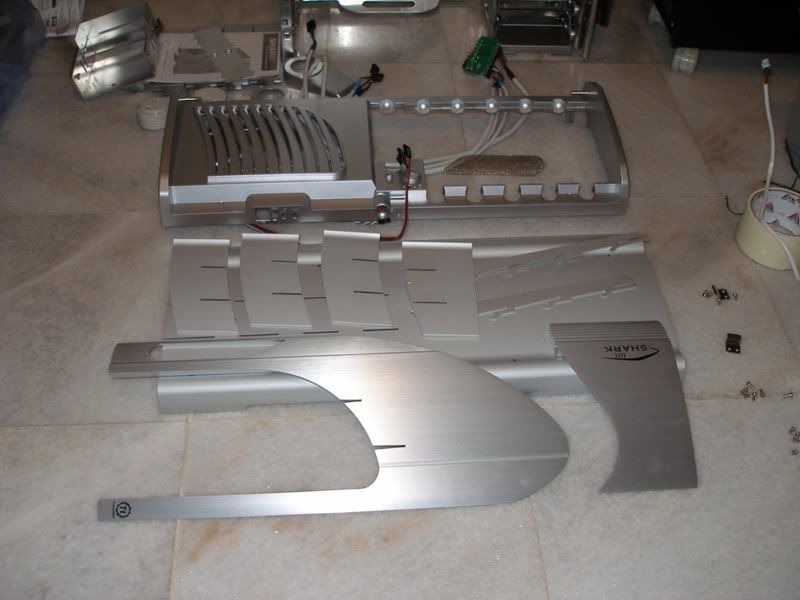

Done. The front panel is totally dismantled.









These r the aluminum ribs that hold the shark gill together at the bottom of the front panel. It's a matt look kinda finish.










Here it is now after sum polishing. I've polished it to a mirror shine so that it shines nicely n hilites the gill area coz the gill area on the front is gonna b all black.




More updates coming riggggggggggggggggght up

After totally dismantling everything I moved on to painting. I didn't take any pix while painting coz it's the paint room is full of paint fumes n paint dust. I dowanna damage my camera with all that stuff in the room so I jsut took a pix after all the painting is done.

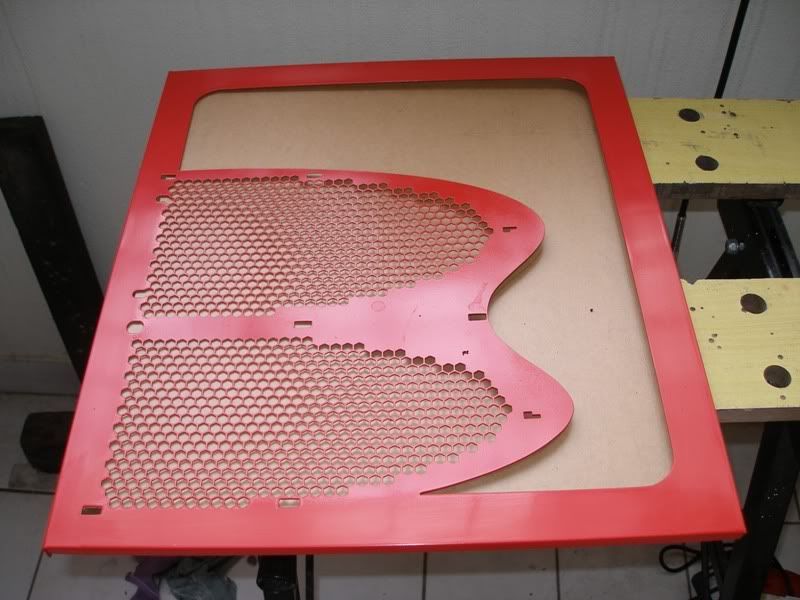

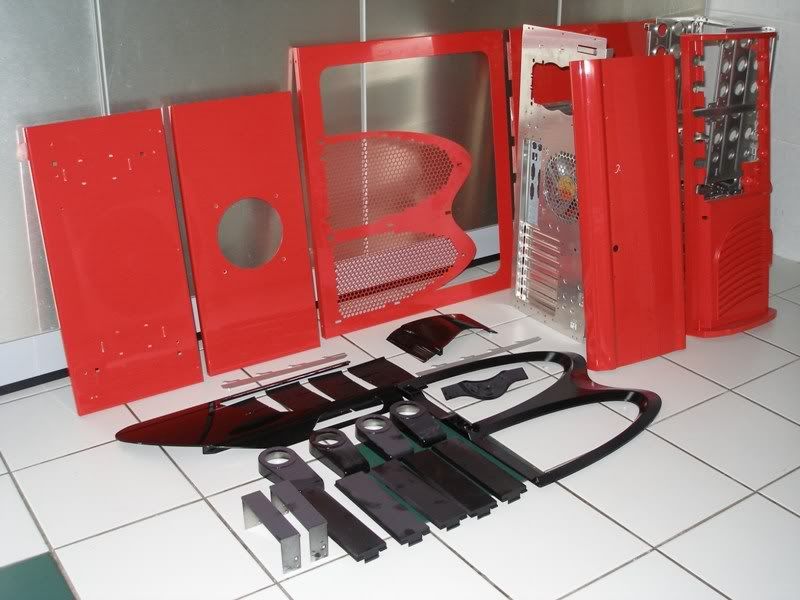

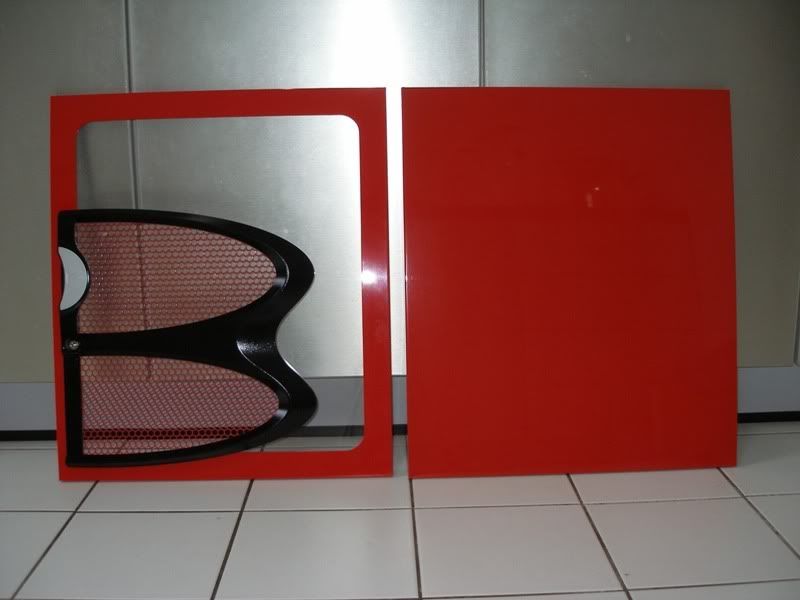

Here it is. All panels painted with 8 layers of paint.

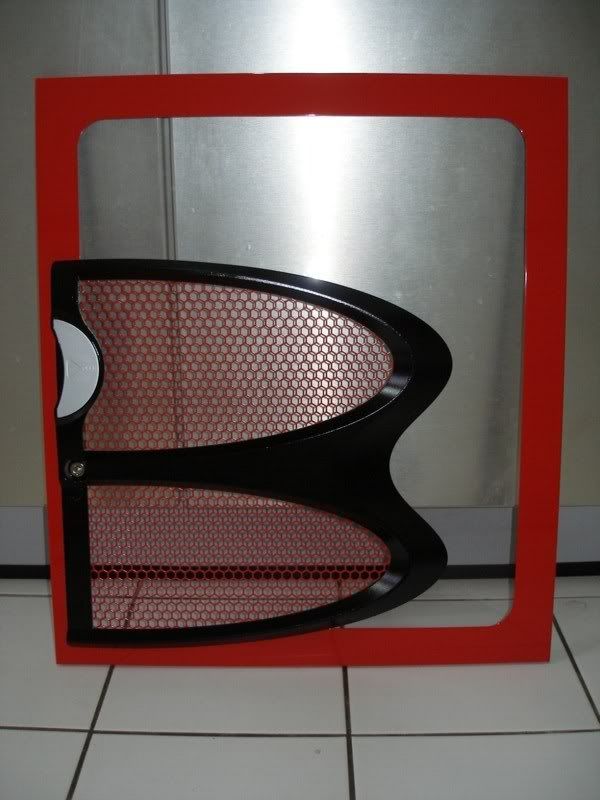

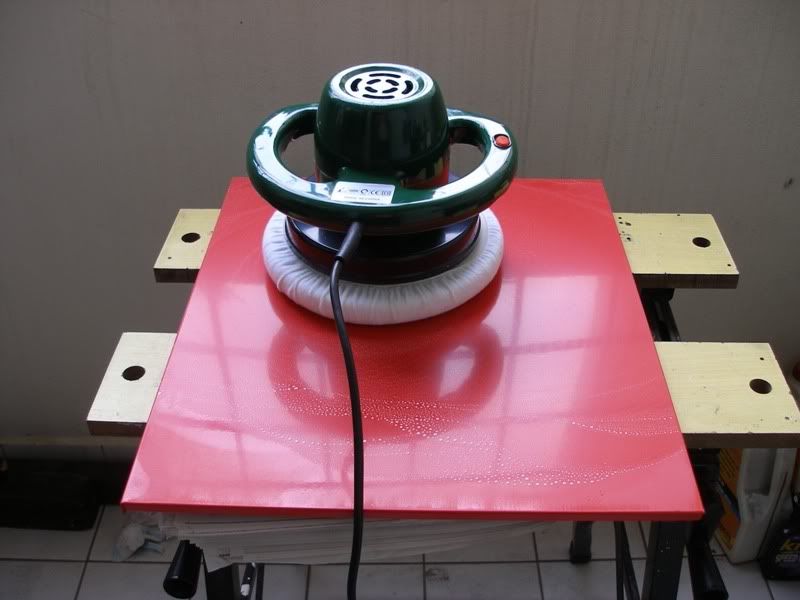

Here's a pic of the side panel after sanding. Then I whipped out the machine for a good proper mirror shine. I wasn't happy with the shine I obtained with this panel n also the window panel though. So after this pic was taken, I washed n degreased it. Resprayed another 3 layers of paint. I'm still waiting for these panels' paint to harden while I do the rest of the case.









The top, bottom n front panels haf been nicely polished to a mirror shine. Now it's on to the assembly of the main chassis.

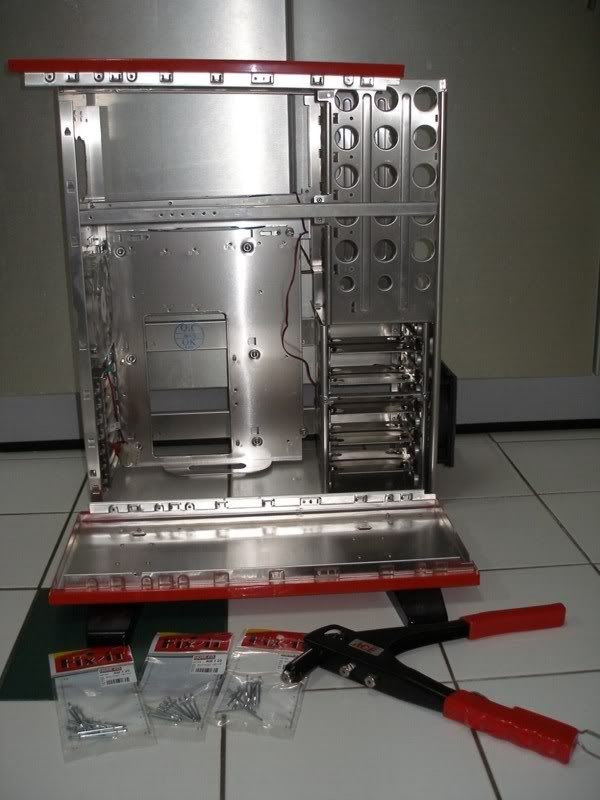

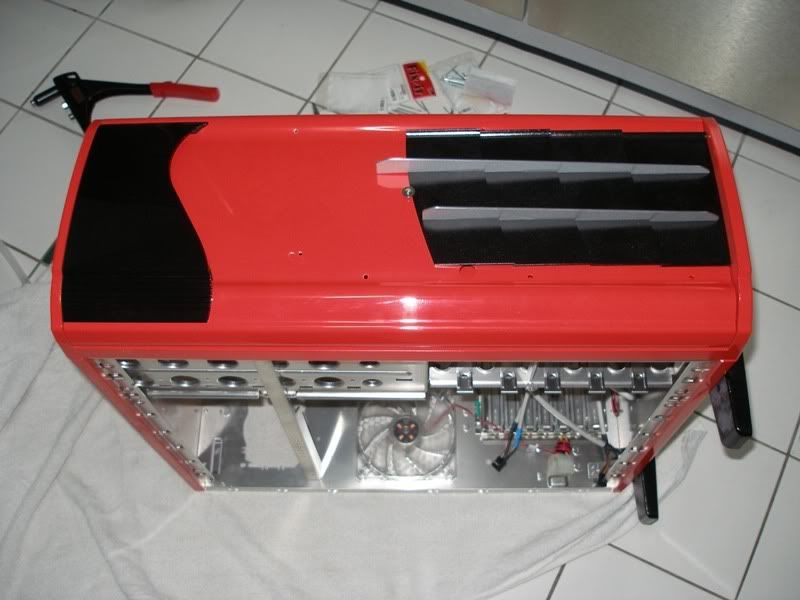

Rivetting the panels back on in this pix.

wow... nice bloody shark.... btw y the interior not paint wan de...

Nice shiny aluminum interior man. Y wanna paint over sumthin that's so bling bling? Usually I paint interior is for cheap metal cases with the ugly grey paint inside. Then I will repaint to matt black. But alu cases all leave the interior alu is nicer.

yowzah....another awesome mod by u know who...

red, damn hot lah.

plan 2 paint my old hp pavilion with red & black also, maybe will send 2 uncle 2 mod my sidepanel

Wow, add some carbon fibre sticker and you'll have a Ferrari theme like Acer's laptop.

Awesome mod as always.

Whoa.. I feel the sexiness.. RED hot.... Very very nice.. like a Ferrari d...

arrgghhh, this making me wanna paint it red too...

hehe. I compared it to my Ferrari laptop n u know what? It's the same exact shade of red. In fact my painting n polishing has made it even more glossy than my Ferrari laptop.





LOLX. What case u bought again lar? Always buy new case 1 u.

aahhh just another Lian Li, V Series, i will onli stop buying chassis only if Lian stop making one... then have to consider other brands, which is kind a hard for me

More updatessssssssss. Today is rest day after xmas celebrations so no actual modding work done. Just editing n updating so here comes the flood of updatesssssssssssssssssssssssssssssssssssss.

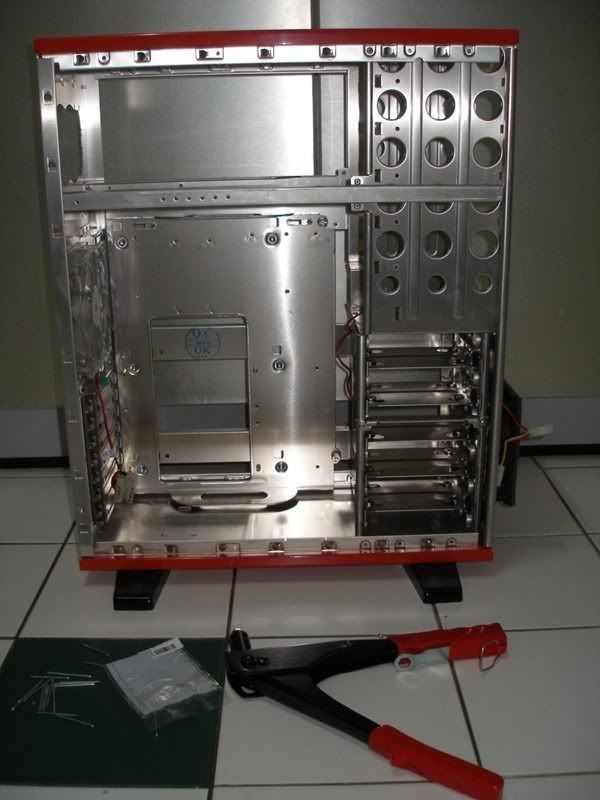

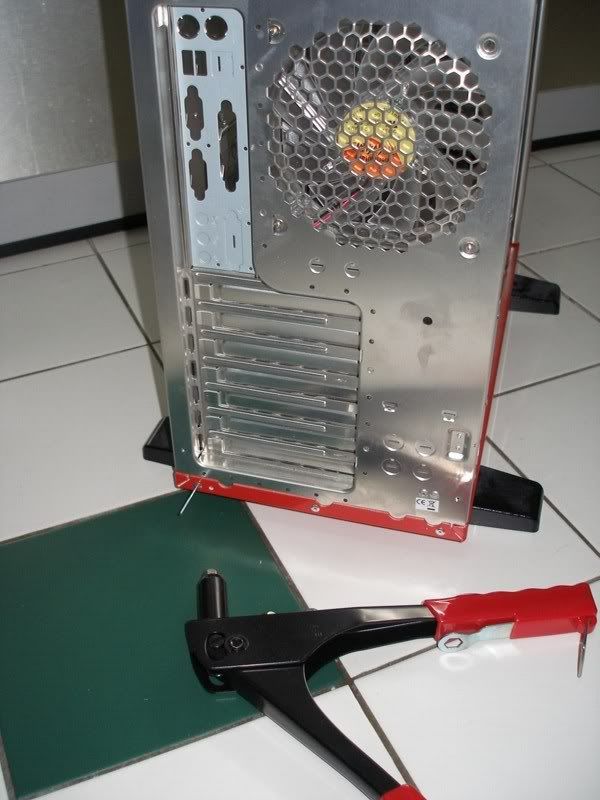

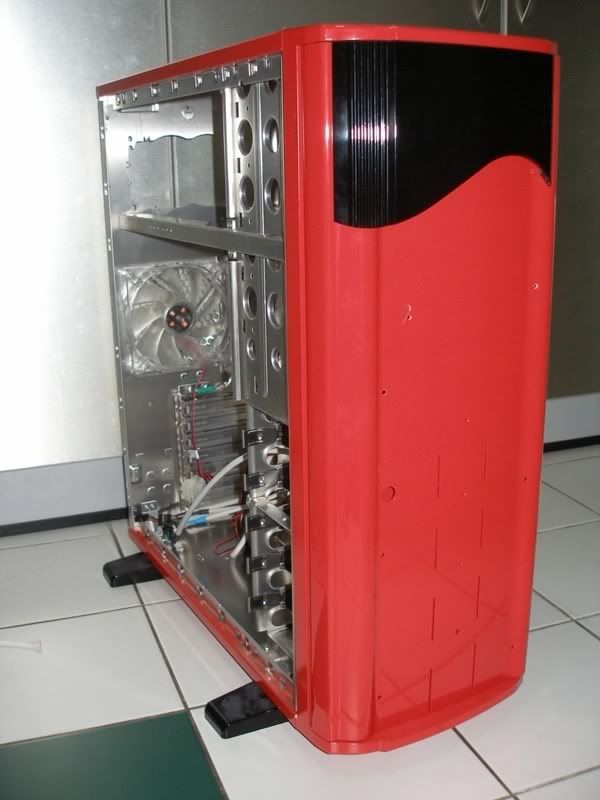

Rivetting rivetting rivetting. The main chassis is now complete.










Moving on to the front panel now. Installing back the front USB ports.

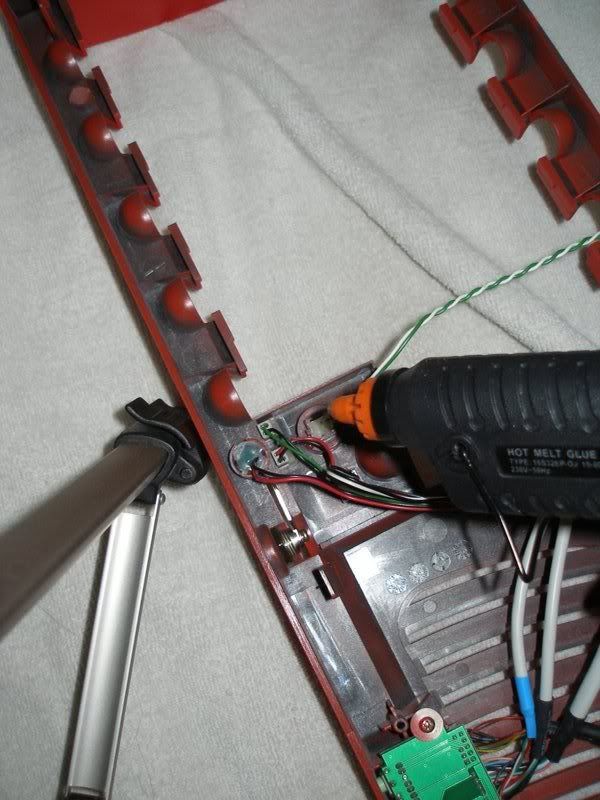

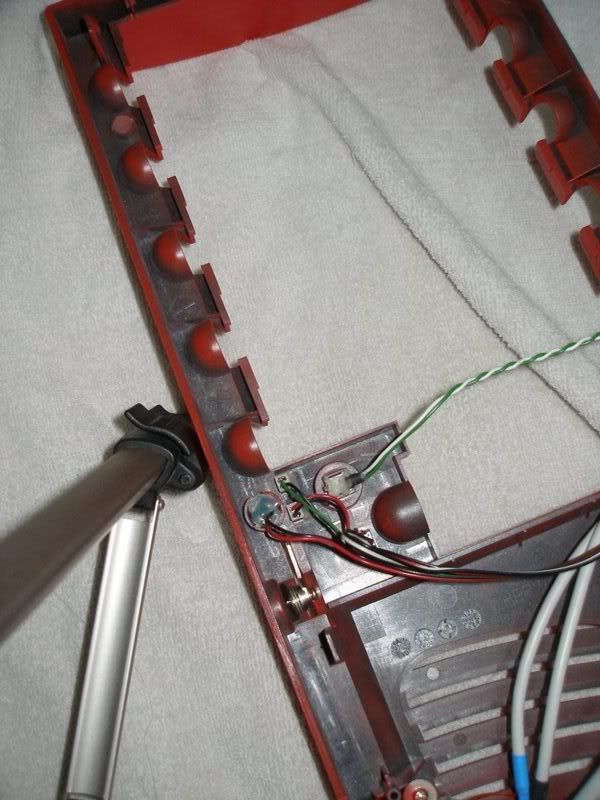

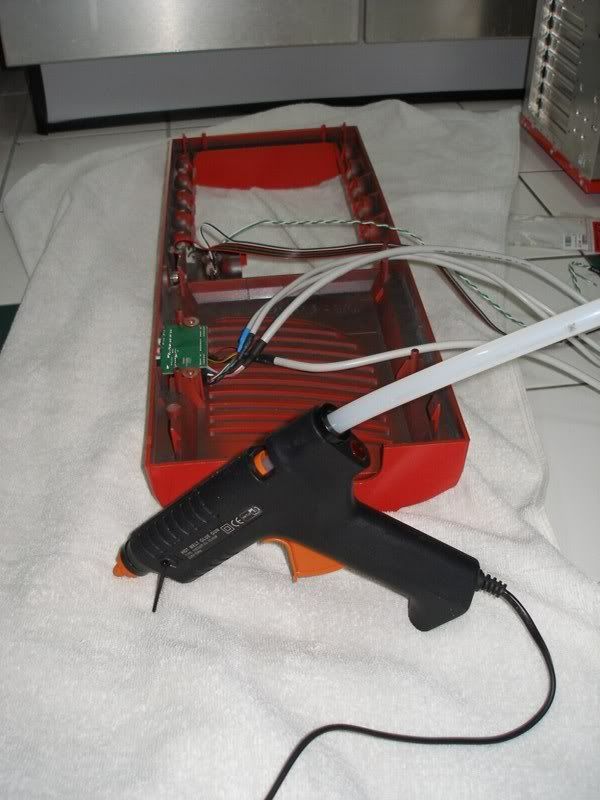

Hot glue gun to glue back the switches into position. I had to scrape away the original hot glue to pull the switches out for painting.









Gluing it with the hot glue gun.









Switches glued in place.

eehhh! why the front panel look like dat, some are not red here & there? is it dusty? or are in grey transparent?

This post has been edited by E-J@1: Dec 26 2006, 11:35 PM

Uhuhuhuh... glossy red paint work. Nice paint job!

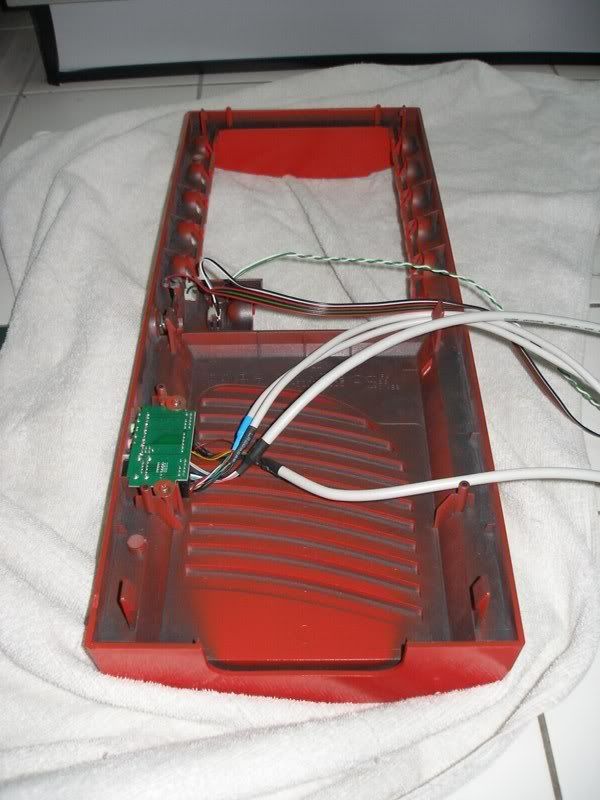

So many wires to the front panel for the on/off & restart swith... hope u didn't get it mixed up

That's the back of the front panel lar. Original is also lidat 1. But original is silver paint overspray on the back. What u c now is the red color overspray on the back. Front part of panel lidat mati lor. Ppl will chop my head off.

i know already it's the back of the front panel, just corious why is it not fully red? are there 2 layer for it? cause looking it for the 1st time like there are 2 layer, 1 the panel itself & 1 for the transparent covering it... guess u explained it is oversprayed

0.o... cut cost haha.... cant see place no ned paint...

Aiyoooooo. Where got cut cost. The Shark's ori panel oso lidat 1. Just that it's silver overspray n now u c red overspray.

then how do we gonna get the interior panel painted? does the interior panel paint included in the exterior paint package or the interior paint package?

Pls do all enquiries on the packages by PM. No buying n selling allowed here remember?

I will explain about the worklog here though.
That back part where it has the paint overspray, it's sandwiched between the door n the chassis. It cannot be seen from the outside or even inside of the case. That's y even Thermaltake left it like that originally. U will understand when I post the next update.

ooo, sori ar, totally forgot bout it... anyway, can't wait for the updates

I saw it just now and it looked great 'in real life'.

Daaaaaaaaaamn. I clicked Add Reply after updating n guess what happened? It got lost in cyberspace. haih. I will hafta update again.




Heheheheheh. U likeeeeeeeeeeeeeeeeeeeeeeee......................

OK here we go. I'll explain bout the back of the red front panel where it's black plastic.


Look here at this pic. C the aluminum panel at the front where the fan is? That covers the back where the black plastic is. So nothing on the back is visible.

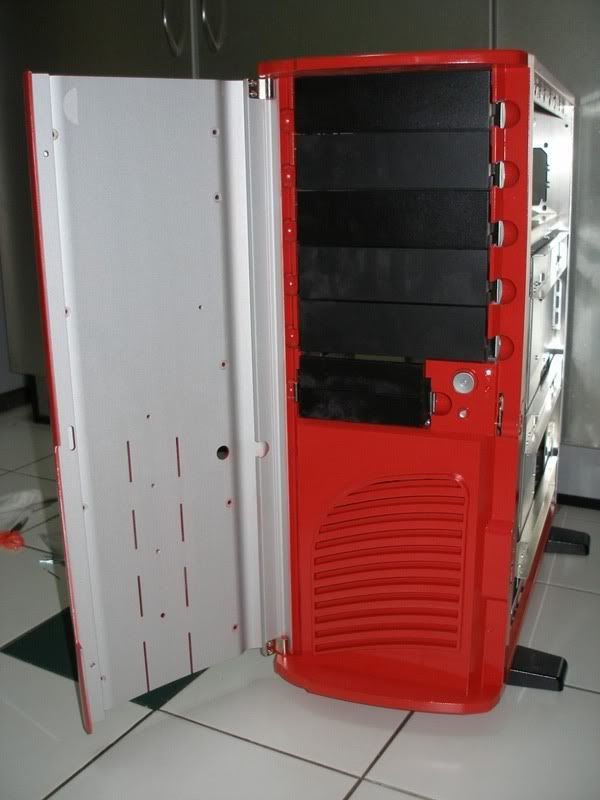

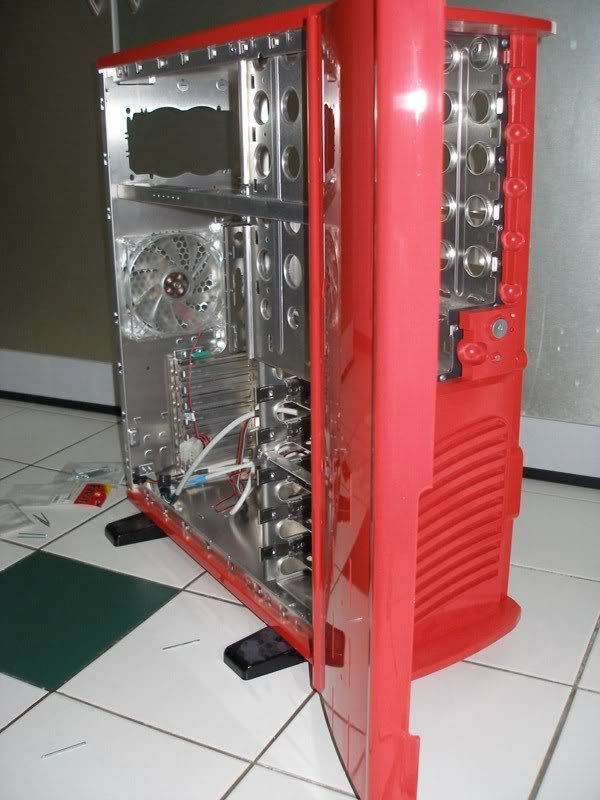

Now look at the front. This is after I haf installed the front back onto the chassis.







So, the front b back is covered. That's y the paint is only on the front. The back is left as standard black plastic just as it came from the factory.

More updatesssssssssssssssssssssssssss.

Check out that shineeeeeeeeeeeee on the mirror shine paint on the front door. BLING BLING!

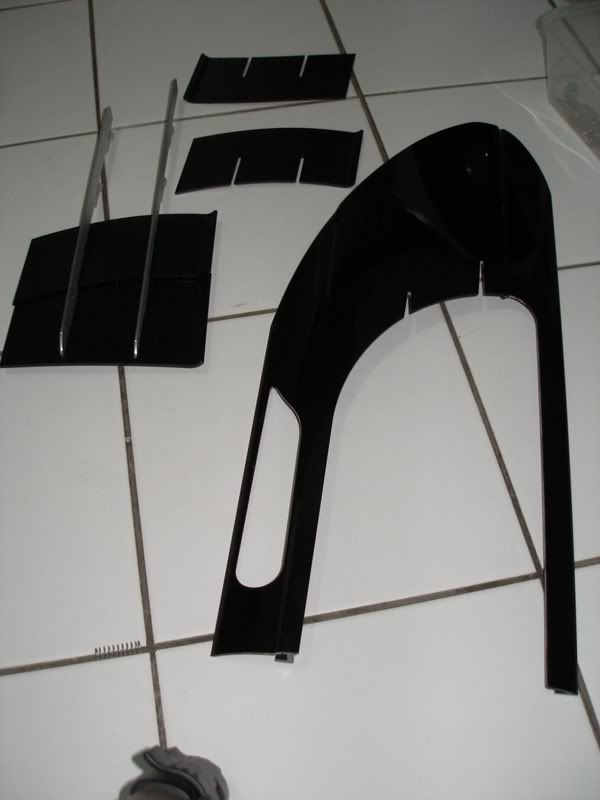

ROM covers back on. The covers were originally silver. They've been painted matt black. That's dust on the ROM covers. Havent wiped them off yet. The whole case will b wiped down n waxed right at the end when everything is finished.

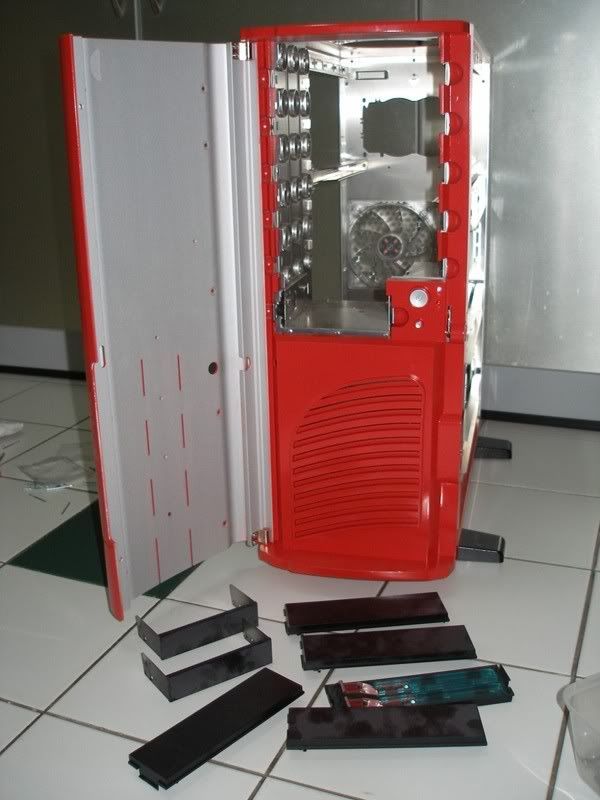

Now it's time to assemble the whole front panel with all the different pieces. The gloss black pieces haf all been mirror shine polished. The lower shark gill slats r in matt black.









1st piece back on the door.








Now it's on to the shark gills. the front door is almost complete now.



This post has been edited by ianho: Dec 27 2006, 02:36 AM

looks like Ferrari at one glance

It made me wet.WOW red is totally a new colour.

dam... after seeing this transformation, make me wanna change to TT d..

woooh, red ferari on a tt shark. nice man

I think it would be nice if you add a touch of carbon fibre sticker to the casing.

Anyway, the casing is already sexy enough with the flaming hot colour. Damn, makes me wanna send my case for modding also.

Aiyooooooooo. Just when I haf time to edit n update, the international gateway goes down.

Next update will b when the gateway has recovered. Can't access my photobucket now.

upload to lyn ler

Wheeeeeeeeeeeeee. My Photobucket is accesible again. Updates here we goooooooooooooooooooooooooooooooooooooooooooooooooo.

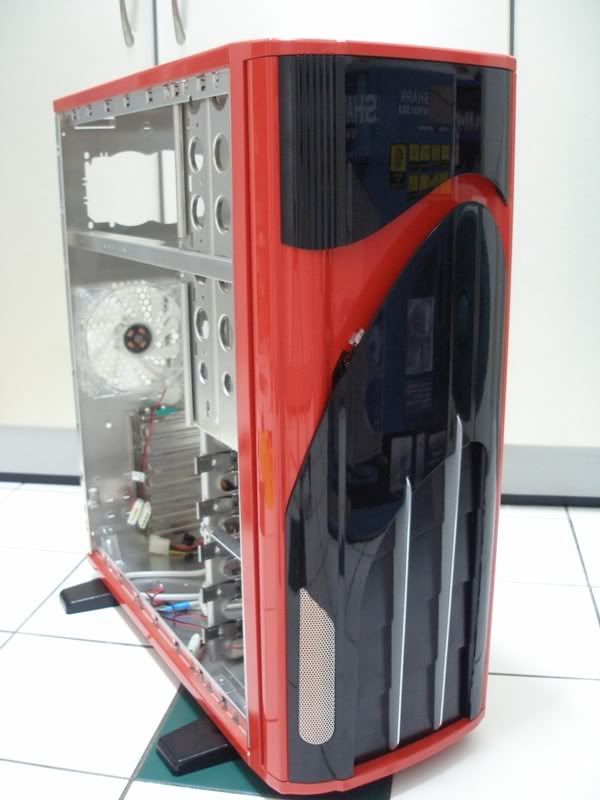

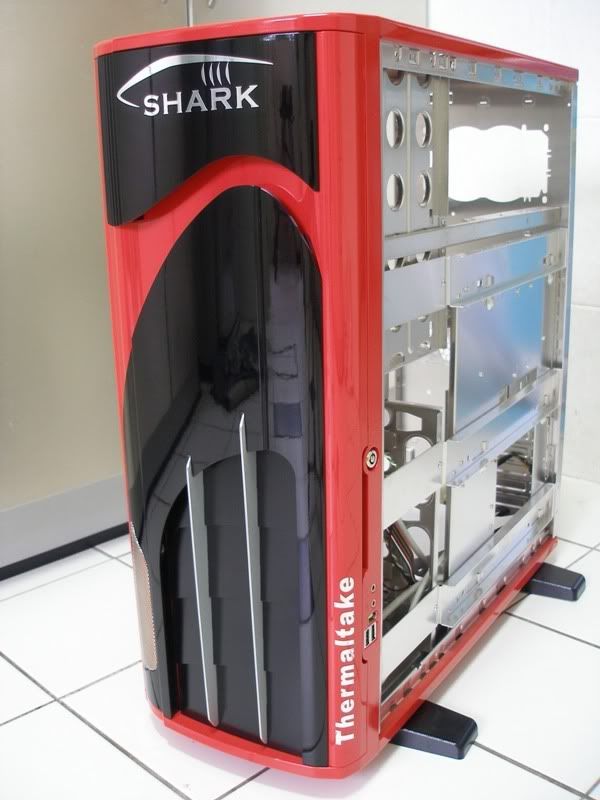

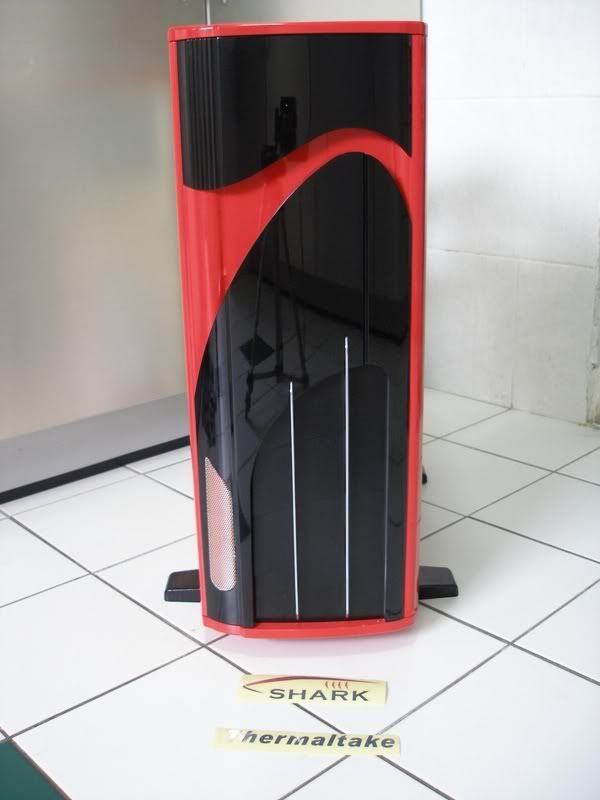

The front is now complete. Fully polished n waxed. Check out the shine! BLING BLING!!!!!!!!!!













Remember how the stock front panel looks like with the standard Shark n Thermaltake logos look like? Here's the stock front panel.









Now I've just made sum custom cut chrome stickers. They're on the floor in front of the panel.

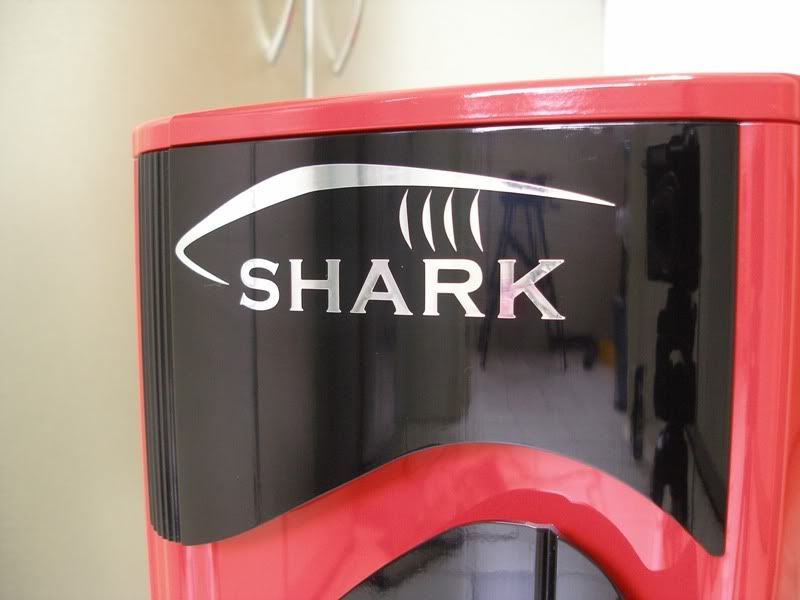

Here we goooooooooooooooo. The panel with new chrome logos. More bling bling!









Well, that's all folks. Project Red Hot is up to that stage right now. I mentioned about being unhappy with the gloss on the 2 side panels earlier remember? Well, the paint is now totally dry n hardened after waiting for a week. I'm currently polishing the 2 side panels. Will update again once I've polished the 2 side panels.

This post has been edited by ianho: Dec 29 2006, 10:25 PM

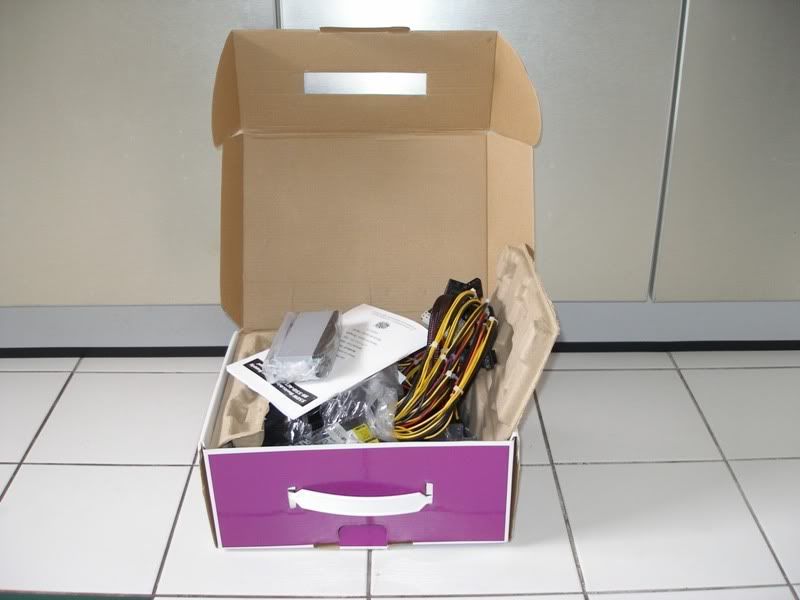

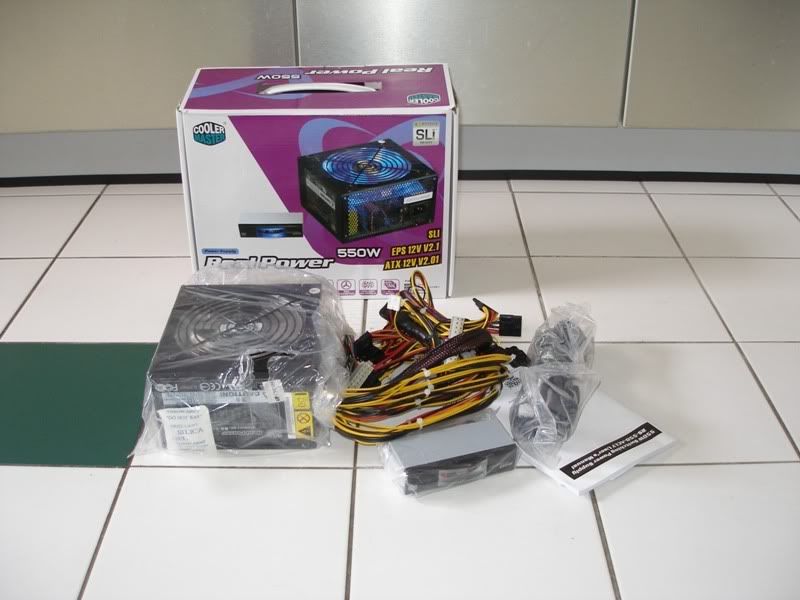

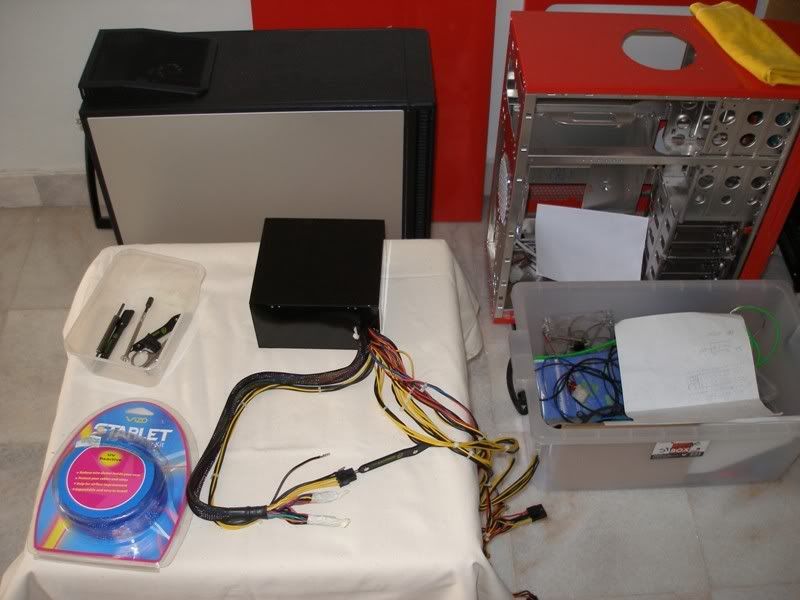

Oooooooops. I forgot about Red Hot Chilli's power supply. Hehehe. It's a brand new Coolermaster 550W.










Gonna sleeve it UV blue.

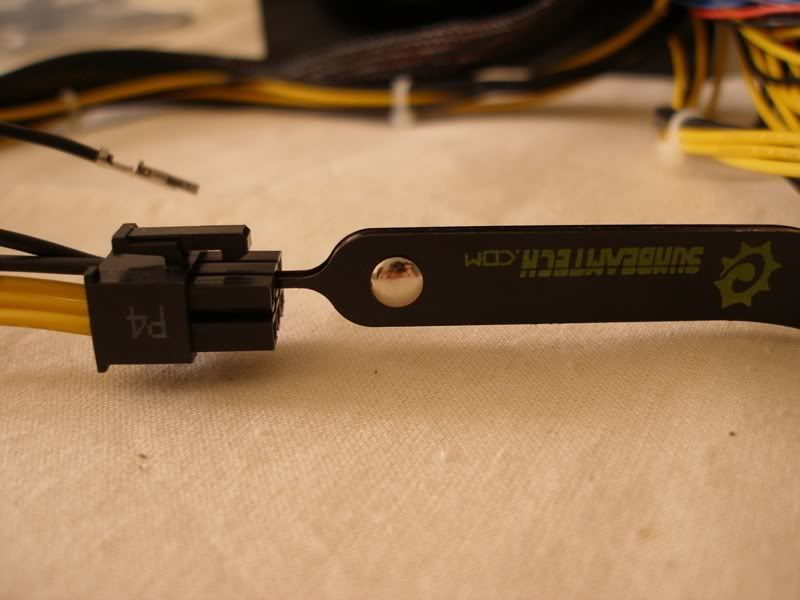

Here's the tool I use. I absolutely love this Sunbeam PSU tool kit. Without it, I'll just cry while sleeving.

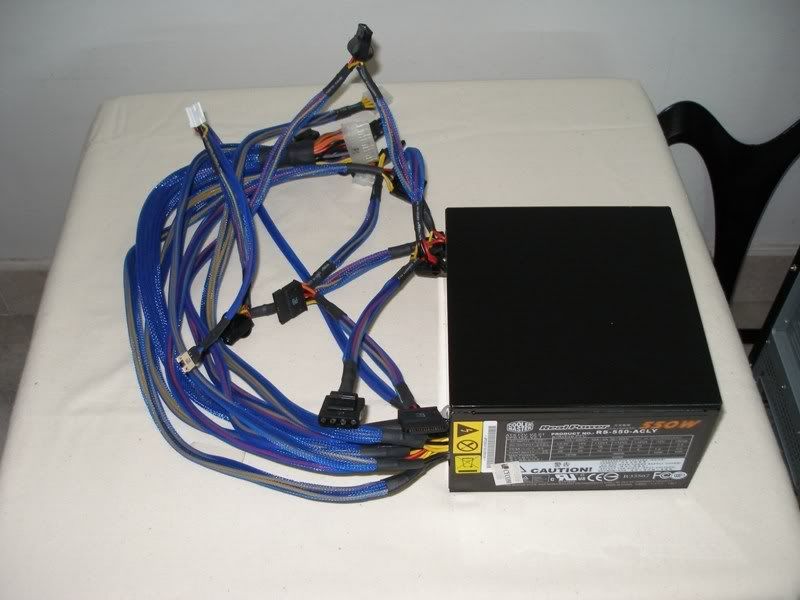

Done. The PSU is totally UV bluw wiring now.

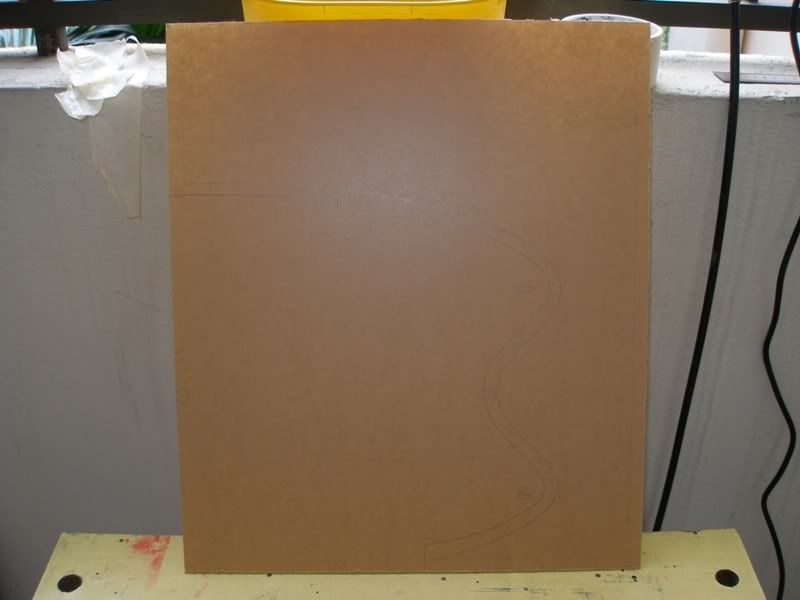

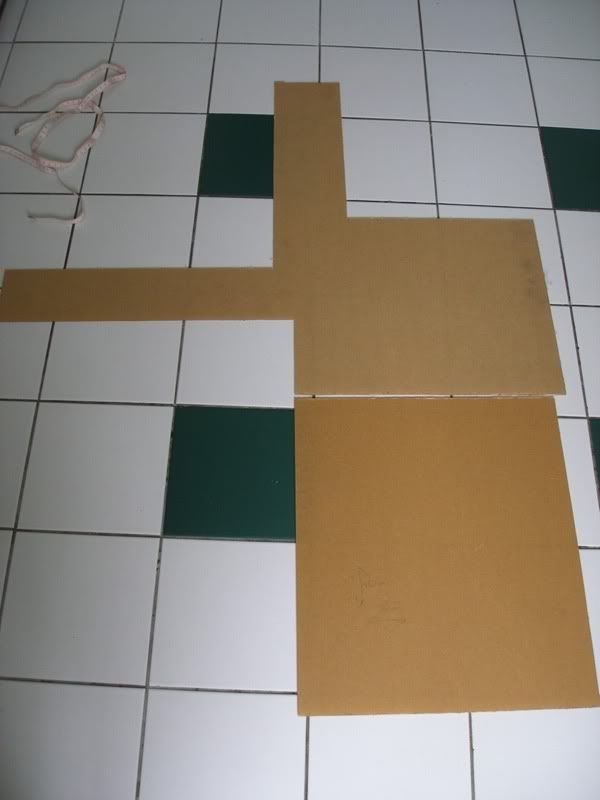

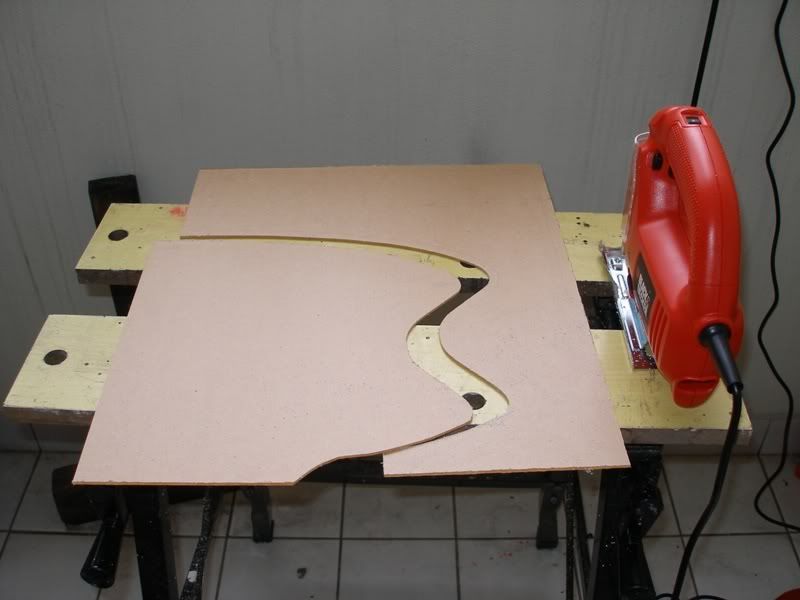

Next update will be on the side panels.

Oh I forgot to mention the hardware that's going into Red Hot Chilli. It's gonna b pretty 1337.

Just a short list of the stuff going into Red Hot:-
Asus Crosshair motherboard, AMD X2 5000+, Nvidia 8800GTS. Nice loooooooovely gaming rig this is gonna b.









This post has been edited by ianho: Dec 29 2006, 10:41 PM

Holy shit the paint work is awesome man, + polished and wax

really nice 1 there uncle ianho.. hehe..

wat happen to the side panel??
