Unifi Official TM UniFi High Speed Broadband Thread V23, ( -_･) ︻デ═一▸ Maxis & Time
|
|
 Nov 7 2015, 05:53 PM
Return to original view | Post
#1
|

Senior Member
813 posts Joined: Oct 2004 From: Miri
|
30mbps ; swak
|
Quote|
|
|
|
|
Nov 26 2015, 10:29 PM
Return to original view | Post
#2
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|

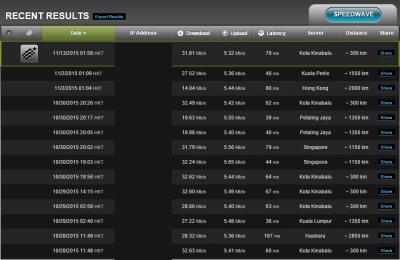

QUOTE(Jasley @ Nov 26 2015, 08:02 PM) Me too. I got upload speed 10Mbps with download speed 30Mbps. But im early adopter which paying rm209/month (with ruby packs) till now. How much you pay?. Do i need to to made complaint to get new price? Why your ping so nice one? Mine is always mid double digit    This post has been edited by ivanchin99: Nov 26 2015, 10:31 PM Attached thumbnail(s)
|
|
|
Nov 26 2015, 10:35 PM
Return to original view | Post
#3
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|
QUOTE(soraksan5615 @ Nov 26 2015, 08:49 PM) I flashed with openwrt (version Chaos Calmer 15.05). I'm using dd-wrt on the same model, revision 2.What's your setup like? RG4332 as modem and TPLINK WR1043ND as wifi router? I tried to get TPLINK WR1043ND to connect to WAN but it'll never connect  |
|
|
Nov 26 2015, 11:31 PM
Return to original view | Post
#4
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|
QUOTE(Jasley @ Nov 26 2015, 10:47 PM) hahaha...dunno bro. Actually before I'm getting 10Mbps upload, also got 2 digit ping. maybe because of the upload speed?. Have you try with speedtest.net? The result from the photo was taken from speedtest.net.I'm heard from my TM friend, TM right now keep pushing their customer to adopted minimum 30Mbps Unifi and renew contract before TPPA implement. because after that, for lower speed will be another providers...ermmm... Maybe it has something to do with my area as I'm from East Malaysia. Small sample size but my friend on a different unifi package also have similar ping as me. That's.. an interesting rumour |
|
|
Nov 27 2015, 01:56 AM
Return to original view | Post
#5
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|
QUOTE(soraksan5615 @ Nov 27 2015, 01:25 AM) Sorry I cannot commend on dd-wrt as I've never use it. What I can say is you need to set the vlan tagging correctly. For revision 2 WR1043ND the vlan swith port arrangement different from revision 1. Thanks for taking the time for the reply.You can go to http://wiki.openwrt.org/toh/tp-link/tl-wr1043nd and read under section "Specific configuration". This can make you understand better in setting your vlan tagging. I have actually went through the vlan tagging process on DD-WRT via this guide : http://taukeke.com/2014/10/hypptv-on-dd-wrt/ Also tried Tp-link stock firmware from Tp-link Malaysia website. Copy paste the password so it couldn't be that. Both methods (DD-WRT & Stock firmware) wont connect successfully at all.  One day i might try Openwrt on this router. I do prefer DD-WRT to Openwrt due to the neater interface. Is there any advantage of running solely on "Tp-link WR1043ND" vs "Tp-link WR1043ND + RG4332" setup?  |
|
|
Dec 2 2015, 10:30 PM
Return to original view | Post
#6
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|
QUOTE(soraksan5615 @ Nov 27 2015, 04:11 PM) The guide from http://taukeke.com/2014/10/hypptv-on-dd-wrt is using different model of router. The version 1 Tp-link WR1043ND can use this setting but not the version 2 Tp-link WR1043ND as the internal design is different. The designation of ports for version 2 Tp-link WR1043ND are different from version 1 Tp-link WR1043ND. So i have everything setup (BTU & Router only), at one point even able to connect for a few seconds!My settings are as below : TM BTU Lan Port 1 --> version 2 Tp-link WR1043ND Wan Port. Version 2 Tp-link WR1043ND Lan Port 1 --> HyppTV; Lan Ports 2, 3 and 4 connect to other devices such as PC, switch etc. It is better to connect directly WR1043ND to BTU. But as mentioned before that the vlan tagging must be correct or else cannot connect to the internet at all. If you intend to use OpenWRT on your WR1043ND inform me. I will try my best to assist you. but it wont reconnect after that. suspect my Vlan switch is incorrect.
I have also set the WAN to connect via eth.500 |
|
|
Dec 5 2015, 02:40 AM
Return to original view | Post
#7
|
|
Senior Member
813 posts Joined: Oct 2004 From: Miri
|
QUOTE(soraksan5615 @ Dec 3 2015, 12:41 AM) Below is my switch setup. You can follow the setting for it to work. All the best. After spending countless amount of hours and trial error, I have finally gotten it to work![attachmentid=5429575] It's not the vlan tagging that was causing the issue. The lan cable from BTU has to plug into one of the 4 lan port. Previously I plug this cable into the WAN port which obviously did not work - even though I manage to get it connected for a second and see a website load before my eyes before going down.. Pretty sure I've seen tutorial advising to use the Router WAN port to connect between BTU & Router. See the lan port configurations below http://blog.namran.net/2012/08/05/setting-...-with-tm-unifi/ Thanks to all who helped  Attached thumbnail(s)
|
|
