teh mod is curently at this stage






Hey, This is my second mod project. Anyway some info bout the mod, first the case , a 0408-sl i cute aka Aerocool Jetmaster(Aerocool)
secondly a list of things to do:-
1)Cut out mobo tray holes for cable management
2)Make the cd-drive bays shorter
3)cutout the floppy bays
4) make a mounting plate for a double 120mm radiator
5)make divider plate between power supply and the rest of the components
6)paint interior black as well exterior, but with flame stencils on all sides.
7)remove front panel
8)make new front and top panels out of acrylic
9)get case ready for water cooling

heres a list of my current hardware:-
AMD Athlon 64(939) 4000+ Clawhamer (FX-53 Core)
DFI UT NF4-Ultra D
mushkin enhance memory Level2 DDR3500 (old skool bh-5)
HIS X1650Pro 256DDR3
FSP Epsilon 600wtt(RMA), Currently Acbel 390WT
80Gb Pata WD Caviar
LG H220N DVD-RW(coming soon) Currently OEM IBM DVD-rom


Cooling:-
Swiftech Storm g5 Rev.2 (coming Soon) currently i have a whitewatter sitting in front of me,bt using stock hsf.
Swiftech MCP655 aka Laing D5 and a Nirox p2800
Swiftech MCR220
Swiftech MCRES-Micro
Swiftech Hydrx
alright enough with the words, lets start with the pictures.


first i went to my local hardware store to get some supplies bout Rm100 worth.
Heres a list:-

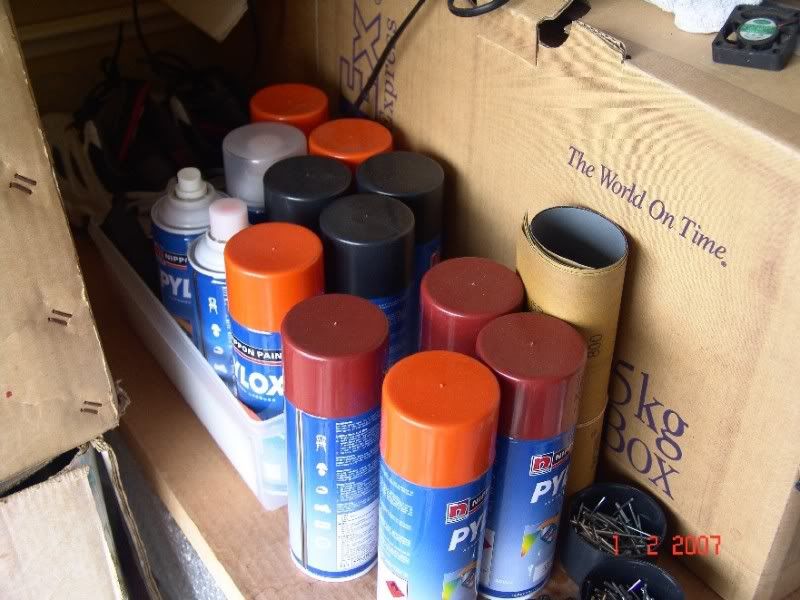

11 cans or Spray Paint (Nippon brand)-3 Tangerine,2 Flat black, 3 Gloss black, 3 Clear Coats
4 Rolls of 1 1/2" Masking tape/Painters tape
6 Rolls of 1/4" masking tape /painters tape
1 Roll of 1 1/2" Double sided tape(thick)
1 Roll of 1/4" Double sided tape(thin)
100pcs of 1/2" x 1/2" Pop Rivets
1 Hand Riverter
1 Hacksaw blade
1 800 Grit wet/dry sandpaper
1 1500 grit wet/dry sandpaper
1 1/2L Paint Remover
1 Pair of Rubber Gloves
1 Dust Mask
30pcs of tack cloth

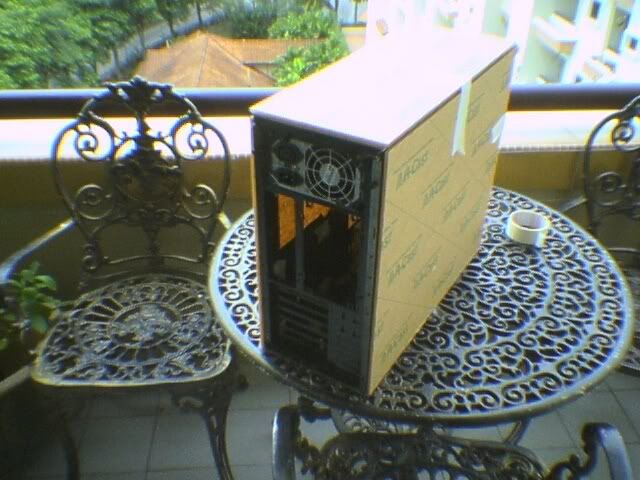

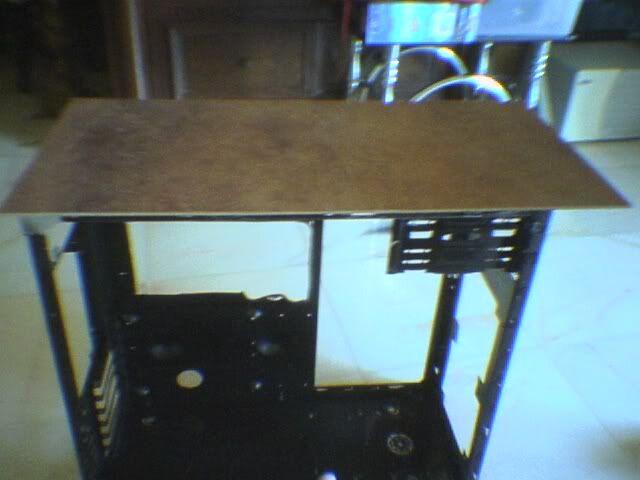

heres the case to be modded.


this is a server cube i got for free, dam this thing is heavy as it is large, whole thins is constructed out of 2mm thick steel. Look at the comparison between the case and the spray can.

bt it has a lot of metal i can use.

its an old server from a printing company.

the case needs to be striped down first so after 160(i counted) rivets drilled out

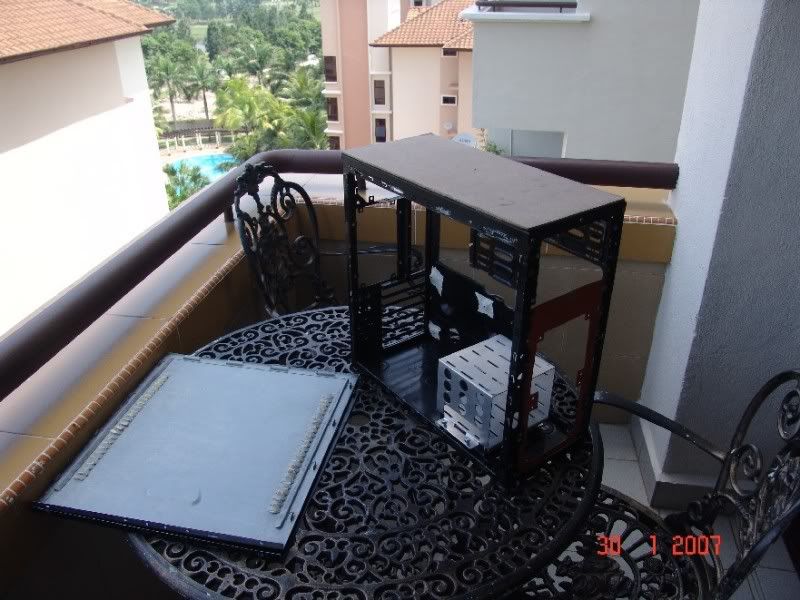

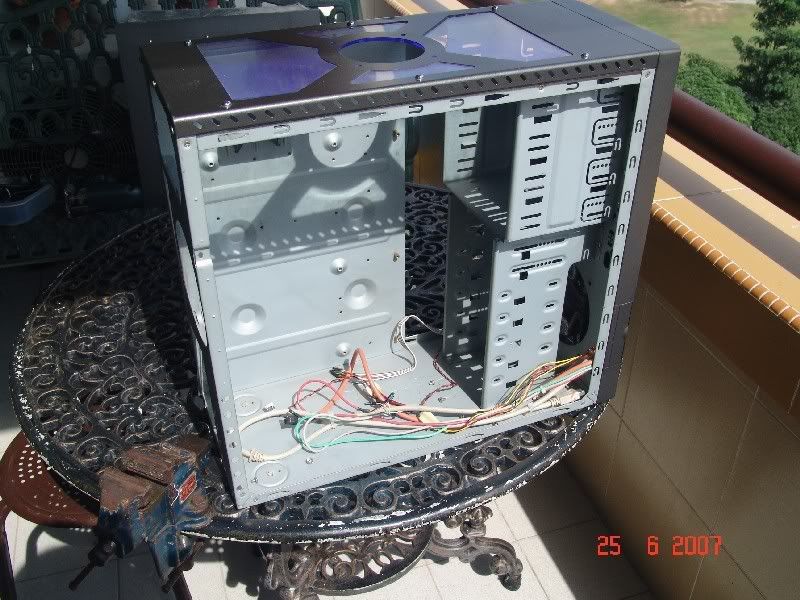

we have a pile of junk metal on one side, a clean chassis on the other.



]
theres lots more metal but it couldn't fit the box ....

This post has been edited by lolhalol: Jan 1 2008, 10:44 AM

while de-riverting the case a drill bit broke, snaped actually, with half the drill bit still in the rivet...




then i got a knock on the door and a big brown box was delivered to me, some of my wc stuffs has arrived.





sorry for the blur pic's, using a sony clie camera..

anyway went to ace hardware n got this

a spray gun ....it really helps with the painting...
wait n c the pics...updates coming on wednesday.....

This post has been edited by lolhalol: Nov 29 2006, 05:23 PM

spray gun tu nak guna macam mana ya?

u attach to the spray can and just use like a gun....
theres a tab that presses down on the nozzle ...

how much for this? anyway, nippon is good brand?
11 cans or Spray Paint (Nippon brand)
gonna buy it too ...

*ur mother in 3rd pics? LOLx

bro dats my grandma..neway how much for wat ?the gun?thast 15bucks if im not mistaken... yeah nippon is good...man u havent heard of nippon the house paint brand? same company....

nice stuff there i keep track on this thread.cant wait to see the final product...
WC kitt sweet...since the casing is huge.Maybe wan side will be the WC kit perhaps?

@styloe
bro beware dat the big casing will nt be the final product, the icute uc in the first post , thats the one... common misconception..neway i got some work done just now, updates in a minute

here we go....

first i wanted to strip the paint before i started cutting


heres the cap ayam paint remover...



the panels laid out ready for some stripping action


i forgot to buy a brush so i had to use my hands to spread the fluid around, i swear u dun wan to try this at home, paint stripper burns man....

all spread out

]
almost there, the paint becomes like wrinkly then u can use a scraper and scrape it off...of the panel there is after 3 coats of flat black.... almost the whole can is finish di coz i painted the other side to...





this is after some wet sanding with 800grit on the panel with the window, the other panel is waiting for some bondo to cover up the icute logo ...

time to paint

my tool of choice.. can gun....


my painting area...neway so sorry no close ups coz my camera battery suddenly gave up on me shouting put me back on the charging dock,,,....

This post has been edited by lolhalol: Nov 29 2006, 04:57 PM

while waiting for my paint to dry.. i took one of the big side panels and started to mask it up... after 3/4 of a roll we have this


all taped up...


the white paper u c is actually a template i got from acryan.Templates
they help me line up the holes for the radiator....


holes drilled and filled

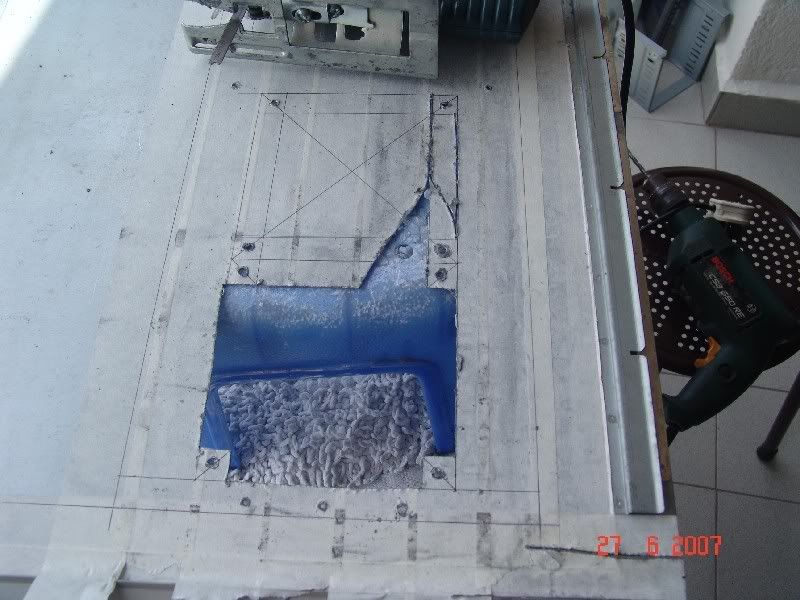

all prepped for cutting....


here is my cutting desk, my drill and my angle grinder..u can call this my work space..


cutting the outlines....very slow work because i didn't want to over cut...

after bout an hour later we have this....




cutting out the floppy bays....

This post has been edited by lolhalol: Nov 29 2006, 05:59 PM

then cutting a big hole in the mobo tray for cable management....

then disaster struck when i was half way through.. the cutting disc i was using on my angle grinder shattered, spitting the broken pieces at mach1 all over the place... luckily i wasn't hit

but when i thought it couldn't get worse the angle grinder got jammed and i couldn't remove the center part of the broken blade... so no more cutting for me for now... maybe ill just get a dremel...

but in the end i manged to get it cut anyway....


after some sawing and filling we have this


the radiator mounting plate.. i know it is not straight bt it fits and no one is going to see it anyway once I'm done....


here we go testing with two fans... perfect fit..

This post has been edited by lolhalol: Nov 29 2006, 05:59 PM

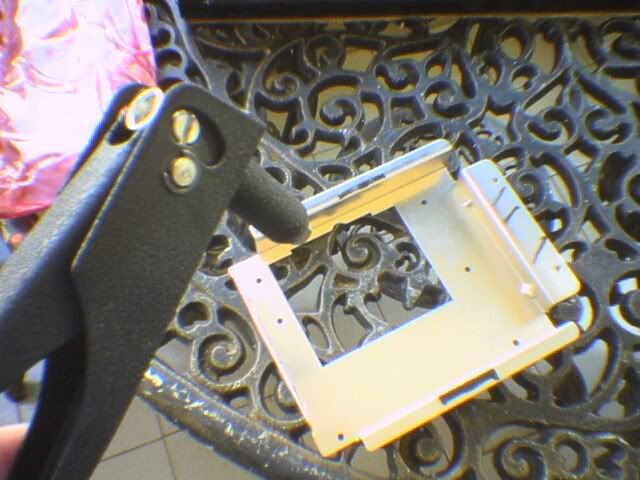

k here we go again...riveting the case back together...

cdbay

heres the rad plate mounted on....


another shot of it......


test fitting to c whether the rivets can hold....n it does...

[
final shot for today... did so much work since morning 6 am non stop..u can literaly c my hand shaking ..look at the pic how shaky.......tired like a B****....

neway want to try n c whether i can cut this .... without rotary tools....(looks up to the sky praying for )


comments as usual are always welcome....tell me wat u think... constructive criticism is always good....now time to go play nfs carbon..finnaly ariived my pre order kit....

p/s again so sorry for the lousy pictures... im gonna get a sony cybershot ...Sony

This post has been edited by lolhalol: Nov 29 2006, 06:02 PM

Nice job there bro...

All posts containing n regarding vandalism have been deleted. We are not interested in n do not condone vandalism n destruction of public property while modding. Please be responsible while modding.

This post has been edited by ianho: Nov 20 2006, 10:11 PM

bro spray gun tu senang nak cari ke? kalau nak beli kat kedai cat mesti ada kan? mahal tak? senang tak nak guna dia?

Woah, I hope you had a pair of safety glasses on. Glad you're okay though.

Bro....i was wondering does your tools suitable for case modding? how about rounded corner cutting?

besides...nice beginning bro....so much updates...keeps it up....

After being directed 2 look into dis thread by many forumers, so I came. Initially I thought dis ppl just buat lawak...

But I'm really shocked 2 find out wht 'd happened; malapetaka besar. Luckily nothin' happened 2 u dude

How could hav the drill bit broke�? Unless it was really cheapo, unreliable brand. I strongly advise u 2 invest in high-quality HSS ones

2nd, why didnt use the scrapper 2 spread the Paint Stripper instead? Wht u hav done is vry unsafe

And, I think the angle grinder wheel not suitable w/ the tool's speed or again, it's useless brand, or it was wrongly handled. This is a vry� dangerous power tool operating @ high speeds so b xtremely careful; I dont c u wearing goggles after all. I advise better use jigsaw or rotary tool

The shattering pieces might hav rocketed into & caused permanent eye (or any body part) injuries 2 u or any1 inside the home. Pls dont harm urself

@everyone...
hehe thx for the compliments... yes i was wearing goggles but i didn't want to look like a scuba diver( i was wearing a half face mask..).. neway thx for ur concerns as well...yeah im happy im still in one piece as well...lol... anyway sorry brother ian bout the vandalism part....

@res q
bro so far i havent seen at anywhere except acehardware in ikano power mall...near 1 utama... bt yeah its helps out loads and its really easy to use.. just pop it in n start spraying....

@Criptonox89

bro i dun really get wat u mean, bt yeah they work fine for me, just they are more harderr to get perfect cuts.... bt they are muich faster.... anyway for round corner cutting i use a 30mm hole saw and the rest u can guess,,,

@bombman
haha bro u sound like my dad..lol... neway i was using hss ones, bt i think after bout 150+ rivets non stop the thing got so hot it expanded, and when u move the bit around u tend to bend it so i think dtas y lah...dun worry bout the paint remover , thats the l;ast time, i thinkl... anyway updates coming right up... u loading now...
bro

k as u saw in the first thread.... i had a swiftech mcres-miro with me... n was deciding where to mount it...i decided to mount it near the pci slots... as this case is inverted it is also the highest int in the loop(well almost) coz the rad is bout 2 mm taller....bt if i wanted to mount it there i would need to fabricate the mounting bracket...so here goes....

heres the reservoir, to me its the best ever design.... user friendly n good erformance with low pressure drop...

thats where i plan to mount it...


here i manage to get a aluminum l bar which will donate bout 5 inches of it self for my bracket.


back to using hand tools, after my episode with exploding cutting discs, i went back to using hand tools... ...


here it is cut, ready to be taped off and drilled...


the ever useful making tape


all taped in it temporary clothes..


drilling, i went slow this time as allu is so soft no broken drill bits this time...


drilled and fillled


test fit and voila, it fits perfectly...

This post has been edited by lolhalol: Nov 29 2006, 06:03 PM

here i scuffed the suface so that paint could adhere to the surface... painted it 3 times before i realised
alu cant be painted on...without prep work....neway i scuffed it with a sanding bit with the drill


painted.....

This post has been edited by lolhalol: Nov 29 2006, 06:05 PM

now i paint the side panel....

i painted this on monday and left it to dry....

we have after 3 coats...


aftere 4 coats... the relflections are unbelieaveble the stupid camera doesnt catch the reflection so well...

anyway

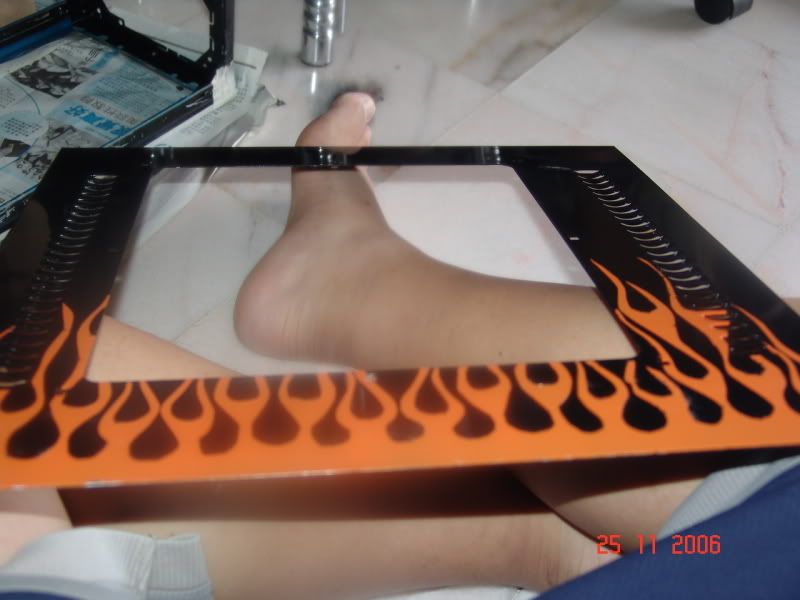

the rason y this mod is called black fire, flame stecills...

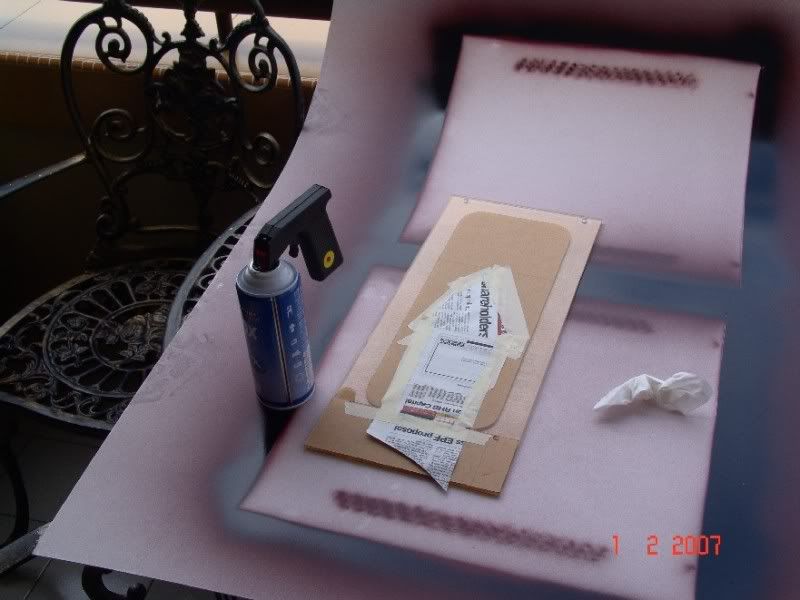

first getting the panel orange coat ready....

done

then leave it out to dry....

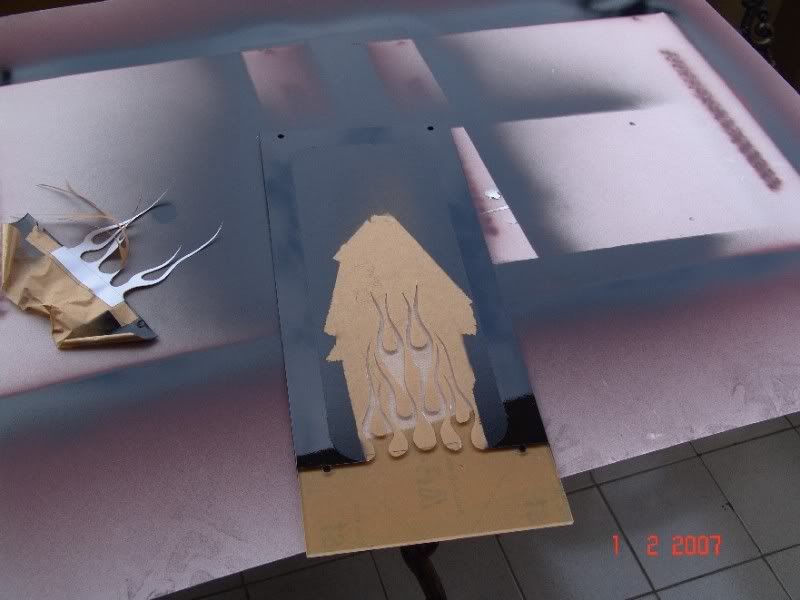

then mask the orange part, and stick the stencil on top and use a knife or blade to cut along the lines....

peel of the masking tape and u have this
nice right....


then spray the black over it, and voila u have fire....




here it is on the case....

then while looking at it , it hit me that i did a stupid mistake i should have painted the other way round.... black first mask off the black and put on the orange part.... i think ill just redo it.,.... neway it still looks sweet thogh....

anyway i put an order through to ppcs
heres a list ... most of the stuffs are self explanatory and is for this mod...
1 x Urethane Bumpers Tapered Square - (Set of 4) - Black
14 x Lian Li Thumb Screws M3 Size - Silver

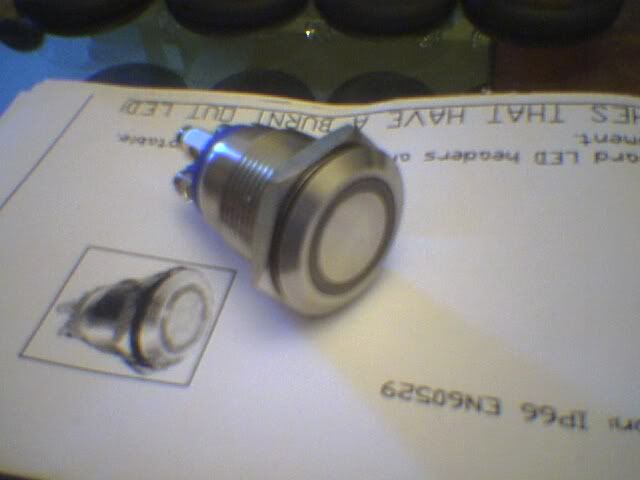

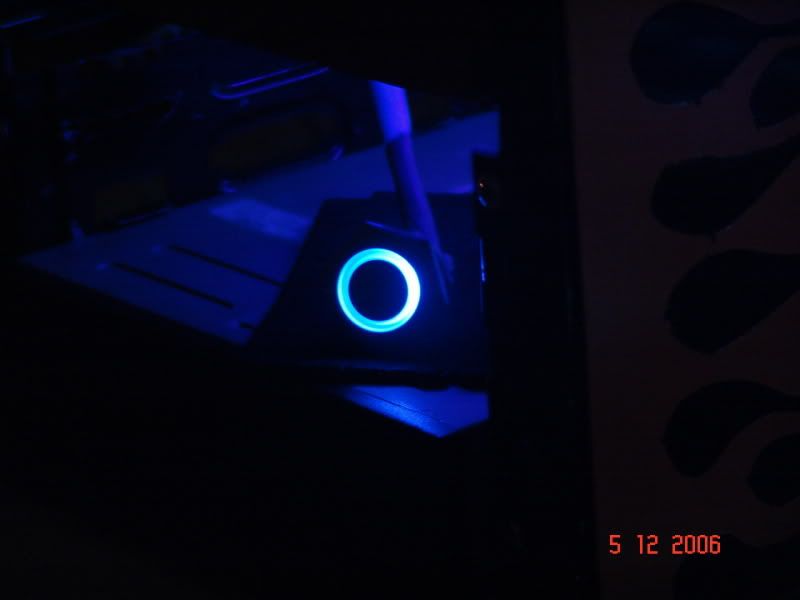

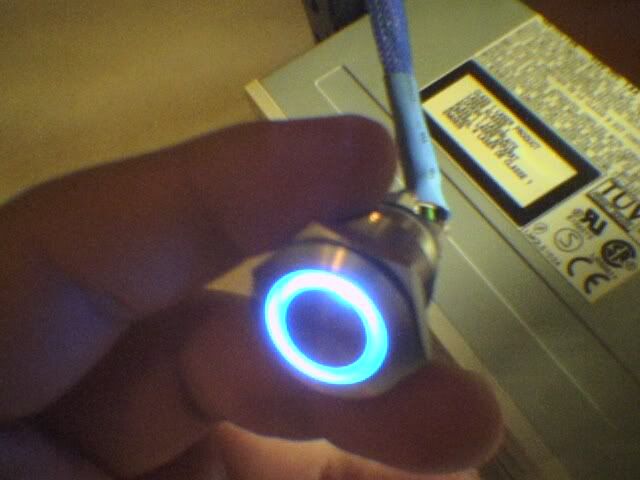

1 x Vandal Resistant Illuminated Switch - Blue Ring
4 x PVC Rubber Grommets 0.8125" I.D. Hole
1 x A.C. Ryan Toolx(tm) Pin Remover - ATX / P4-12V
1 x Lian Li Replacement Removable Hard Drive Rack Base for PC-6X
1 x Lian Li Replacement Removable Hard Drive Rack for PC-6X
5 x ClearFlex 60 Tubing 1/2" ID 3/4" OD
1 x Ultra All Purpose Computer Assembly Screws
2 x Grommet Edging - Clear
1 x Swiftech STORM Extreme Performance Universal Water-block - Rev 2

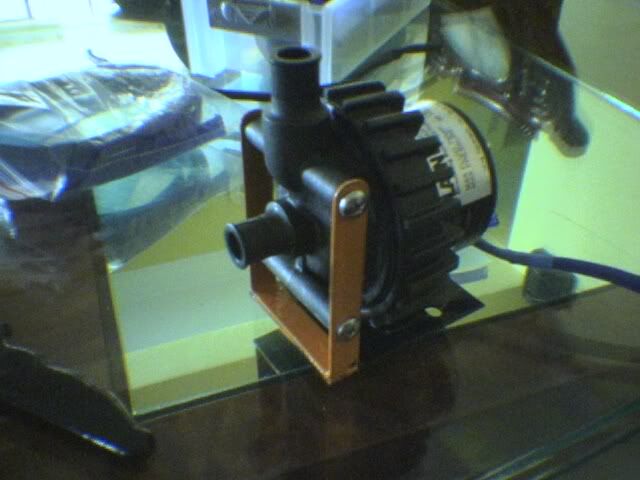

1 x Swiftech MCP655(tm) 12 VDC Pump
total=$usd250

should be arriving dis saturday or sunday... im going to go get my camera this weekend too...

neway this mod is stuck for the moment coz i need to go get bondo and sandpaper, and wait for my stuffs..
u can expect a tiny update maybe on friday the earliest....sorry guys....

a funky shot....


This post has been edited by lolhalol: Nov 29 2006, 06:05 PM

k i did some skecthup work and came up with this...

this finish product should be something similar....

neway there is a beter quality one here...


This post has been edited by lolhalol: Nov 22 2006, 11:03 AM

Hehe...I'm just concerned bout the safety of modders. I knw many r simply too eager 2 mod coz it's vry interesting rite�? But nvr 4get 2 take all necessary safety precautions

Regarding the bit, frm my xprience nvr happened so even drill thick steels. Wht u should do is invest in high-quality brands. Or @ least enrobe it w/ damp cloth after evry few drillings

erm... am i the only on who is having trouble viewing his photos ? all i see is user image posted.. Sry if tis is consider spam..

^
I, too, only see 'user posted image'. I guess the website that hosts those pics are down.

Hopefully it's up soon as I'm also curious to see this case's progress

This post has been edited by Aquanox28: Nov 23 2006, 10:16 AM

Maybe server hosting pictures down at moment..
http://img.villagephotos.com

the image host no problem la..... http://www.villagephotos.com/

I can't see any pictures...

TS, care to try hosting those pictures in other image hosting?

I wanna see the pictures of you're mod...

hey guys so sorry bout hte pictures, bt some how i can c all of them... weird eh.... can anyone recommend a good pictures hosting sites...?? thx..neway updates up tomorow, bz playing nfs carbon ...

now i can see them again... haha..
erm.. imageshack.us ????

Photobucket is quite okay i think.

Master Ianho uses photobucket to post all his modding works...

wow from ur sketch the design look real nice.... i like it a lot
keep up the good work dude

lmao pwnage by uncle...

err...kinda newbie question here....what software u use for that sketch??? and where to find that??

yeah i went back to the guy who sold me the bit, he said it is bosch brand i think, i told him bout it breaking, then he also said when the bit become too hot it easy to snap... he say dip th e bit in cool water or damp cloth...

thx bro... finally u post something....

its a program called sketchup, u can get the full version if u pay (mine is full version) or u can download it for free from google coz they bought the company....

k guys..update

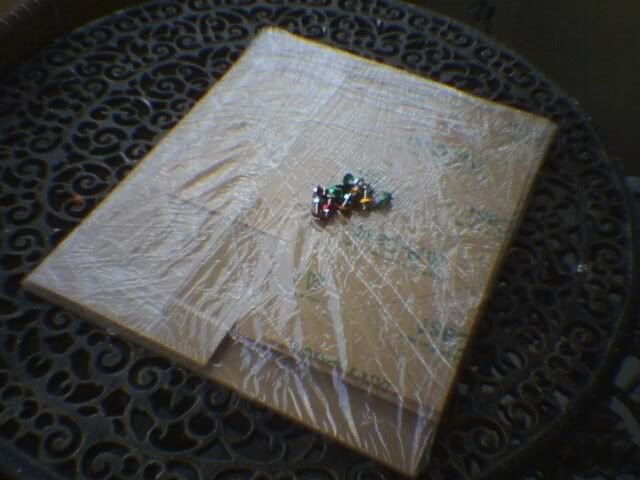

got another package today...

hehe Colgate package... thx bombman...

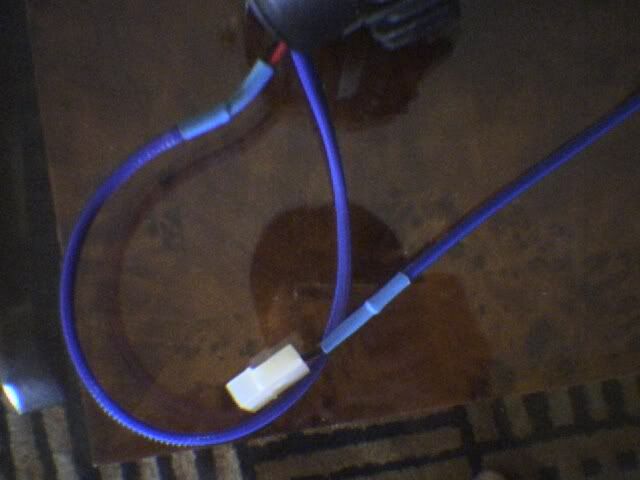

heres what was inside the package....

bt i wanted to add my own touch to it...

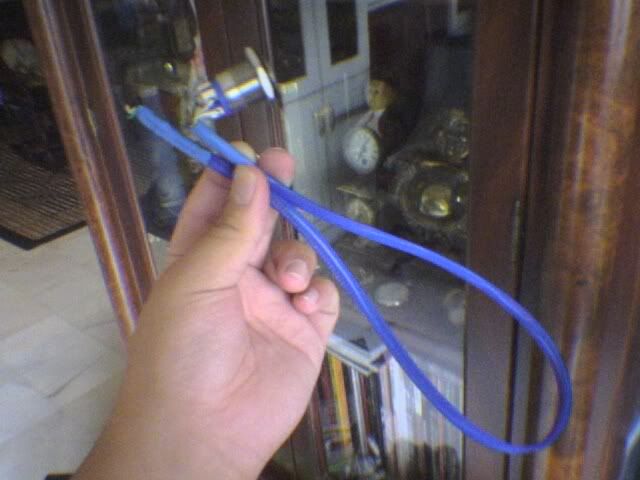

heat shrink the end so that they can take more punishment when pulled...

done



k now back to modding.. so sorry guys bt this update will be very very small.. cant get much done as i need an orbital sander and wait for my stuffs to arrive from ppcs....
neway still i went out to buy some putty(the shop did not have bondo) and sand paper(100grit and 800 grit)...
]


i dunno whats this called , hardener i think....


the putty...


ok where my fingers are pointing at, im gona bondo also the handle thingi on the other side....


my workspace


puttied...



edit by mod:Advertising content deleted.

This post has been edited by ianho: Nov 28 2006, 11:12 PM

Disaster

then when i wanted to sand it i realized i put too much putty on , very hard to sand, after one hour i gave up....
so i removed all the putty with a hammer and chisel and we end up here...


i left it alone and went to play




will update again as soon as i get the putty done...thx for reading, and comments are as always welcome, good and bad

Dats exactly why u need the orbital sander. No need lah till wreak the panel like dis. Kasi lingkup

agree with u...just use machine lorr not need to use sand paper anymore..more easier

guys my stuffs arrived from ppcs....


for the list look a few posts back...


this is wat i was waiting for a bulgin swithch..cost me 15usd, 60rm for that...


wired it ...


sleeve it ...


and on it...

looks nice ehh...

and the highlight is

tada....


heres is the lianli hard drive cage...
bt got a wee bit of problem

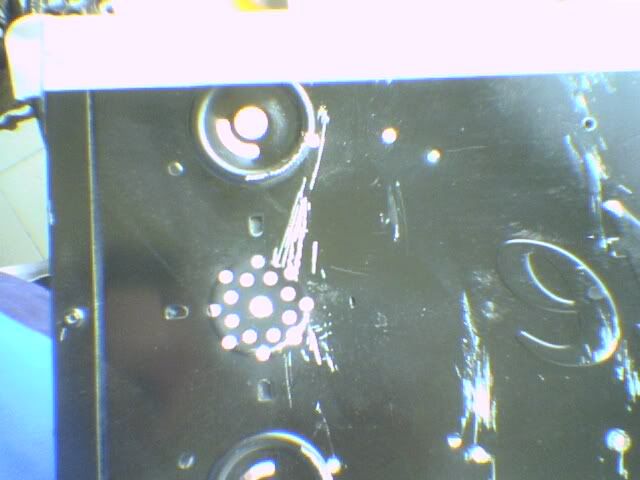

seems like oxidation bt looks like bumps bt no probs... can just sand a little... bt hard to c as it is on the "lblind side"


here i glued on some rubber strips to dampen the vibrations from my hdd...


test fit..still works...

This post has been edited by lolhalol: Nov 28 2006, 05:09 PM

sleeved the pump...


done...

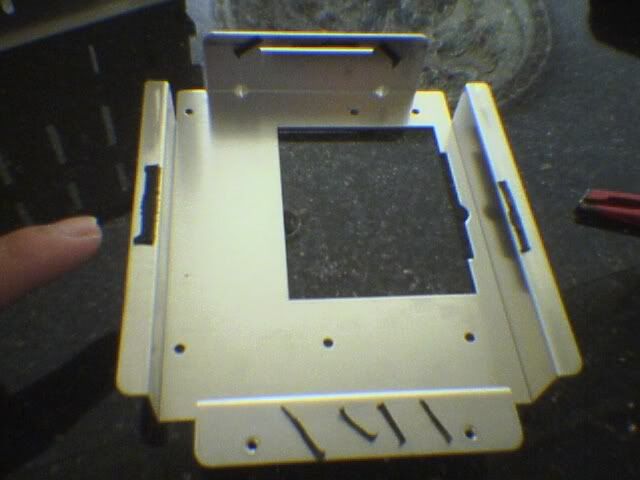

heres the original mounting plate for the mcp655... looked a bit boring all black...so added some colour to it...


done..


the mcp655 also generally all black, so tried to get the same colours as the nounting...


done...
deosnt look that nice thogh will redo after it dries...

This post has been edited by lolhalol: Nov 28 2006, 04:52 PM

got my new camera... not exactly new... as this is a second hand one..bt its good enough for my uses...wont be taking alot of pics with this though... just for close ups and for the finishing pictures...



drilled some holes to fit the hdd cage,....


the mounting plate and my trusty riverter...


lock and loaded...


doen..6 rivets needed for optimal security...


fitted on... i will replace the fan in front of the hdd drive soon as i suddenly didnt have any decent 20mm thick fans...

This post has been edited by lolhalol: Nov 28 2006, 05:12 PM

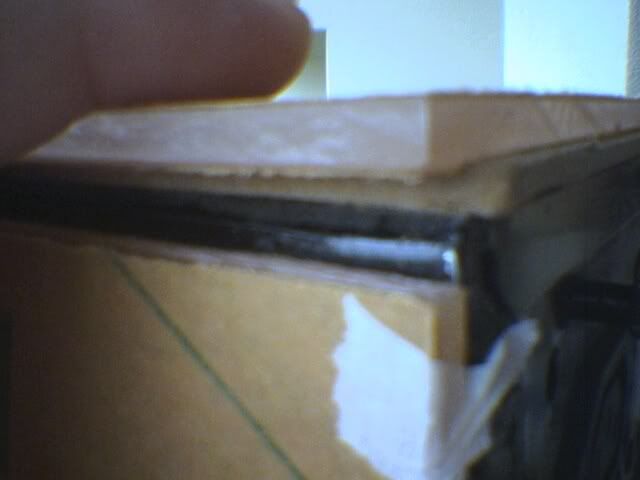

i got this two pieces of some kind of sound dampening material.. its very hard, feels like cardboard and it is water proof... and if u knock on it u can only hear a soft thud... its going to be the base for my case...


like so... with thick double side tape to further daampen the sound....


after cutting the edges to fit..tada...

This post has been edited by lolhalol: Nov 28 2006, 05:14 PM

started installing my wc stuffs and got to this..

look preety neat to me.minimal tubing used...short travel distance foe the water...and set up like this...res>pump>rad>storm>res


mountain dew anyone...hehe


system filled and bleeding for bubbles...


a little uv doesn't do any harm...

well this mod is going a bit slow coz of
1) i had a few family problewms... my granpa just paseed away so no mood to mod..
2) $$ dun have coz of the camera and the ppcs stuffs...
3) thinking of changing paint scheme(all black with orange highlights)
4)bloody exams in january...

This post has been edited by lolhalol: Nov 28 2006, 05:15 PM

dude..sweet mod.

sorry about the sad news. my condolence to you and your family.

Good luck in your exams in Jan. keep up the good work with modding.

sorry to hear that man

you...you...you...are quite rich...

btw, why there are 4 wired needed for the vandal switch ?
2 of them is to power up the LED ?

the switch is damn cool man......!!!

take care alright

Nice Stuffs u got there

my condolences man.
u have a real talent for all this
hope to u see up and modding again soon.

i'm sry to hear tat too..
at first din not hav any interest in ur project coz the pic quality(no offense though) but afta the new updates, it make me got interest in it.. i like the bulgin switch thing.. wat's it for anywat?
well, keep up the good work

Thanks man...


Its ok man, this mod will now be a tribute to him so will go even more full force

nah bro not rich, save up long time di, anyway yeah the bulgin swithes need 4 wires, two is the on/off and two is led power..

thx..yeah also dam alot of $$. bro anyway bout the ramcooler ill need to hold for a bit coz of my problems hope u understand.

thank you, my mod cant beat ur lah..look almost like a person with years of exp did it.. well we are the younger generation...


thank you, will be as this will be tributed to my grandad...

thank you, sorry bout the picture quality...i didnt get a decent camera untill like last weekend, but i wont be using it for my progress shots, only for my special shots like close ups and stuffs like that. too big and clumsy, later drop and broken.... anyway the bulgin switch is for turning on and off the pc...

....................................................................................
i will be updating hopefully by nest wednesday as this weekend will be me and superfly shootout hsf test...watch out for it in the air cooling section....anyway all pictures are reuploaded to photobucket for beter viewing pleasure....

A very good mod bro, keep up the work.

My condolence to you and your family. Hope you'll be alright soon.

condolence to you n ur family...u be strong dude...keep up da good work...

damn nice mod , after reading 3 pages, sorry to hear bout everything, but keep up the good work, i have missing screws for my thermaltake shark, i wonder what should i do with it, lol

Yup...,i agree....,pretty neat workmanship.....,keep it up and don't loose patience.....(always happens to me...)

thx for your compliments...

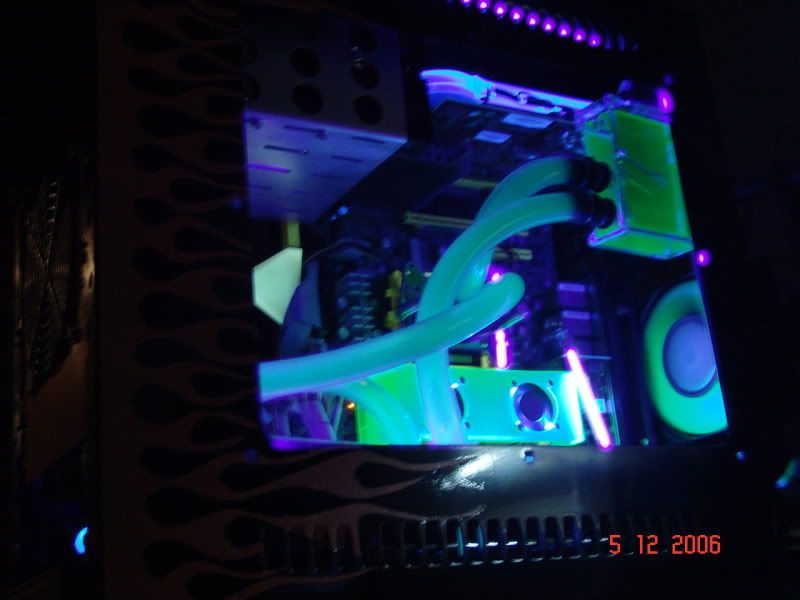

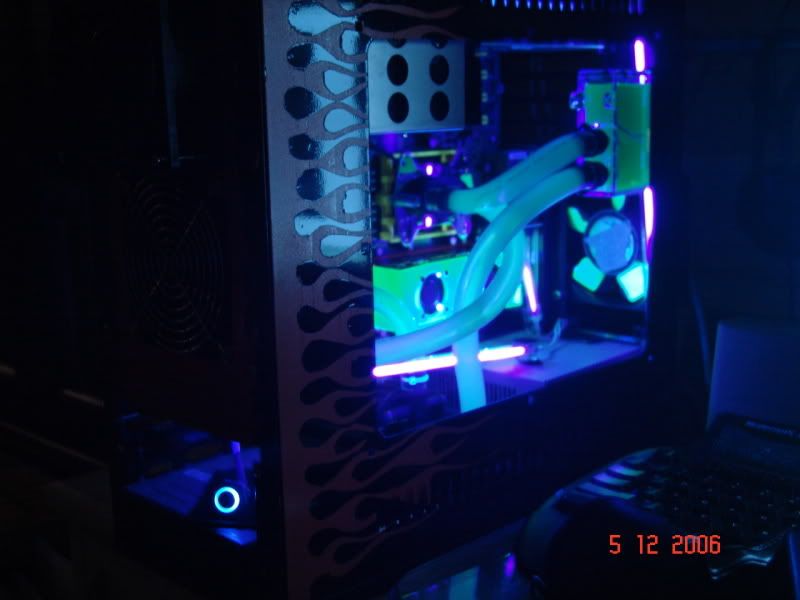

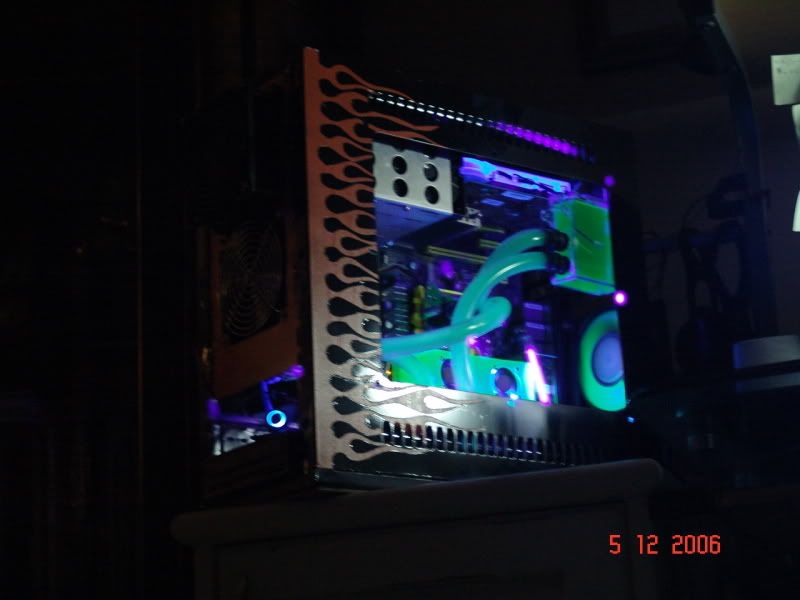

here guys... some pictures for now.... just for u guys.... thx for supporting me...








some mirror finish

shiny

shiny

This post has been edited by lolhalol: Dec 8 2006, 09:58 AM

any want to borrow me a orbital sander? anywan want to help me?

yo cousin', nice work there

thx bro...updates coming in a few days...

OMG...this is one interesting project...you sure have a heck of alot of patience and good planning buddy...

may i know where did u get the Lian Li HDD Extension kit?
& how much did u paid it for?
maybe wanna get one for myself

Aboy....updates updates.......

@BurgerRI
thx bro...




@E-J@1

http://www.performance-pcs.com/catalog/ind...roducts_id=4329
http://www.performance-pcs.com/catalog/ind...oducts_id=20581
this is where i got it...

@tatayoung
hehe wait lah brother, got no orbital sander so have to sand by hand... stupid lah, now my hand very painfull

This post has been edited by lolhalol: Dec 13 2006, 04:30 PM

no body wants to lend a modding brother an orbital sander? my hand very pain and still only 30% of the sanding is done....

if only i haf the money n knowledge to do all those. nice liquidcooling there!

will there be update on the front panel as it looks incomplete.....

yes of cousre ...right now exams so cant do anything.... im afraid this is going to be like sherrens mod...almost a year....hopefully not... but i got some new ideas coming very very soon.

ok, guys finaly this mod is up and going again. im updating from my friends acrylic and sticker cutter shop. no pictures coiz of his reasons and mine, but i promise u an update on the acrylic tomorow or monday the least.

---

Added on January 28, 2007, 2:56 pmok guys finnally back modding

took the measurements for cutting the acrylic.


poped into the hardware shop for some anti rust primer and some more paint.


ok as i mentioned i wnet to my firends plastic shop , well aftrer bout 3 hours of cutting, i got the pieces i want. also i poped into a near by motorcycle shop for some counter sunk nuts. and bolts.


the acrylic and the bolts .,

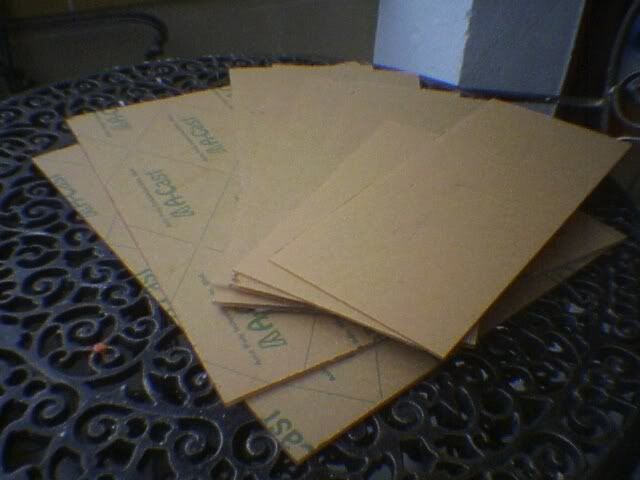

the acylic


the bolts.



preety good fit imo... all perfect, as u can see the case will lok like a lianli a10 or a p180 depending on wat u wanna call it, also there will be a back panel as welll.


here the sound dampening thingi is getting in the way, but no worries, it wil be taken care of.

thats all this time, sorry for such short update... waiting fo rmy fame stencils to be cut by my friend, using a advertise ment cutter, for precision... anyway i purchased a dremel and will be arriving by tuesday....


This post has been edited by lolhalol: Jan 28 2007, 02:56 PM

so thick ar the arcylic, 3mm enough d lo ,alot noise on ur pics so hard to see , i thought u have a 12 megapixel sony cam

This post has been edited by sherren: Jan 28 2007, 11:12 PM

I thought you have a project to complete? Quickly finish it la take so long edi PMR also over di. Need any automotive stuff tell me i post to you.

@ sherren
yea lah i got the cam but lazy to use lah.... coz i took those pic while i was about to go out for a weeding , more like a last minute thing.... neway the inside acrylic is 3mm, those on the insid eof the casing, the outside one is 5mm, need to be thick coz need to support alot of weight, and 5mm is beter coz they dun break so easy if i use the bolts...

@LanEVOchris
u mean me? or shereen

lolhalol,

if its not too much trouble can you measure the inside diameter of the bulgin switch, where the screws threads are..thx

wah..that casing is sandwiched with acrylic...huhu.. gud job bro..

updates...ok since there have been numerues requests for beter quality pictures, i have decided to ditch my usual camera for my sony cybershot.


ok here you see the case as it was the last time i updated.

first thing i need to do is to remove that sound dampening thing from the top panel.

removed.

i definately don't wanna work with double sided tpe again i tell you,.. takes a long time to gt the residue off...
slowly removing the tape.


most of it off


removing all the rivets from the case ... taking it apart so it will be easier to paint and measure the panels.


top panel off.

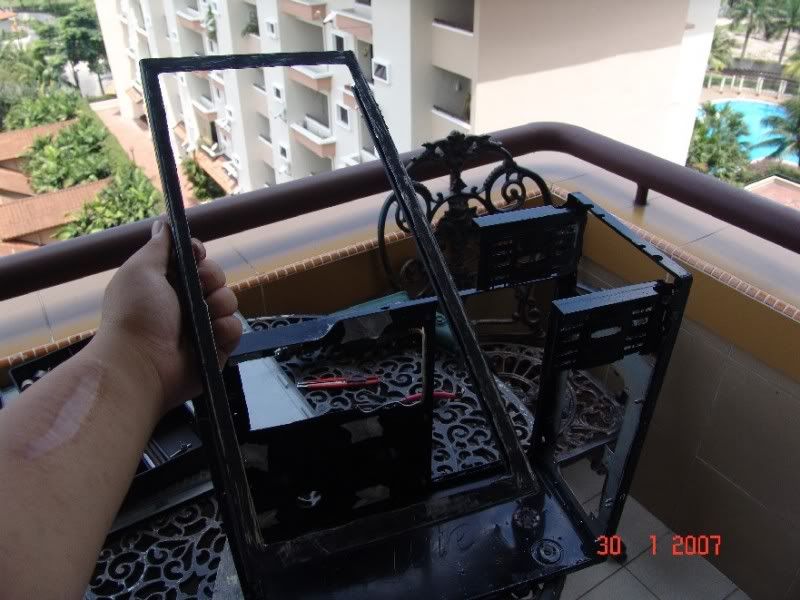

all the other panels off.



This post has been edited by lolhalol: Jan 31 2007, 04:32 PM

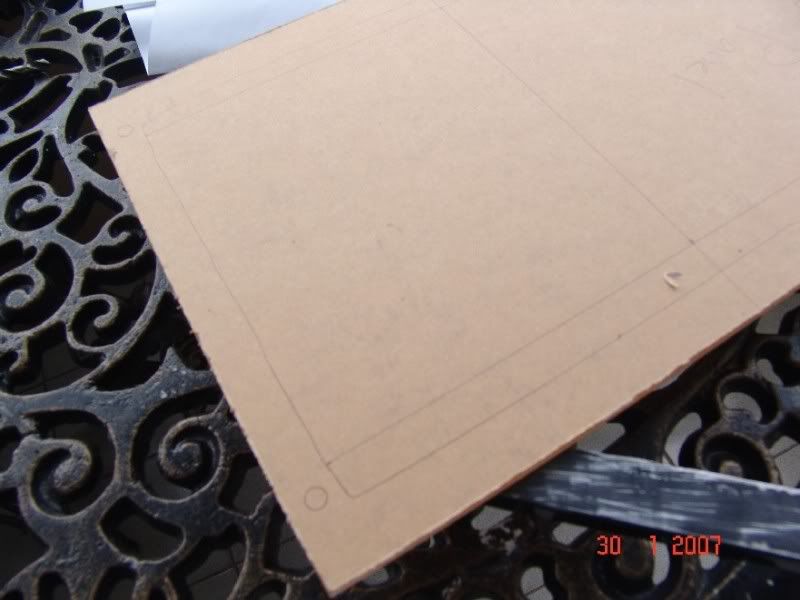

measuring the line sfor the top panel acrylic.


marked


drilled the holes for the bolts.

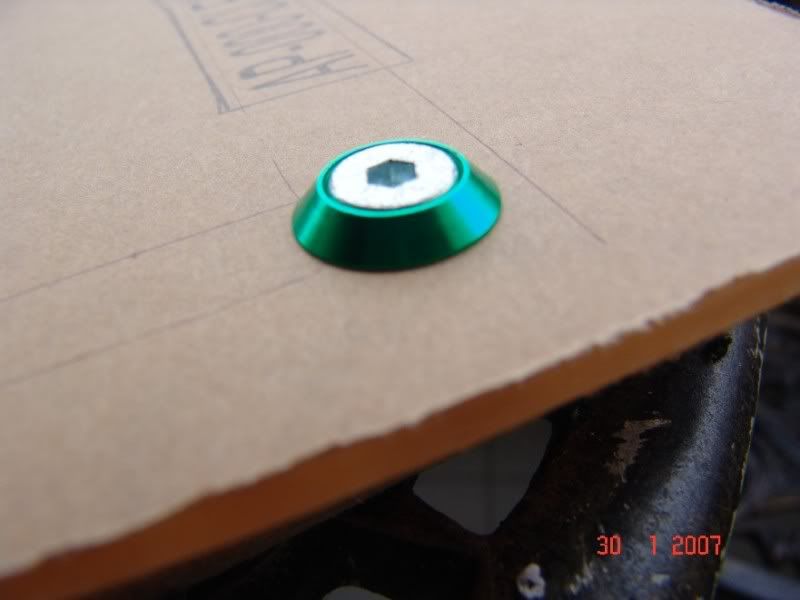

test fiteed, perfect fit. the coulour of the bolt is temporary untill i can source beter ones. these ones someof them have fitting problems.

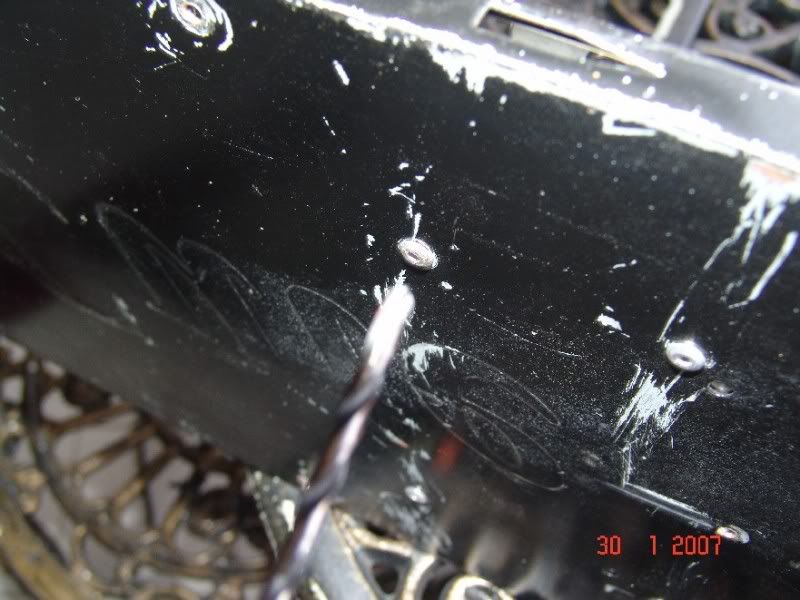

drilled the holes on the panel. its very very hard to get the holes perfectly right. dam drill bit was jumping a lot due to the bent panel.

some shots of it fitted and how it should look.





the bolt that secures it.

well thats it for now, im really tired after a full day of testing hardware for my self. but i might do something later..

ok decided to do some work,,
little though...

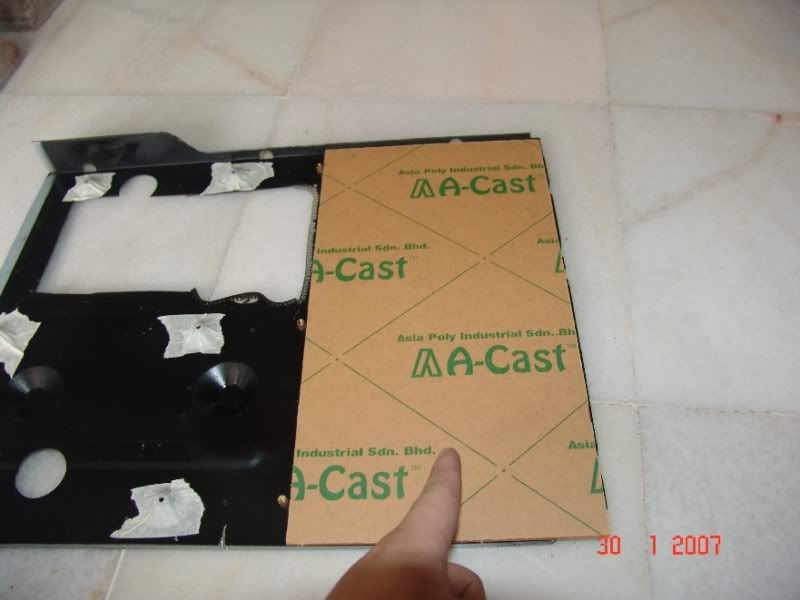

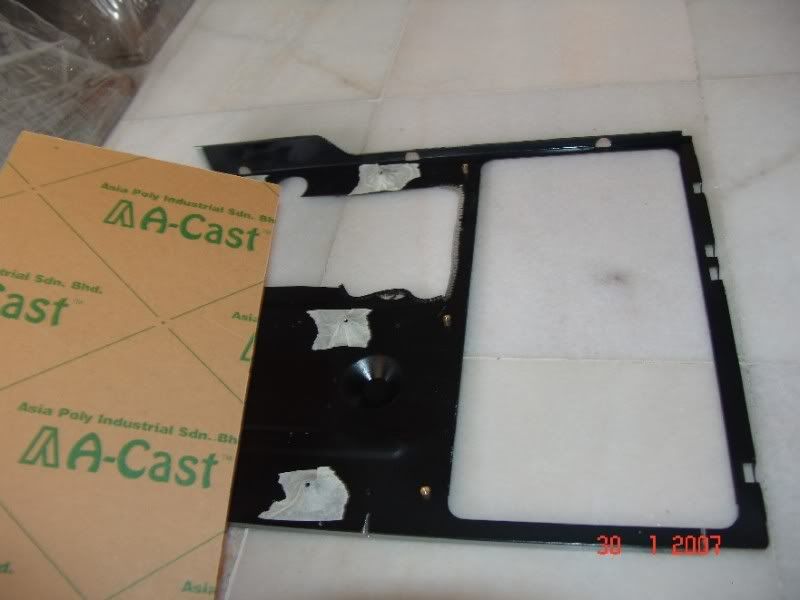

small piece of acylic wil cover the area beside the mobo tray


how it theoradically should look.

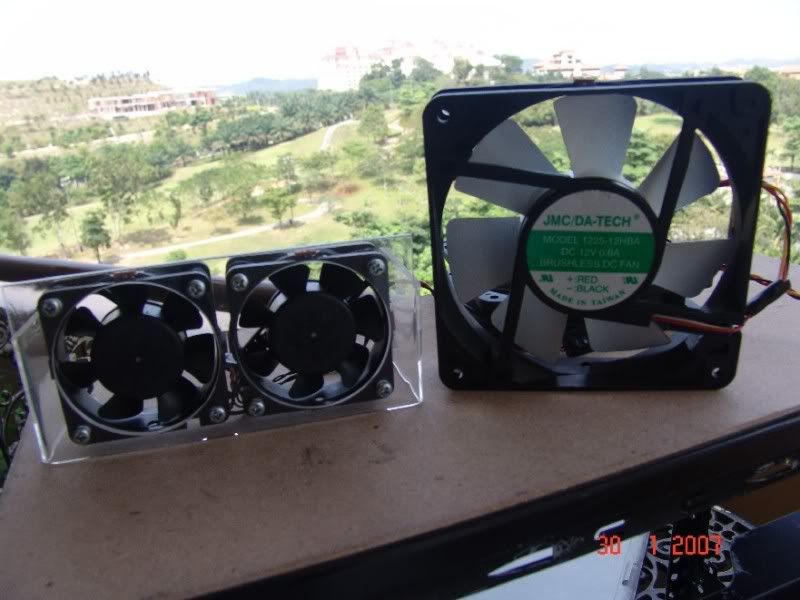

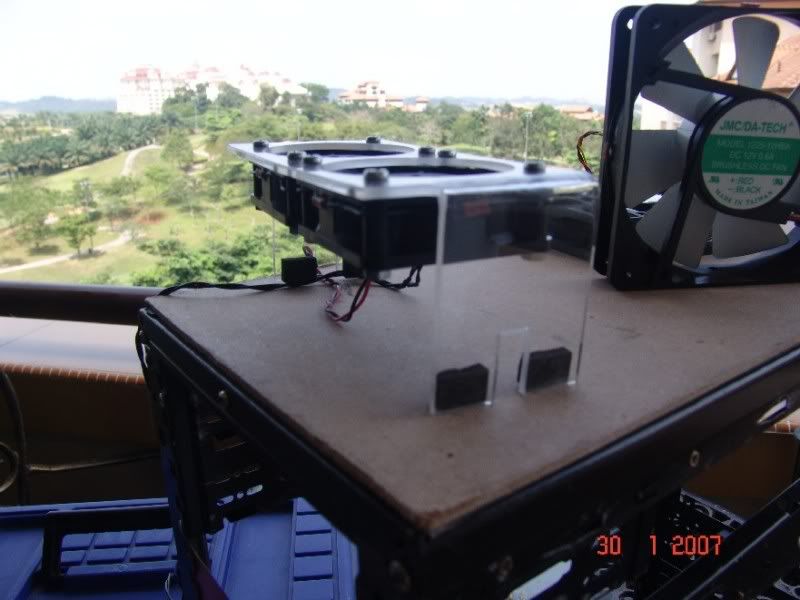

bought some fans for the mod too... 2 120mm fans and a dual 70mm ram cooler tailor made for ultra-d's.

lolhalol,

nice mods man....u got some serious skills n sticktoitivity

err.... u should use alcohol or any alcohol based product to remove the double side tape's residue... normaly ill use cheap perfume... eventough not so effective but able to remove everything.....

yeah..u also can use kerosin to wipe out the double tape..

ohh...ok thx for the heads up... anyway updates up in am moment, resizing now..

update...


got the stencils cut by a roland sticker cutter...


the mod as it is since the last update...


cut out on section of the flames needed... u dun want to screw up the other parts do you...


stuck in on to the top panel. marked up all the lines and stuffs.


masked the flames so that i can see it later after a coat of black.


my paint "collection"


as you know byy now my tool of choice , the spray gun.

first coat of black


another shot of it..the nice thing bout painting acrlics is that u dun hav to worry bout snading and all that... but u have to be carefull at which layers that paint will go on as it is a mirror efect if u flip the panel..like i do. if u dun understand i also dunno how to explain... sorry...


ready for orage coat after stencill is removed...

sorry i totally forgot to take pics of the orage coat...i totally forgot, ...but its standard affai...so i dunt think it will be needed right..


one last overcoat of black...


and the clear coat to seal it...

now for finish...

it hasent really driend enough for me to handle so more pics up the next update...

p/s hope u guys like the new pictures with the better camera...
