> Skylake/Kaby Lake/Coffee Lake OverClocking V1, Show off your OC here

king99
post May 4 2018, 11:32 PM

Enthusiast
*****
Group: Senior Member
Posts: 903

Joined: Dec 2004



QUOTE(owikh84 @ May 4 2018, 11:04 PM)
2.0v vCore? I hope it was a typo  blink.gif
*
eh typo bangwall.gif

1.18 , 1.19 , 1.20
keyo
post May 7 2018, 10:59 AM

Getting Started
**
Group: Junior Member
Posts: 292

Joined: Jun 2009


Agak agak batch baru ni sedap tak oc rasa macam nak try nasib sekali lagi jer

This post has been edited by keyo: May 7 2018, 11:00 AM
owikh84
post May 7 2018, 11:37 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,285

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(keyo @ May 7 2018, 10:59 AM)
Agak agak batch baru ni sedap tak oc rasa macam nak try nasib sekali lagi jer
*
I heard best batches for 8700K are L739 and L740 which were manufactured last year (early batches).
Anyway, I still think that it's all about draw of luck. Batch numbers don't matter.
neverfap
post May 9 2018, 05:04 PM

Getting Started
**
Group: Junior Member
Posts: 211

Joined: Aug 2013


Hi guys
Is aorus gaming 5 good enough for 8700k?
hafiez
post May 9 2018, 06:08 PM

Look at all my stars!!
*******
Group: Senior Member
Posts: 2,803

Joined: Jan 2007
From: Huntington Beach



QUOTE(neverfap @ May 9 2018, 05:04 PM)
Hi guys
Is aorus gaming 5 good enough for 8700k?
*
Haha im trying 5GHz on gaming 3
owikh84
post May 9 2018, 06:36 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,285

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(neverfap @ May 9 2018, 05:04 PM)
Hi guys
Is aorus gaming 5 good enough for 8700k?
*
Attached Image
Source: http://www.overclock.net/forum/6-intel-mot...ion-thread.html

AORUS Z370 Gaming 5 (RM891, same tier as ASRock's Fatal1ty Z370 Gaming K6 (RM805) and MSI's Z370 GAMING M5 (RM991).

Z370 Gaming 5 - 8+3 phases, has debug LED, 3x M.2, Wi-Fi
Fatal1ty Z370 Gaming K6 - 6+4 phases, has* debug LED, 2x M.2, no Wi-Fi
Z370 Gaming M5 - 8+2 phases, no debug LED, 2x M.2, no Wi-Fi

Gaming 5 is the best value Z370 board with the highest specs among the three.
Also, like other AORUS series it has best RGB illumination among the Z370 boards in the market.

Cons are:
1) Inaccurate voltage reading due to iTE Super I/O chip being used, rather than Nuvoton which is more superior.
2) UEFI BIOS is quite lacking behind other vendors such as ASUS and ASRock.
3) Loadline Calibration (LLC) for vDroop control offered in 3 levels only.

This post has been edited by owikh84: May 9 2018, 09:30 PM
neverfap
post May 9 2018, 07:20 PM

Getting Started
**
Group: Junior Member
Posts: 211

Joined: Aug 2013


QUOTE(hafiez @ May 9 2018, 06:08 PM)
Haha im trying 5GHz on gaming 3
*
Wow..hardcore
Good luck!!
hafiez
post May 9 2018, 08:02 PM

Look at all my stars!!
*******
Group: Senior Member
Posts: 2,803

Joined: Jan 2007
From: Huntington Beach



QUOTE(owikh84 @ May 9 2018, 06:36 PM)
Attached Image
Source: http://www.overclock.net/forum/6-intel-mot...ion-thread.html

AORUS Z370 Gaming 5 (RM891, same tier as ASRock's Fatal1ty Z370 Gaming K6 (RM805) and MSI's Z370 GAMING M5 (RM991).

Z370 Gaming 5 - 8+3 phases, has debug LED, 3x M.2, Wi-Fi
Fatal1ty Z370 Gaming K6 - 6+4 phases, no debug LED, 2x M.2, no Wi-Fi
Z370 Gaming M5 - 8+2 phases, no debug LED, 2x M.2, no Wi-Fi

Gaming 5 is the best value Z370 board with the highest specs among the three.
Also, like other AORUS series it has best RGB illumination among the Z370 boards in the market.

Cons are:
1) Inaccurate voltage reading due to iTE Super I/O chip being used, rather than Nuvoton which is more superior.
2) UEFI BIOS is quite lacking behind other vendors such as ASUS and ASRock.
3) Loadline Calibration (LLC) for vDroop control offered in 3 levels only.
*

yes i do agree on the cons #1,2,3

For the vcore, i set 1.325, but in HWiNFO showing ~1.41v

In cpuz 1.296.

How to verify this yea owikh?

owikh84
post May 9 2018, 09:29 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,285

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(hafiez @ May 9 2018, 08:02 PM)
yes i do agree on the cons #1,2,3

For the vcore, i set 1.325, but in HWiNFO showing ~1.41v

In cpuz 1.296.

How to verify this yea owikh?
*
Most accurate is by measuring with a calibrated digital multi-meter (DMM).
king99
post May 11 2018, 09:48 PM

Enthusiast
*****
Group: Senior Member
Posts: 903

Joined: Dec 2004

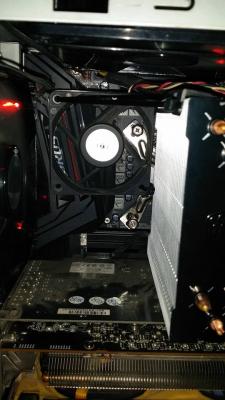

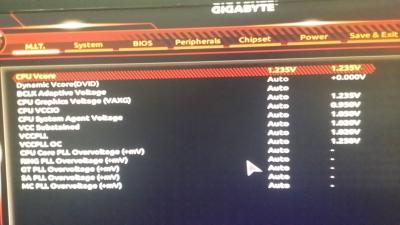

Added a fan to my GIGABYTE Ultra-Gaming 2.0 VRM, temps went from 90c to 75++c. Now only dare to push it up.

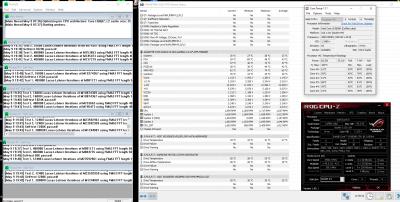

Now 4.5 GHZ with max load temp of 84c during prime small FFT. This temp should be ok right ? Resit and repaste the Masterair 4 with multiple diff thermal paste also this temp, now on Kyronaught. I guess this cooler cannot <80 oc haha.

This post has been edited by king99: May 11 2018, 09:49 PM


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
owikh84
post May 12 2018, 06:03 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,285

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(king99 @ May 11 2018, 09:48 PM)
Added a fan to my GIGABYTE Ultra-Gaming 2.0 VRM, temps went from 90c to 75++c. Now only dare to push it up.

Now 4.5 GHZ with max load temp of 84c during prime small FFT. This temp should be ok right ? Resit and repaste the Masterair 4 with multiple diff thermal paste also this temp, now on Kyronaught. I guess this cooler cannot <80 oc haha.

VRM overheat on Z370 Ultra-Gaming 2.0 has also been reported in OC3D's review.

Attached Image

https://overclock3d.net/reviews/cpu_mainboa...ng_2_0_review/7

Ironically, the version 2.0 is supposed to fix the same flaw found on the original release but it seems that it did not happen LOL.

This post has been edited by owikh84: May 12 2018, 08:34 PM
king99
post May 12 2018, 11:57 PM

Enthusiast
*****
Group: Senior Member
Posts: 903

Joined: Dec 2004



QUOTE(owikh84 @ May 12 2018, 06:03 PM)
VRM overheat on Z370 Ultra-Gaming 2.0 has also been reported in OC3D's review.

Attached Image

https://overclock3d.net/reviews/cpu_mainboa...ng_2_0_review/7

Ironically, the version 2.0 is supposed to fix the same flaw found on the original release but it seems that it did not happen LOL.
*
Yeah I saw the video. Sadly I got it before the new video is out. Got it last month.

Well at least I am not aiming for 5.0 Ghz for now. 77c for the VRM seems acceptable for my case I think.





This post has been edited by king99: May 13 2018, 12:01 AM
Witchblade
post May 18 2018, 04:27 PM

We are Biker
******
Group: Senior Member
Posts: 1,521

Joined: Jan 2003
From: inside toilet bowl




Guys.. My Asrock z170 pro 4 already dead. How to repair or claim warantry. Any other good mobo to oc es proc?
owikh84
post May 18 2018, 05:03 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,285

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(Witchblade @ May 18 2018, 04:27 PM)
Guys.. My Asrock z170 pro 4 already dead. How to repair or claim warantry. Any other good mobo to oc es proc?
*
If warranty is still valid (3 years from ASRock) I don't see why not sending for RMA.
Your second question is too general without specifying actual model of the proc etc.
