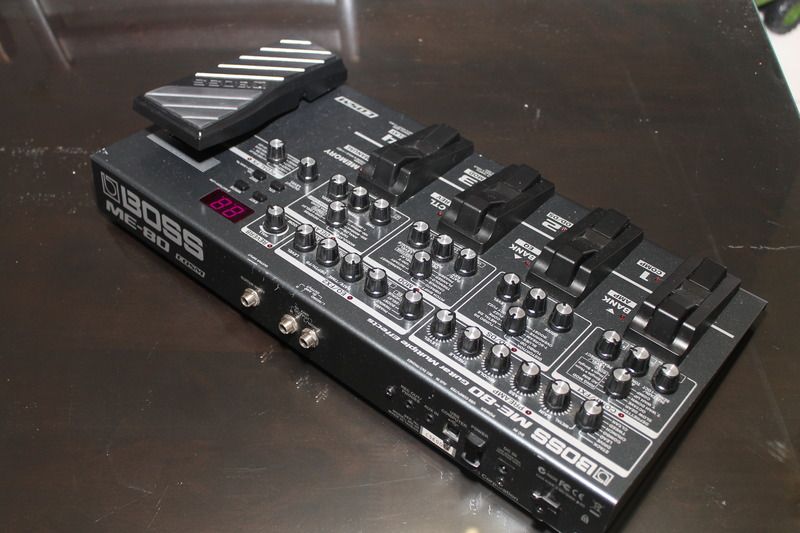

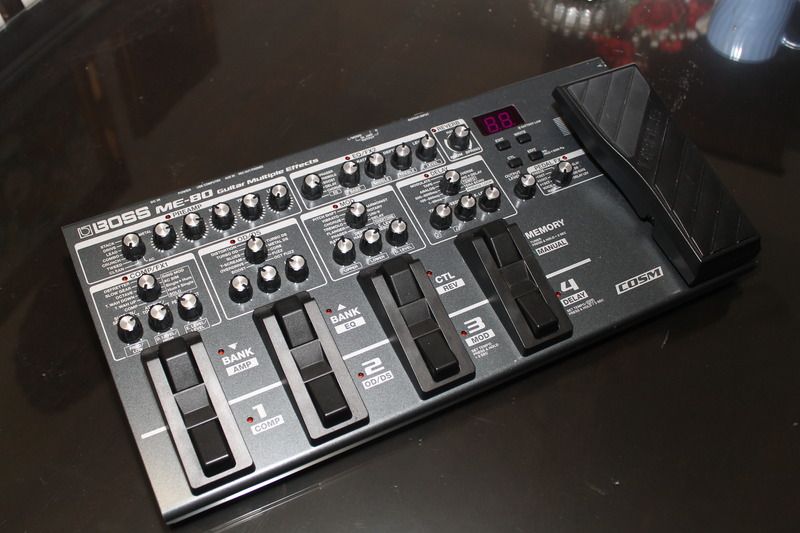

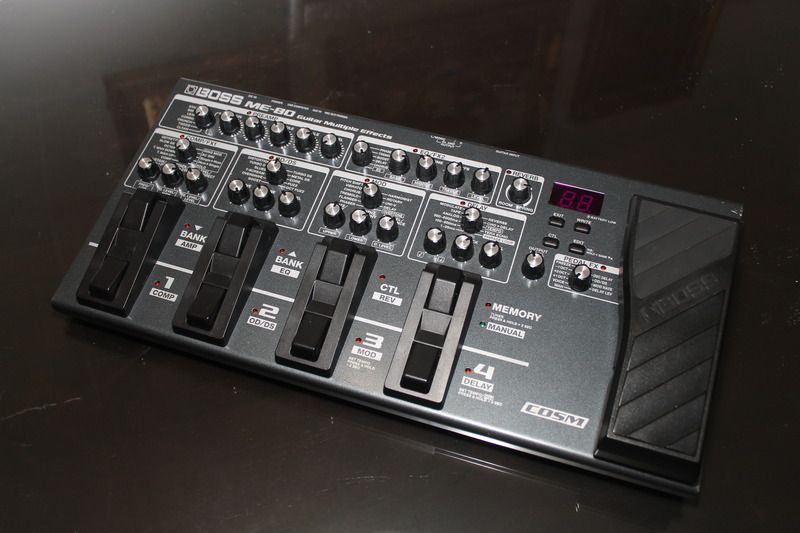

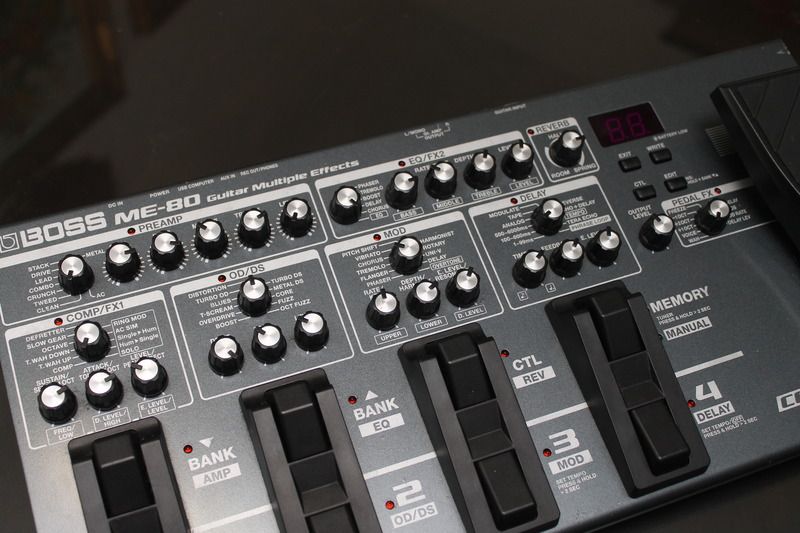

[WTS] BOSS ME80 MULTI FX

condition :
Function : all OK no problem
Cosmetic : 9/10 (some small scratches)

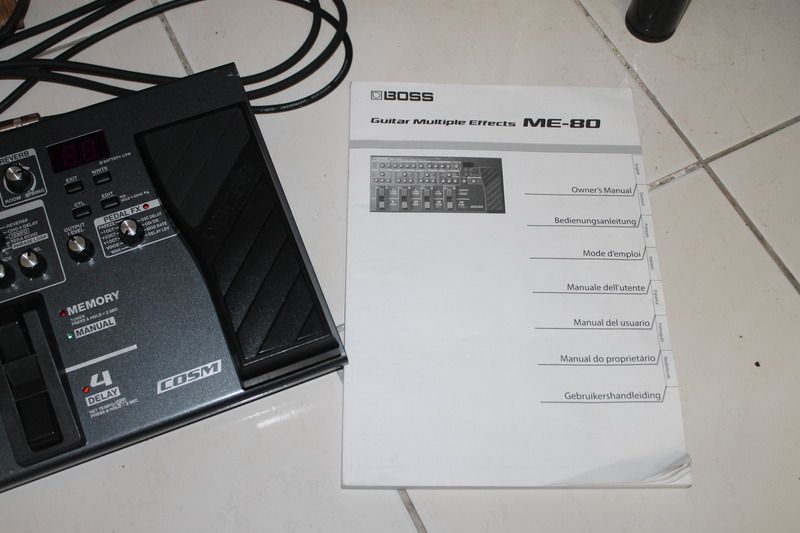

package : Unit & manual only . No box . No adaptor

reason for selling : just trying multifx . Bought 2nd from another person on 6th July

price : rm850 firm

location : putrajaya , kajang , ttdi kl .

contact :
amril - 0123881246











Mobile, battery powered, and filled with a diverse selection of flagship-quality BOSS amps and effects, the ME-80 is the ideal compact tone processor for performing guitarists. A friendly knob-based interface makes it simple to dial in great sounds in seconds, while easily selectable operation modes offer the flexibility of individual stompbox-style on/off or instant recall of complex multi-effects setups. Unique new footswitches deliver twice the control of previous designs for efficient and intuitive effects switching, patch selection, and real-time sound shaping while playing on stage. The free BOSS TONE STUDIO software unlocks even more tonal possibilities, providing a cool graphical interface for tweaking and organizing sounds on your computer, plus a web connection to BOSS TONE CENTRAL for direct access to free gig-ready patches created by top pro guitarists and much more.

AD Conversion24 bits + AF method
AF method (Adaptive Focus method)

* This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion24 bits
Sampling Frequency44.1 kHzPatches36 (User) + 36 (Preset)PedalsPedal switch x 8
Expression pedal x 1
Nominal Input LevelGUITAR INPUT: -10 dBu
AUX IN: -20 dBu
Input ImpedanceGUITAR INPUT: 1 M ohm
AUX IN: 27 k ohms
Nominal Output LevelGt. AMP OUTPUT L/MONO, R: -10 dBu
REC OUT/PHONES: -10 dBu
Output ImpedanceGt. AMP OUTPUT L/MONO, R: 2 k ohms
REC OUT/PHONES: 44 ohms
Recommended Load ImpedanceGt. AMP OUTPUT L/MONO, R: 10 k ohms or greater
REC OUT/PHONES: 16 ohms or greater
ConnectorsGUITAR INPUT jack: 1/4-inch phone type
Gt. AMP OUTPUT L/MONO, R jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo miniature phone type
AUX IN jack: Stereo miniature phone type
USB COMPUTER port: USB type B
DC IN jack
Display7 segments, 2 digits LED
Power SupplyAlkaline battery (AA, LR6) x 6
or
Carbon-zinc battery (AA, R6) x 6
or
AC adaptor
Current Draw200 mA
Expected battery life under continuous useAlkaline: Approx. 7 hours
Carbon: Approx. 2 hours

* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
Alkaline battery (AA, LR6) x 6
"Read Me First" Leaflet
Option (sold separately)AC adaptor: PSA series
SIZE AND WEIGHTWidth447 mm
17-10/16 inchesDepth231 mm
9-1/8 inchesHeight70 mm
2-13/16 inchesWeight3.6 kg
7 lbs. 15 oz.SIZE AND WEIGHT (MAXIMUM HEIGHT)Width447 mm
17-10/16 inchesDepth231 mm
9-1/8 inchesHeight91 mm
3-5/8 inchesWeight3.6 kg
7 lbs. 15 oz.

This post has been edited by mrmerell: Jul 11 2015, 02:04 AM
