Smart Home, Let's discuss
|
alucard89
|
Aug 30 2023, 08:21 PM
|
|
QUOTE(lucaswjk @ Aug 30 2023, 08:15 PM) 3phase electric will trip the rccb if the neutral not balance i know coz saw it and scared it will fried my switch I tumpang the power outlet neutral, didn’t realise it was on different breaker until last month. Running fine for the last 2 years so i guess I’m in the clear?
|
|
|
|
|
|
alucard89
|
Sep 2 2023, 10:44 PM
|
|
QUOTE(dest9116 @ Sep 2 2023, 07:13 PM) Finally on 29 August Google Home release update to supports sensor triggers, and I can now create automations between aqara and tuya with via matter hahaha Tuya is using "works wirh Google" Aqara is using matter and works with Google How does it work? Do you still need actual matter devices or just the matter hub like google mini speakers
|
|
|
|
|
|
alucard89
|
Sep 5 2023, 08:06 AM
|
|
QUOTE(thinkgoodpositive @ Sep 5 2023, 07:55 AM) So i just need to loop to the smart switch "L" and then to other smart switch "L" right? No extra looping on smart switch, just connect live to L only. fan & switch to L1 & L2.
|
|
|
|
|
|
alucard89
|
Sep 5 2023, 03:41 PM
|
|

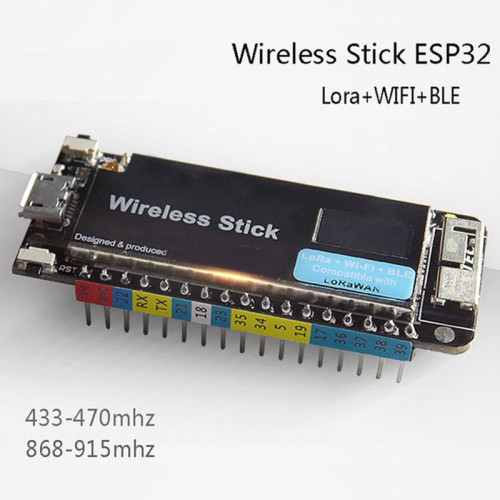

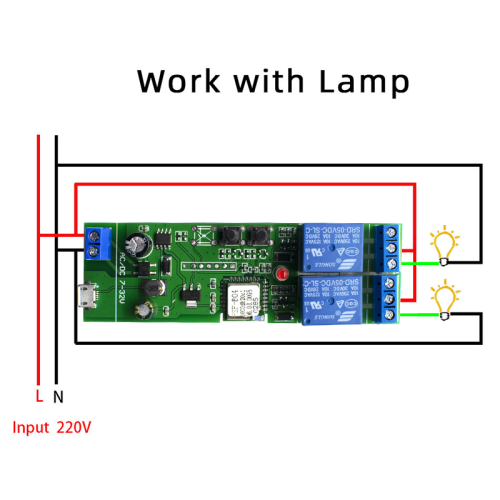

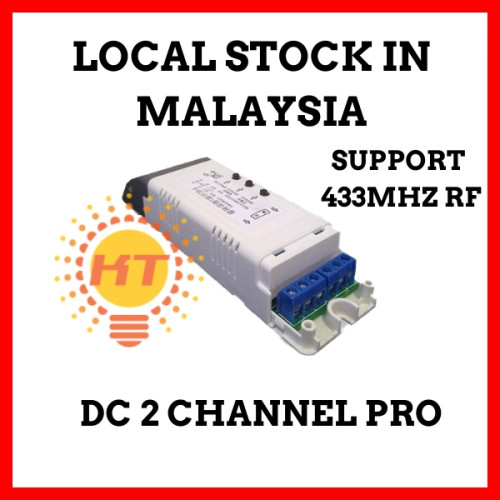

QUOTE(lucaswjk @ Sep 5 2023, 02:25 PM) I filtered out these 3 selections for my auto-gate 1. https://shopee.com.my/eWeLink-DC-2-Channel-...7179.3160607519 Pro: easiest Cons: unknown chips and not sure can flash custom firmware. RM60 2. https://shopee.com.my/ESP32-SX1276-LoRa-WIF...646.14480142838 Pro: better chips, can flash firmware Cons: expensive, need to dyi soldering for connectivity, no case, alot of efforts needed RM140 3. Buy all parts and assemble myself, esp32+RF433MHz receiver Pro: cheapest and no sure what different compared to (2) Cons: same as (2) + nightmare awaiting RM50 Getting (1) choice is very tempting, but I want to hear your review. If it's from older stock, it might still have esp8266 on board.
|
|
|
|
|
|
alucard89
|
Sep 6 2023, 10:32 AM
|
|
QUOTE(lucaswjk @ Sep 6 2023, 10:11 AM) thank you for the feedback. 8266 still got chance to flash 👍🏻 how about the LoRa chip, can we use the normal 433MHz remote for it? i dont intent for LoRa feature... trigger it 15KM away. Just normal 10 to 20m will do Never tried LoRa so can't comment on that I think you're safe, looking at the pcb board got esp8285, doesn't seem to have any new revision since
|
|
|
|
|
|
alucard89
|
Sep 7 2023, 08:23 AM
|
|
QUOTE(thinkgoodpositive @ Sep 7 2023, 08:19 AM) Thanks for the response. But original I have 3 switches (each one 3 Gangs). And there are looping power. That's why I need to loop the power/live between their "L". Then each switch L1/L2/L3 will only connect to each fan/light. Any problems? That's how it works with normal switches where you need to loop the live wire to remaining gang No need for that with smart switch
|
|
|
|
|
|
alucard89
|
Sep 7 2023, 08:25 AM
|
|
QUOTE(donmaikeru @ Sep 6 2023, 03:06 PM) Hi all sifus, looking for advice. I'm changing 8 pieces of downlights in my living room (6" round ones) and I'm not sure what I should get. I'm okay with hub because eventually will add more modules. Prefer to have dimmable and turnable whites. My goal is to set schedules and scenes. Any advise which downlights should I go for or should I just get normal LED downlights and get a smart switch or something? So far I saw the Phillips Wiz ones but not sure if they're adequate. I have these installed, around 50+ each can adjust cold/warm or rgb if you need it. Use with tuya knob and you can control color temp/brightness/etc (other than the app) If you use smart dimmers, i think need to get one of those dimmable downlight leds
|
|
|
|
|
|
alucard89
|
Sep 7 2023, 10:25 AM
|
|
QUOTE(donmaikeru @ Sep 7 2023, 10:09 AM) Oh yeah I was looking at this, but wifi only I heard that it will be quite an issue when connecting multiple lights. Is it true? There's an argument about using zigbee vs wifi devices so it doesn't cause much traffic with your router » Click to show Spoiler - click again to hide... « Should be no problem if you have latest router with mesh I already have around +40 devices on wifi and no issues so far.
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 11:58 AM
|
|
QUOTE(simmarjit @ Sep 9 2023, 11:51 AM) Hey guys, those using Z2M hows the experience been so far? I have been using manufacturer hubs from the start and never had any major issues, but i was wondering if i should switch to z2m; right now have 2 Aqara M2 Hubs and 1 Phillips Hue Hub (that is only connected to 1 device LOL), wonder is it worth switching everything over even if i have to repair every device. Maybe i can sell the hubs and get 1 zigbee coordinator idk, multiple floor so thats why went with more than 1 hub. Works fine, only issue i had is when z2m not starting because the usb port number changed or mqtt broker doesn’t start. Get a few sonoff zigbee p so you can use extra ones as router and for matter hub This post has been edited by alucard89: Sep 9 2023, 12:02 PM
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 11:59 AM
|
|
QUOTE(trespasser @ Sep 7 2023, 11:46 PM) I see. Can the switches from Taobao connect to Home Assistant? Aqara aside, any other brands to recommend? Sonoff? Yeelight? Any brand can connect to HA Try get the ones with matter support since that’s where it heading now with smart devices I mostly just use tuya
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 04:27 PM
|
|
QUOTE(ZeneticX @ Sep 9 2023, 02:19 PM) Anyone using those handle style Tuya smart lock? I'm currently using Eva M5. Want to check is it normal that any unlock activity from inside house (exiting from house) is not logged? A bit dissapointed with this because due to this now, I'm having a hard time figuring out how to do my automation (eg: exit house switch off all lights etc) I think i got similar lock, yours wifi version and someone need to press unlock from outside, then receive notification on your app for unlock request? Or different one
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 07:46 PM
|
|
QUOTE(ZeneticX @ Sep 9 2023, 06:01 PM) Yes wifi version. Not sure about the unlock request thing though, never tried. There is no unlock button or any buttons on the lock, just a fingerprint scanner outside https://www.evasmart.co/m5/On the manual, guest or visitor can request unlock by hitting some numbers (forget which one) and would pop up request on your tuya app. You also can’t remote unlock it right?
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 09:05 PM
|
|
QUOTE(lucaswjk @ Sep 9 2023, 09:01 PM) i been clouded by iot devices using esp chips. and forget there were pi out there. recently i found a better alternative, the Orange Pi. Half the price, double the performance. if compared to esp, at least 10x performance. Which orange pi and what you’re using it for? Other than running ha
|
|
|
|
|
|
alucard89
|
Sep 9 2023, 11:37 PM
|
|
QUOTE(lucaswjk @ Sep 9 2023, 09:20 PM) not yet... so far I m interested in this Orange Pi 5 Plus, got 6TOPs compared to CoralTPU running at 4TOPs. too bad Frigate not supported yet. but YouTube got ppl show good performance using YOLOv5 Orange PI Zero 2W, planned to use it for autogate & alarm integration but it don't have BIG little features, and it will b overkill performance for only simple task. Got a discussion about that https://github.com/blakeblackshear/frigate/discussions/4418
|
|
|
|
|
|
alucard89
|
Sep 10 2023, 10:49 AM
|
|
QUOTE(WildChai @ Sep 10 2023, 08:29 AM) Hey guys, Anyone using a zigbee door lock that can fully integrate with HA? Thanks. Budget wise, this one with tuya homekit hub and use homekit controller Since you can’t pair with z2m or zha This post has been edited by alucard89: Sep 10 2023, 10:50 AM
|
|
|
|
|
|
alucard89
|
Sep 10 2023, 10:53 AM
|
|
QUOTE(ZeneticX @ Sep 10 2023, 05:19 AM) Just check the manual and yes you are right. Need to key in a combination to send a request to the app, then remote unlocking will work Yeah, not much automation option with the wifi version
|
|
|
|
|
|
alucard89
|
Sep 10 2023, 07:21 PM
|
|
QUOTE(ZeneticX @ Sep 10 2023, 02:39 PM) Did u manage to figure out anything? NFC tags or scene buttons? No unfortunately , i tried to not rely on anything else that you have to carry around
|
|
|
|
|
|
alucard89
|
Sep 10 2023, 07:23 PM
|
|
QUOTE(WildChai @ Sep 10 2023, 06:44 PM) So need the tuya integration in HA to access the lock? Btw... What about options that are high budget wise? Thanks. No, use the homekit integration https://zigbee.blakadder.com/locks.html
|
|
|
|
|
|
alucard89
|
Sep 10 2023, 07:25 PM
|
|
QUOTE(Dweller @ Sep 10 2023, 01:54 PM) Thanks for the link. Spent whole day yesterday finding the cheapest tuya compatible zigbee door lock. And you managed to find a cheaper one  Anyone have experience using zigbee generic doorlock in the link? Most review and the one on sale I found was on the Bluetooth and WiFi version WiFi model cons that I get to know based on googling: Battery hungry? Bluetooth model: Not able to integrate with Google assistant Nein for wifi version, unless it’s bt lock connected to your wifi hub (like the ttlock). Got integration for ttlock lock but that’s cloud based and i see complains about slow updates on lock status.
|
|
|
|
|
|
alucard89
|
Sep 13 2023, 09:23 AM
|
|
QUOTE(thinkgoodpositive @ Sep 13 2023, 09:09 AM) I meant loop the live wire to other switch(es) L, not the remaining gang(s) of the same switch. Can right? Yes, stick to the same wiring
|
|
|
|
|
