Swiftech All-In-One CPU Cooler
Swiftech H140X, H220X and H240X



Introduction

Since 1994, Swiftech has been leading in high performance heatsinks maker for CPU Cooler including manufacturing of liquid cooling component for PC enthusiast around the world. Swiftech has released their new line of AIO Liquid Cooling of H140X, H220X and H240X. With the new innovation of an upgraded version from previous predecessor, their new cooler is one of the top high rank of cooler aftermarket. The new AIO CPU Cooler is shipped with pre-refilled coolant, plug and play system. The kit can be even further customized into custom cooler and covered for full 3 years of warranty period. They're easily replaceable tubing and fitting together with strong pump can support extra component of water cooling. The tubing, and coolant can be changed without voiding any warranty! Almost no AIO cooler in the market offer this just yet. How they perform with other AIO Cooler? Check out the rest of our review.

Product Link:
Swiftech H140X - http://www.swiftech.com/H140-X.aspx
Swiftech H220X - http://www.swiftech.com/H220-X.aspx
Swiftech H240X - http://www.swiftech.com/H240-X.aspx

Suggest Retail Price:
Swiftech H140X - RM499
Swiftech H220X - RM599
Swiftech H240X - RM699

Features


Specification H140X


Specification H220X


Specification H240X


This post has been edited by shah93: Apr 10 2015, 10:02 PM

Unboxing

In this section we will make an unboxing of the latest Swiftech AIO CPU Cooler. Thanks to Cyntrix Technologies, we were able to play and test with full range, 3 different sizes of AIO CPU Cooler. In this section we will just show unboxing of H220-X as the only differences with them are radiator sizes.


The front box of the latest Swiftech AIO CPU Cooler series.


The front box of each cooler shows the illustration image of the designated cooler itself. User can notice the color of the Apongee XL waterblock can be changed by swap with different color plate.


On the bottom part there is an explanation why buying a Swiftech liquid cooling system products and the box content expected when purchase this unit.


Swiftech explains in detail several features supported by the latest swiftech latest AIO Cooler and simple graph to illustrate the performance of the cooler itself compared with other brand.


On the other side, Swiftech make a table of full specifications of the cooler itself and there is illustration image on showing the height, width and length of the Swiftech liquid cooling system.


Once the package is unbox, the inner part reveals a soft foam that protects the package from scratches.


The box secured well the package and there is a compartment that holds all the accessories


All the accessories bundled with the cooler
+ Swiftech AIO Cooler itself
+ PWM Fan Splitter
+ AMD and Intel bracket and backplate
+ Swiftech Thermalpaste
+ Instruction flyers
+ Red, Green and White color plate

This post has been edited by shah93: Apr 10 2015, 10:09 PM

The Swiftech H220-X AIO Cooler is pre-installed with 2 units of 120mm which makes the full length of radiator is 240mm.


On the side of the radiator, user can find the visible liquid coolant level or standard we called is a reservoir. The reservoir itself has white led to easily monitor and peek though inside the liquid coolant.


User can refill the coolant by easily remove the stopping head off at the side of the radiator itself.


Swiftech radiator is integrated with a pump that using ceramic shaft PTFE bearing type for the pump itself. The pump is powered up by single Sata 12VDC Power Pin.


Swiftech is using their infamous Apongee XL Waterblock for each of their latest AIO Cooler. The pump fitted with standard G1/4 Fitting with clamp ring to secure the tube.


The waterblock is pre-installed by default for socket Intel LGA 1150, 1155 and 1156. Optional backplate available for other Intel and AMD legacy socket.


The waterblock base plate is made out of C110 Copper material. Once we removed the seal for the waterblock, we notice the shine from waterblock base can reflect and act as a mirror. What we really love this waterblock as it does not leave marks easily, even after touch with bare hands.

This post has been edited by shah93: Apr 10 2015, 10:14 PM

The pump is powered up by Sata Power and the LED is light with single 3pin fan connector.


Each fan used 4 PWN Pin to easily control the fan speed of user desire.


There are 7 for each left and right side and 6 on the middle part of the waterblock that lights up the plate.


Blue plate


White Plate


Red Plate


Green Plate



This post has been edited by shah93: Apr 10 2015, 10:15 PM

Test bench

This is the setup that we used for the whole testing and benchmarking process for the Swiftech AIO Cooler.


Performance

For the stress test we compare between Intel stock cooler and Swiftech AIO Cooler. The processor is compared with stock clock of 3.7GHz @ 1.08 vCore and overclocked to 4.2GHz @ 1.16 vCore by using the ASUS OC Tuner that comes with the motherboard and tortured for 30 minutes with Prime95 v27.7 stressing application.


There is a lot of improvement of cooling performance compared to the stock cooler. The load temperature obtained with Swiftech H240-X was 40°C lower than the stock cooler, which is a very good improvement. Besides that, this AIO cooler also reduced the idle temperature by 13 °C.


When the processor overclocked to 4.2 Ghz, the temperature of both stock cooler and AIO cooler slightly increased. The Swiftech AIO Series easily handles the heat produced by the 3770k without reaching 70°C even with H140-X.

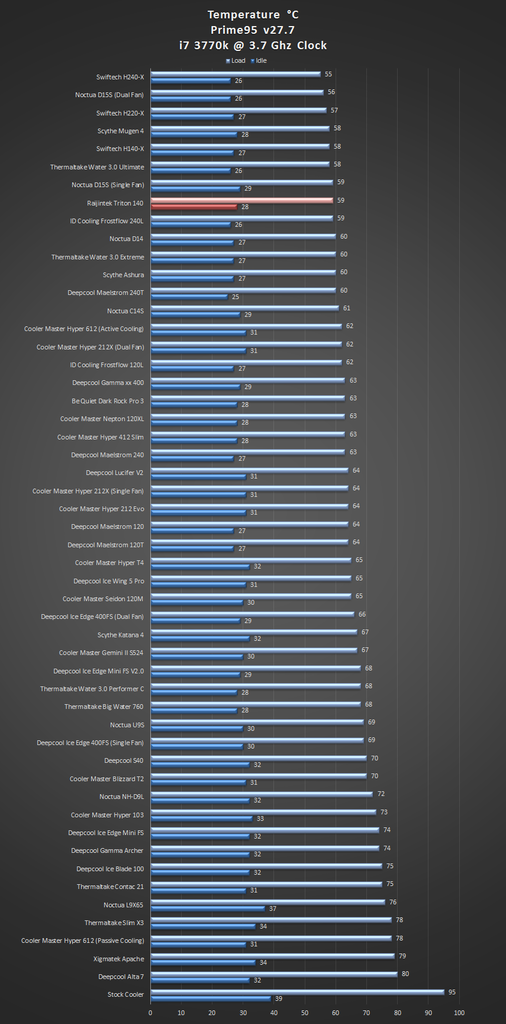

We compared with all brands of AIO Cooler we ever played with before. The King of Cooler title has been grabbed by Swiftech by leading with the lowest temperature obtained during our test and even the Swiftech H140-X is slightly left behind just one degree of idle temperature compared with the Thermaltake Water 3.0 Ultimate.


This post has been edited by shah93: Apr 10 2015, 10:04 PM

Conclusion

Now it’s come to the end part of the review section. The new Swiftech AIO Cooler series is a must for someone that not only looking for supreme performance, but also able to fully customizable with the addition of extra Watercooling parts. With the starting pricetag of RM499, the H140-X is almost on par with our previous leading cooler of Thermaltake Water 3.0 Extreme. With the single 140mm of cooler can perform well during our benchmark test. The Swiftech even has the capability to beat every single AIO cooler we ever tested before. Swiftech has created a solid build quality and sleek design with the compact cooler. We believe Swiftech is using Swiftech MCP355 pump for this model which actually has been familiar with custom loops of Watercooling. The only cons we notice when playing around with their cooler is they don’t have special software to monitor or control the pump and fan of the cooler. The LED plate also must be changed manually, which makes it a lot easier if it can be controlled via a software. The unit does not support push and pull configuration as one side of the radiator is covered with the pump unit. Apart from that, we truly respect with the cooler itself on their outstanding performance and we hope Swiftech can maintain their lead their performance on manufacturing high end CPU Cooler.
Finally, I would like to say thank you to Cyntrix Technologies Sdn Bhd for the review units of Swiftech H140-X, H220-X and H240X AIO CPU Cooler.

Performance: 5/5
Materials: 5/5
Specifications: 4/5
Appearance: 5/5
Performance/Price Value: 4/5

Pros:
+ Fully customizable loop
+ Solid build quality
+ Fairly quiet
+ Impressive cooling performance
+ Sleek design
+ Visible coolant level
+ Plug and play

Cons:
- High price if compared with other high end cooler
- Does not support full Push and Pull Configure
- Not all case can support 280mm radiator size
- Does not have software, especially to control color options


This post has been edited by shah93: Apr 10 2015, 10:00 PM

How about the noise?

Swiftech is using their MCP355 for the pump system, if you play custom WC before you will know this pump pretty quiet

Is it possible to change the tube?

Yes you can change to any tube you want.. the best part is, your warranty WONT VOID!!!
The tube size is 7/16

The Plate Seems Awesome But The Price Though...

They using customer watercooling pumps which is MCP355.
Check out how they perform and you will know why it cost you that much haha
You can even change the tube and fittings to custom it yourself without voiding any warranty

how does this stack against the h110i gtx?

Hi, this is all the cooler i have tested
so far i still did not received any corsair cooler to be test n compare with others
pray that one day corsair will provide the sample for me to test it
