wah expensive still tight on budget, if don't change first will have any damage to other parts?

where do u replace RM200 so cheap? i saw forum some member said rm450, some rm700. mine also gila gila edi...

veeeeeeeeeeeyooououususssss

shud b d wiring underneath the gear knob console...take to SC to check if u dun mind to wait and pay for the skyhigh labour...else take to ur trustable accessory shop to trace the problem for u

especially early in the morning rite? the air cond knob need to be replaced i think...wiring problem or the knob console problem, i aint sure, but SC can replace for u

How much is the replacement at sc?if under warranty need pay?

if under warranty, i guess no need pay gua... need to ask cavino iirc, he took it to SC to replaced it while his car is still under warranty...

car cannot start again. About a mth back similar problem , sc said battery issue - got it changed. But that battery was less than 2 yrs old. forth time the car could not start in a yr. the previous 2 times , sc said the connection to the ecu loose !!

mine is 2010 1.6 auto millage under 35k , any thoughts ..

Uhm.... Dunno what sort of damage will it cause, but I imagine that it wouldn't be good for your blower motor with the on off going on, and possibly your air-cond compressor if you did not turn it off manually.

My special air-cond shop at Sungai Buloh. I don't remember the exact price though, but it wasn't particularly expensive as far as I remember. Definitely not over RM250.

turned off manually everytime before i turn off the engine but when turn on the engine the aircon auto start blowing, =( hope not something bad yo, pocket lubang liao.

Great! Can you send me the shop name and location? Thanks.
Mine happen very frequently now, definitely need to change if out-of my control...

Bro,

actually you can dismantle it and clean the contact points.

I did mine a month+ ago and working fine until now,

no more on/off aircond or suddenly high speed fan symptoms.

Perhaps you can give it a try before replace it.

Patco cost (3 screws) = RM2xx
Sanden cost (4 screws) = RM2xx-3xx

I'll send it to you when I locate the receipt. I cannot guarantee the price though because it might be special price. . Also, if you plan to do anything to the air-cond that is related to taking the filter out, don't let them do it because they probably will break the bracket. Costed me RM25 to replace .

what is EBD system?

hi, which contact points? you mean the socket plugged-in to the controller there? got any photo for reference? seems not easy to dismantle as need to take out the casing around gearbox area right?

tq.

so the aircond controller you bought from them, but replace yourself aka diy?

No, not the connector,

is the aircond knob behind those contact points.

unfortunately I only have the aircond switch photo,

I forgot to take the PCB photo.

Yes, It may not easy if you dismantle first time,

you might break some plastic parts.

need to remove the 2x screw on top portion,

center console need to adjust abit in order to make some space to pull the aircond assembly out.



Red Color = 2x screws you need to remove.
Blue Color = 4x clips to hold the aircond switch in place, you need to pry it out.
Green Color = these two portion connected to your center console.
Yellow Color = 4x screws type is Sanden, 3x screws type is Patco, the main connector also different.
Both brands not interchangeable.

Hope this helps.

Nope. I let them install it for me, but helped them disassemble the centre console at the same time to make it faster. I'm going to send you the shop's info now, but call them first before you go to confirm the price & stock.

I brought mine home and opened it. Till now never did anything

Wish you good luck on DIY ya.

was there any IC/chipset inside? Or any resistor?
my problem i guess it wasn't the contact point issue, more likely some electronic losses spec after heat-up (use for certain period).

i think my center console dissemble would be more work as mine was earlier batch of gen2, seems the middle glovebox need to taken out as well.
later batch or persona elegance i notice some changes in center console design, which makes it easier for aircond controller replacement...

after you removed the 4x yellow circle screws on my previous photo,

the PCB and aircond knobs will separate from the housing.

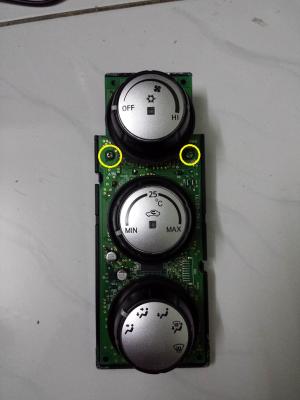

after you remove these two yellow cicle screws also,



flip over,

you should be able to see the aircond knob's screw as well,

remove the aircond knob's screw, you will see the contact point/leg I mean.

becareful becoz the contact 'leg' is very thin, you might be accidentally bent it.
(I forgot to take photo on this portion, after pasang balik only realize .... )


the center console you just need to loosen/remove all the screws, no need dismantle totally,

you need a free space in order to pull out the aircond assembly only..

how is the old Gen2 center console looks like?

I only remember the Power Windows Switch is located at there .

It looks like this
http://www.autoworld.com.my/v2/news/view-n...93/63274850.jpg

Few years back I have tried to dismantle the aircond controller when the knobs and board went inside. I remove the radio, but couldn't take out the controller as it was hold tight by the center console case. I only managed to tape the board back using my fingertip.
