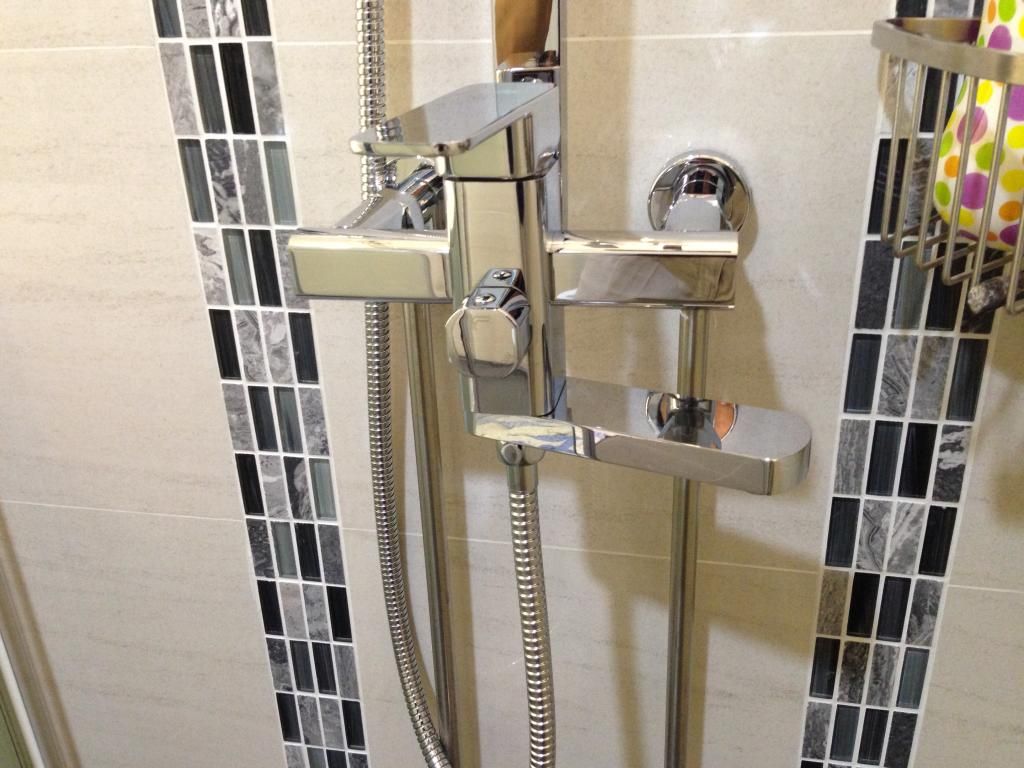

This one , just a fake look only, but internal still got pipe and shower head

yeah it is a design for retro country looks.... better than bare shower only mah...

hey guys wonder did anyone bought anny rain shower heads from taobao? I dunno how good are they...

Connect the wire to the connector. Makesure the wire secure tight with the screw connector. Cost this heater run at high watt when max. Otherwise the connector will heat up and kaboom.


I put an additional silicon to seal the wire intake hole. Cause the heater from the shower head is a bit near. This is to prevent the water from sipping in and kaboom the heater.


Done for the wiring. Now the plumbing side. I have place the elbow to the inlet heater valve. So I can measure the vertical pipe lenght that need to be cut.


Use sand paper to clean every fitting and pipe that need to be glue. This will clean up the oil and dirt. So the glue can melt the pvc pipe securely. Wipe with clean cloth.


Tape the screw fitting with white seal tape.


The vertical pipe is temporary insert in. Now use the elbow to mark the lenght of the pipe to be cut. Glue all together. In this step, you need to act fast. The glue will cure fast. Plan which fitting to go in first and how to fit in together. Than apply the glue.


The plumbing done. Wait for 1/2hr or longer for the glue to harden. It actually need 24hr to be harden. But since the water pressure not that high, 1/2hr should be alright.


Open back the stop cock. Check for any water leakage. Than turn the heater valve to open. Let the water flow out from the shower head. Check any leakage in the heater side joint. This is important to makesure no water leak out internal. Any water leak, disamssembly it and take the heater to claim. Close the valve and put back the heater cover.


Switch ON the heater switch. Than reset the RCD. If the RCD trip, switch OFF and check the wiring.If everything OK, the heater light will ON.


Continue........

This is acrylic sealer right? If before dry can wash away with water is acrylic. Silicon can't wash away with water.

How much?

Share mine bought in Jb



Also this

Got acrylic sealer?

So far I found was silicon only

You are right cause you see too many pipes akraady.
But for our bro ozak can simple used the shorter one, look more nicer or rather than used grey color PVC pipe

This is acrylic sealer right? If before dry can wash away with water is acrylic. Silicon can't wash away with water.

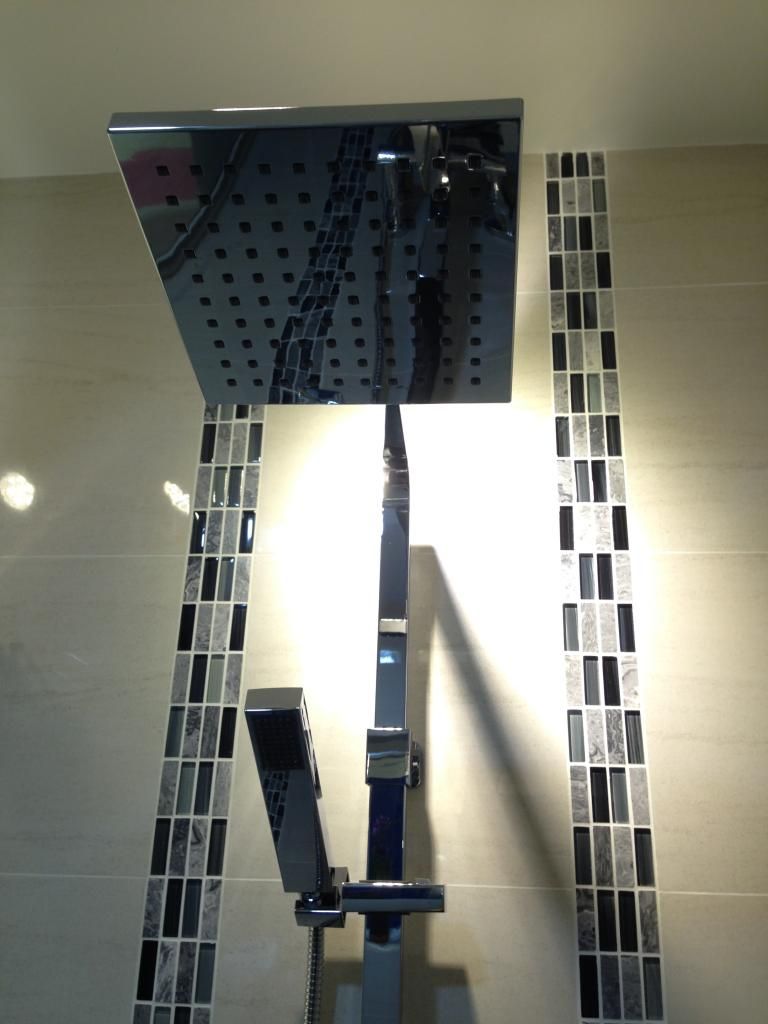

Now look better. Give some paint on the pipe and the trunking. It blend to the wall.

Yup, it is acrylic sealer. Multipurpose sealer. Apa gap and material also can use. Can get it from ACE.

JB don't have AEC hardware... Maybe I looking in s'pore

Hardware shop got sell la. Just get the chalk type and get the chalk gun.

Looks good- is it the fountain type where the water comes out like rain? i got conned last time i bought one but they water sprays out instead of falling like rain. my fault i didn't ask for a proper demo

This sqaure type not really like heavy rain, but enough for body on middle rain.

Also used the centralize storage tank can be more fixable to adjusted the hot, so become your bath time will be slightly longer and feeling don't one stop the water and continue take bath.

Really relaxing when bath

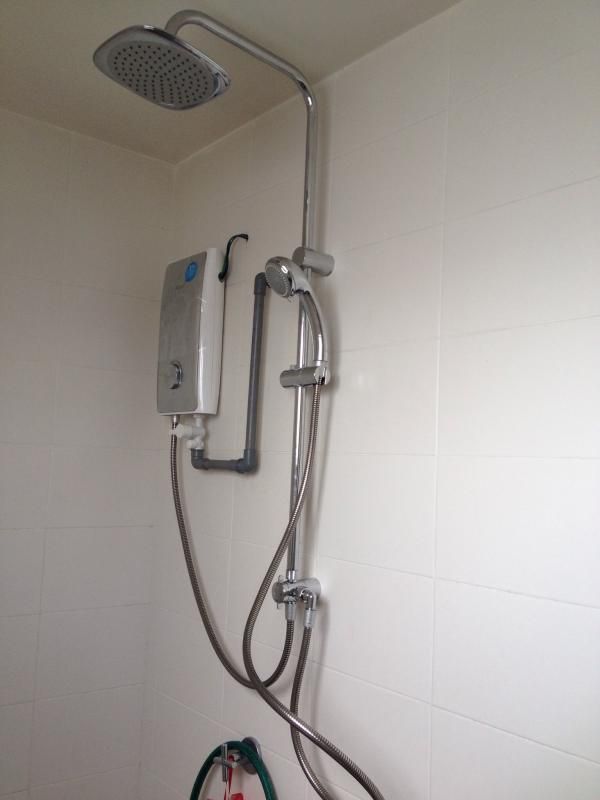

Install it yesterday. Take about 2hr. Running very silent compare to the old 1.

Noise level about 55db at max pump running. The shower head flow is not strong as those big type. So if you looking for a strong flow, you will be dissapointed.

The cost:
1) Heater - RM720
2) Plumbing parts - RM5
3) Labour - Free

Wow u got it cheap!!where did u buy it from?i have yet to find a decent shop to regularly get my stuffs from.

By the way, i noticed that even at the highest setting the water is not even close to scalding hot, i mean i dont intend to scald myself, but it is only warm at most even at the highest setting, even worse when using the rain shower mode. Is it considered normal? Or is my water pressure too strong?

Wow u got it cheap!!where did u buy it from?i have yet to find a decent shop to regularly get my stuffs from.

By the way, i noticed that even at the highest setting the water is not even close to scalding hot, i mean i dont intend to scald myself, but it is only warm at most even at the highest setting, even worse when using the rain shower mode. Is it considered normal? Or is my water pressure too strong?
