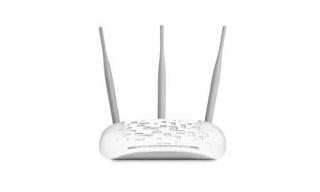

HARDWARE FEATURES
Interface One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button WPS/Reset, Power On/Off
External Power Supply 9VDC/0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)
Antenna Type 3*5dBi Detachable Omni Directional (RP-SMA)
Power Consumption 5.8W
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -<no spam links>m@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions Enable/Disable Wireless Radio;
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
DHCP DHCP Server
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters PoE is supported
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access Point TL-WA901ND
3 Detachable Omni Directional Antennas
Power Supply Unit
PoE Power Injector
Resource CD
Quick Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What This Product Does
The TP-LINK Wireless N Access Point TL-WA901ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.
Wireless N Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes - Easy to Build WLAN
Supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

WPS Button -One Button Security Setup
Compatible with WI-FI Protected Setup™ (WPS), TL-WA901ND allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more secure compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password!

Passive PoE Supported-More Flexible Deployment
The TL-WA901ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

WPA / WPA2 Encryptions - Advanced Security
As for the security of Wi-Fi connection, WEP encryption has been no longer the strongest and safest guards for outside threats. TL-WR901ND provides WPA/WPA2 encryptions (Both Personal and Enterprises) that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN.

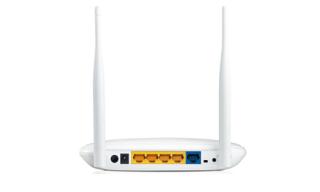

HARDWARE FEATURES
Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS/Reset Button
Operation Mode Switch
Power On/Off Button
External Power Supply 9VDC / 0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 2*5dBi Detachable Omni Directional Antenna (RP-SMA)
Dimensions ( W x D x H ) 7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -<no spam links>m@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Client Router / Router
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP Server, Client, DHCP Client List,
Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N AP/Client Router TL-WR843ND
Power Adapter
RJ45 Ethernet Cable
Passive PoE Power Injector
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What This Product Does
TP-LINK’s TL-WR843ND Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With up to 300Mbps wireless speed, it is ideal for interruption sensitive applications like HD video streaming. TL-WR843ND can also serve as a normal wireless router, just like TL-WR841ND does. What’s more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or an attic.

Client Router Mode – WISP Client
TP-LINK's TL-WR843ND is designed to be set in Client Router mode as its default wireless mode to support a WISP connection. When it works as a WISP client device to access the Internet, local computers can connect to TL-WR843ND via wireless or cables.



300Mbps Wireless N - Speed & Range
With transmission rates up to 300Mbps, users can run bandwidth intensive devices including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles.



Passive PoE Support – Flexible Deployment
The TL-WR843ND is equipped with a RJ-45 WAN port, which is designed to support Passive PoE. For users that require a better WISP signal and need to place the device at location without power outlets, such as an attic or garage, the TL-WR843ND will fit the bill flawlessly with up to 30 meters Power over Ethernet capability. Users can easily have the most flexible deployment and don't have to be tethered to any outlets!



WPS Button - One Button Setup Security
The TL-WR843ND features Wi-Fi Protected Setup™ (WPS) that allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more security compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don’t need to remember a password!

HARDWARE FEATURES
Interface 1 * 10/100M Ethernet Port (RJ45)
Plug Type EU, UK, US
Button RE (Range Extender) Button, Reset Button
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 2 * internal
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Power Consumption About 3W
WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -<no spam links>m@10% PER
1M: -90dBm@8% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Universal WiFi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What This Product Does
TP-LINK's TL-WA850RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. With 300Mbps wireless N speeds, Range Extender button, miniature size and wall mounting design, extending a wireless network has never been easier. What's more, its Ethernet port allows the TL-WA850RE to act as a wireless adapter to turn a wired device into a wireless one.

300Mbps Range Extender
The TL-WA850RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”, help users maintain an existing wireless network and vastly improve the network’s coverage. With 300Mbps wireless 802.11n speeds, it is ideal for smooth HD video, music streaming and online gaming.



Flexible Deployment
The device's miniature size and wall-mounted design make it easy to deploy and move flexibly. What's more, the TL-WA850RE's profile function remembers previously paired wireless networks, meaning there is no need to reset the device when changing the paired router.



Plug and Play
With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA850RE or vice versa. An additional push of the pair button can quickly establish an encrypted connection with client devices.



Ethernet Bridge
The TL-WA850RE's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.



Smart Signal Indicator Light
5 signal lights represent the current signal strength that TL-WA850RE receives from existing router, which can help to find the right location to place the range extender so that the TL-WA850RE can achieve the best possible range and performance of the network.



Universal Compatibility
Works seamlessly with all 802.11 b/g/n wireless devices. It is also compatible with the latest Windows 8 operating system.

HARDWARE FEATURES
Interface 1 10/100Mbps WAN/LAN port, USB 2.0 port for 3G/4G modem, a micro USB port for power supply
LED Power, WLAN, Ethernet, Internet
Button Power On/Off Button, Reset Button, Operation Mode Switch
Dimensions (W X D X H) 3.9 x 2.4 x 0.6 in. (100 x 62 x 16 mm)
Weight 3.3 ounce (94g)
Antenna Type Internal Antenna
Power Supply Internal 2000mAh rechargeable battery, 5VDC/1.0A external power adapter
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.4-2.4835GHz
Signal Rate Up to 150Mbps
Transmit Power <20dBm
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
SOFTWARE FEATURES
Operating Modes 3G/4G Router, Travel Router (AP), WISP Client Router
WAN Type Dynamic IP, Static IP, PPPoE/Russia PPPoE, Bigpand Cable, L2TP/Russia L2TP, PPTP/Russia PPTP
DHCP DHCP server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, DMZ, UPnP
Access Control Parental Control, Bandwidth Control, Loal Management, Remote Management, Access Schedule, Advanced Routing
Security Firewall, VPN, ALG, IP&MAC Binding, DoS Protection
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-MR3040
Power Adapter
Li-Ion Battery
USB Cable
Ethernet Cable
Quick Installation Guide
Resource CD
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating temperature:15℃~40℃
Storage Temperature: -20℃~50℃
Operating Humidity: 0%~75% non-condensing
Storage Humidity: 0%~75% non-condensing

What This Product Does
TP-LINK's TL-WA850RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. With 300Mbps wireless N speeds, Range Extender button, miniature size and wall mounting design, extending a wireless network has never been easier. What's more, its Ethernet port allows the TL-WA850RE to act as a wireless adapter to turn a wired device into a wireless one.

300Mbps Range Extender
The TL-WA850RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”, help users maintain an existing wireless network and vastly improve the network’s coverage. With 300Mbps wireless 802.11n speeds, it is ideal for smooth HD video, music streaming and online gaming.



Flexible Deployment
The device's miniature size and wall-mounted design make it easy to deploy and move flexibly. What's more, the TL-WA850RE's profile function remembers previously paired wireless networks, meaning there is no need to reset the device when changing the paired router.



Plug and Play
With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA850RE or vice versa. An additional push of the pair button can quickly establish an encrypted connection with client devices.



Ethernet Bridge
The TL-WA850RE's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.



Smart Signal Indicator Light
5 signal lights represent the current signal strength that TL-WA850RE receives from existing router, which can help to find the right location to place the range extender so that the TL-WA850RE can achieve the best possible range and performance of the network.



Universal Compatibility
Works seamlessly with all 802.11 b/g/n wireless devices. It is also compatible with the latest Windows 8 operating system.
