Here's a quick mod I did on Saturday b4 I got the stiff neck.

The idea was to refurbish the original window which was really puny. It also had a plastic window which was all scratched up n the mounting nuts were also loose n falling off. So what I did was to chop off the old window completely n make a whole new XL sized window but also maintain the 2 intake fans.

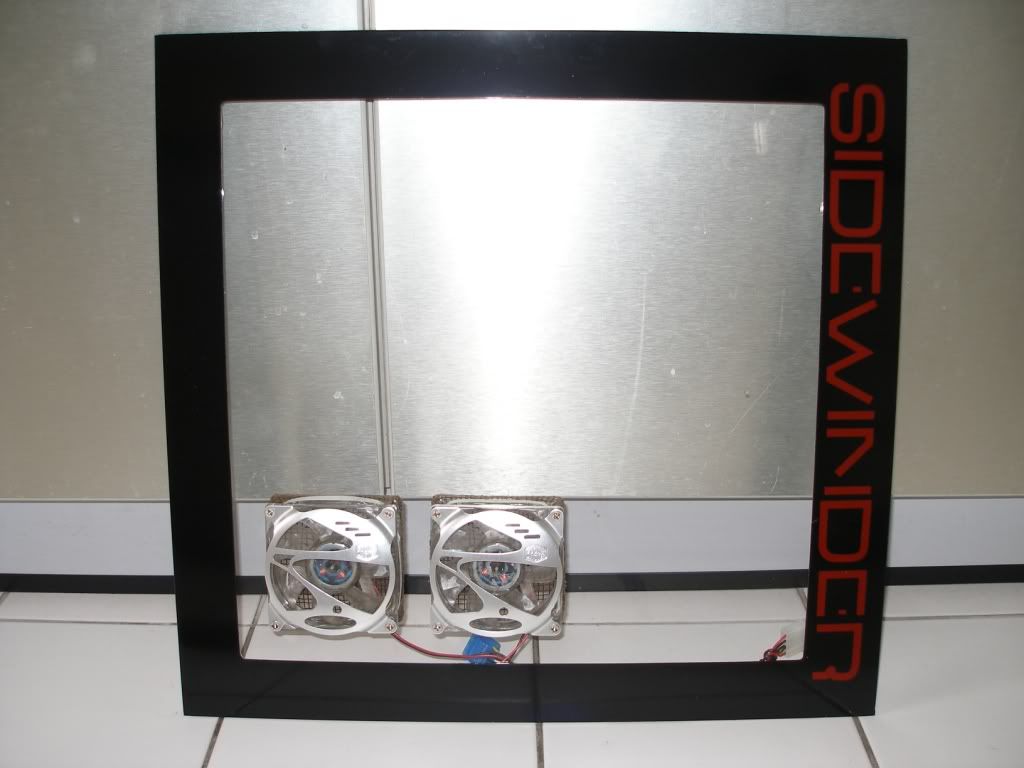

Here's how it looks like b4 modding.

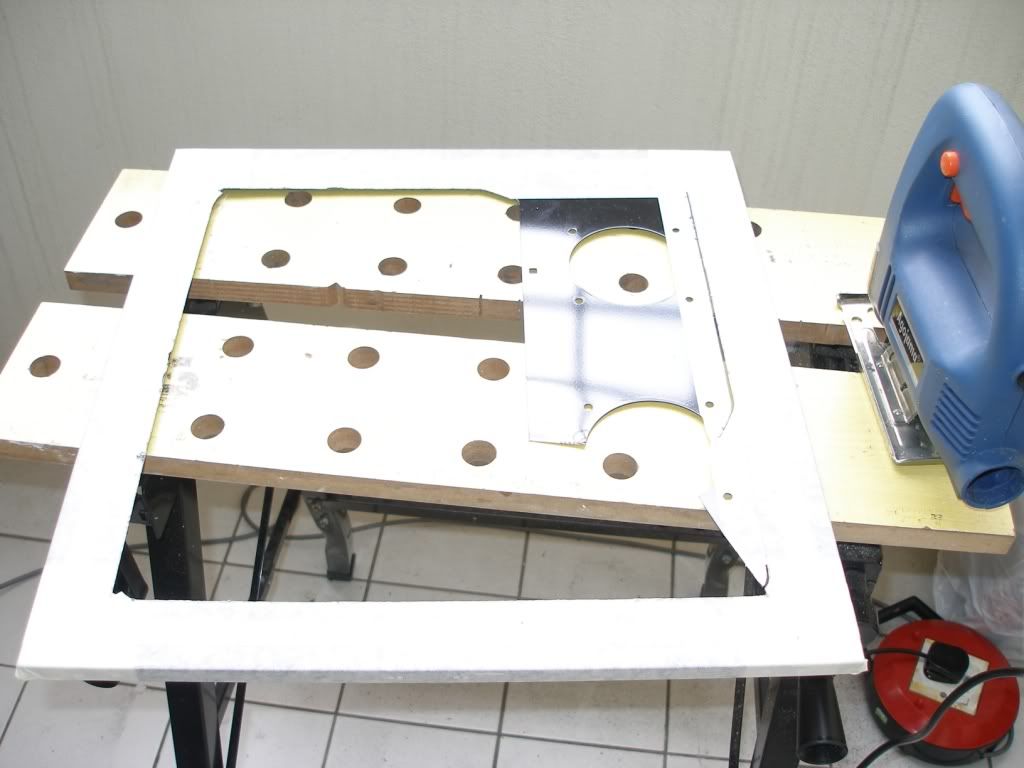

Masked up, marked n in the process of cutting the window panel.

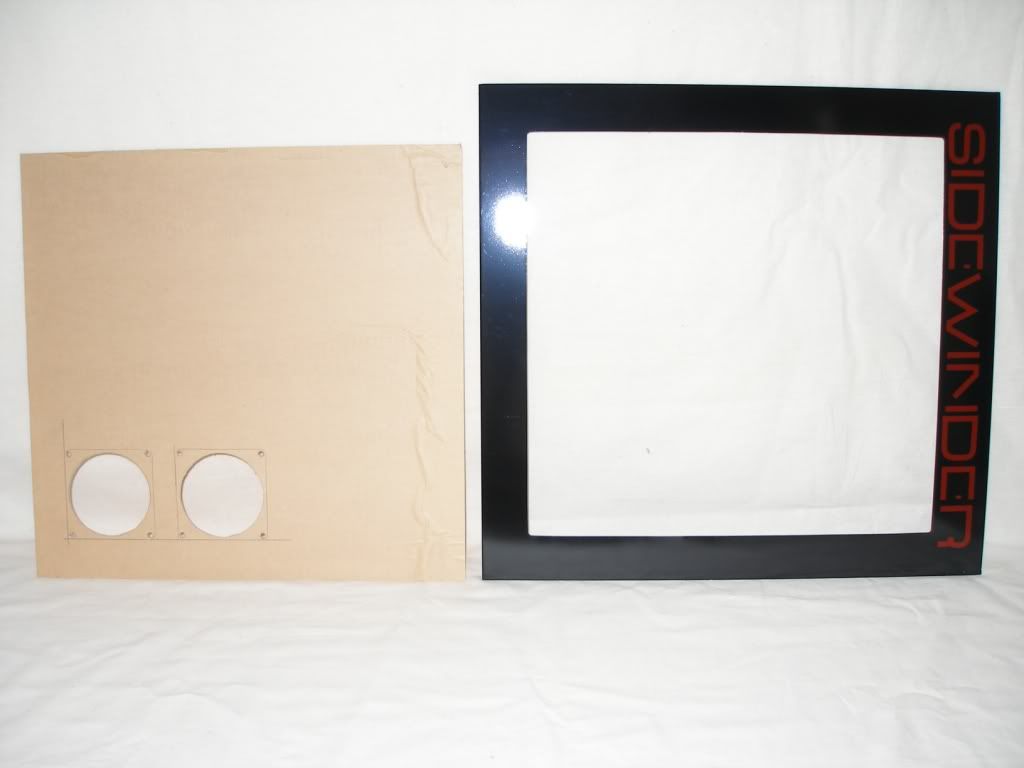

Side panel n acrylic all cut n ready for mounting.

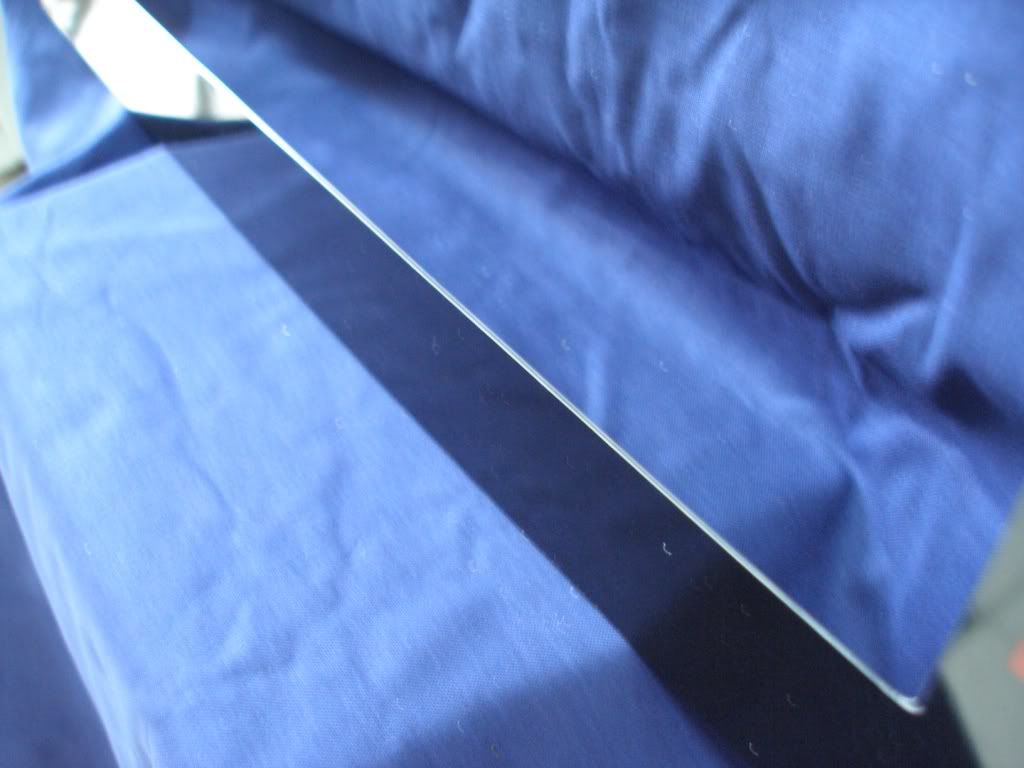

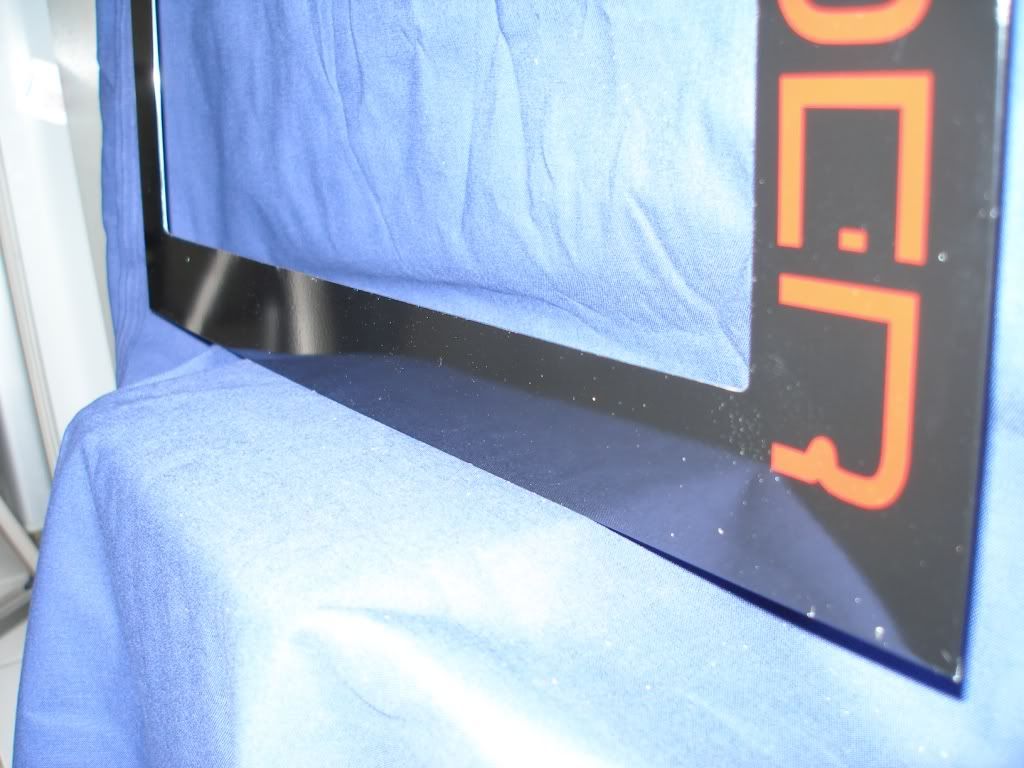

Just a couple of shots to show the cut edges. For sum reason the focus was not what I wanted. I dunno y it's so difficult for the autofocus to focus on shiny black panels. It just wudn't autofocus properly n I had to force focus it n this is the best I cud get of the sides. The edges in these pix r still shining after my final detailing work. The final look is actually black edges coz I painted the edges black to prevent rust in the long term. This is becoz the quality of the metal on this panel is not as good as the branded cases. On the branded cases I leave the edges shining.

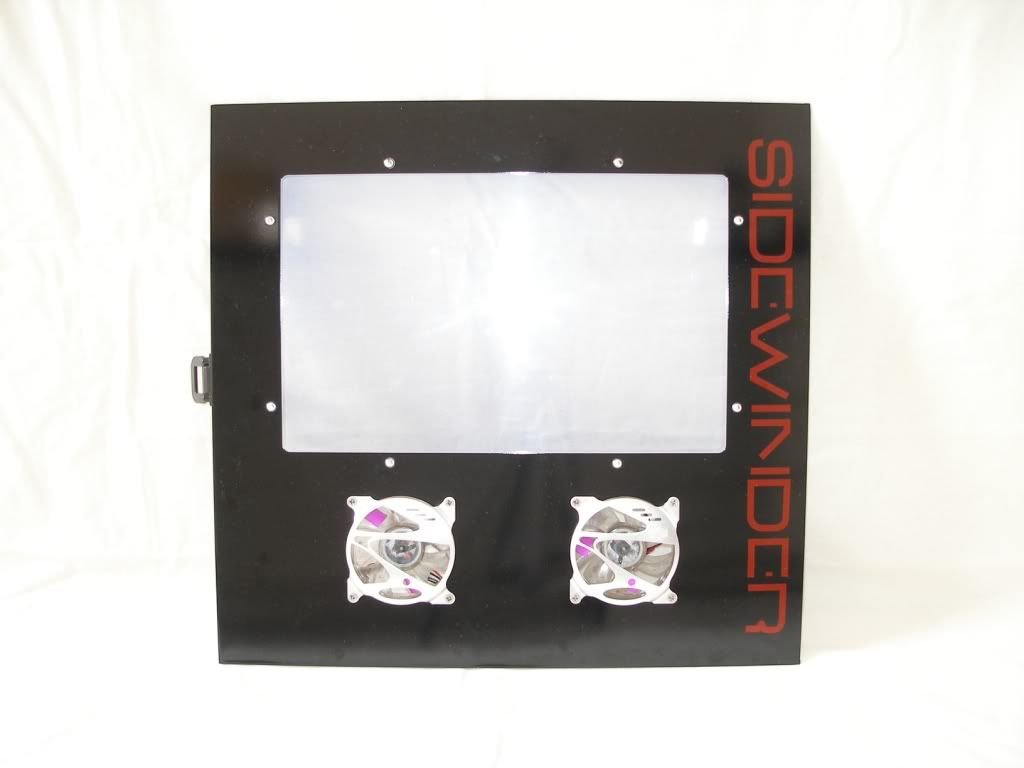

Voila! The finished XL size window with dual 80mm intake fans right over the gfx card area. If u look carefully thru the fans u'll c I also made sum of my sexay stocking+mesh fan filters so that the gfx card doesn't choke on dust after a while.







Wheeeeeeee. Now that this is finished n my neck feels a lot better now. It's time to get down to Saving Private Joshiet. 2moro is full steam ahead with Project 911.

This post has been edited by ianho: Nov 17 2006, 03:55 PM

HEY, i see my panel there.. Yahoo.. hahaha.. so nice

I have the same casing with you "z3r0717"

It's used for my 3rd pc...

And, damn, that sidewindow are huge...

wa... u're the 1st in the forum to be same with me i think.. nvr see some1 got also.. hehe

the famous panty house filter by ianho

yeah... i'm lovin my new pimped side panel.. wohoo... now can see everything.. waaaa

lol.get back ur casing lar but ur gc send back to fix lol.cant play any games also.haha

Haha. All that bling bling n so much cool intake air to show off n cool an..................................................X300. Hehehhhhee. Hope ure gfx card comes home quick from Taiwan.

lol... wargh.. i miss my card alr.. 2day my 2 frens buy new GC while me take n repair.. wargh
i will post some pics to show the complete case.. soon..........

This post has been edited by z3r0717: Sep 4 2006, 11:58 PM

wakaka.good.now i rox than u.haha

here is the complete case i mentioned
From this,


To this....


A closer look, my cable management not so nice la.. hehe


My new pimped side panel.. I would recommend you all if you want modding, find Ianho Sifu. No regret

This post has been edited by z3r0717: Sep 5 2006, 09:20 PM

Hey, you know what?
Our way of thinking is the same...

I'm using that casing for my 3rd pc, using intel, and used hyper 6+ for it...

Waa...
We're have a lot in common la my pren...

@@ waa?? maybe we can be best frens.. hahahaha.. i think we're the only 2 who use this casing only.. lol.. how much did u bought it?

It's a secret...

Anyway, where did you buy that casing?
From lowyat plaza?

Just found out that you're also using X800GTO!!!

Just the same with what i'm using with my 3rd pc!!!

This post has been edited by sHawTY: Sep 5 2006, 09:41 PM

LOL.. so secretive for what..
nope, i bought it in Kuantan..
WAT!? same GC also? wat brand? dun tell me same also ar.. omg..

Powercolor...

What's yours...?

And what's the price tag of that casing in kuantan?

lol.. mine Sapphire.. haha..
erm.. i bought it at RM220. Come to LYP RM 180.

look nice the before...
good job ya ...uncle

look so much better right? thanks to Ian-san.. akakak.. wat a great job

Professional job done.
