Review [REVIEW] Aerocool Dead Silence 120mm Red, Extreme Cooling. Extreme Silence

views

TSshah93
post Aug 19 2014, 12:05 AM, updated 12y ago

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

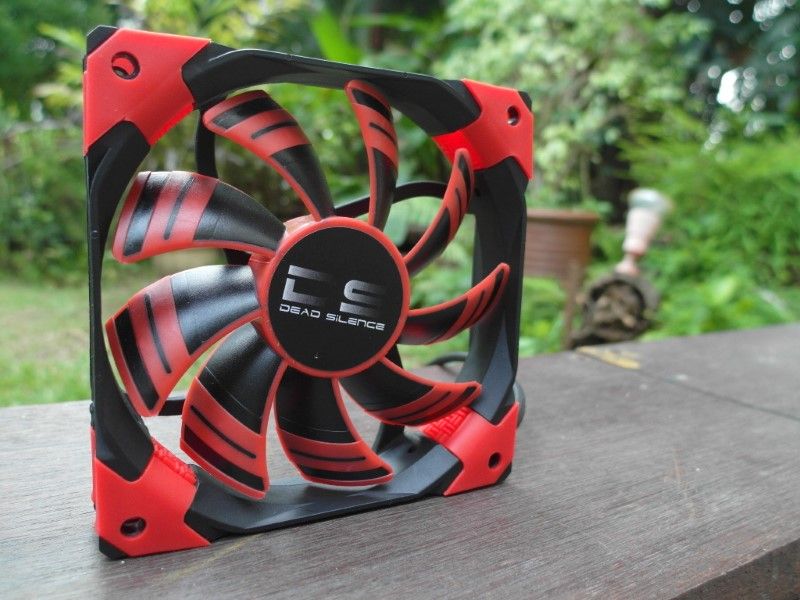

Aerocool Dead Silence 120mm Red
Extreme Cooling. Extreme Silence


user posted image

Introduction


The new Aerocool DS Dead Silence fan is one of world’s most Silence fan with breakthrough technology and innovation. Aerocool promise the fan to be powerful and extremely silence with new innovation design with the combination of plastic, rubber fan blades and “Golf Ball” surface design on the back rubber side of the fan blades to minimize the air turbulence. The fan is beautifully finished in “Dual Color and Dual Material Fan” with four color combinations and LEDs on each side of the fan; Red, Black, Blue and White. For enthusiast user which looking very silent fan without sacrificing the performance, they might want to consider Aerocool Dead Silent Fans for their build. The units will come out in two sizes; 120mm and 140mm. The frames are black for all the units.

Product Link:
120mm - http://www.aerocool.us/accessory/images/dsfan_12red.html
140mm - http://www.aerocool.us/accessory/images/dsfan_14red.html
Suggest Retail Price:
120mm - RM49
140mm - RM59

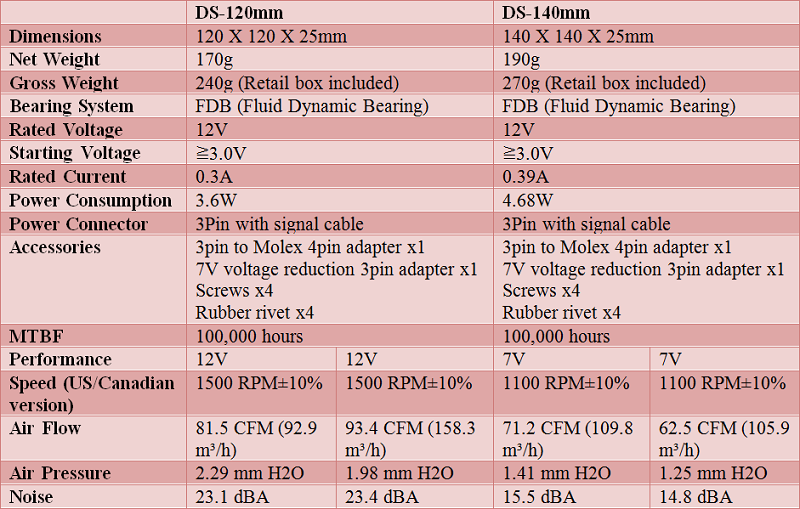

Specification


user posted image

This post has been edited by shah93: Nov 10 2014, 10:31 AM
TSshah93
post Aug 19 2014, 12:06 AM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

Unboxing
Aerocool fully utilized the front and back of the the packages with packed of handy information and features of the fan.User can get a good look at the fan itself as well as Aerocool’s Dead Silence logo with a little text box stating what size and colour of the fan is.

user posted image

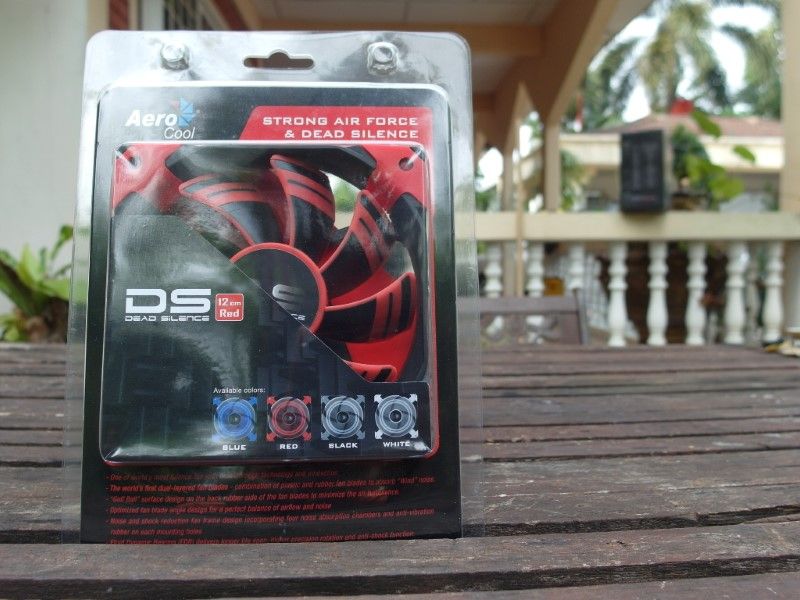

The fan is packed in a crystal clear plastic with highlighted of other choice of colours.

user posted image

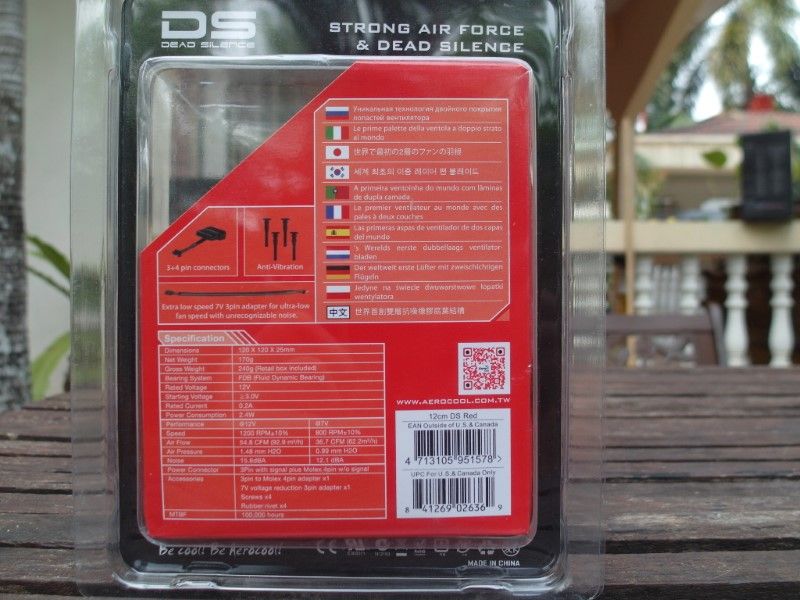

At the back are the details and all accessories provided inside the package

user posted image

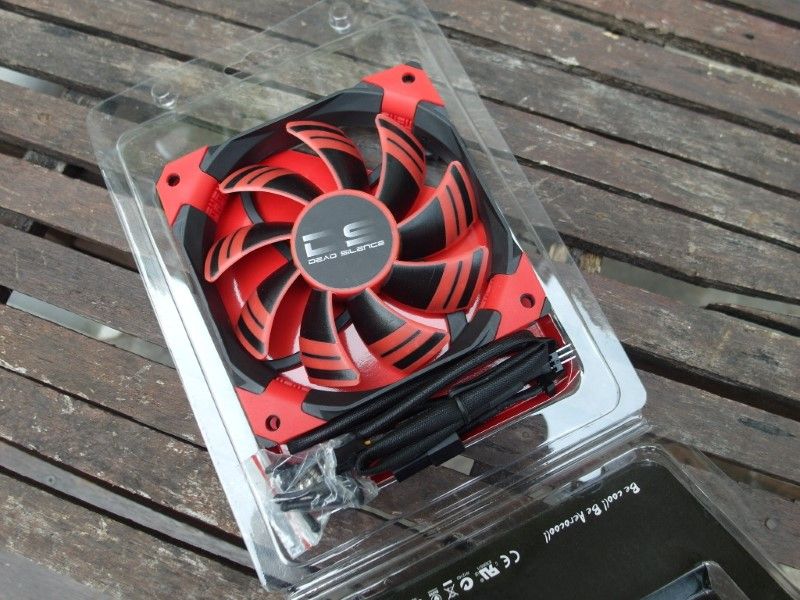

Upon opening the package, the fan and accessories is well arranged

user posted image

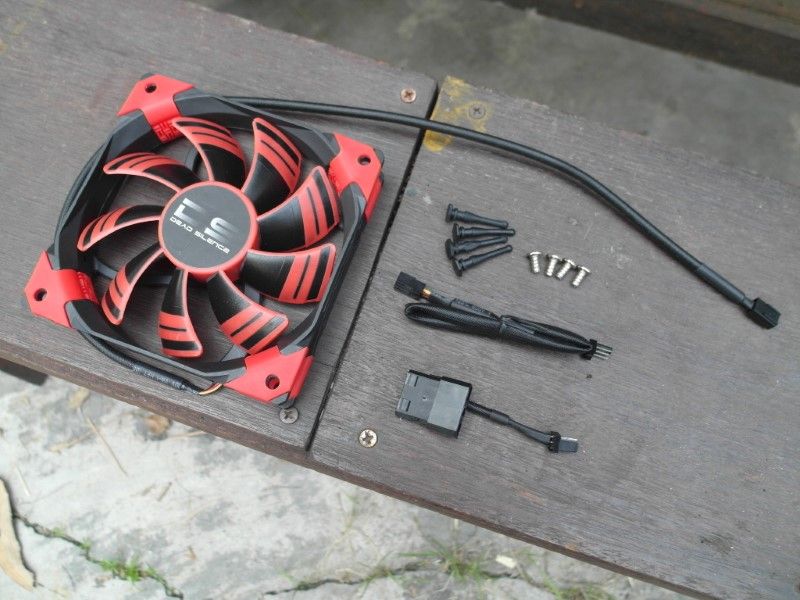

All the accessories bundled with the fan
+ 3pin to Molex 4pin adapter x1
+ 7V voltage reduction 3pin adapter x1
+ Screws x4
+ Rubber rivet x4

user posted image
No doubt the fan builds design and technology is really awesome and sleek-look

user posted image
At the back of the fan, user can see it powered by 12V DC, 0.3A and 3.6W in total and the Airflow guide line design on the exaust side of fan frame help to directs and concentrates the airflow

user posted image
Aerocool fully utilized the rubber pad to make 2 in 1 silencer block and anti-vibration pad to reduce vibration and reduce noise creation from the airflow

user posted image

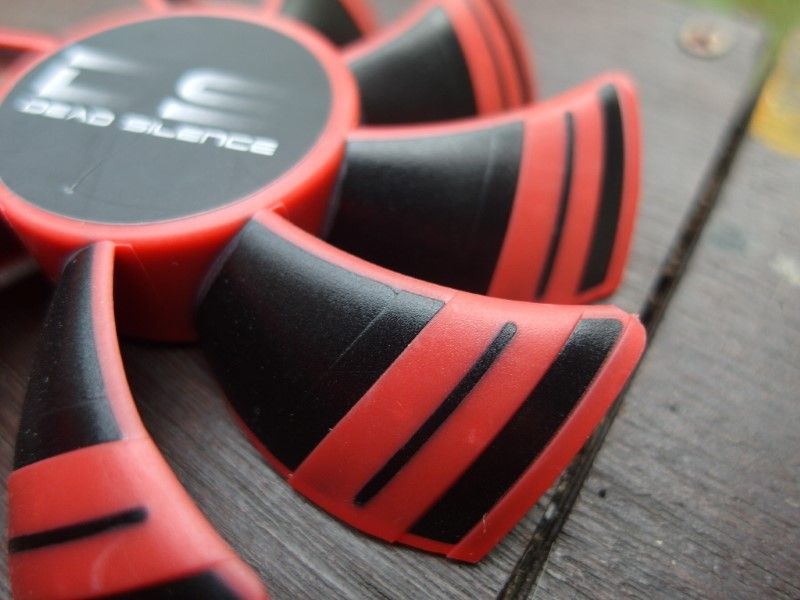

The blade is combination of plastic (black surface) and rubber surface (red lines). Aerocool aimed to reduce turbulence and noise from this technology by making the rubber contacting plane surface.

user posted image

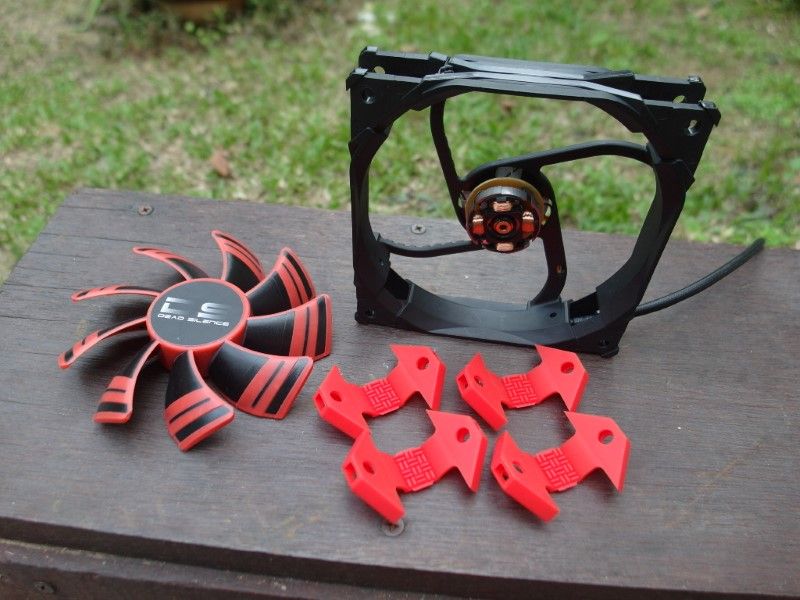

User can dissemble the fan blade and even the rubber pad for easy cleaning access on both of the fan blade and frames.

This post has been edited by shah93: Aug 19 2014, 12:14 AM
TSshah93
post Aug 19 2014, 12:07 AM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

Conclusion

Since the fan arrived at our testlab, we truly impress with the quality. The performance is really stunning with high airflow but less noise produce. The fan comes with a good amount of useful accessories too. Aerocool produced another great case fan with a lot of effort to release this fully feature’s fan. Anti-vibration pad and noise dampening truly makes a good combination with the rubber surface fan blade to further reduce the noise produced during cutting the air .And of course, the inclusion of LED’s is always a bonus. The dual layers blade design and colour combo also adds up a unique aspect to these fans and allows them to really easily blend into user build. With the price tag of RM49, we doubt user can find a better or equal performance fan for less money.

Finally I would like to thanks Aerocool for the samples and hope to see more from them in the future.

Performance: 5/5
Materials: 5/5
Specifications: 4/5
Appearance: 5/5
Performance/Price Value: 4/5

Pros
+ Awesome sleek-look design
+ High airflow with low noise
+ Competitive price
+ Alot of useful accessories

Cons
- Speed of the fan cannot be control with PWM

This post has been edited by shah93: Aug 19 2014, 12:13 AM
danielphang
post Oct 22 2014, 06:41 PM

Getting Started
**
Junior Member
115 posts

Joined: Jul 2008


Bro if i would like to purchase the fan as mentioned above, which designated shop would you recommend ?

TSshah93
post Oct 24 2014, 09:23 AM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

QUOTE(danielphang @ Oct 22 2014, 06:41 PM)
Bro if i would like to purchase the fan as mentioned above, which designated shop would you recommend ?
*
There's a few shop selling this DS fan at lowyat plaza.. But if you wanted to buy online i can get it for you too smile.gif
danielphang
post Oct 24 2014, 12:08 PM

Getting Started
**
Junior Member
115 posts

Joined: Jul 2008


Bro, please specify which shop in lowyat that are selling those fans.

TSshah93
post Oct 26 2014, 12:42 PM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

QUOTE(danielphang @ Oct 24 2014, 12:08 PM)
Bro, please specify which shop in lowyat that are selling those fans.
*
check pm smile.gif
darkskies
post Nov 4 2014, 04:13 PM

Look at all my stars!!
*******
Senior Member
2,336 posts

Joined: Nov 2007
From: 特別壱参番対ゴミ人間調査隊大将



There seems to be some inconsistent information about this fan.
I bought the 12cm Fan.
On specification, it only show 1200rpm @ 54.8CFM . It's supplying 12v as well.
But on your specification and a couple of sites, it shows that this fan is able to perform up to 1500rpm.
But wierd thing is, they only show at 1500rpm, it could generate only 81.5cfm.
Nothing about it able to generate 93.4CFM.
Why did the specification differs from the original packaging product spec so much.
darkskies
post Nov 5 2014, 05:39 PM

Look at all my stars!!
*******
Senior Member
2,336 posts

Joined: Nov 2007
From: 特別壱参番対ゴミ人間調査隊大将



Be cautious of this fan. mad.gif

Let me remind you guys.
This Fan you guys are looking at is an outdated model which the local supplier/distributor brought in.
They did a copy and paste job specification from the official site without looking at the product they imported in.
Check the picture.
Here's the outdated model specification, dont believe, check the picture TS uploaded for reference. It could only run at 1200RPM.

DS 120 mm
12V@
1200 RPM
54.8 CFM
15.8 dBA

7V@
800 RPM
36.7 CFM
12.1 dBA

DS 140 mm
12V@
1000 RPM
64.8 CFM
14.2 dBA

7V@
700 RPM
39.8 CFM
10.8 dBA


Here's the latest Specification.

DS 120 mm
12V@
1500rpm
81.5 cfm
2.29 mm h20
23.1 dba

7V@
1100rpm
62.5 cfm
1.25 mm h20
14.8 dba

DS 140 mm
12V@
1500rpm
93.4 cfm
1.98 mm h20
23.4 dba

7V@
1100rpm
71.2 cfm
1.41 mm h20
15.5 dba

I've bought this fan from a local seller on Lelong. For some reasons, i'm not revealing the information who is it.
The fan was indeed quiet. However when i check my bios, it's only staggering between 1100-1200RPM at full speed.
As compared to a loud CM calibur fan i had, 81.5CFM should be able to be on par with my calibur fans knocking off more then 10degrees off my cpu.
Mind you, it's an old x58 rampage 3 extreme. Which is the high temp series range mobo.
My cpu was heating against 58-60degrees when i put on this fan in room temp.
When i switched back to cm excalibur, it put my cpu back to 41-42degrees.
Mind you, this is not on gaming but just normal activities like leaving the desktop to seat around doing nothing at room temperature.
TSshah93
post Nov 12 2014, 10:41 AM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

QUOTE(darkskies @ Nov 4 2014, 04:13 PM)
There seems to be some inconsistent information about this fan.
I bought the 12cm Fan.
On specification, it only show 1200rpm @ 54.8CFM . It's supplying 12v as well.
But on your specification and a couple of sites, it shows that this fan is able to perform up to 1500rpm.
But wierd thing is, they only show at 1500rpm, it could generate only 81.5cfm.
Nothing about it able to generate 93.4CFM.
Why did the specification differs from the original packaging product spec so much.
*
QUOTE(darkskies @ Nov 5 2014, 05:39 PM)
Be cautious of this fan. mad.gif

Let me remind you guys.
This Fan you guys are looking at is an outdated model which the local supplier/distributor brought in.
They did a copy and paste job specification from the official site without looking at the product they imported in.
Check the picture.
Here's the outdated model specification, dont believe, check the picture TS uploaded for reference. It could only run at 1200RPM.

DS 120 mm
12V@
1200 RPM
54.8 CFM
15.8 dBA

7V@
800 RPM
36.7 CFM
12.1 dBA

DS 140 mm
12V@
1000 RPM
64.8 CFM
14.2 dBA

7V@
700 RPM
39.8 CFM
10.8 dBA
Here's the latest Specification.

DS 120 mm
12V@
1500rpm
81.5 cfm
2.29 mm h20
23.1 dba

7V@
1100rpm
62.5 cfm
1.25 mm h20
14.8 dba

DS 140 mm
12V@
1500rpm
93.4 cfm
1.98 mm h20
23.4 dba

7V@
1100rpm
71.2 cfm
1.41 mm h20
15.5 dba

I've bought this fan from a local seller on Lelong. For some reasons, i'm not revealing the information who is it.
The fan was indeed quiet. However when i check my bios, it's only staggering between 1100-1200RPM at full speed.
As compared to a loud CM calibur fan i had, 81.5CFM should be able to be on par with my calibur fans knocking off more then 10degrees off my cpu.
Mind you, it's an old x58 rampage 3 extreme. Which is the high temp series range mobo.
My cpu was heating against 58-60degrees when i put on this fan in room temp.
When i switched back to cm excalibur, it put my cpu back to 41-42degrees.
Mind you, this is not on gaming but just normal activities like leaving the desktop to seat around doing nothing at room temperature.
*
Thanks for the report bro
Atm im outstation until 15 Nov
When i came back i will retest the fan and reveal the result smile.gif
darkskies
post Nov 12 2014, 08:14 PM

Look at all my stars!!
*******
Senior Member
2,336 posts

Joined: Nov 2007
From: 特別壱参番対ゴミ人間調査隊大将



goldfries had actually revealed the specs on his blog on this fan clearly.
I've checked further about this fan.
It's not old or new spec.
Seems that Aerocool made two types of the same fan which is pretty ridiculous.

Only the US version carries the higher cfm spec while the other version that was distributed to other region other then US had a ridiculous low cfm spec.
So American has a better deal then us.
What sole distributors imported were mainly from taobao i suspect. They did not read enough details about the fan while putting this fans up for sale. They slap in the US version spec.

One of the seller lelong seller even told me the fan could run only at 800rpm if it's non US version and US version runs at 1100RPM. doh.gif

I was at a lost for words. Apparently, he did not even know what he's talking.


TSshah93
post Nov 14 2014, 10:13 AM

On my way
****
Senior Member
655 posts

Joined: Jun 2010
From: Kota Bharu

QUOTE(darkskies @ Nov 12 2014, 08:14 PM)
goldfries had actually revealed the specs on his blog on this fan clearly.
I've checked further about this fan.
It's not old or new spec.
Seems that Aerocool made two types of the same fan which is pretty ridiculous.

Only the US version carries the higher cfm spec while the other version that was distributed to other region other then US had a ridiculous low cfm spec.
So American has a better deal then us.
What sole distributors imported were mainly from taobao i suspect. They did not read enough details about the fan while putting this fans up for sale. They slap in the US version spec.

One of the seller lelong seller even told me the fan could run only at 800rpm if it's non US version and US version runs at 1100RPM.  doh.gif

I was at a lost for words. Apparently, he did not even know what he's talking.
*
user posted image

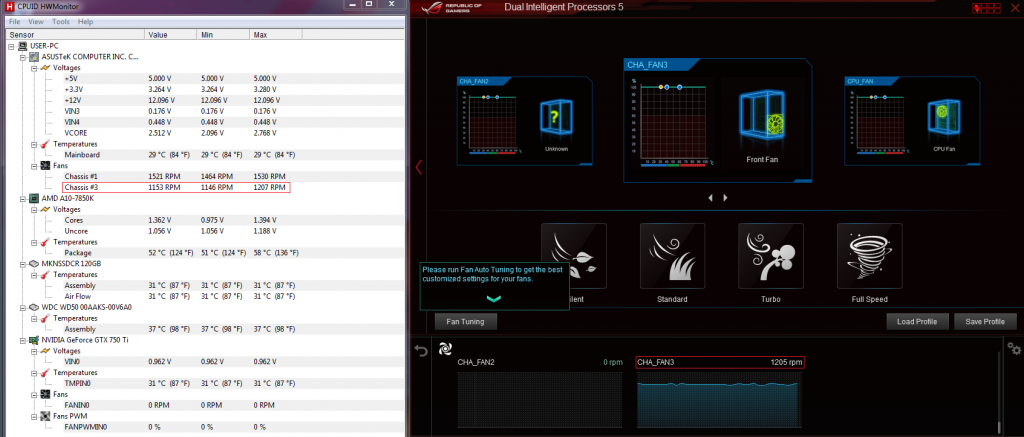

This is the result i obtained from setting Full Speed which record of 1207RPM
darkskies
post Nov 14 2014, 11:33 AM

Look at all my stars!!
*******
Senior Member
2,336 posts

Joined: Nov 2007
From: 特別壱参番対ゴミ人間調査隊大将



QUOTE(shah93 @ Nov 14 2014, 10:13 AM)
user posted image

This is the result i obtained from setting Full Speed which record of 1207RPM
*
Yup. as stated clearly on the manuals.

1200 + or - "only"
