LYN Proton INSPIRA Owners and Fans Thread V64!, 5 7 4 tak yet!
|
|
 Aug 24 2014, 04:37 PM
Return to original view | Post
#181
|

Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(mytmnet @ Aug 24 2014, 04:19 PM) OMG Looking at the assembly is okay to change just the filter. The other part does nothing. But the design is smart, it use the assembly as a smaller tank to store the petrol so that the fuel pump is always submerge in the petrol. Sifu, we change it a set or filter itself is ok?  |
|
|
|
|
|
Aug 24 2014, 04:54 PM
Return to original view | Post
#182
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(San.Diego @ Aug 24 2014, 04:47 PM) Ohyaa ho... didn't thought of that lah... A fren of us clutch replacement done.. U do not want to know the price he paid... Anyway, that's what I love to hear. Love to hear where I've done wrong. Thanks for pointing out! So, if what I'd tried is not advisable, then is there any other way to go around this '2nd gear power' problem?  |
|
|
Aug 24 2014, 05:08 PM
Return to original view | Post
#183
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(San.Diego @ Aug 24 2014, 04:56 PM) How much he spend? A few hundred? All in with bearing and workmanship shd be around 2000 |
|
|
Aug 24 2014, 10:49 PM
Return to original view | Post
#184
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(Quazacolt @ Aug 24 2014, 09:28 PM) well k3 hinted the fuel filter, perhaps can give that a shot. Pelanjiao hinted fuel filter? |
|
|
Aug 24 2014, 10:52 PM
Return to original view | Post
#185
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
The big tabung is where the pump suppose to be.
I think the other filter could be the small tube outlet area. (if got la). But the one i replaced is the major one. The fuel goes through that filter before masuk the pump... And out put the hose before to the fuel railing |
|
|
Aug 24 2014, 11:05 PM
Return to original view | Post
#186
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(Quazacolt @ Aug 24 2014, 10:54 PM) oh you showed a picture of a very dirty fuel filter ma, maybe that could be the problem (lack of fuel?) I show i change my fuel filter.. Suddenly relate me to other things.. DeLay No Morebut oddly it only happens on certain level of pedal pressing? |
|
|
|
|
|
Aug 25 2014, 11:21 AM
Return to original view | Post
#187
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
Let's KILL your bandwidth!
THIS SHOULD BE DONE .. WHEN YOUR FUEL LEVEL AS LOW AS POSSIBLE...

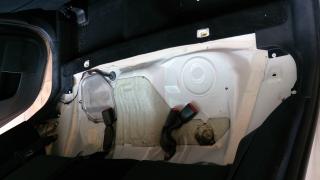

1. Remove the seat.. pull on the white clip area on the front .. one left one right

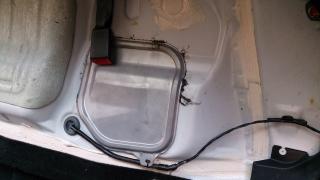

2. you need to remove this portion.. it is not screw but GLUED .. juz use some force and pull it off..

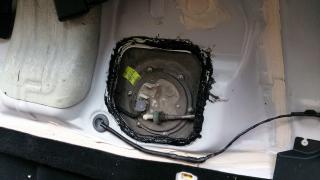

jeng jeng jeng ... 3. you will notice 2 things connected... one electronics... which held the fuel gauge indicator thing .. and the fuel pump connector itself... juz remove it by pushing on the clip and pull upwards.. the other one is the fuel line to your engine.. a bit tricky and will get messy .. pull the green thing upwards first .. u might need a flat head screwdriver if it is tight.. (mine just pull up will do) .. then at both the side .. press inwards so it can be release from the unit.. ** BEWARE .. PETROL WILL "JIT" out... (but not much.. it is the fuel line from fuel tank to your engine)
4. Once remove .. i suggest you clean up a bit first before proceed.. you dun wan stuff falling into ur fuel tank later... (dirt)

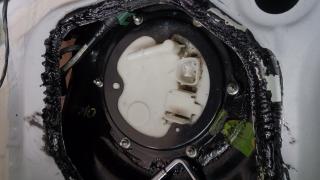

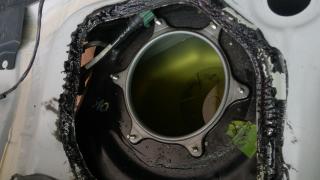

5. remove all 6 nuts ... size 8 .. put the nuts aside .. dun put in the center .. later fall into the fuel tank ...

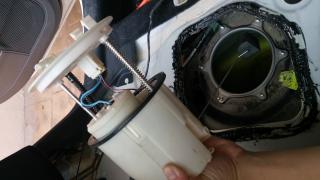

6. once all nuts remove.. the thing should pop up a bit .. the hole size is just fit fit.. so slowly pull the thing up .. at the end of it .. u have tilt the top towards the driver side to bring the flaot out from it... (the float is towards the driver side)... I would suggest to slowly remove and wait for the petrol to drip back into the fuel tank else it will get messy..

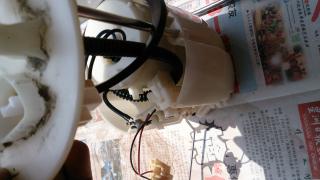

7. The red and black cable is for the float. where else the black and blue is for the fuel pump. Just unplug the cables.

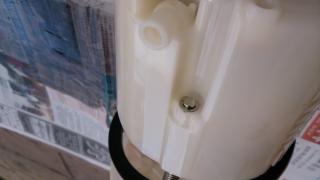

8. Local this tiny thing.. i dunno what it is call d... just use a small flat head screw driver and remove it .. (DO NOT MISPLACE IT .. YOU NEED TO INSTALL IT BACK LATER) .. once it is remove .. the top part should be able to come off already ... DO NOTE WHICH SIDE YOU REMOVED.. ** THE SIDE WITH SPRING ..
9. Unclip all center part to allow the pump section to be seperated from the whole thing..

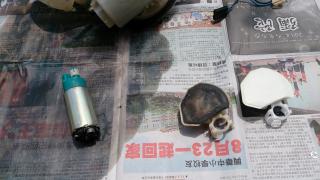

10. Now you can access the filter ... Ewwwww .. unclip it .. there is five clip there.. and it is a bit tight to the pump .. slowly pry open it with a flat head screwdriver.. LEFT SIDE .. fuel pump
11. Assemble this back first.. dun worry .. it can only fit one way ..
12. assemble back ... do beware the flexi hose should this way ..
13. It should look like this ... clip back all the cables.. (2 only la) .. ** NOTE .. THE BLACK RUBBER SEAL SHOULD BE PUSH TO THE TOP FIRST .. i forget to do so .. so it will be harder to put in later.. i did it when installing back ... but didnt take picture... hand full of petrol.
14. slide it back into the fuel tank ... and put back the black metal bracket on top .. screw them back .. then connect the fuel line and ... before you put back everythign... start your car first.... ** IT will take longer to start for the first time as the fuel from tank to engine is empty.. it will take like 5 seconds only can start.
My installation Fees.... 109,700.... chinese call it .. SAP MAN GAU CHIN CHAT .. |
|
|
Aug 25 2014, 12:23 PM
Return to original view | Post
#188
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(Quazacolt @ Aug 25 2014, 12:17 PM) omg expensive installation fee abuten . u think bangla price cheap nowadays ah .. regardless thanks for the guide sifu  update blog too? fark.. that day mrt killed 3 of my fellas summore ... i need pay white gold leh .. |
|
|
Aug 25 2014, 02:03 PM
Return to original view | Post
#189
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(rashidSelamat @ Aug 25 2014, 01:59 PM) [/spoiler] GB harga beza one wor.... kita kan double standard...thanks for the guide. any GB for the filter? non sticker... normal price with sticker.. 109,700 |
|
|
Aug 25 2014, 02:18 PM
Return to original view | Post
#190
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(iguana_tan @ Aug 25 2014, 02:15 PM) now a day, bangla also have double standard and big small eyes... Cari makan susah u know ...u see ... Bangla Value .. its just an ENTRY LEVEL AXIA price ....  |
|
|
Aug 25 2014, 02:35 PM
Return to original view | Post
#191
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(nicotine @ Aug 25 2014, 02:29 PM) master sifu bangla, 70k.ur car milage berapa when you had that filter changed ? |
|
|
Aug 27 2014, 09:04 AM
Return to original view | Post
#192
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(nzh0920 @ Aug 27 2014, 06:28 AM) straight line speed is nothing, ajak him go genting try Most kids dunno how to take conner geh.Will juz ask.. How many horsrpower? Top speed berapa? |
|
|
Aug 28 2014, 11:17 AM
Return to original view | Post
#193
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(edison1437 @ Aug 28 2014, 10:07 AM) inspira stock grey want ah? Bodoh got. Pm him |
|
|
|
|
|
Aug 28 2014, 12:17 PM
Return to original view | Post
#194
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(s@ni @ Aug 28 2014, 12:15 PM) aiya just put selotape there ma.. sure can punye besok mari TT |
|
|
Aug 28 2014, 12:31 PM
Return to original view | Post
#195
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(Quazacolt @ Aug 28 2014, 12:20 PM) wa wa sifu show kungfu u wan show kungfu ?i dunno kungfu wor... i help sani fix wire only |
|
|
Aug 29 2014, 11:14 AM
Return to original view | Post
#196
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(nncl @ Aug 29 2014, 11:05 AM) tonite still got tt meh? or hill tt? we lipot him jo .. car sita jo |
|
|
Aug 29 2014, 12:34 PM
Return to original view | Post
#197
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(bluecar @ Aug 29 2014, 11:54 AM) K3, can provide boot switch guide? Done.Milo ais 3 |
|
|
Aug 29 2014, 12:48 PM
Return to original view | Post
#198
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(bluecar @ Aug 29 2014, 12:47 PM) Cool. The switch part number is 8608A157. yup. in fact i remove an ASC bulb to place into the switch for nzh0920.Do you know if any other switches can use the bulb? i bought a few extra bulbs as spare. Side mirror switch can put light? side mirror switch i didnt go dig up. not fancy lights .. |
|
|
Aug 29 2014, 02:12 PM
Return to original view | Post
#199
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(mytmnet @ Aug 29 2014, 01:25 PM) Last time I tried to fix the dashboard rattle sound my boss already keep talking on me liao... VIOS apa mau look ?"Hey Man, you always take half day leave one... You know your annual leave spending on car is a waste?" "You should focus on your job not the car, the car took a lot of your time" "You are spending a lot on your car, money and time" Etc... And at the last... "You know how to fix car issue right? Help me to have a look on my VIOS"  I remember is 60K, waiting for your feedback obviously he pijak u .. ask u why buy non vios ride .. PADAN MUKA |
|
|
Aug 30 2014, 11:25 AM
Return to original view | Post
#200
|
|
Senior Member
2,479 posts Joined: Jan 2003 From: Mars
|
QUOTE(bluecar @ Aug 30 2014, 11:11 AM) Audio experts, U will fry ur headunitAre the Rockford Fosgate speakers from Lancer plug and play for Inspira? Door speakers only, nob subwoofer or amplifier. Is the ohm rating the same? Is it better than Inspira original speakers? |
|
