The victim:
Jonsbo U2s

The hardware:
Asrock FM2A85X-ITX
AMD A8-6600K
Corsair Vengeance 8GB 1600MHz
Asus GTX580 Direct CU II
Hitachi 1TB 7200RPM 2.5" HDD
Silverstone ST45SF-G

The cooling:
Zalman LQ310
Primochill 240mm LP Reservoir
Bitspower 1/4 ID Barbs

The plan:
Dremel
Epoxy Putty
Double sided tape

The goal:
Pushing the limits of budget aluminum ITX cases and keeping everything cool.

This post has been edited by Lucassss: May 8 2014, 01:24 AM

huhuhu poison is on the way~~

Finally had some time to do some mods to the case which I think is worth posting. I'll first introduce the case in some pictures before we get down to business.

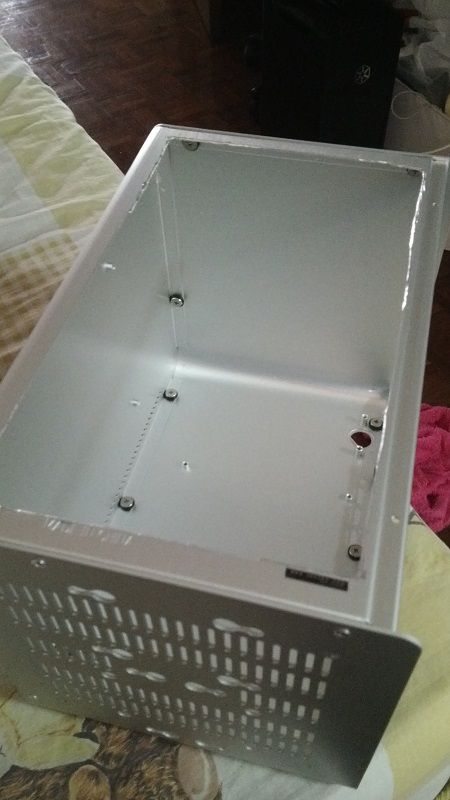

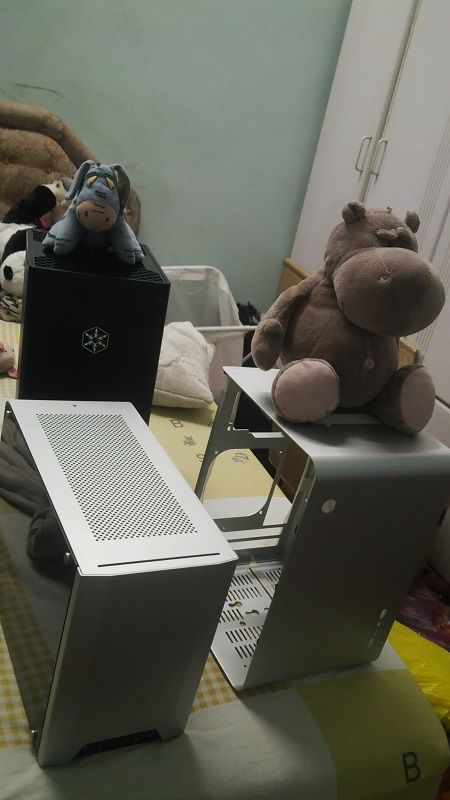

The case (and other cases), stripped and ready for modding. It's the one with the hippo for those that don't know.

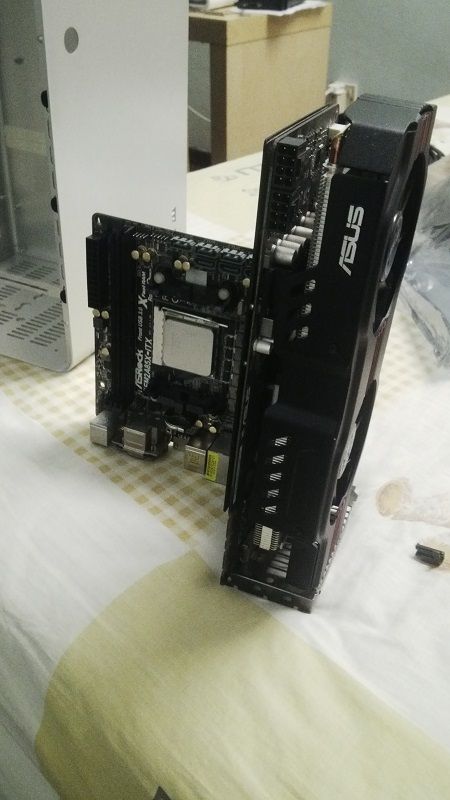

The crazy hardware that needs to go in. I had absolutely no idea how to fit it when I bought the hardware.

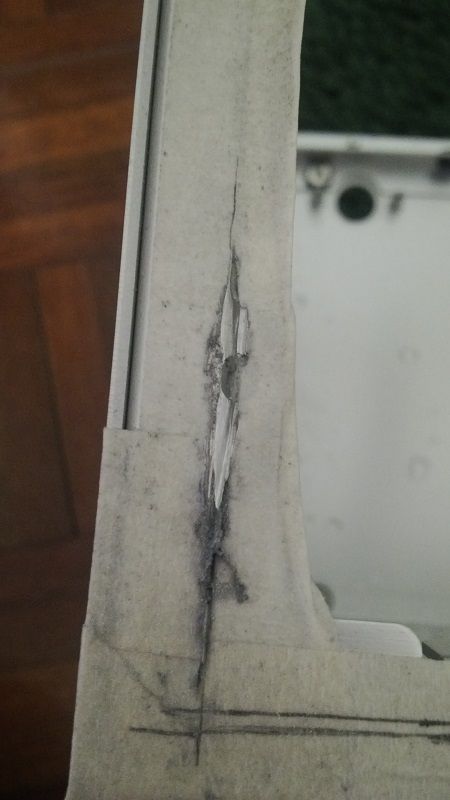

Dremel! My very first cut with one in fact.

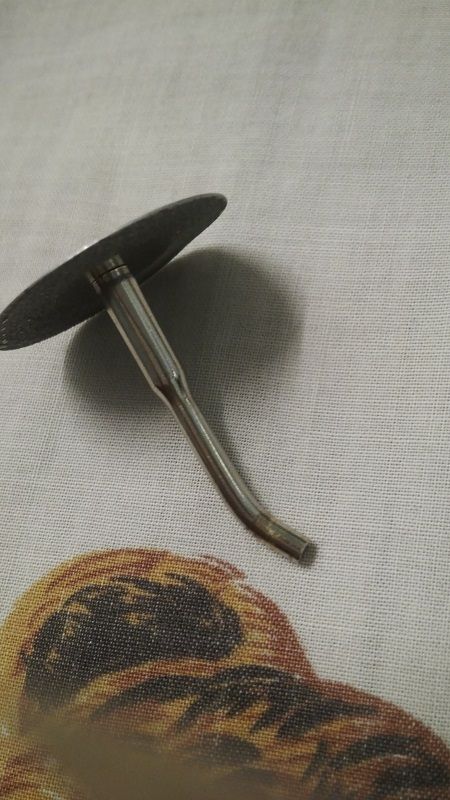

After torturing all my neighbours for a good hour or so, I destroyed the mandrel! Lucky neighbours!


Was stuck here until I got a new mandrel.

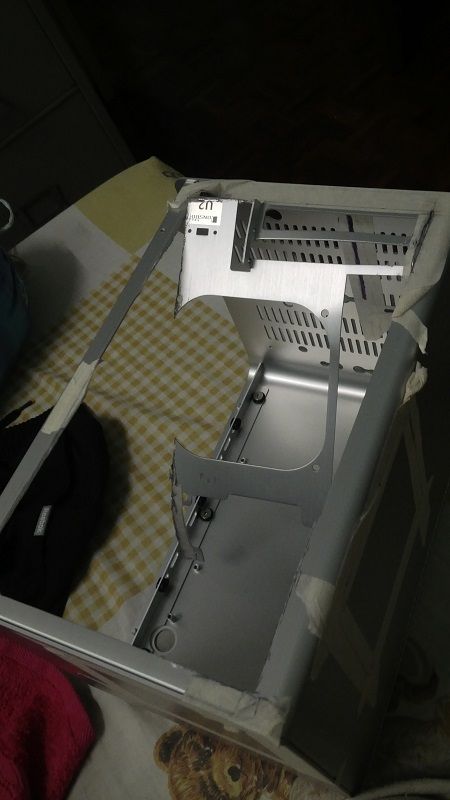

Next morning, work continues! I know it's not the best cut in the world but who cares? Project Ghetto remember?

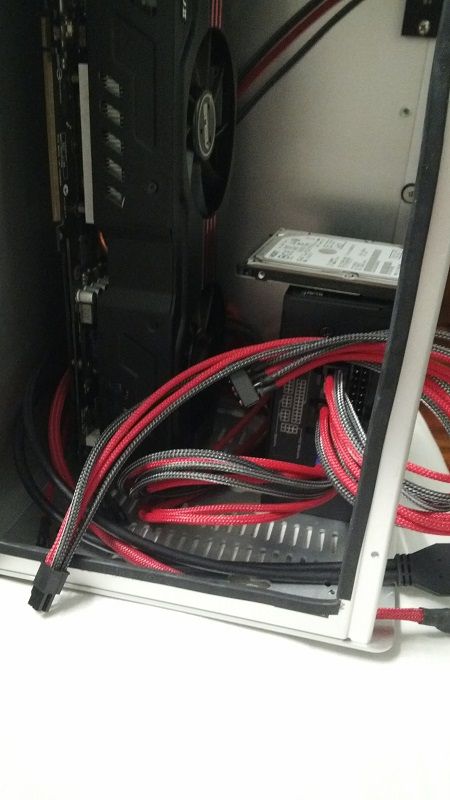

Bought a new PSU this morning and got right down to sleeving. Covered the ugly cuts with U-channel rubber.

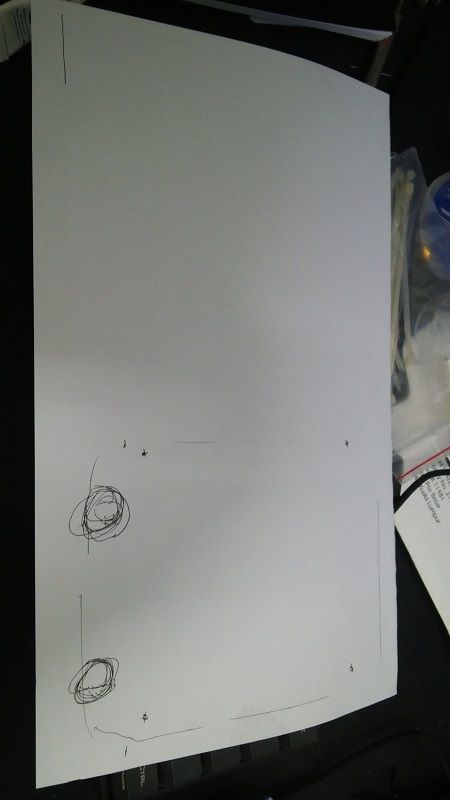

Teaser for where I'm going to mount the motherboard.


Will continue sleeving the 24 pin connector tomorrow and hopefully find some time to mod the cooler.
