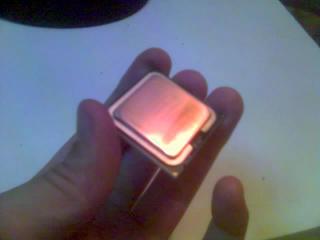

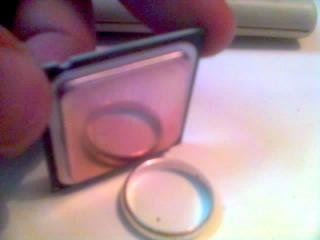

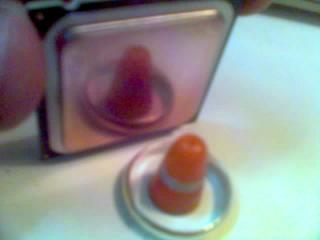

[attachmentid=152143]pix for yur eyes....

warranty WHAT warranty...

and yes it shaves about 4-5 celcius of ctock heatsink temps

mine is a week 26 E6400

1.325v at 3.27 and 1.37v at 3.4Ghz

dammn suck to hit 3.5 or 3.6 need about 1.55V

and i dun wanna do dat on stock cooler...

its 500grit then 800 grit the 1200 grit then 1500 grit the 2000 grit to get mirror finish (the niumber u look at behind of sand paper lah

and then autosol polish (gold series)

AND yes the heatsink on the CHIP is sunken to the middle...so poor contact at first with the stock intel HS....now on load about 65c max i tink

strangely if for E6400 owners using the x7 multiplier is more stable and at 468 x 2= 3.276Ghz... DDR936 at 4-4-3-3-5-5-19-0-10-10-4-7-5-5- can get 17.57 sec on super pi 1million. DDr800 ay 3-3-3-3-5-5-28-0-10-10-3-7-5-5- ultra tight
Using Memset 3.0 <----DONT be lazy google and download of course these only work on the D9gKX Mjoe ram at 512 x 2 at 2.2-2.3v sweet spot

on the gigabyte s3 mobo stock DDR v is 1.8 the +0.1 and up u do the math la i Put +0.4~+0.5

This post has been edited by hellokitty: Nov 8 2006, 12:56 PM


Attached thumbnail(s)

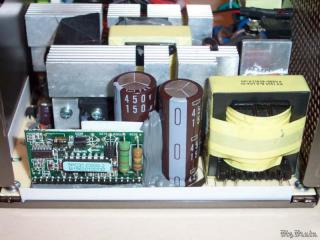

Yeh lai the skinny caps is your CoolerMaster iGreen 500W SLi CF ready.rated 120 ufarad and the fat caps is the 420 watts enlight meaning that doing what i do automatically voids yur warranty,...but hey life is short anyway....and de other thing is the volts to speed

Back during the 2.4C MO overclocking craze....Enlight 420 Watts was considered very Good and retailed for around rm195....Enlight and Chieftec and Antec were made by the same company last time....

High quality Caps insidethe PSU if memory serves me right when u open your PSU look for the two biggest fattest caps and read the Farad rating there....the enlight uses the 820 ufarad ones.....and is one heavy mother....24 pins are a marketing ploy to get you to dump your 20 pins....so unless you are using more than 2HDD and 2 opticals and 2 VGA in sli....no point getting a enermax.

if like me using 1 mobo/1proc/1hdd and 1 optical and running 2 fans off the mobo then no probs,...

sub history,...pentium2 233/intel mobo/32+32mb sdram ->celeron 1.7 ->Pentium 4 2.66B-->2.4C MO/Asus P4P800 deluxe/P4C800E/Adata Vitesta PC4000 512 x 2 -> actually did 3 bulks for it at low yat net and was selling at rm 590 at that time..->Athlon Barton 2500+/Abit NF7/512mb D43 BT lah DDR400-> sempron 2800/NV8/twinmos 512 DDr400 -> Opteron 144/Dfi Ultra D/512mb x 2 Gskill & Corsair TCCD-> Conroe 2/S3/DDR2 D9GKX 512 x 2 ( full circle,....)

and yes i always get the best bang for the buck.....and my wife does not like my hobby...

This post has been edited by hellokitty: Nov 8 2006, 02:06 PM

anyone knows how to remove north bridge and south bridge heatsink on the DS3 or S3,....same difference,...i already popped out the plastic screws,...but its still stuck on tighter than a 16 year old gals...a@@H@@e.....scared to RIP it up,....

and pls dont suggest haiedryer method,...

har har,...especially the ICH8R damm hard to rmove the gold thingy

thanx for the advice...and did you check of the pix on pg 123??....hows the lapping.....any comments

as far as i know ds3 and s3 has a vdroop problem

so set according to cpu-z eg,....set 1.343 in bios is 1.328 in cpu-z

rule of thumb ,...set 2 clicks higher than your desired voltaged in bios,..

meaning you want 1.325 then look 2 spaces up and select 1.343
