any Biostar TA690G / or any 690G mobo user review??Or 630A is better??

just 3.0ghz also ar??
thought can get more....
hehehe


same ar spec like me??sure??
what RAM do u use??
the picture u show kinda weird setting that u use...
1ghz?? better use standard clock...
i thing maybe heat of the proc..
try first lower the RAM frequency...OC only the proc..find the highest clock it can go....

and ur PSU is extream power....best if u use PURE or REAL power...

This post has been edited by sempronic: May 21 2007, 02:06 AM

tq sempronic,after lower the ram frequency
i can OC it..

Disable the Cool n Quiet function


-pWs-

erm, can pro here advice me more...
after Oc

i can go up to 2.4GHZ

but when go to 2.50Ghz
my pc cannot boot at all

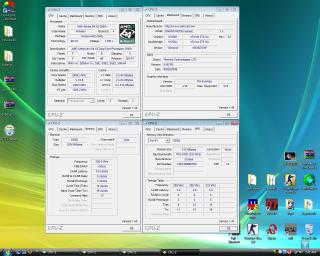

This post has been edited by lepo: May 21 2007, 02:47 AM


Attached thumbnail(s)

another brisbane user here...

paired wif asus m2a-vm n corsair value ram

ermm... any sifus here can help me wif OC? i'm havin trouble wif OCing wif my mobo..

i can't go anywhere further wif setting above 210mhz of CPU frequency.. if i put it more than that, the system won't start.. it will b blank..

lower down ur HT multipier to 3X or less..

try to increase the vcore/vdimm or change the command rate to 2T

Is it ur ram plug in in the 1st slot near to cpu? It is impossible for a brisbane to clock so low. Brisbane default vcore can clock quite high already.

Try to lower down ur ram divider if still experience problems, htlink multi as well.


-pWs-

yes.. i am..

my ram is now in 1st and 2nd slot in order 2 run dual channel.. if i put 1st n 3rd o 2nd n 4th, it will not b running in dual channel..

this is how my configuration mobo looks like in de bios.. plz advice

btw.. my maximum multiplier is onli 9.5x but i've juz found out from a hothardware forum has 13x..


the pic attached is mine... y is it so? is it bcz they r using a different processor?

sigh... plz pardon my noobness..

This post has been edited by mattchin: May 21 2007, 03:49 AM

u miss this one..
http://forum.lowyat.net/topic/316293/+2860#
and
http://forum.lowyat.net/topic/316293/+2880#

but i don't find cpu mul option..

Please read the FUNDAMENTALS OF OVERCLOCKING.

There are series of guides. I suggest that you read kmarc's guide.

This is my latest super pi after changing to my new rams...crucial ballistix pc5300 2gb kit, running at 2.1v (2.2 v is recommended voltage) and @ ddr1000

need a board that can go more than 2.1v lar haha

The problem is obvious, reduce the HT multiplier. Also, its a Windsor F2, which means beyond 2.4GHz you'll need to tweak around a bit.

Update..

wta:now im using 2xcorsair 512ddr2 667,if i combine with kingston 512ddr2 667
its is ok?



This post has been edited by lepo: May 21 2007, 11:47 AM


Attached thumbnail(s)

Nice results. The D9 on the Ballistix is really awesome man.

Can change any jumper to get more than 2.1V ?

jy14, treason's board does have a jumper that can straight jump to 2.4v but 2.4v maybe too much for certain ram.


So if he want to run 2.2v or 2.3v, vdimm mod is needed.

This post has been edited by allenultra: May 21 2007, 12:42 PM

1st of all, i'm getting X2 soon and my target would be 3600+ Brisbane core.

About mobo, i saw in the list that many of u guys using Biostar mobo. Is it really good? How's it it compare with MSI K9N Neo? In terms of OC-ability and support(driver).

And, is it enough to OC 3600+ to 2.5GHz using only stock cooler?

haha yah like allenultra said its either 2.1v or 2.4v ... cant understand y biostar did that..i bought the board last time thinking that the bios vdimm adjustment goes up to 2.3v...otherwise would have gone for dfi instead...

mfa333,

2.5ghz on stock cooler shouldnt b a problem for brisbane as it can do 2.5ghz at close to stock v core...

treason, try vdimm mod to go to 2.2v or 2.3v
Check rebels haven forum, a pair of grabbers and resister will do
