AMDŽ Socket-AM2 Overclocking thread, discuss our setup/overclocking issues
|
|
 Feb 20 2007, 01:30 AM
|

Senior Member
2,323 posts Joined: Apr 2006 From: Somewhere I Belong
|
QUOTE(nonamekid @ Feb 20 2007, 01:04 AM) oc 2.4 should use wat voltage? it depends...sometimes u need to set a higher voltage or sometimes lower.. try first lar..then if it look not too stable, pump up summore..little by little... dun increase it drastically..afraid it might be overvoltage.. |
|
|
|
|
|
Feb 20 2007, 02:21 AM
|
Senior Member
1,560 posts Joined: May 2005 From: Penang
|
2.4 normally for good cpu is no need up vcore at all
|
|
|
Feb 20 2007, 11:19 AM
|

VIP
15,903 posts Joined: Jan 2003 From: Miri
|
QUOTE(nonamekid @ Feb 19 2007, 06:38 PM) any biostar 550 user noe how to oc ram?i onli can oc processor..ram still remain at 333... the ram speed is dependent on the cpu clockspeed. whenever you raise the cpu clockspeed, the ram will overclocked as well. i take that you know nuts about AMD... you cannot overclock ram independently on AMD.333 is just a memory divider. |
|
|
Feb 20 2007, 11:33 AM
|
Junior Member
322 posts Joined: Dec 2004 From: nowhere
|

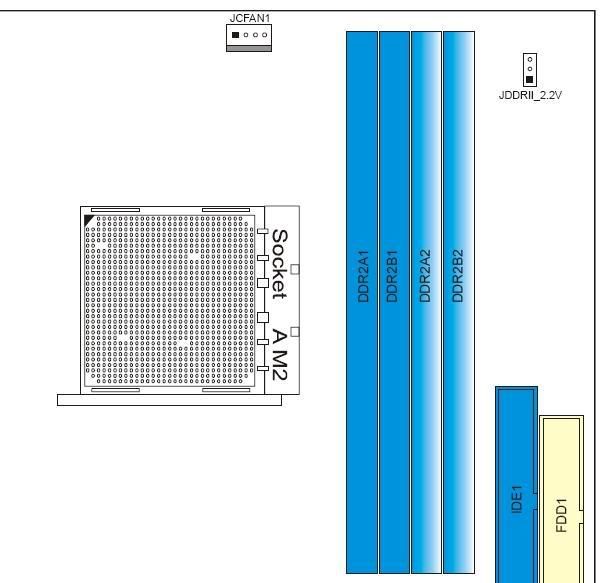

QUOTE(pakau @ Feb 18 2007, 05:33 PM) 2.2v vdimm setting is via jumper rite? haha.. found it.. thanks mate for the info.. but right now my proc holding me to reach DDR1000.. jumper at ddr2 slot » Click to show Spoiler - click again to hide... «  |
|
|
Feb 20 2007, 12:04 PM
|
Senior Member
6,035 posts Joined: Jan 2003 From: Penang
|
QUOTE(cyberloner @ Feb 20 2007, 12:21 AM) i always suggest abit for stable oc ... i also never heard bio star.... =X alrite..hope abit boards back to the old daysmaybe new champ in oc line i dunno lar biostar are good ocers n cheap  |
|
|
Feb 20 2007, 12:28 PM
|
Senior Member
3,544 posts Joined: Jan 2003 From: United States of Cybertron
|
QUOTE(kalakatu @ Feb 14 2007, 07:47 PM) i got a question guyz..with 2.5ghz 1.488 vcore and ddr1000 2.1vdimm,i can say that my rig is quite stable even not doing the prime95 or sp2004(becoz no time), considering that no bsod or restart/hang/crash when in full load.. Bro..have u try to lower the vcore??it's works for me (at least for now).tested in 2 days.Before this i'm using 1.45 to get 2.5G but now i'm using 1.425v.Orthos prime for 2 hours ++.So far so goodbut sometimes(not everytime) it turned out to be cold/warm boot when i switch on my pc..example when i switch on my pc on the morning it will shows blank screen on the monitor..but this situation didnt appear when i restart my pc..only when boot after shut down.. can help me?  |
|
|
|
|
|
Feb 20 2007, 01:28 PM
|
Senior Member
947 posts Joined: Nov 2005 From: Penang
|
QUOTE(soulfly @ Feb 19 2007, 07:58 PM) Newbie question please ask in newbie guide threads (fundamental of overclocking, ddr2 discussions, am2 discussions, etc) the thing i can't get is the timings...the bios requires me to set everything about the timings... not oni the cl,rcd,rp,ras,trc... it requires a lot of stuffs... so i would like to ask help from those ocer of t6100 am2... |
|
|
Feb 20 2007, 04:35 PM
|
|
Senior Member
2,323 posts Joined: Apr 2006 From: Somewhere I Belong
|
QUOTE(sjn hassan @ Feb 20 2007, 12:28 PM) Bro..have u try to lower the vcore??it's works for me (at least for now).tested in 2 days.Before this i'm using 1.45 to get 2.5G but now i'm using 1.425v.Orthos prime for 2 hours ++.So far so good if i lower the vcore, it wont boot or it will show bsod when bootscreen appear..  |
|
|
Feb 20 2007, 10:13 PM
|
Senior Member
2,851 posts Joined: Jun 2006
|
QUOTE(kalakatu @ Feb 20 2007, 04:35 PM) if i lower the vcore, it wont boot or it will show bsod when bootscreen appear.. I think you may have hit the limit for your o/c. Last time I try to clock higher(AM2 3500+ @ 2.8) it can boot and run prime, but when i switch off and on again it won't boot also. |
|
|
Feb 21 2007, 02:07 AM
|
|
Senior Member
1,347 posts Joined: Jan 2003
|
i think thats what it call as cold boot.
i have this problem now......not sure why it happen though.. just flash to abit latest bios..gonna see what happen.but i doubt it gonna solve the cold boot issue. |
|
|
Feb 21 2007, 02:16 AM
|
Senior Member
9,027 posts Joined: Jan 2003 From: Ipoh
|
QUOTE(zamree7 @ Feb 20 2007, 11:33 AM) haha.. found it.. thanks mate for the info.. but right now my proc holding me to reach DDR1000.. lower the CPU multiplier, then raise the ddr2 speed.then proc won't hold you back anymore. |
|
|
Feb 21 2007, 02:23 AM
|
|
Senior Member
9,027 posts Joined: Jan 2003 From: Ipoh
|
QUOTE tcl = 5 trcd = 5 trp = 5 tras = 15 cpc = 2 trrp = 3 AsyncLat = 8/6 while 8 is for stability trc = 13 key memory timing to run at high HTT twr = 5 trwt = 5 twtr = 3 tref = 3.9/7.8 read DQS skew = AUTO read delay from Rx FIFO = 2.5 DRAM drive strength option DRAM driver weak mode = normal the rest according to order from top to bottom set 1.5 1.5 1.5 1.0 1.0 1.0 Dram bank Int = Enabled DQS Training = Skip DQS the rest according to order from top to bottom set Enable per Channel Disable Enable FC Disable Make sure to disable CnQ as well as set multiplier option manually as well. Spread spectrum must be disabled as well as LDT upstream/downstream from 16x to 8x, NB ---->HTT set from 4x to 3x. Try this. I get it from PcCrazy. Working nicely on my tf6100-am2. You only get these timing options available with the 505 or 505modded bios. Go get one if you are not using either of them. RAM divider kinda low, u can try ddr2-533 instead if you are using ddr2-667 . Or just use ddr2-667 and pump the vdimm to 2.2v |
|
|
Feb 21 2007, 09:59 AM
|
|
Senior Member
3,544 posts Joined: Jan 2003 From: United States of Cybertron
|
QUOTE(byfc2010 @ Feb 19 2007, 11:29 AM) [attachmentid=195640] set the ram to higher than 400.let's start with 533 1st.For the timing just set to AUTO.After u get the highest speed for ram.then we'll play with the timing this is my spec... i am not familiar wif this mobo's bios... can anyone teach me how to oc the ram? i've oc my proc to 2500Mhz...  |
|
|
|
|
|
Feb 21 2007, 11:53 PM
|
|
Senior Member
1,347 posts Joined: Jan 2003
|
guys,
whats the best batch to oc for 3600+ or 3800+? i think mine is really sucks |
|
|
Feb 22 2007, 09:28 AM
|
Senior Member
683 posts Joined: Jun 2006 From: serdang/selangor
|
guys..i'm going to buy infinity 570Ultra..
any last word from u guys.. i'm still hessitate nie..  |
|
|
Feb 22 2007, 09:40 AM
|
Senior Member
8,753 posts Joined: Jan 2003
|
go for nf590 la..
|
|
|
Feb 22 2007, 10:01 AM
|
Senior Member
961 posts Joined: Jan 2003 From: Cyberjaya
|
QUOTE(mr_habuk @ Feb 22 2007, 09:28 AM) guys..i'm going to buy infinity 570Ultra.. No hesitation! Go just buy! any last word from u guys.. i'm still hessitate nie..  |
|
|
Feb 22 2007, 10:15 AM
|
|
Senior Member
1,347 posts Joined: Jan 2003
|
hehhe beli je...anyway its a nice board..
|
|
|
Feb 22 2007, 11:11 AM
|
|
Senior Member
683 posts Joined: Jun 2006 From: serdang/selangor
|
QUOTE(8tvt @ Feb 22 2007, 09:40 AM) go for nf590 la.. nf590...  but no money la..  QUOTE(duarnt @ Feb 22 2007, 10:01 AM) No hesitation! Go just buy! eh..abg duarnt edi bought 1 ka??so how's it??? much2 better than M2N-E..or better only..?? QUOTE(CV6149 @ Feb 22 2007, 10:15 AM) hehhe beli je...anyway its a nice board.. yeah..that what i'm thinking..but cannot find any review la... |
|
|
Feb 22 2007, 12:10 PM
|
|
Junior Member
322 posts Joined: Dec 2004 From: nowhere
|
QUOTE(allenultra @ Feb 21 2007, 02:16 AM) lower the CPU multiplier, then raise the ddr2 speed. actually i tried this before..my ram is DDR667 using biostar Tforce 570U..the thing is my divider is max till DDR667.. then proc won't hold you back anymore. I've set the maxclock to DDR800 but nothing happen.. its take DDR667 as the max speed.. Dunno whether this is a bios problem or its just the mobo set the max according to my ram spec(FYI i can set my ram to lower divider DDR533) ..  |
|
