amd optimizer didn't solve the dually issue?

nice.. try to push more..
set CAS# latency to 4

CL = 4
tRCD = 4
tRP = 4
tRAS = 12 or 11
tRC = 16
CR = 1T

pump also vcore...

dont be suprise... i've tried mine can do well on 240 with 1.35..
250 above starting to require >1.45 and even.. 1.55...
so good exercise to increase vcore step by step to find optimum vcore..

why not use 1T CR..

when u do super PI the timing reduce slightly...
thus perform the execution faster...

ye? already got biostar 590? how much u bougth it n where?
i'm hunting fatality right now... maybe can change my mind if the budget is right...

share ur setting..
set htt 4x and ram @ 533 first..
cpu 1.375..

glance the pic.. i think u set 5x.. 220x5 = ~1100 should below 1000
4x is enough.. i can hike till 250 using it.. 225x4= ~908

set ur ram to 533 or 667 first.. and 1T CR..

with that ram.. u can hit 270fsb easily..
i'm trying to get after market cooler right now..
want to see wether can push more on M2N-E.. before migrating to nf590..

anyone knows abit fatality price? i saw last 2 weeks @ lyp .. Rm590.. but look online Rm690.. either misstyped or not updated.. can confirm on this?

i'm using KVR.. might different though...
u can always refer this..



some setting i've change where necessary.. but not update here..
as your ram can go further.. it's better lowering it down and try push your cpu first.. so u will know ur cpu limit..

i've tried untill 256 but the load temp reach 67C... even the core reach 62c...
i'm considering better cooler before attempt further.. even 251fsb which i'm using right now hit 62 and core <60 when load...

try set 533... new setting as my sig..
u may need additional vCpu.. but remember to monitor ur temp...

This post has been edited by 8tvt: Jan 29 2007, 04:54 PM

new setting updated...


mari buat kerja giler dgn stock cooler...

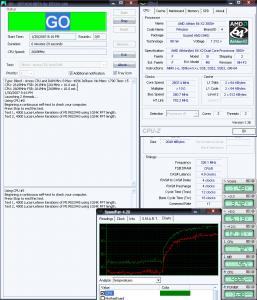

Attached thumbnail(s)

i knew.. all the setting i'd ran the prime at least 3 hours...
only above 260fsb not fully load coz reaching 70c...
with stock cooler it's just to commit suicide...
i still love this proc u know..

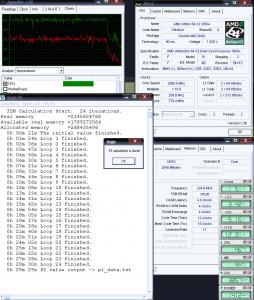

all of u really want to see double super PI? there u go..
and prime reaching 72C is no no no...

atleast it's proven that AMD X2 can still work up to 60-70C...
wondering when can get the better cooler...

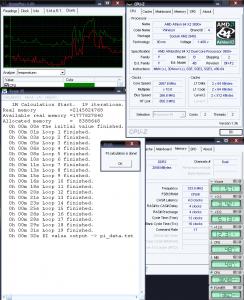

Attached thumbnail(s)

i faced it on default bios... latest bios should help...
thankfully asus update the bios frequently..

mean only support 800?

go for nf590 la..

u cannot change the divider.. the best u can do with ur ram.. just tight the timing..

or u mean.. cannot set 800 divider when doing 250fsb?
maybe something wrong with the bios or the board itself limit it..

guys..
try to raise the vdimm... and use 2T CR first.. loose the timing a little bit..
sometimes dual channel also give some prob...
is it becoz of nf570?

but i think 667 ddr reaching 1000 on 250fsb quite high..

i've tried 800 divider works fine on 200fsb.. but need more vdimm, maybe on 250fsb require more.. which i cannot try coz my board limit it..

thinking to grab nf590 instead..

that's why i really think.. got something missing on nf570..
i just can't elaborate more.. coz mem controller on the cpu itself..
either bios or the mobo...

i read somewhere.. other brand that using nf570 give problem with 800 divider..
maybe here http://www.hexus.net/content/item.php?item=6150&page=5

and what about cpu voltage.. how much u set in bios?
thinking to get the same board as urs... or fatality..
which one better?
